Plan 80938PM
Contemporary 3-Bed House Plan with Second Level Master
Heated S.F.
2,574
Beds
3
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • Contemporary windows and a large, glass, front door provide a light-filled interior in this modern, 3-bedroom, house plan. Straight lines, concrete, and stone elements combine to provide a fresh exterior.
  • The living room greets you upon entering, and leads to the dining room, adjacent from the kitchen.
  • An oversized island offers seating for six for casual meals and plenty of workspace and storage. A centrally located walk-in pantry adds convenience. Sliding doors off the kitchen invite you to enjoy the outdoors.
  • Your master bedroom awaits upstairs through french doors, and includes dual closets and a 5-fixture, master bathroom.
  • Two additional bedrooms share a Jack-and-Jill bathroom on the second level. The laundry room neighbors the master bedroom for ease of use.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary 3-Bed House Plan with Second Level Master

  • 2,574

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

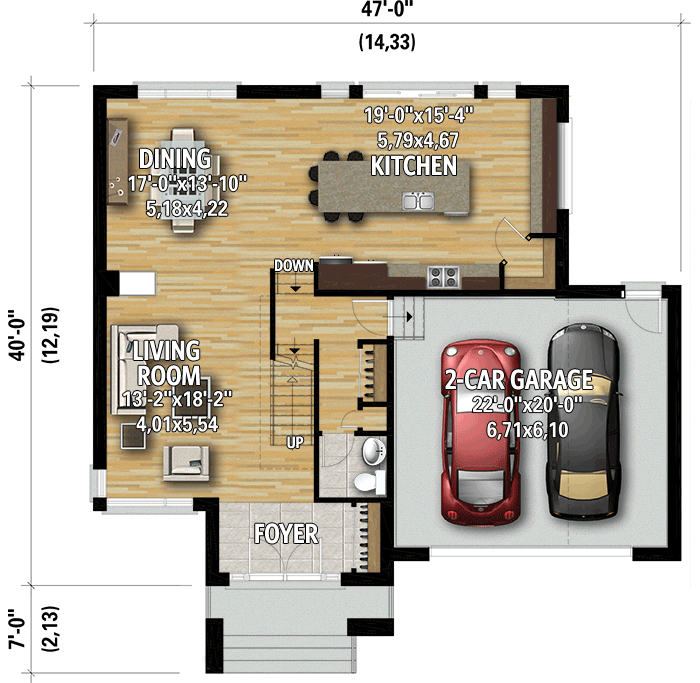

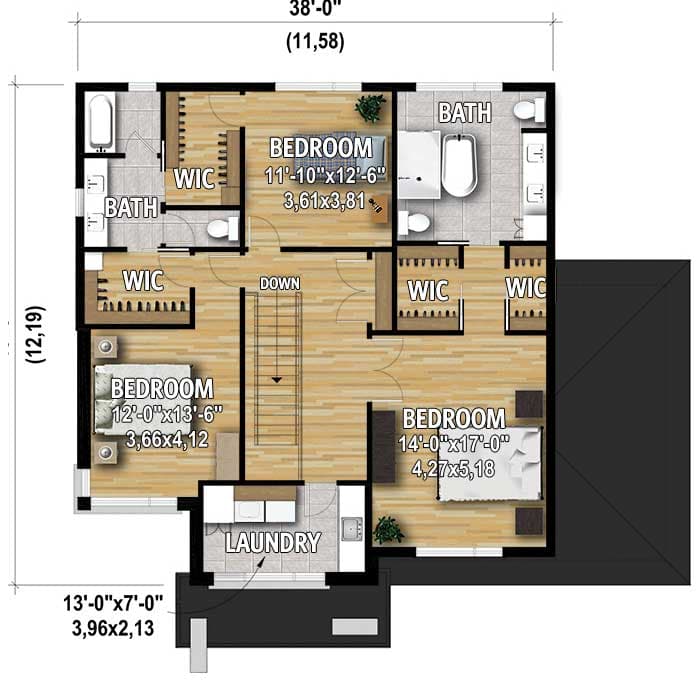

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,574 sq. ft.
  • 1st Floor: 1,142 sq. ft.
  • 2nd Floor: 1,432 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 494 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
