Contemporary 3400 Square Foot Home Plan with Loft Overlook
Heated S.F.
3,433
Beds
3-5
Baths
3
Stories
2
Cars
2
Photos
What's Included
Plan Details
  • This 3433 square foot contemporary home plan gives you two-story living any anywhere from three to five bedrooms, depending on how you use the main floor flex room and the upstairs bonus room.
  • The back of the home opens to the outside from the great room and dining room while the kitchen has rear-facing views from the windows set above the double sink.
  • A loft at the top of the stairs looks down on the entry below and has bedrooms with walk-in closets in each corner.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

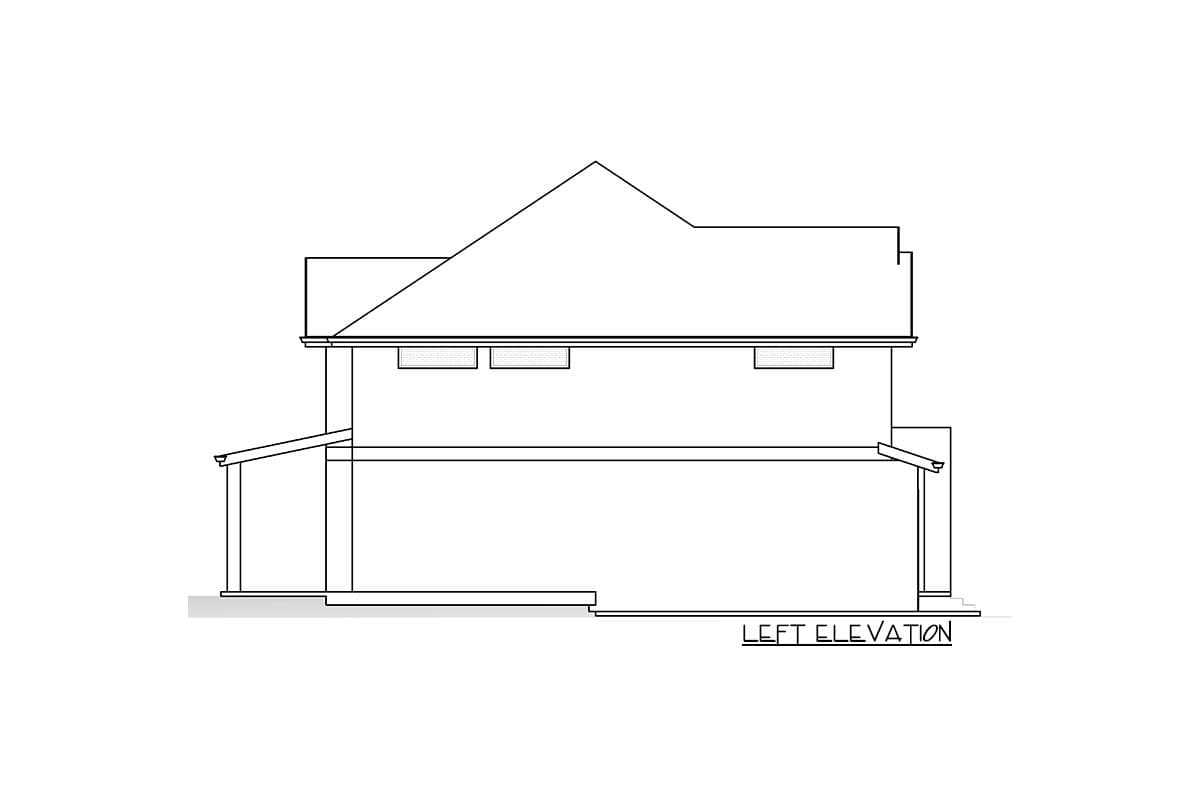

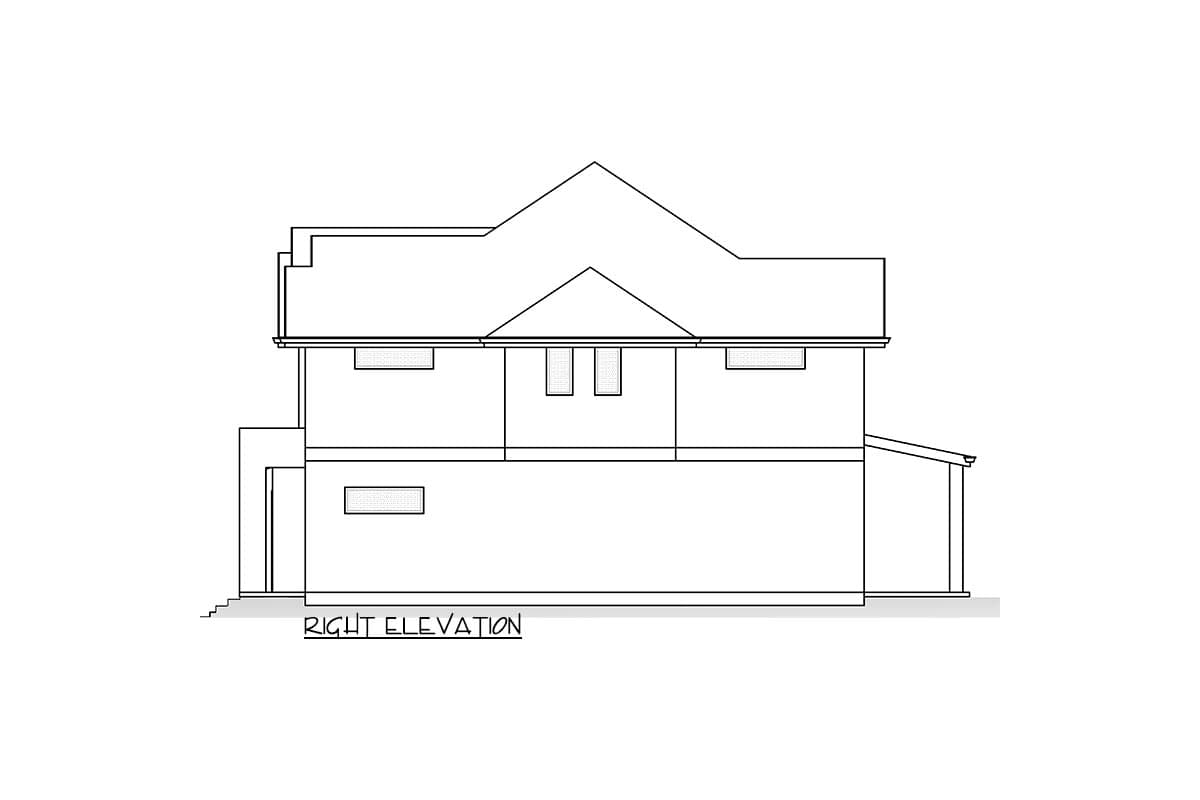

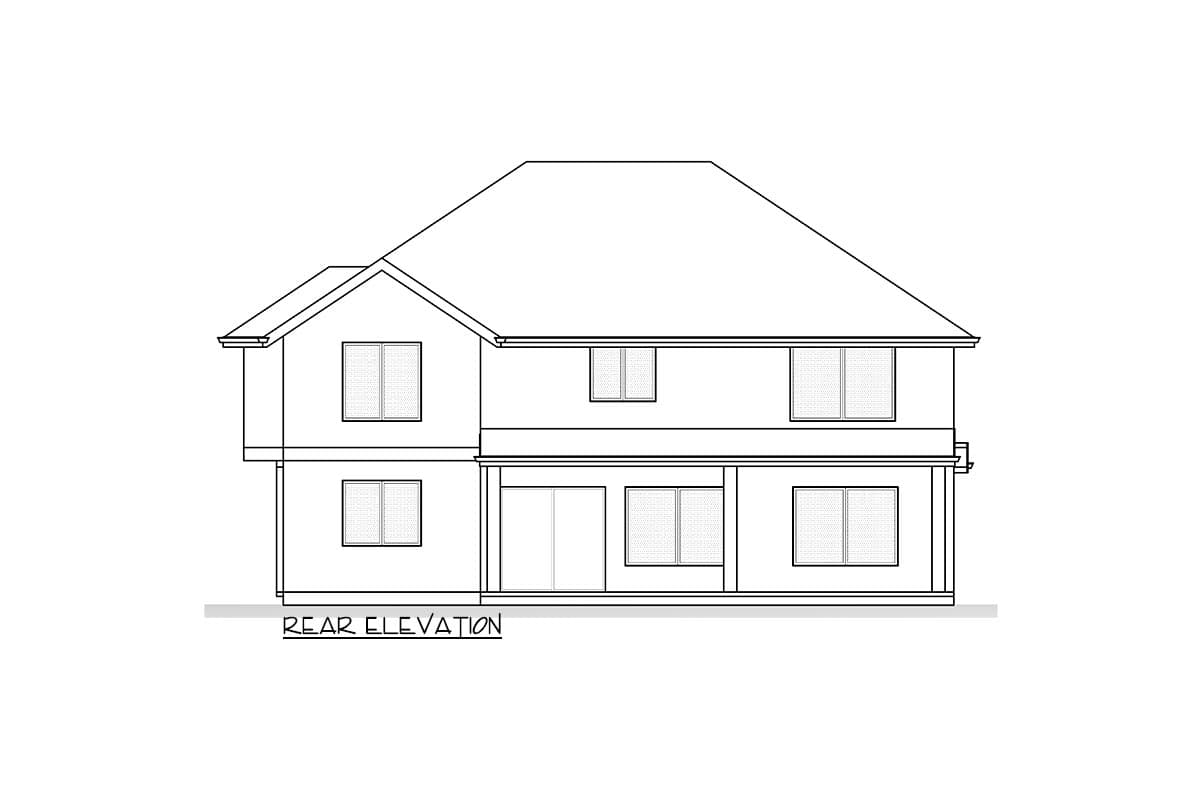

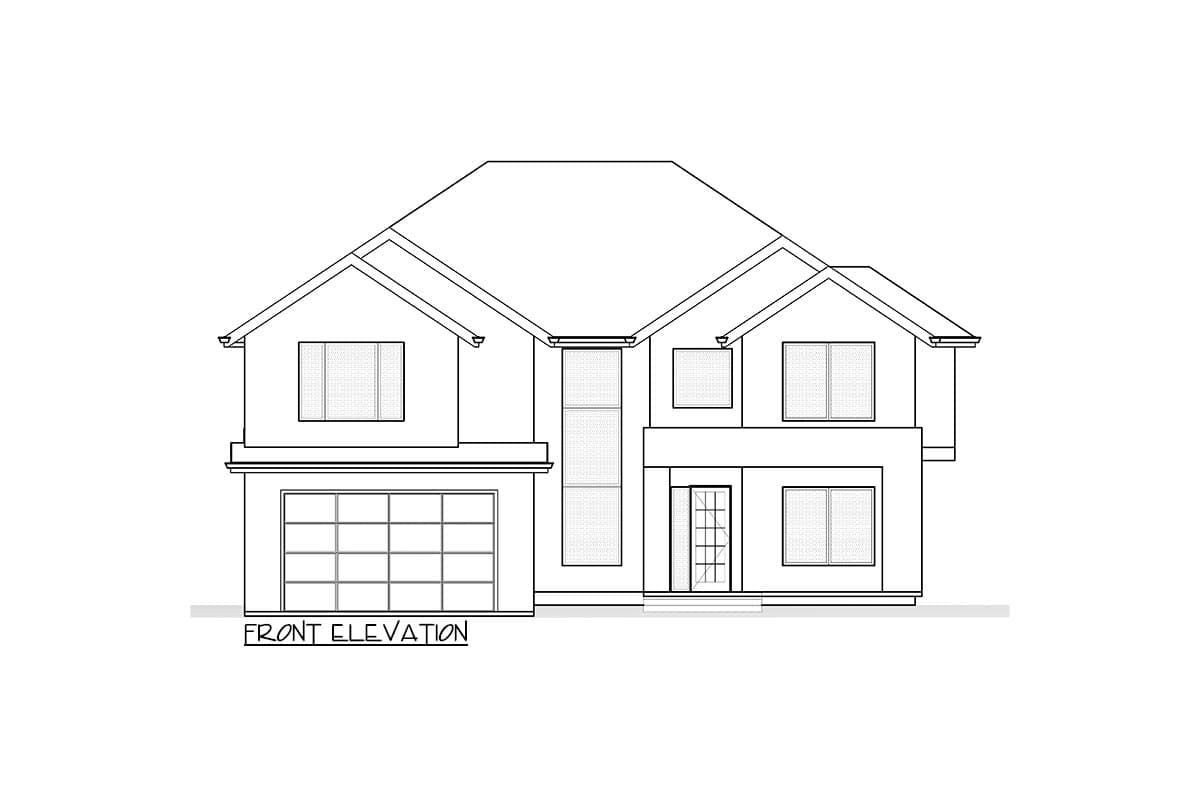

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary 3400 Square Foot Home Plan with Loft Overlook

  • 3,433

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

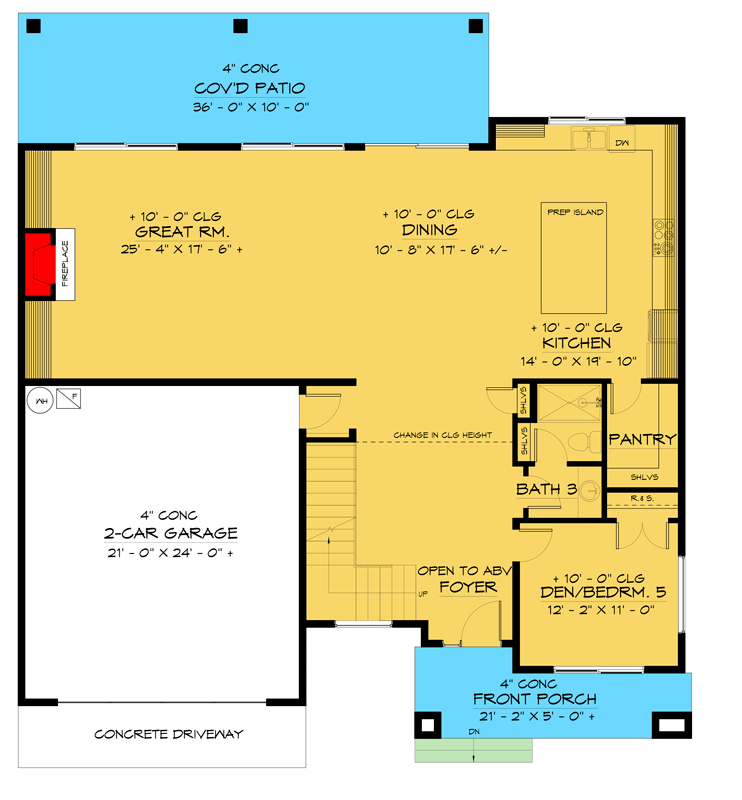

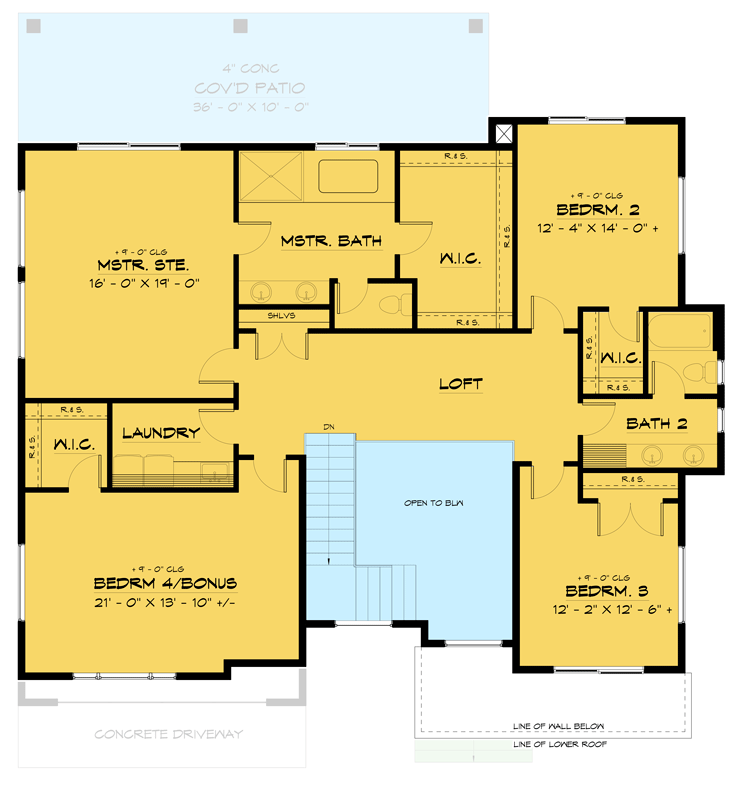

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,433 sq. ft.
  • 1st Floor: 1,576 sq. ft.
  • 2nd Floor: 1,857 sq. ft.

Dimensions

  • Width: 51' 0"
  • Depth: 45' 0"
  • Max ridge height: 34' 3"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
