Plan 80941PM Contemporary 4-Bed Home Plan with Second-Level Master

Contemporary 4-Bed Home Plan with Second-Level Master

Plan 80941PM

  • 3,044

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone and concrete provide a distinguished exterior on this 4-bedroom, contemporary house plan.
  • The common, shared space on the main level is comprised of the kitchen, dining room, and living room. An oversized island in the kitchen provides seating for informal meals and sits across from the walk-in pantry and a wine closet.
  • Just off the foyer, a secluded study offers a space to retreat to for quiet and solitude.
  • Upstairs, discover the master bedroom, which includes a large window for natural light, a walk-in closet, and a 5-fixture, master bathroom. Three additional bedrooms on the second level share a 5-fixture bathroom.
  • A back, covered porch sits just off the dining room, and the 2-car, garage entry leads to a landing with a coat closet, adjacent the laundry room.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**


Floor Plan

Plan details



Contemporary 4-Bed Home Plan with Second-Level Master

  • 3,044

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,535
  • 8 Sets $1,580
  • PDF - Single-Build $1,620
  • CAD - Single-Build $2,195
  • View all purchase option online

About This Plan

  • Stone and concrete provide a distinguished exterior on this 4-bedroom, contemporary house plan.
  • The common, shared space on the main level is comprised of the kitchen, dining room, and living room. An oversized island in the kitchen provides seating for informal meals and sits across from the walk-in pantry and a wine closet.
  • Just off the foyer, a secluded study offers a space to retreat to for quiet and solitude.
  • Upstairs, discover the master bedroom, which includes a large window for natural light, a walk-in closet, and a 5-fixture, master bathroom. Three additional bedrooms on the second level share a 5-fixture bathroom.
  • A back, covered porch sits just off the dining room, and the 2-car, garage entry leads to a landing with a coat closet, adjacent the laundry room.

Floor Plans

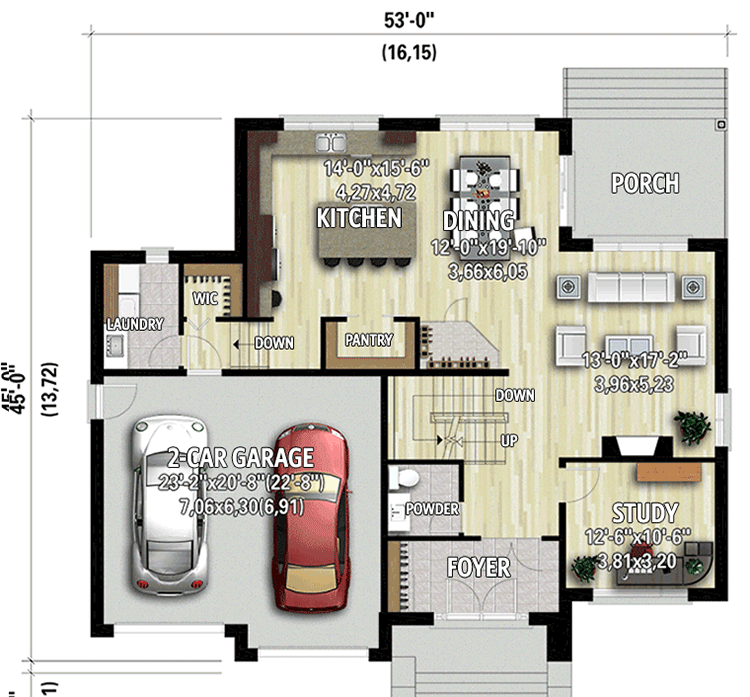

  • Main Level

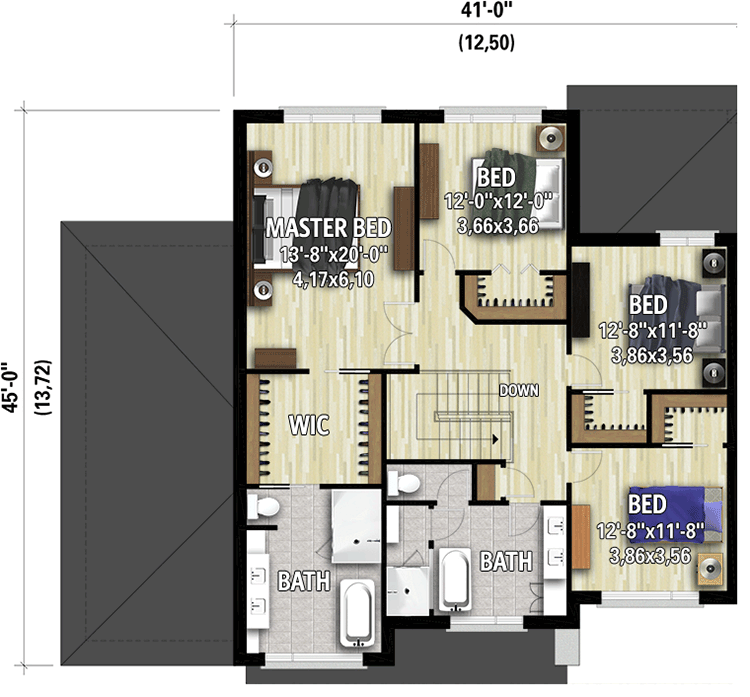

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,044 sq. ft.
  • 1st Floor: 1,439 sq. ft.
  • 2nd Floor: 1,605 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 45' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
