Contemporary 5-Bed House Plan with Two-Story Great Room and Two Lower Level Saunas
Heated S.F.
4,720
Beds
5
Baths
4
Stories
2-3
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

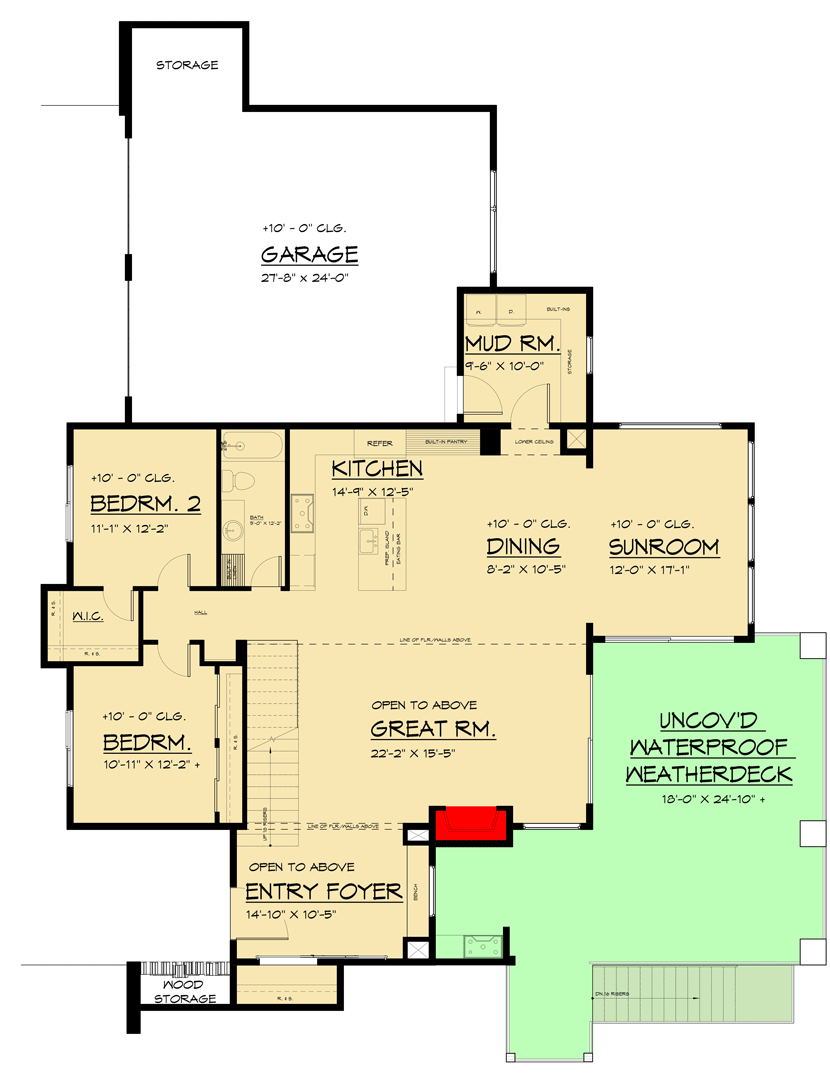

Contemporary 5-Bed House Plan with Two-Story Great Room and Two Lower Level Saunas - 666230RAF floor plan - Main Level
2nd Floor
Reverse Floor Plan
Contemporary 5-Bed House Plan with Two-Story Great Room and Two Lower Level Saunas - 666230RAF floor plan - 2nd Floor
Finished Lower Level
Reverse Floor Plan

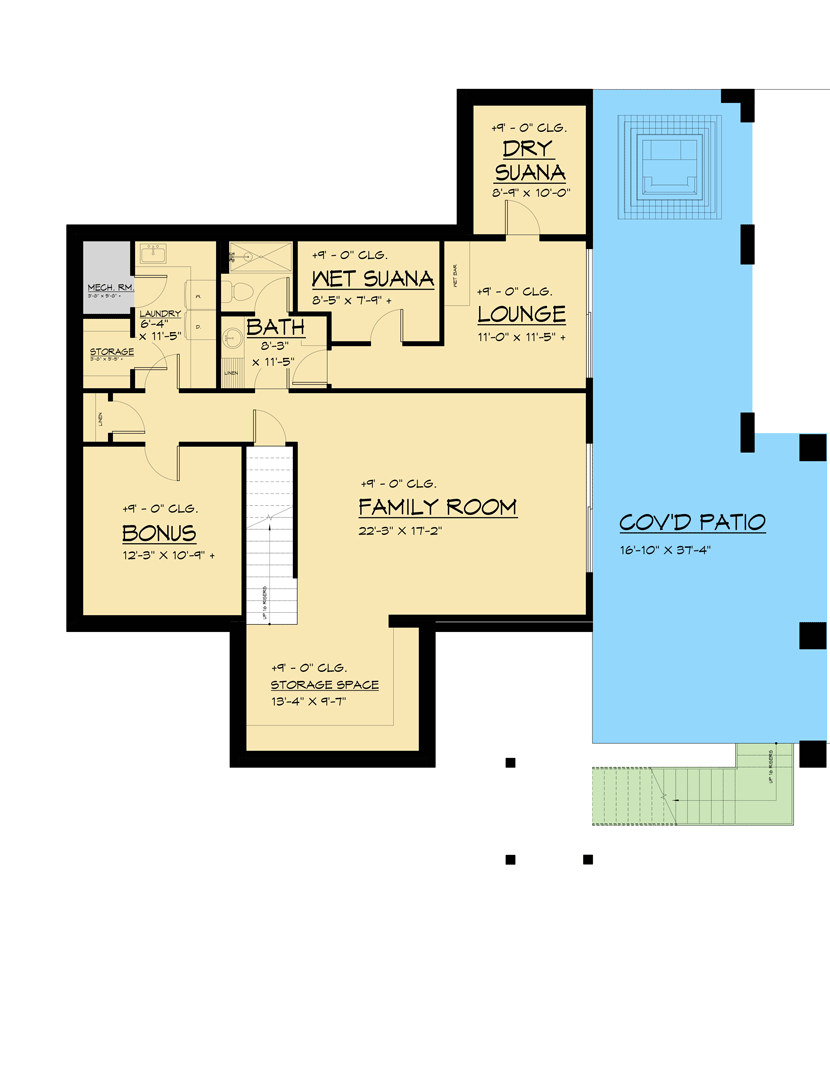

Contemporary 5-Bed House Plan with Two-Story Great Room and Two Lower Level Saunas - 666230RAF floor plan - Finished Lower Level
Plan Details
  • This 4,720 square foot house plan gives you 5 beds, 4 baths and a 2-Car garage (730 square feet) and is ideal for rear-sloping lots with a finished walkout basement and outdoor spaces oriented to the back.
  • Step inside you are greeted by a 2-story foyer that opens to the 2-story great room to your left. The great room is open to the kitchen, dining room, and sunroom and has sliding-door access to the open deck.
  • Two bedrooms on this floor share a bath as do two more upstairs. The second floor master suite has its own private outdoor balcony. A large loft with sliding door access to a covered deck completes the floor.
  • The finished lower level gives you a family room, a bonus space (factored into the total living area) and a wet and dry sauna. There is also a dedicated laundry area.
  • A covered patio is accessible from the family room and the lounge area outside the two saunas.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary 5-Bed House Plan with Two-Story Great Room and Two Lower Level Saunas

  • 4,720

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2-3

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,720 sq. ft.
  • Lower Level: 1,436 sq. ft.
  • 1st Floor: 1,740 sq. ft.
  • 2nd Floor: 1,544 sq. ft.

Dimensions

  • Width: 76' 3"
  • Depth: 55' 0"
  • Max ridge height: 40' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 730 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2.5 on 12
  • Framing Type: Truss
