Plan 666310RAF

Contemporary 5-Bedroom House Plan with 3-Car Garage and Two-Story Great Room

Heated S.F.
4,788
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 666310RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666310RAF

M-F 9am-5pm EST |

1-203-761-8500

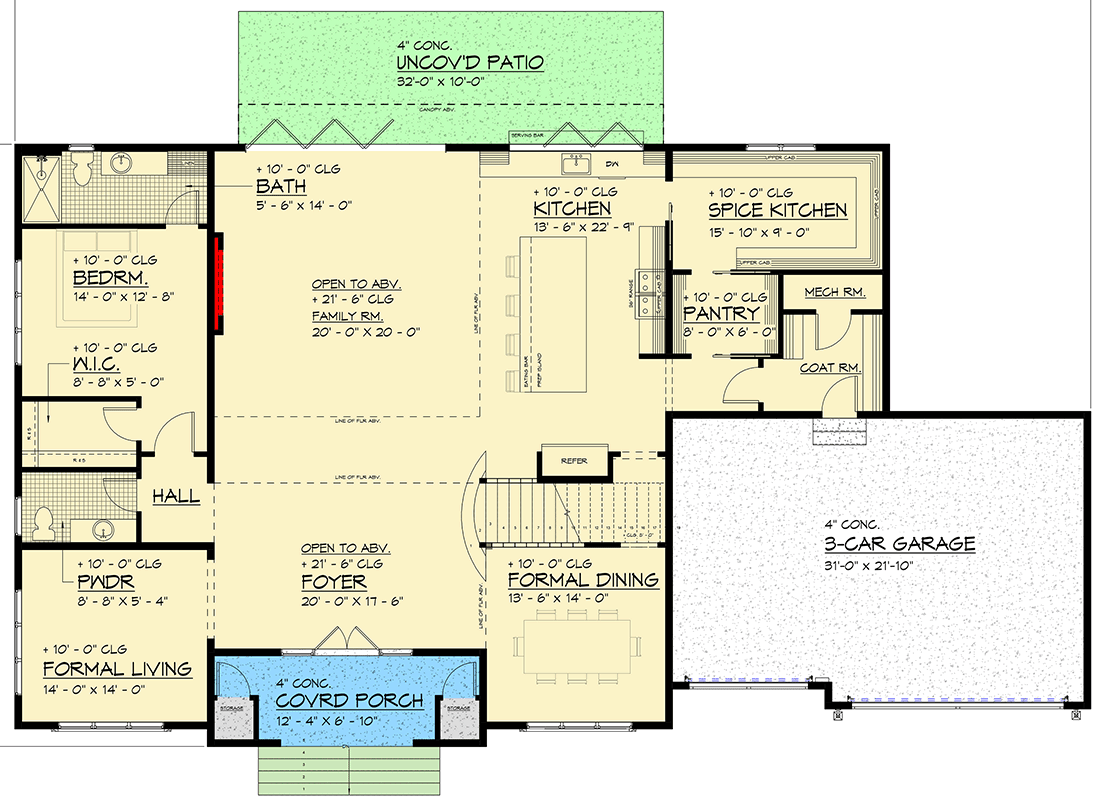

Main Level

Plan 666310RAF: Contemporary 5-Bedroom House Plan with 3-Car Garage and Two-Story Great Room - Floor Plan - Main Level - Contemporary

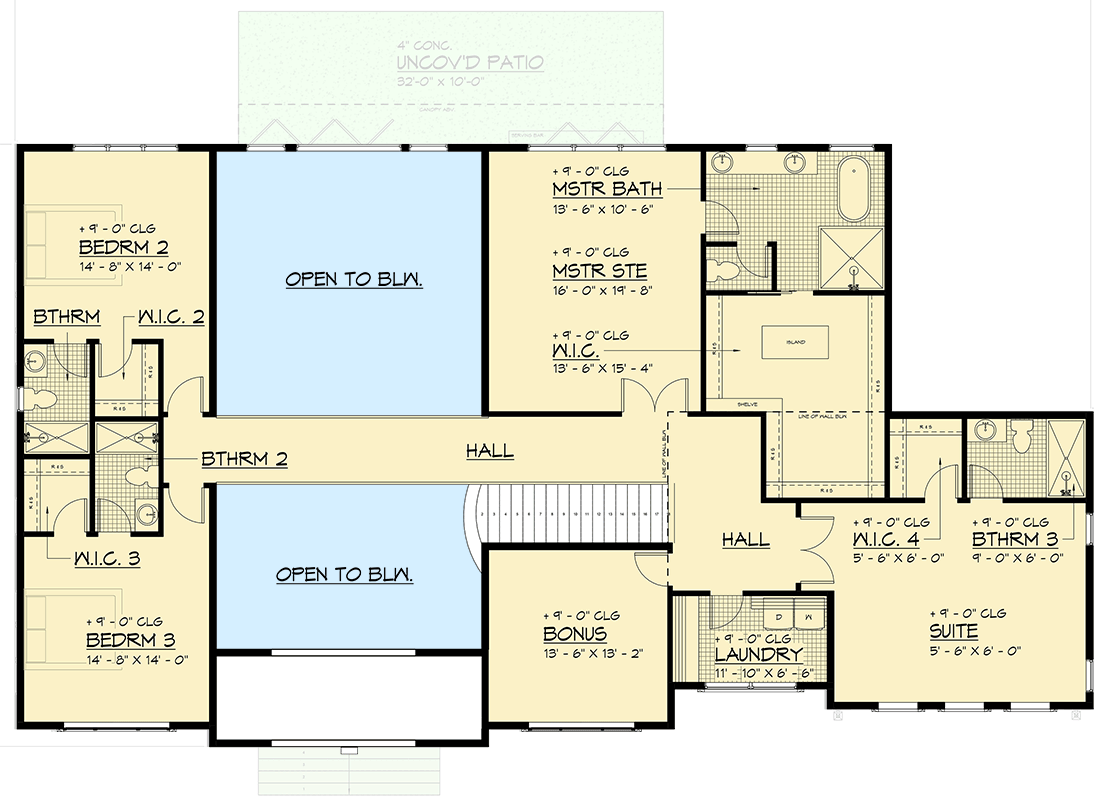

2nd Floor

Plan 666310RAF: Contemporary 5-Bedroom House Plan with 3-Car Garage and Two-Story Great Room - Floor Plan - 2nd Floor - Contemporary

Plan Details

  • This sophisticated Contemporary house plan offers 4,788 square feet of luxurious living space, featuring 5 bedrooms, 5 full bathrooms, 1 half bathroom, and an attached 679 square foot, 3-car garage with front entry.
  • Step into a grand foyer with soaring 10-foot ceilings on the first floor, immediately revealing an open-concept layout that effortlessly blends elegance and functionality, with a dedicated formal dining area and a versatile flex room perfect for a home office or quiet study.
  • The heart of the home unfolds into a magnificent two-story great room, creating a dramatic focal point while seamlessly connecting to the gourmet kitchen, complete with a convenient butler's walk-in pantry, ideal for culinary exploration and social gatherings.
  • The private master suite is thoughtfully placed upstairs, offering an elevated retreat, while the remaining bedrooms are strategically split throughout the home, ensuring comfort and privacy for all residents.
  • Beyond the essential living areas, this plan includes a dedicated game or recreation room, perfect for lively entertainment, alongside a playful playroom designed for younger family members.
  • Enjoy the serene outdoors on the welcoming 154 square foot front porch, or retreat to the expansive 320 square foot rear porch, offering ample space for morning coffee or evening relaxation.
  • An additional bonus room above the garage can provide flexible space for a home gym, media room, or extra guest quarters, allowing for personalized expansion as your needs evolve.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,788 sq. ft.

1st Floor

2,407 sq. ft.

2nd Floor

2,381 sq. ft.

Porch, Front

154 sq. ft.

Porch, Rear

320 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 0"

Depth

45' 4"

Max Ridge Height

30' 9"

Garage

Type

Standard, Attached

Area

679 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Finished Bonus Room

Flex Room

Formal Dining

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Playroom

Two Story Great Room

Walk-in Pantry
