Plan 666312RAF

Contemporary 5-Bedroom House Plan with Expansive Deck and Home Office

Heated S.F.
3,902
Beds
5
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 666312RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666312RAF

M-F 9am-5pm EST |

1-203-761-8500

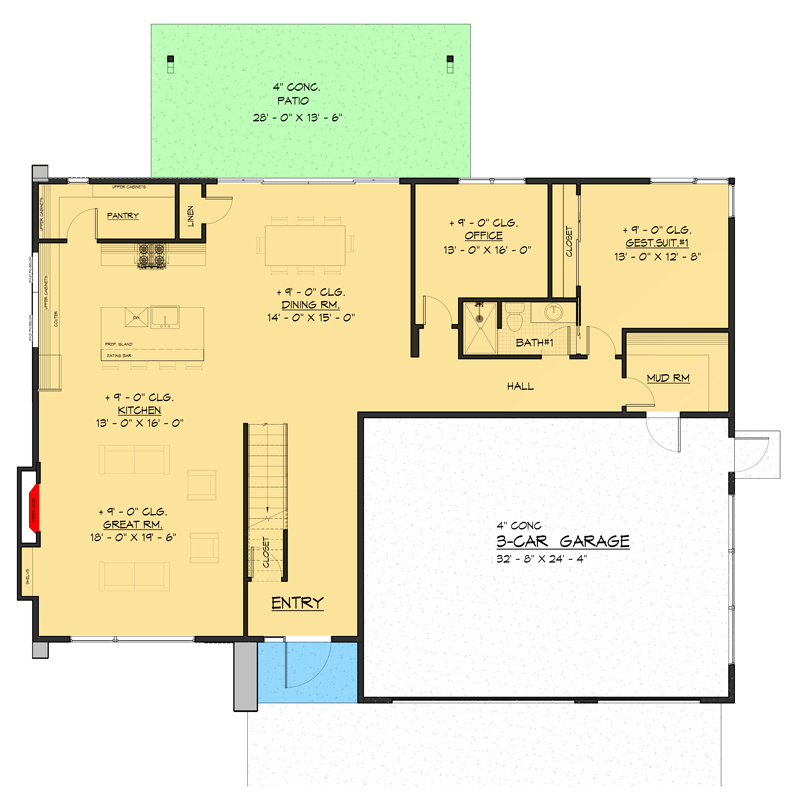

Main Level

Plan 666312RAF: Contemporary 5-Bedroom House Plan with Expansive Deck and Home Office - Floor Plan - Main Level - Contemporary, Modern

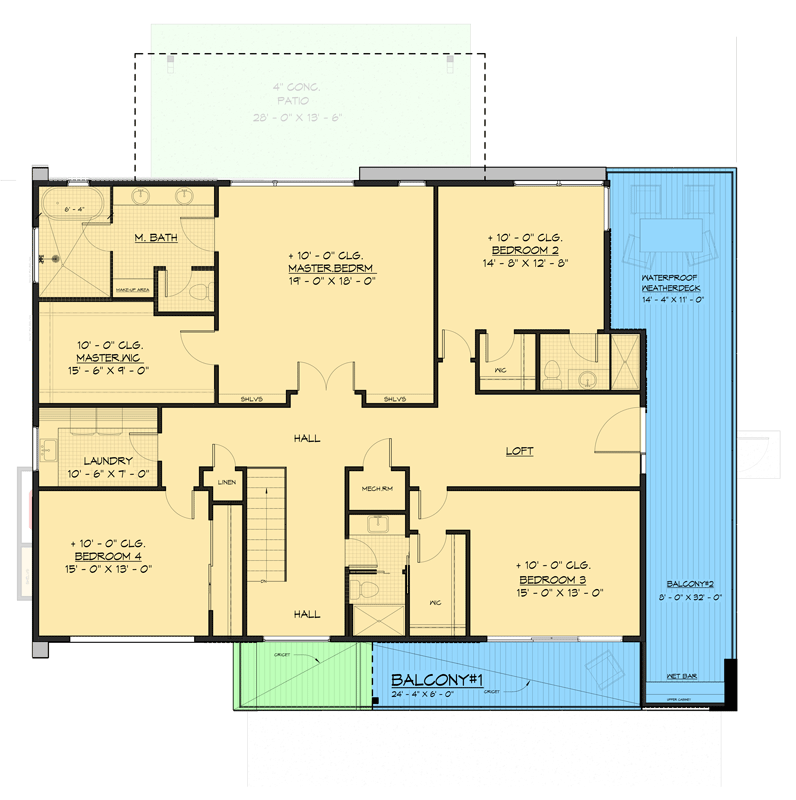

2nd Floor

Plan 666312RAF: Contemporary 5-Bedroom House Plan with Expansive Deck and Home Office - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This striking contemporary house plan offers 3,902 finished sq ft, 5 bedrooms, 4 baths, and an attached 807 sq ft, 3-car garage.
  • Step inside through the welcoming front porch into a grand entry that flows into open living spaces, complemented by a dedicated home office and formal dining area.
  • Enjoy seamless flow between the main living areas, featuring 10-foot ceilings, a gourmet kitchen with a butler's walk-in pantry, and a sophisticated wet bar, perfect for entertaining.
  • The luxurious primary bedroom suite is privately situated upstairs, offering a serene retreat, while the secondary bedrooms are thoughtfully clustered for family convenience.
  • Additional flexible spaces include a versatile den, a dedicated library or study, an upstairs loft, and a fun playroom, providing ample room for every activity.
  • An expansive 520 sq ft rear deck and a welcoming 50 sq ft front porch extend living outdoors, ideal for relaxation or al fresco dining.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

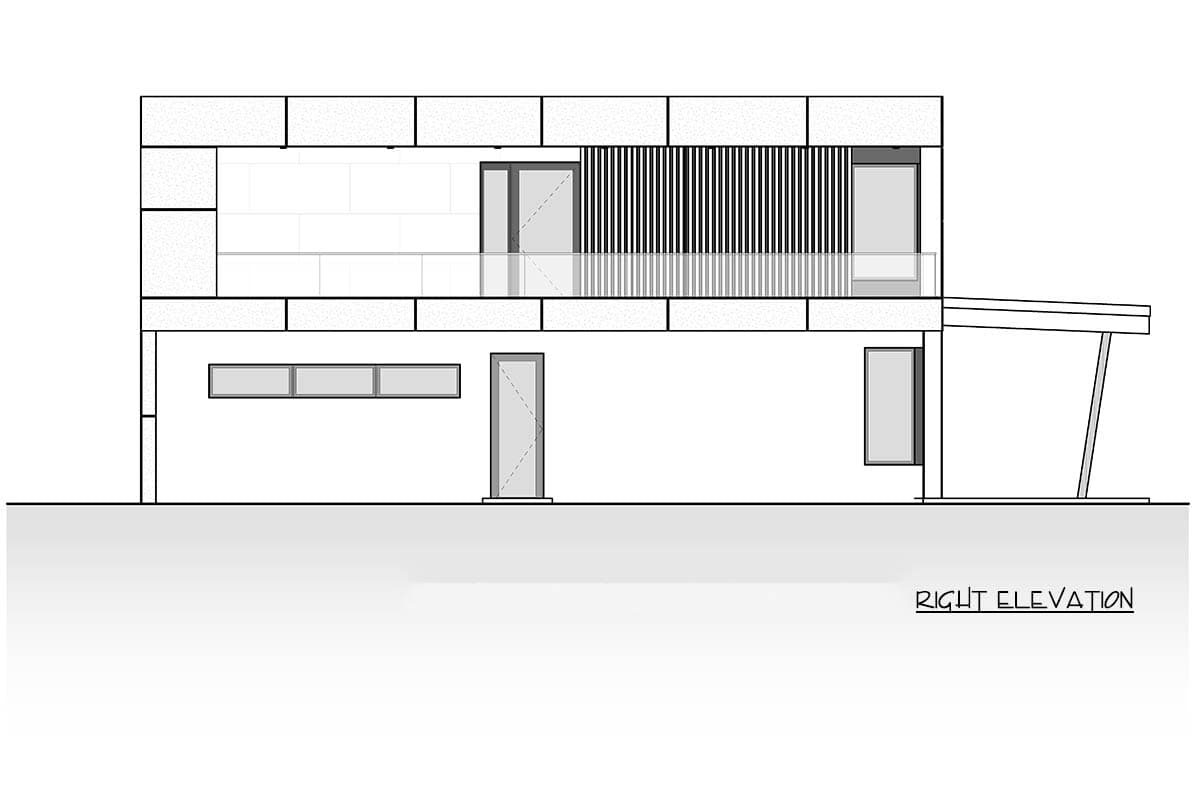

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,902 sq. ft.

1st Floor

1,877 sq. ft.

2nd Floor

2,025 sq. ft.

Porch, Front

50 sq. ft.

Deck

520 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 10"

Depth

46' 10"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

807 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Home Office

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Wet Bar
