Plan 31595GF

Contemporary A-Frame with Sleeping Loft Overlooking Great Room

Name: Plan 31595GF: Contemporary A-Frame with Sleeping Loft Overlooking Great Room
Brand: Architectural Designs
SKU: 31595GF
Price: 592.45 USD
Availability: InStock

Heated S.F.

1,372

Beds

Baths

Stories

Floor Plan

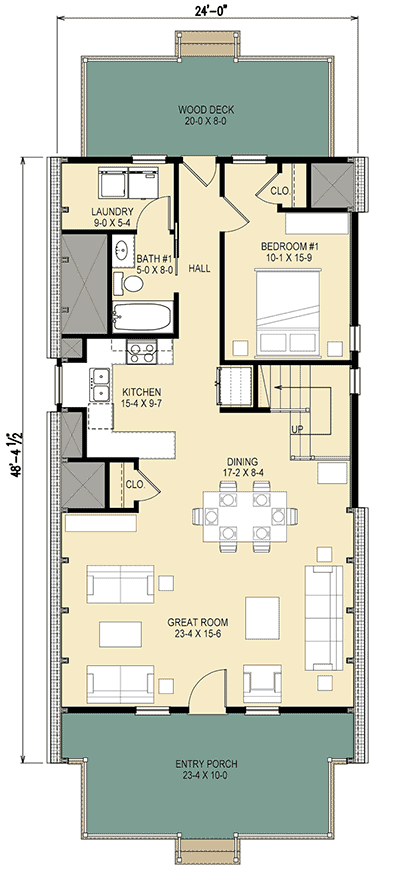

Main Level

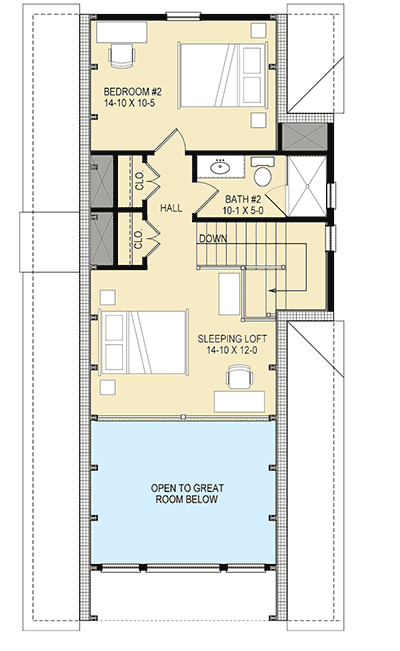

2nd Floor

Plan Details

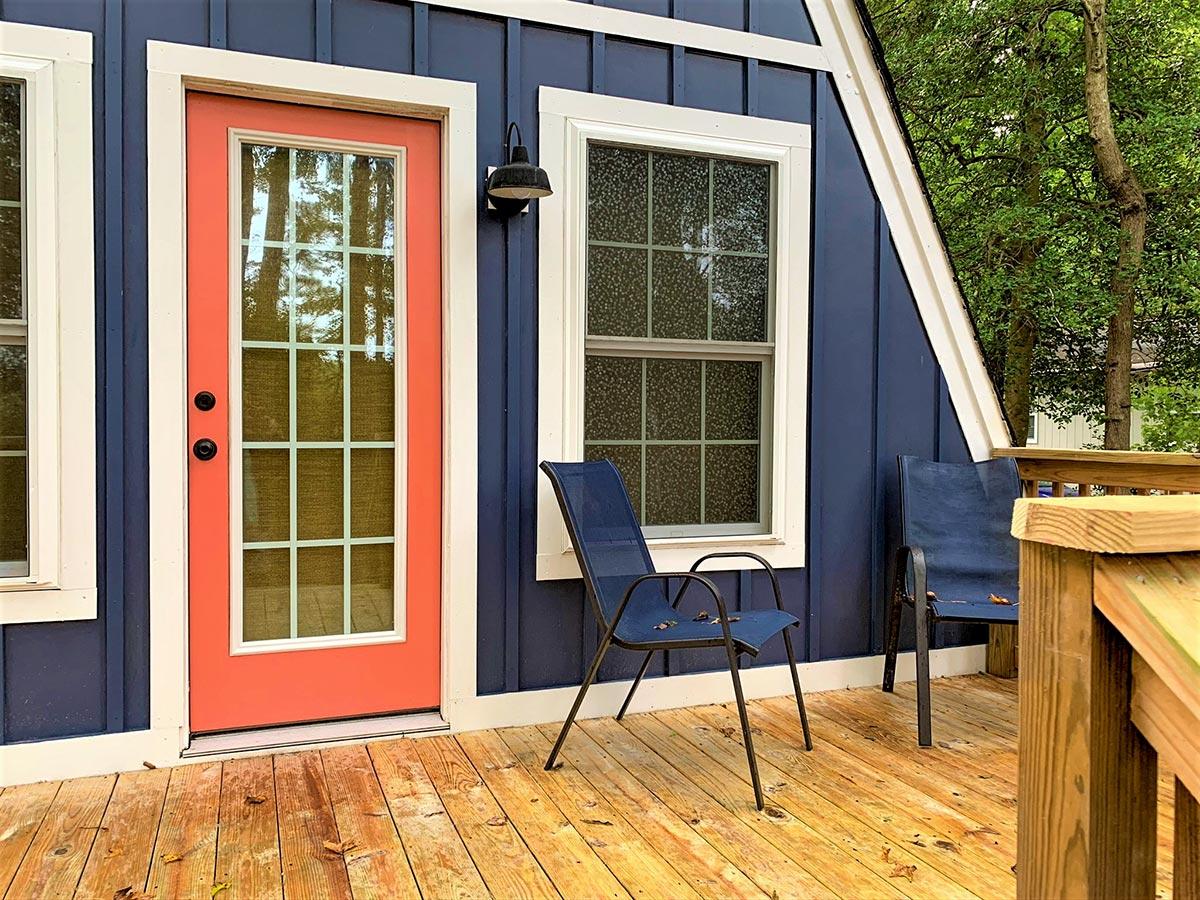

Enjoy the visual and functional simplicity with this attractive contemporary A-frame house plan. Porches front and back expand your enjoyment to the outdoors.

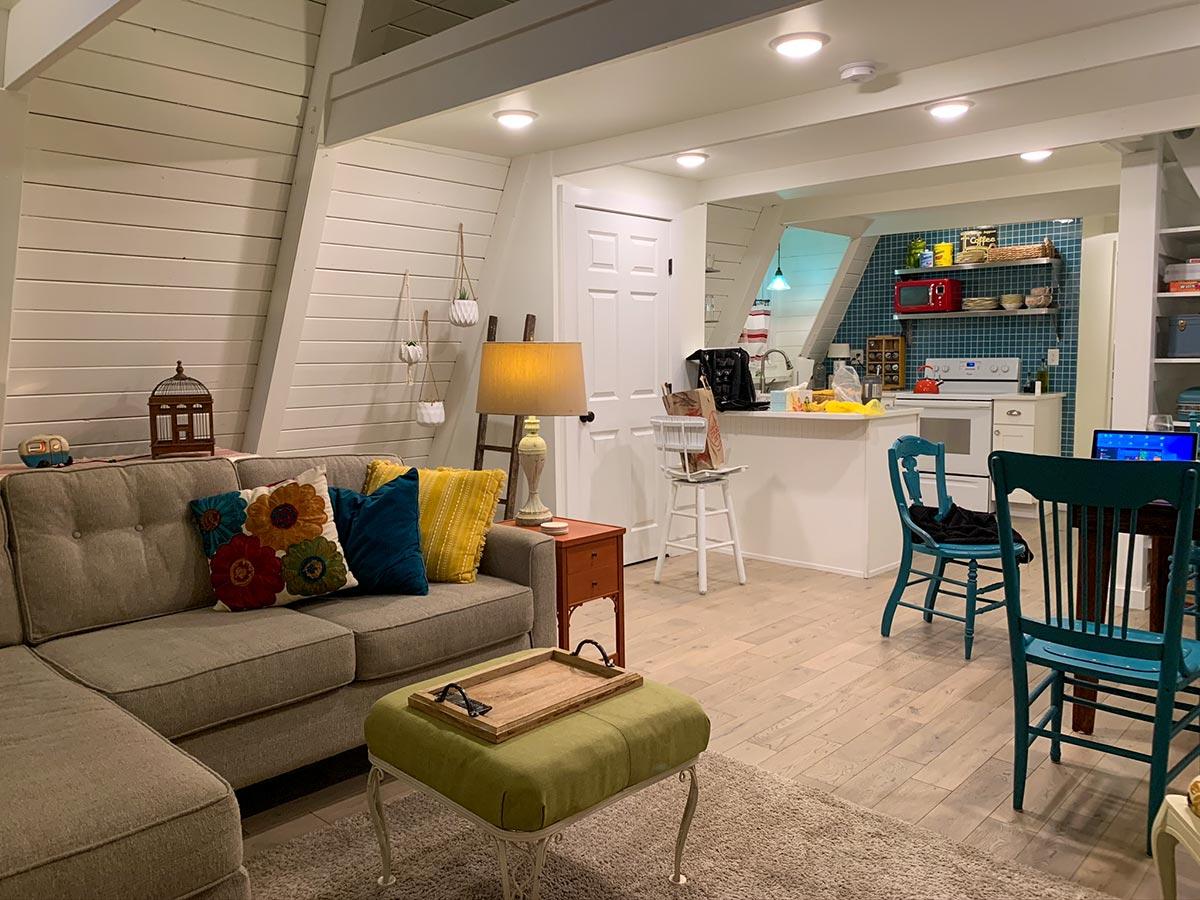

Inside, the great room ceiling soars skyward and the space flows to the dining room and kitchen.

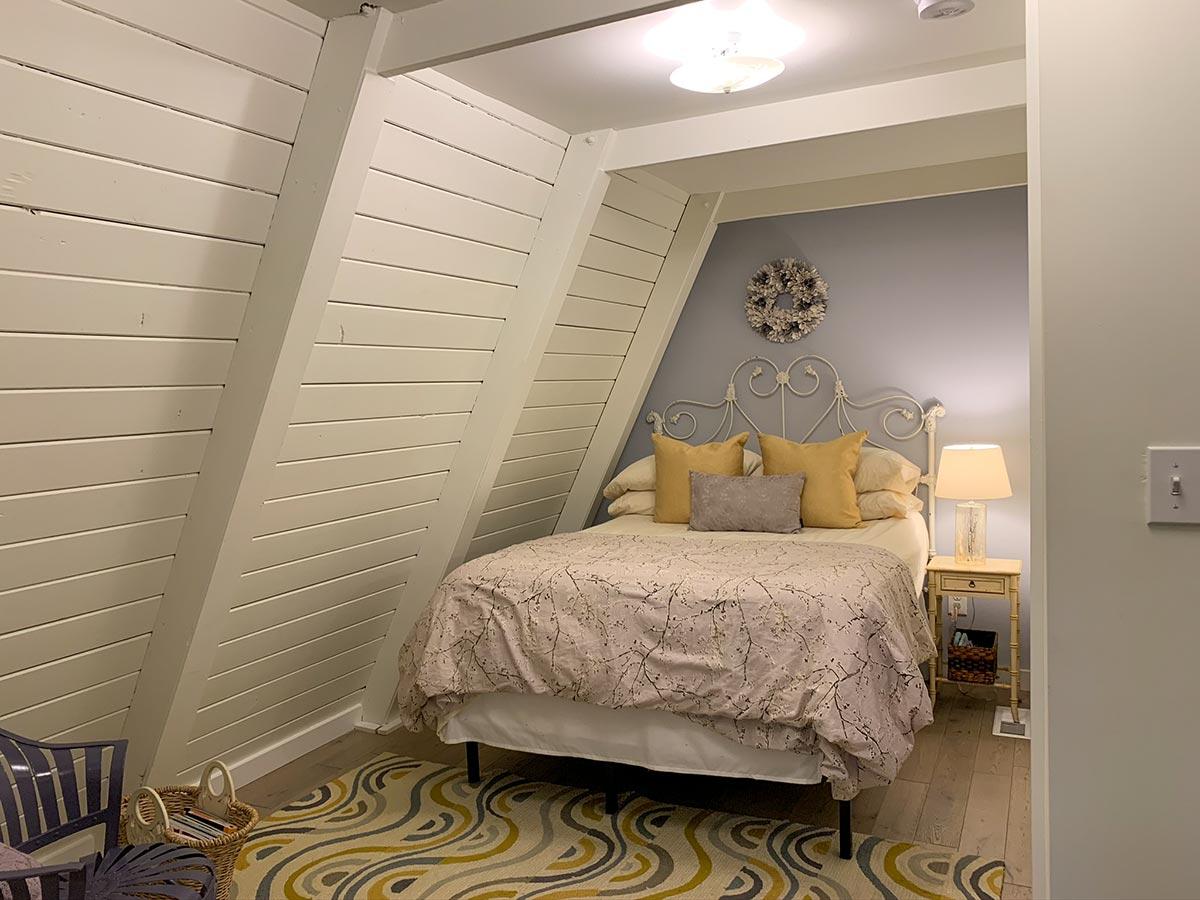

One bedroom is located in the back of the home and has access to a full bath across the home.

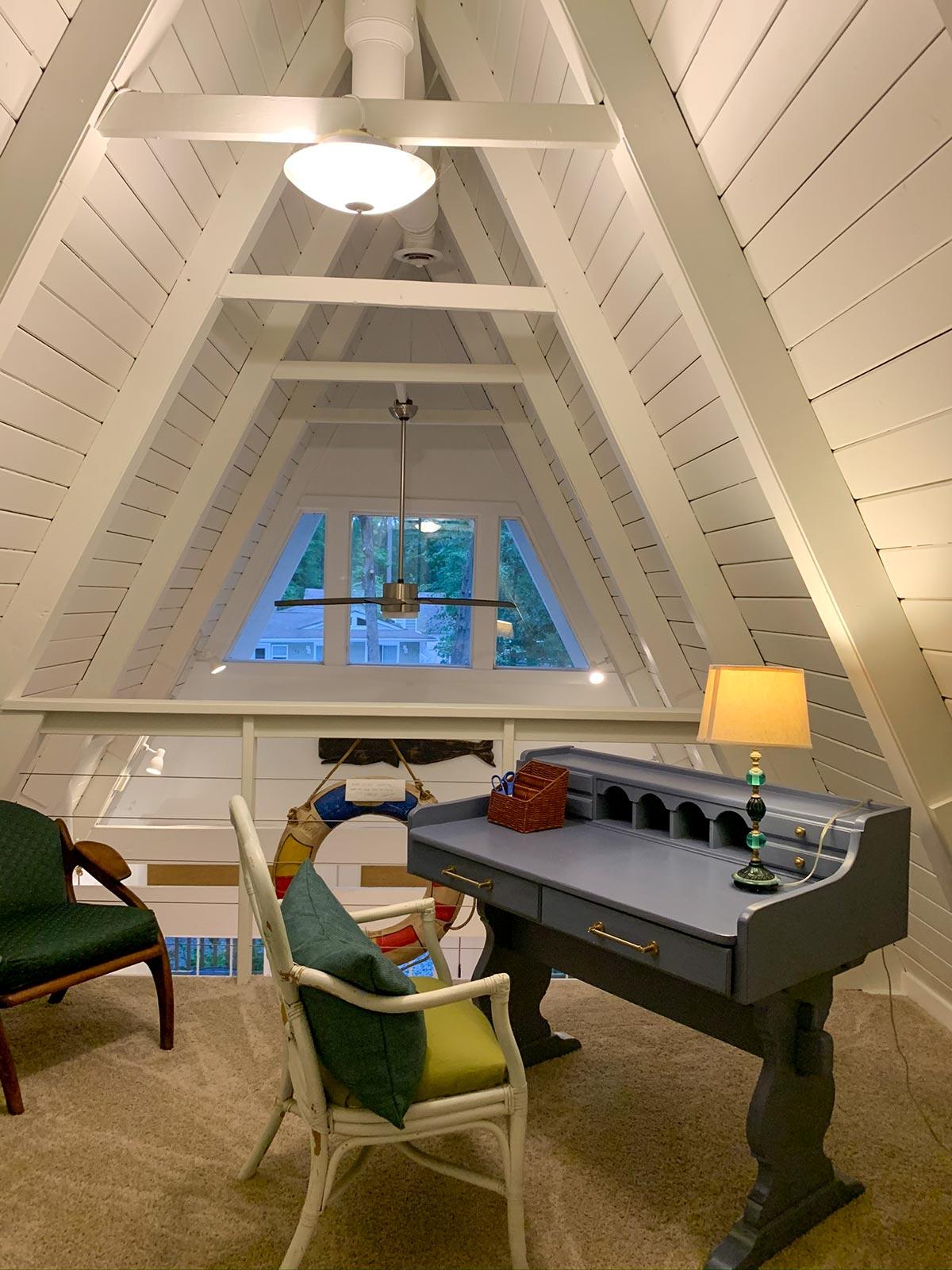

Upstairs, there is a second bedroom as well as a sleeping loft that looks down to the great room below. A shared bathroom rounds out the home.

What's Included

Cover Sheet: Shows typical notes and requirements.

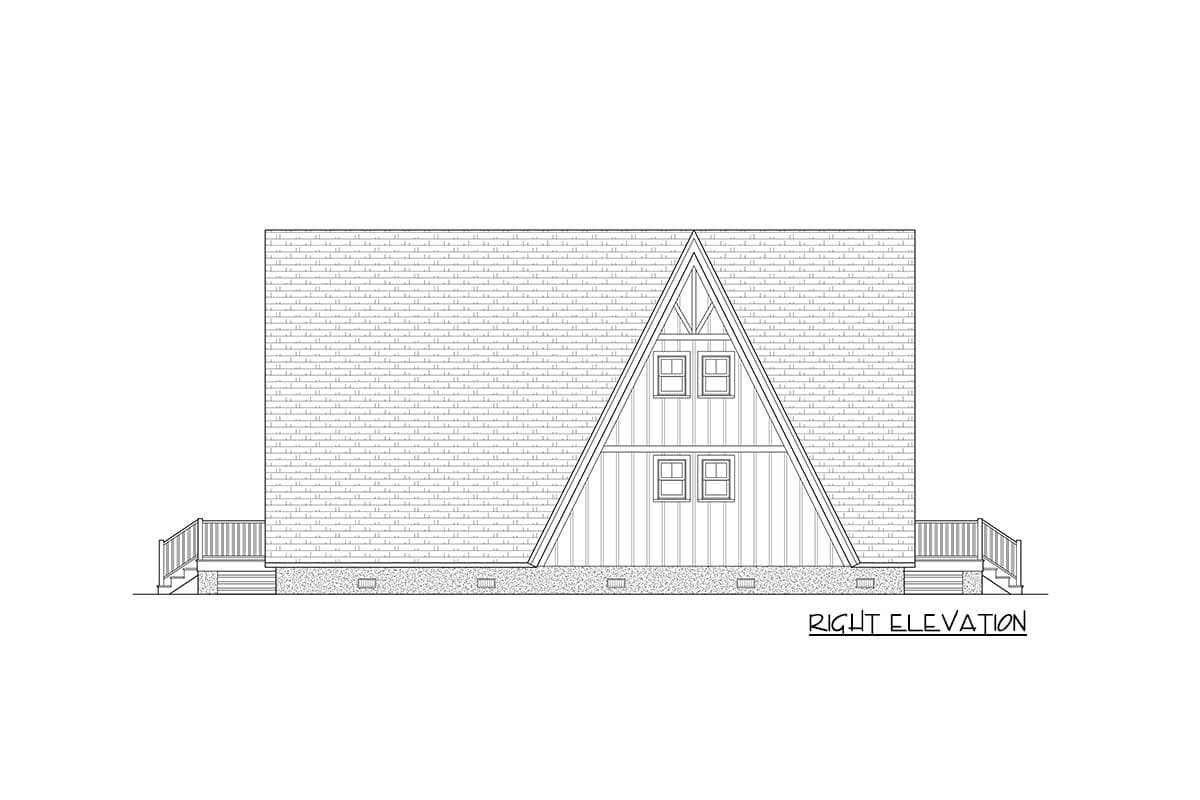

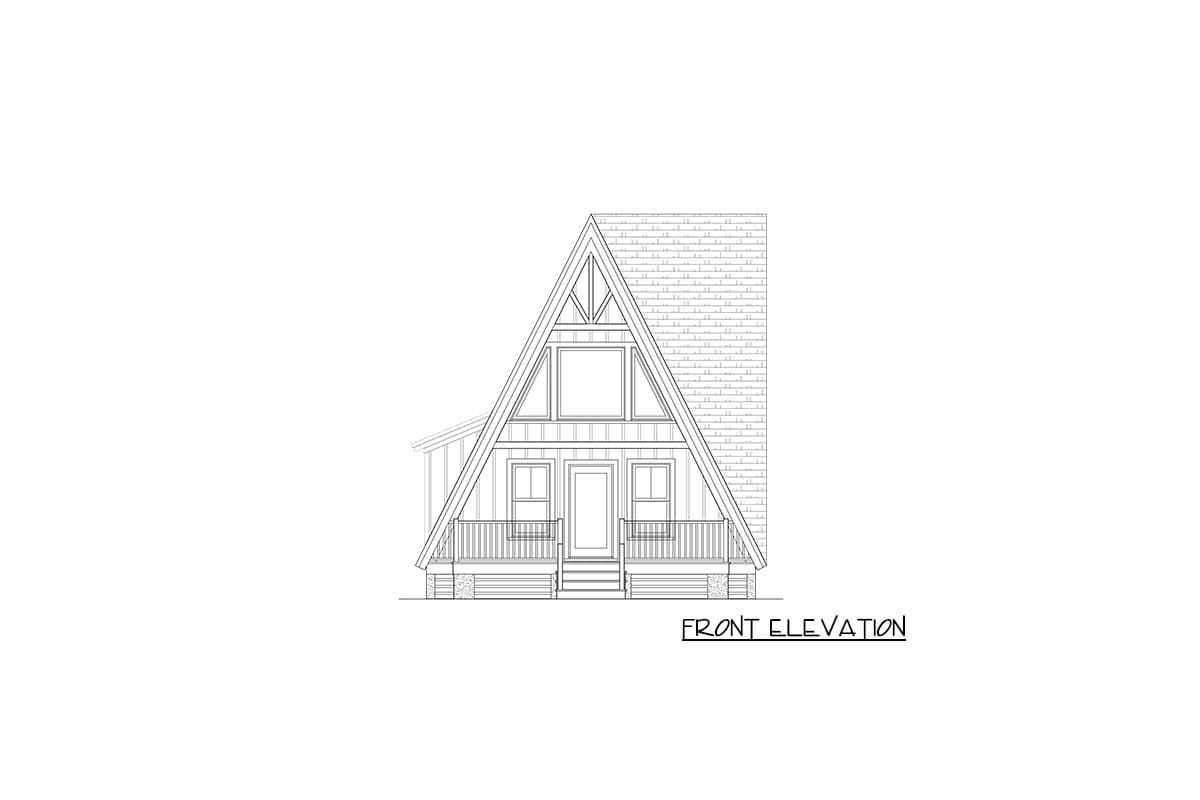

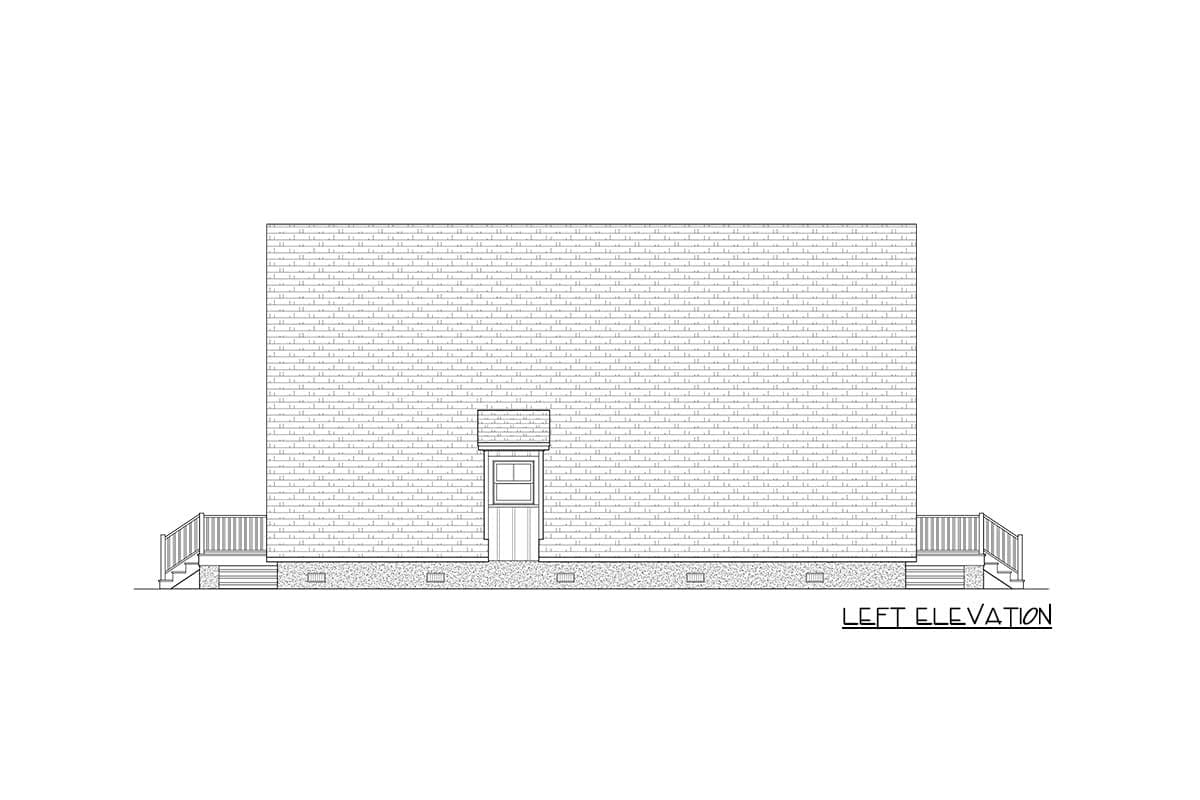

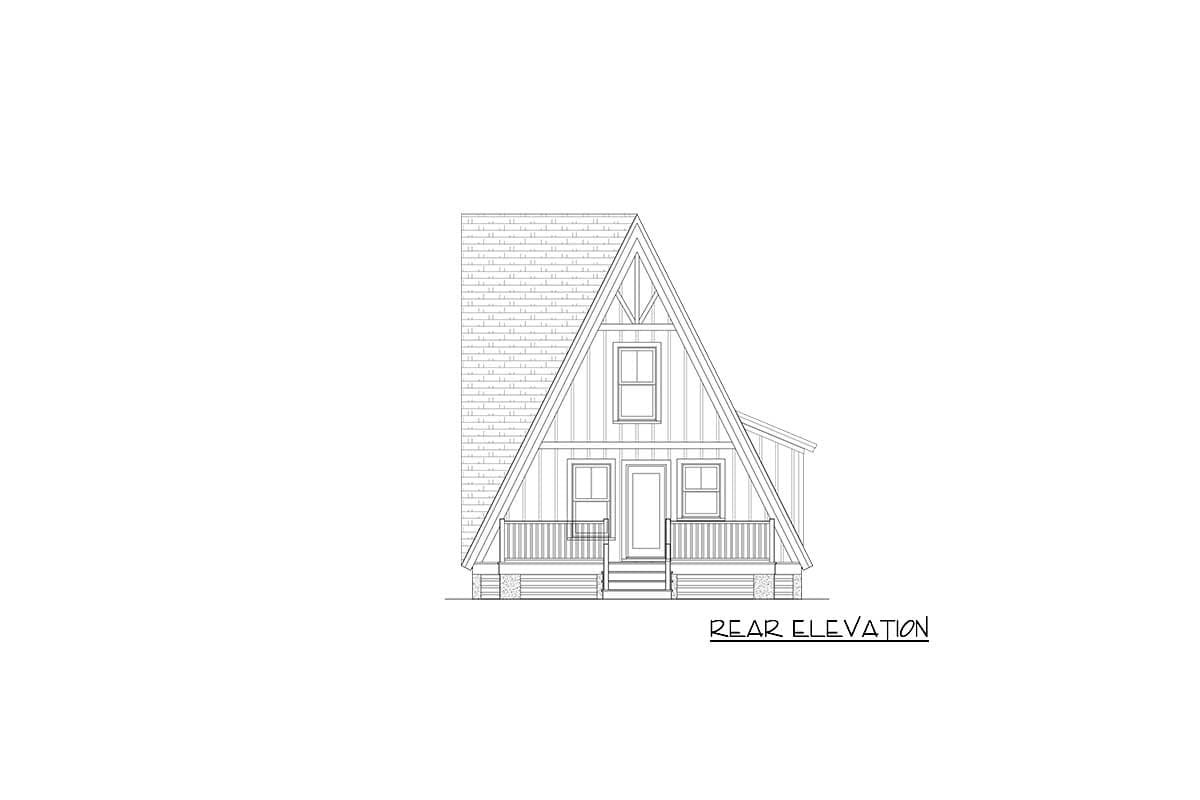

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Typical wall section
Typical stair section (if applicable)
Typical shelving and cabinet details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
Energy calculations - handled locally when required
Electrical Layout - handled by your builder and subcontractor
