Contemporary ADU with Oversized Second Floor Windows

Plan 68989VR

  • 656

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind, but when paired with a sloped roof, a sleek, modern design is the result.
  • The double garage resides on the ground level and are separate by a wall with a connecting door in back.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling that goes from 7' to 12'2". The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • Related Plans: Get alternate versions with house plans 68640VR, 68854VR, 68855VR and 680154VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

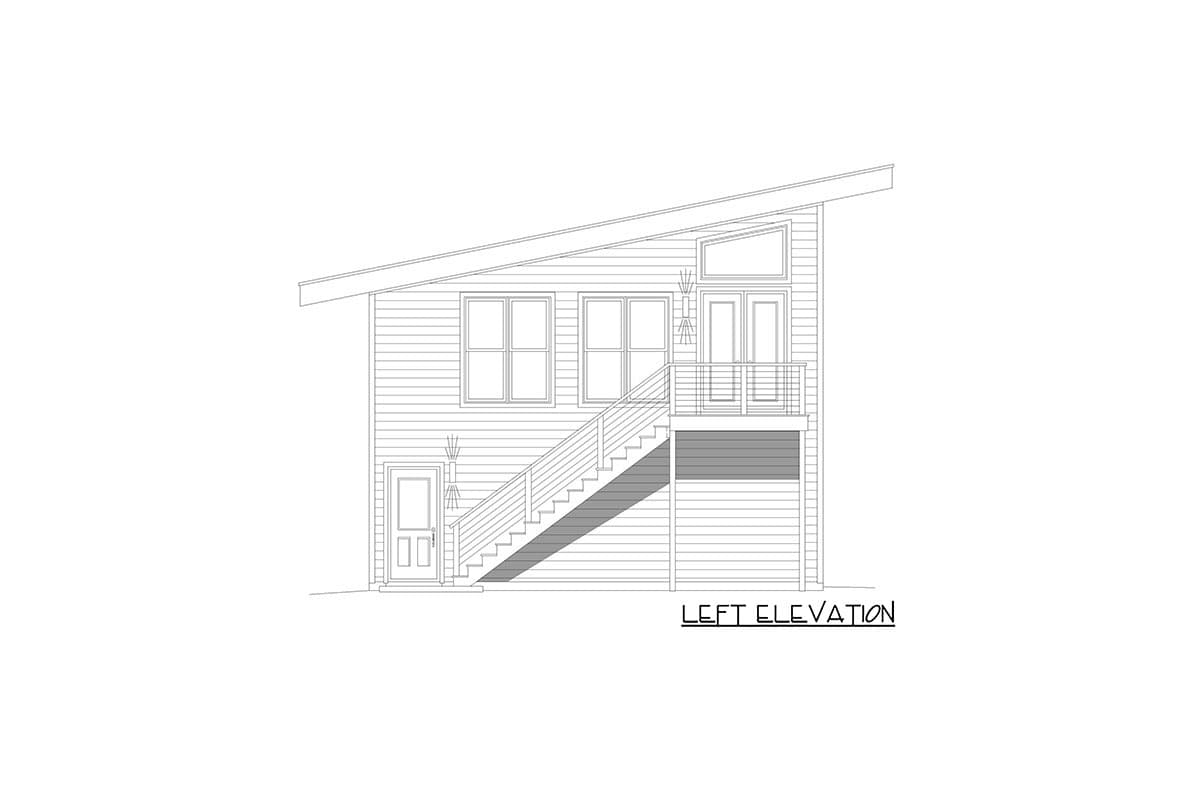

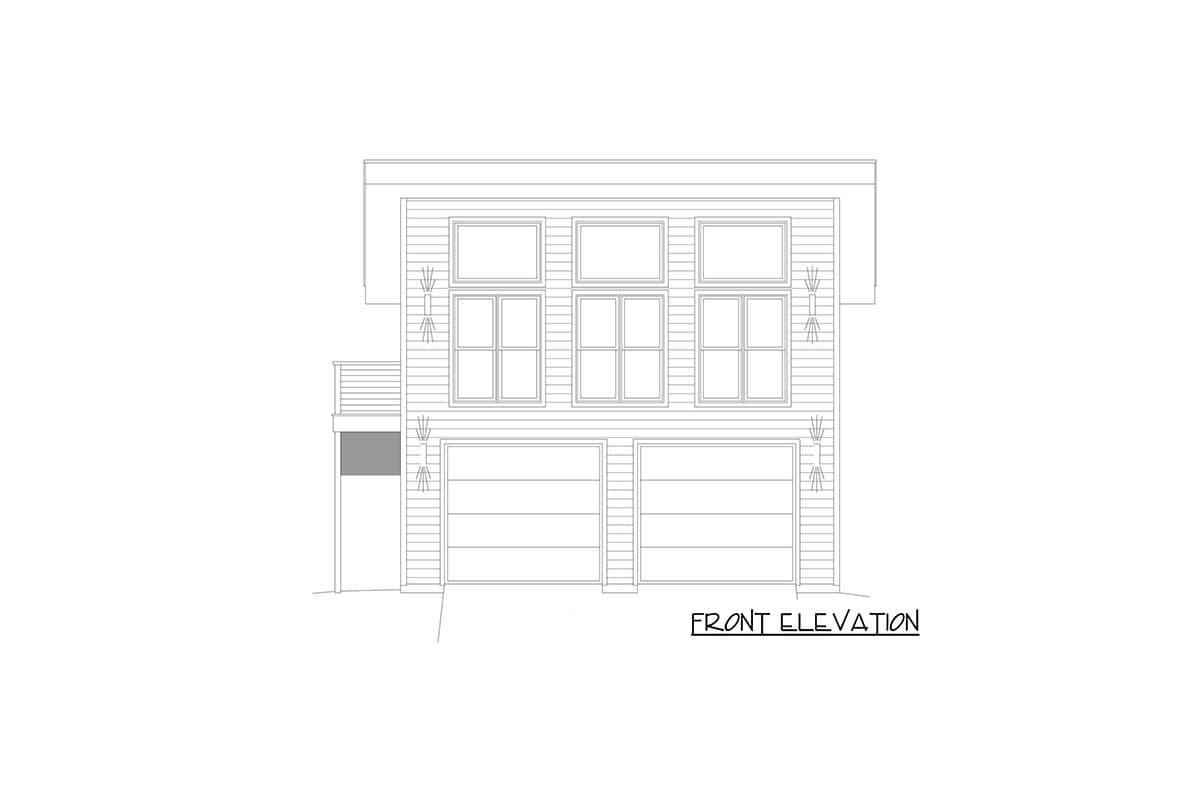

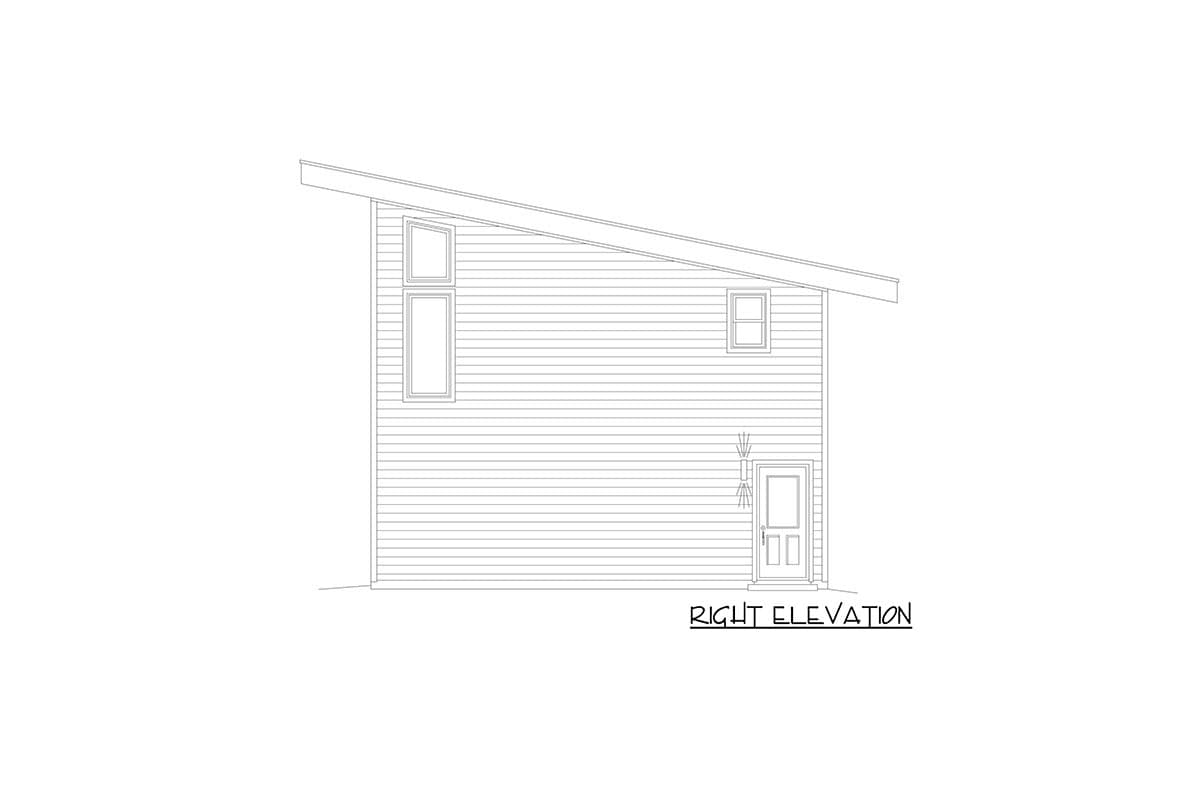

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

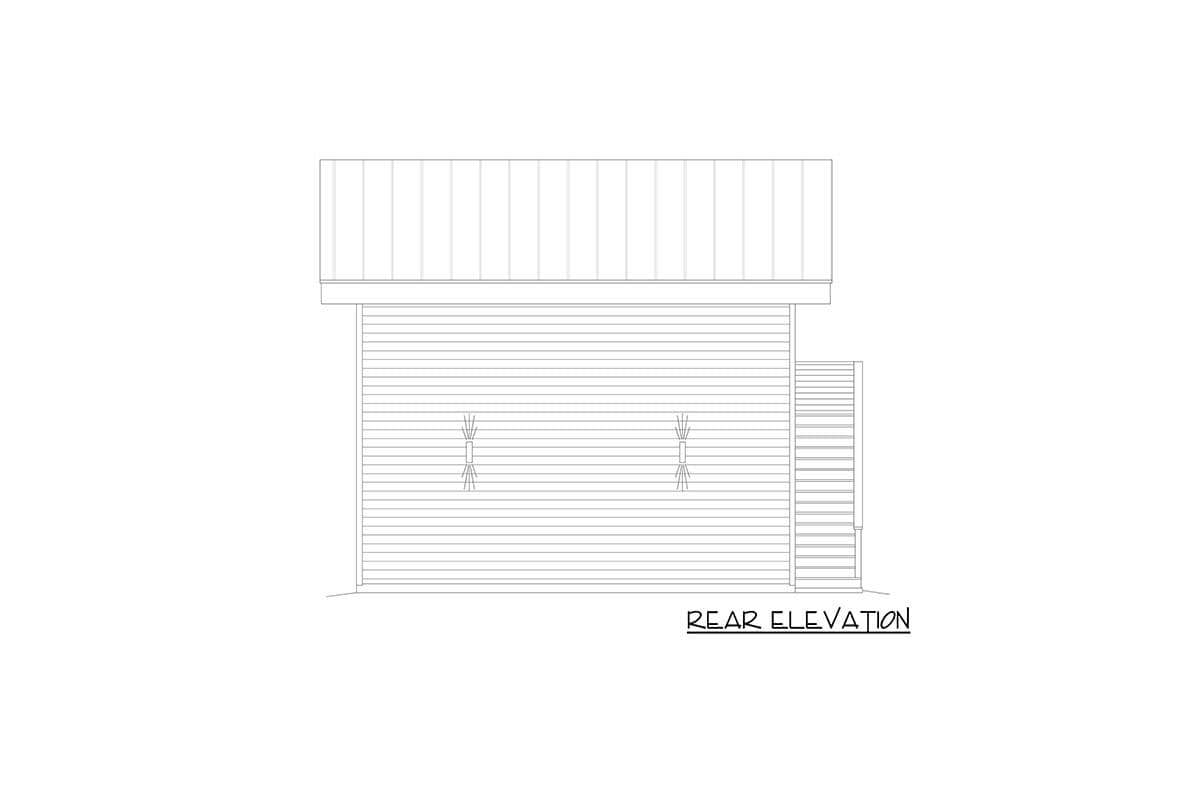

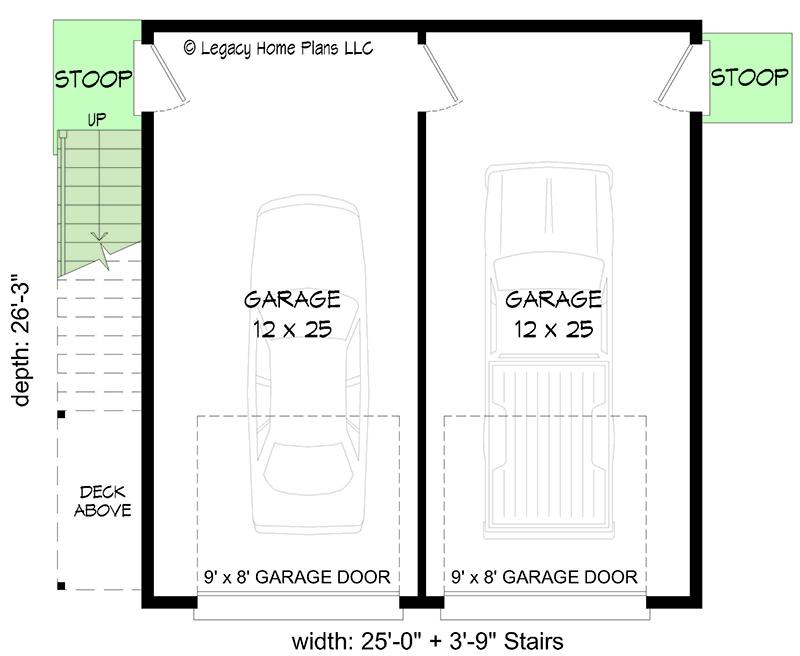

Contemporary ADU with Oversized Second Floor Windows - 68989VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

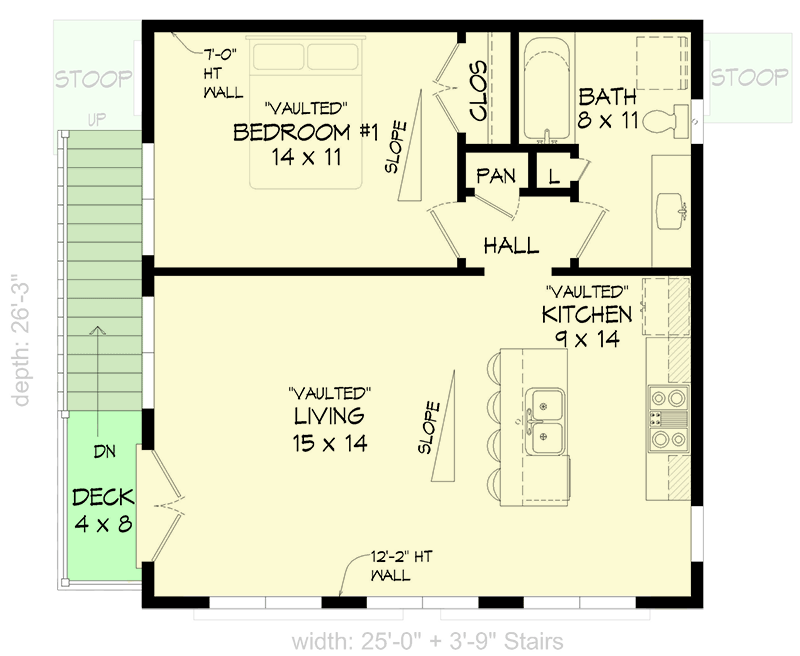

Contemporary ADU with Oversized Second Floor Windows - 68989VR floor plan - 2nd Floor

Architectural Style

Plan Collections

Contemporary ADU with Oversized Second Floor Windows

  • 656

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 656 sq. ft.
  • 2nd Floor: 656 sq. ft.
  • Deck & Stair: 77 sq. ft.

Dimensions

  • Width: 28' 9"
  • Depth: 26' 3"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 656 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 12' 2"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
