706 Square Foot Modern ADU with Wraparound Deck
Heated S.F.
706
Beds
1
Stories
2
Cars
2
What's Included
Plan Details
  • The simplicity of the square footprint of this 706 square foot modern ADU makes this an easier-to-build design than one with a more complicated - or larger - footprint, helping keep budget in mind.
  • The double garage resides on the ground level stairs run along the outside, maximizing your vehicle and storage space.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling that rise to 15'. The kitchen and living room are open to one another, and extend outdoors onto a wraparound deck.
  • Related Plans: Get an alternate version with ADU plan 68989VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

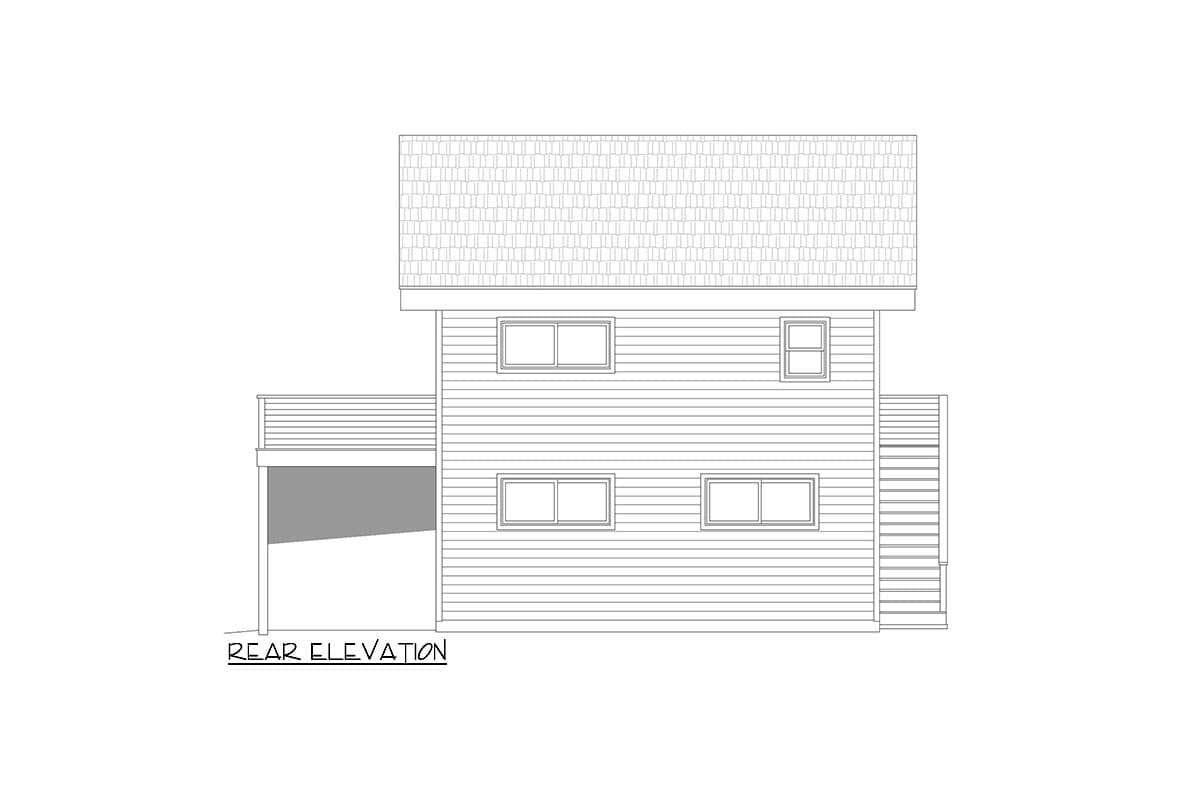

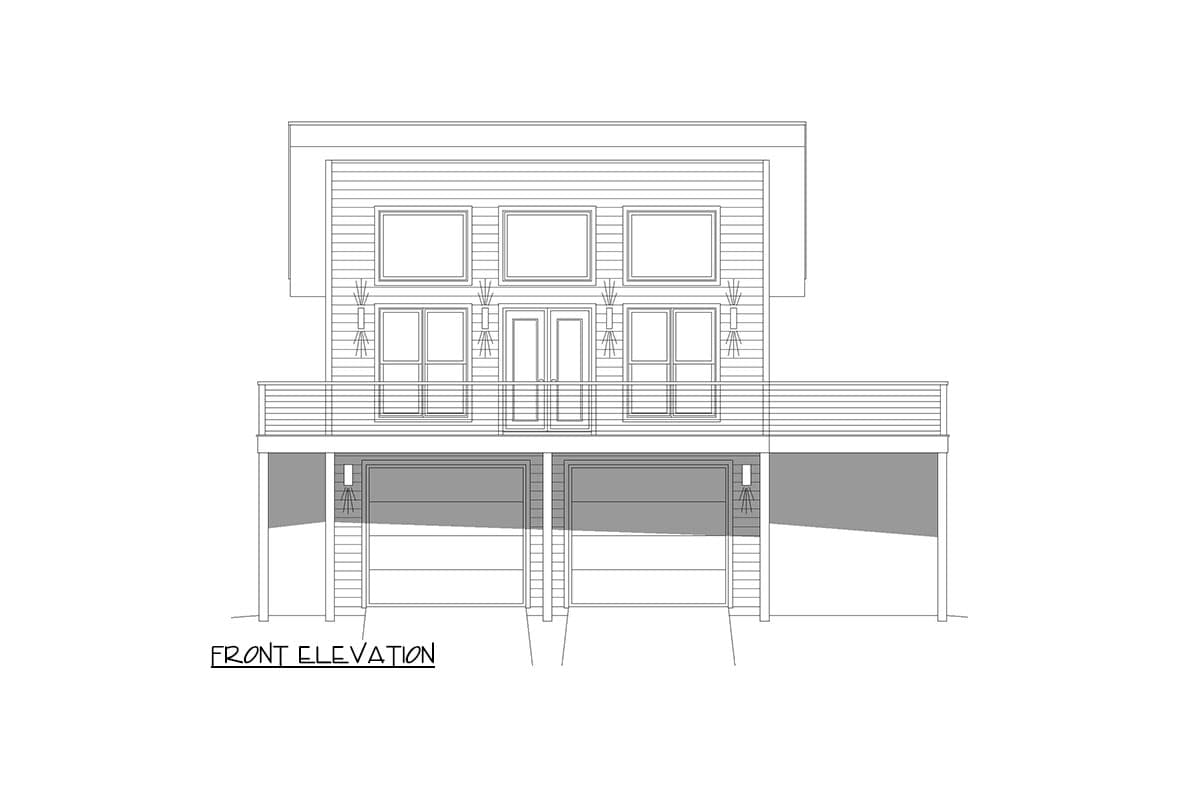

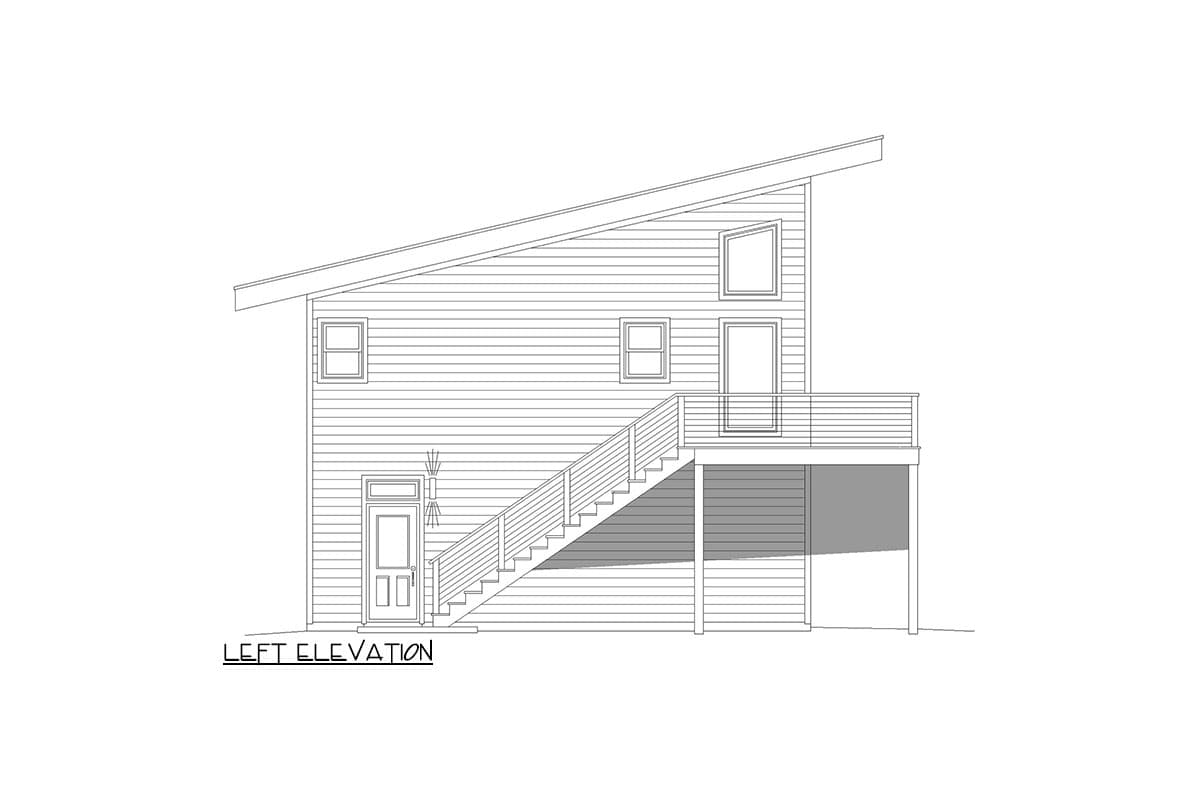

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

706 Square Foot Modern ADU with Wraparound Deck

  • 706

    Heated s.f.

  • 1

    Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

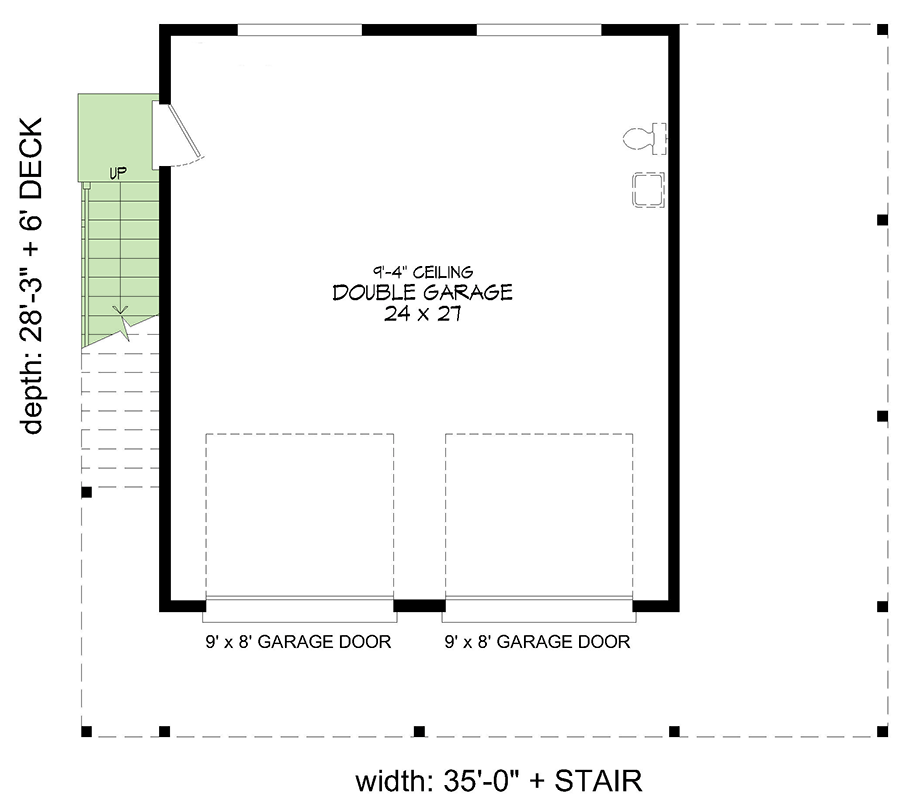

  • Main Level

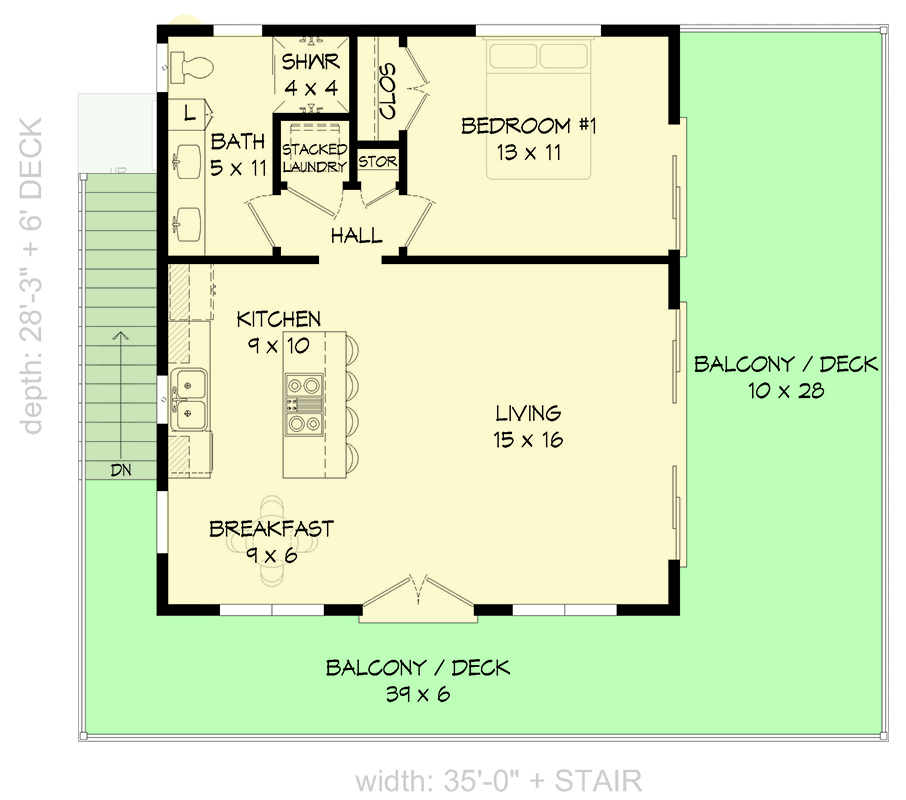

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 706 sq. ft.
  • 2nd Floor: 706 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 28' 3"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms:

Garage

  • Type: RV Garage, Attached
  • Area: 706 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 15' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
