Contemporary Beach Home Plan with Wine Room and Study

Plan 65731BS

  • 4,530

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • An abundance of windows is met with a stucco-textured facade to form this Contemporary Beach home plan.
  • Retractable rear walls made of glass create a true indoor outdoor living experience, and the kitchen boasts an enormous island with an eating bar, large range, and walk-in pantry.
  • The master suite occupies the left side of the home and delivers a sitting area, two walk-in closets, and a freestanding tub in front of the custom shower in the attached bath.
  • A generous bonus room (included in the square footage) is attached to the rear of the home with easy access to the covered lanai.
  • Three additional bedrooms are sprinkled throughout the design, along with a glass wine room off the foyer, and 4-car garage for the car enthusiast.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

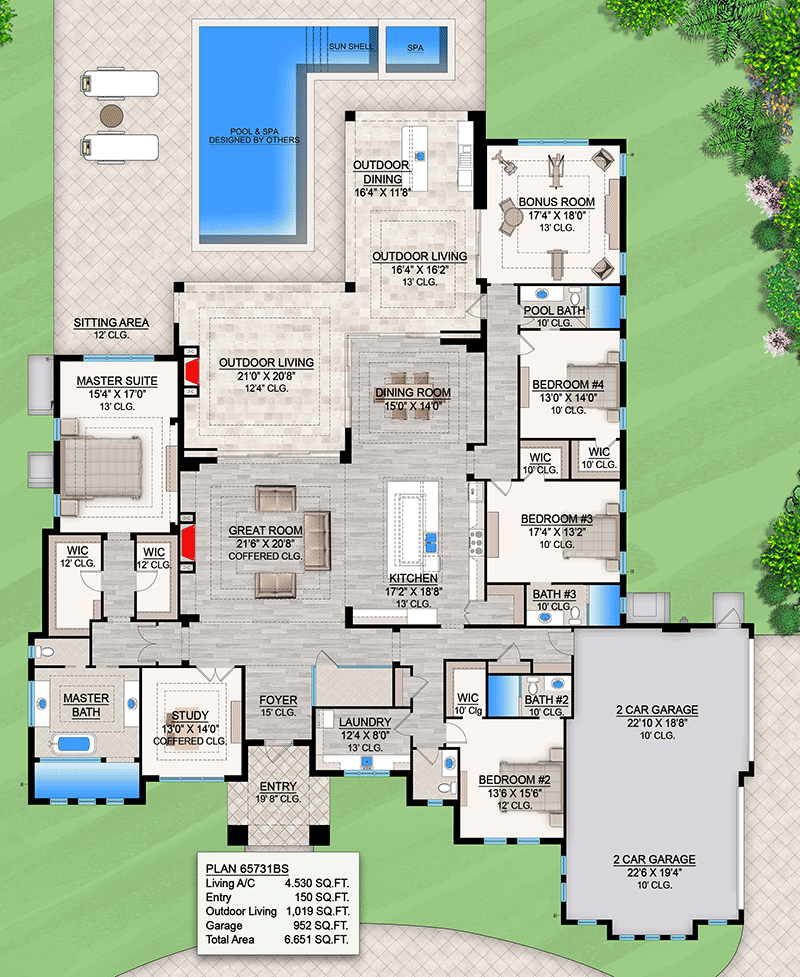

Floor Plan
