Plan 86094BW Contemporary Coastal Home Plan with Main-floor Master Bedroom

Contemporary Coastal Home Plan with Main-floor Master Bedroom

Plan 86094BW

  • 4,600

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Clean vertical lines grace the front elevation of this Contemporary Coastal home plan, where wooden brackets support deep eaves created by the low-pitched roof.
  • Step inside to find a quiet study and mudroom framing the foyer, while the open and airy great room in the center of the design offers views onto the covered lanai through a multi-panel sliding door.
  • This home was made for entertaining with its gourmet kitchen and seamless flow between the interior living spaces and covered lanai.
  • The master suite is conveniently located on the main floor and includes access to the lanai, a massive walk-in closet, and 5-fixture bathroom.
  • Take the elevator or stairs to the second level to find a second master suite, two family bedrooms, a recreation room with a wet bar, and a balcony with a sun deck and spiral staircase that leads to the main-level's covered lanai.
  • Exterior walls: 8" CMU on 1st Floor; Concrete block on 2nd Floor

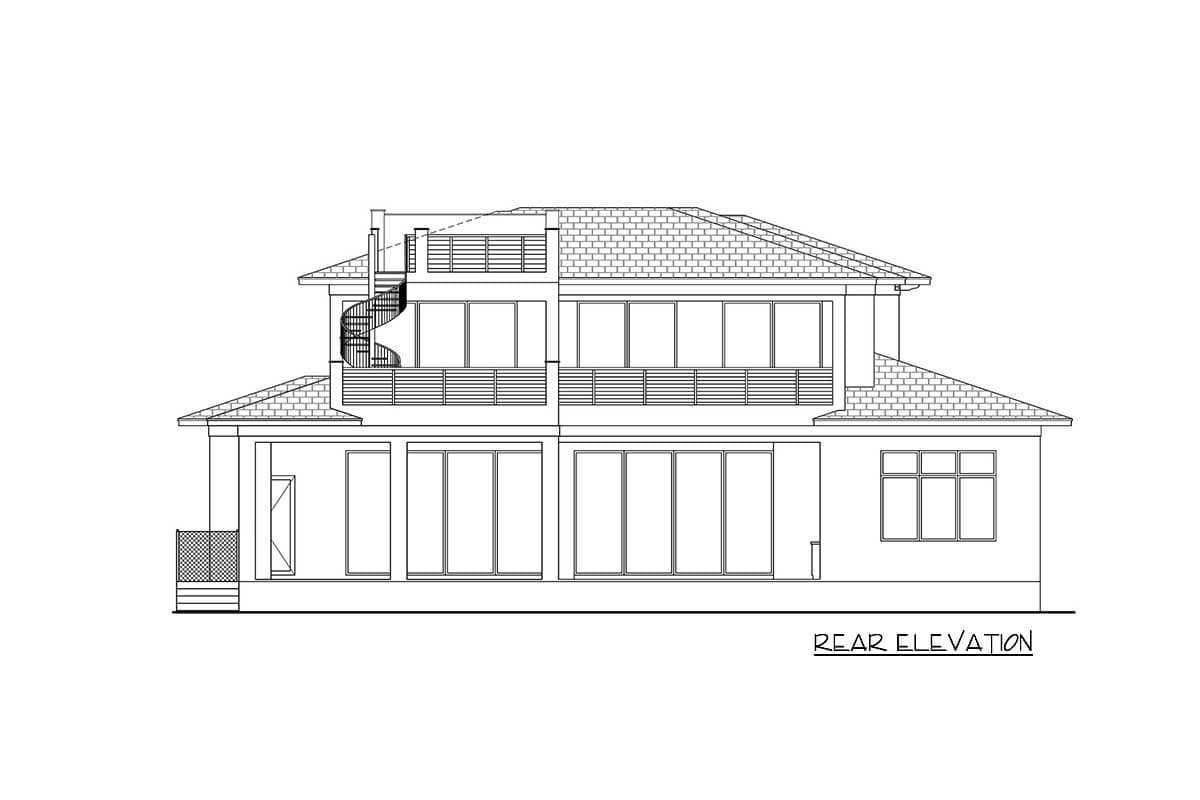

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

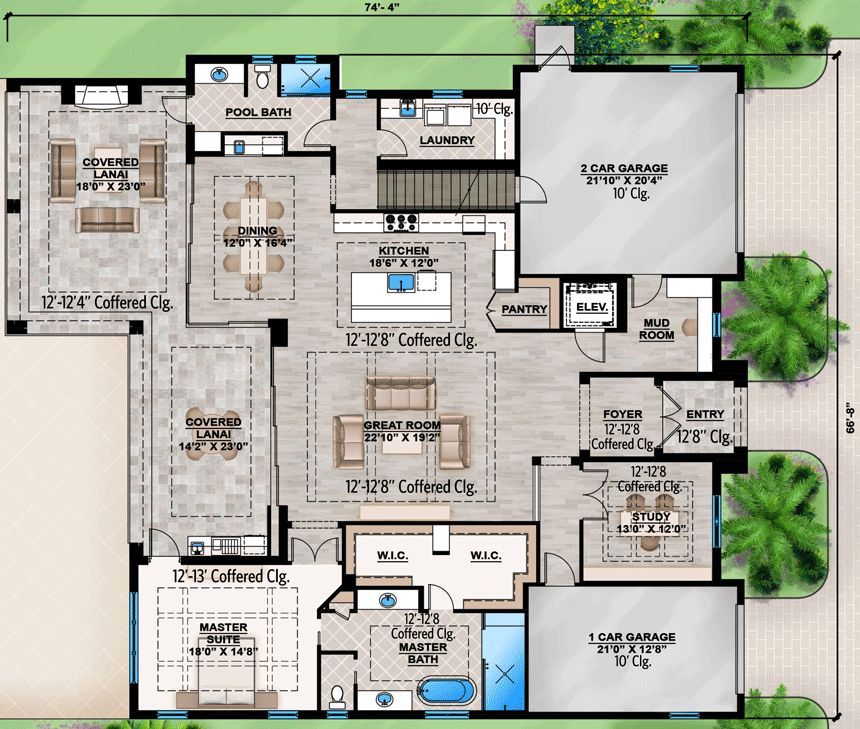

Contemporary Coastal Home Plan with Main-floor Master Bedroom - 86094BW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

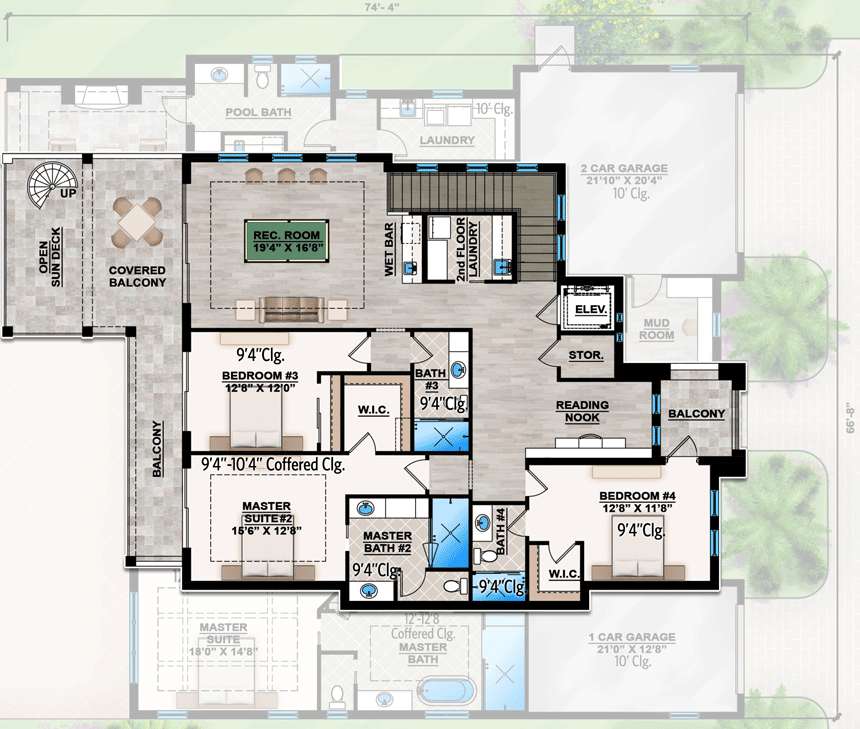

Contemporary Coastal Home Plan with Main-floor Master Bedroom - 86094BW floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

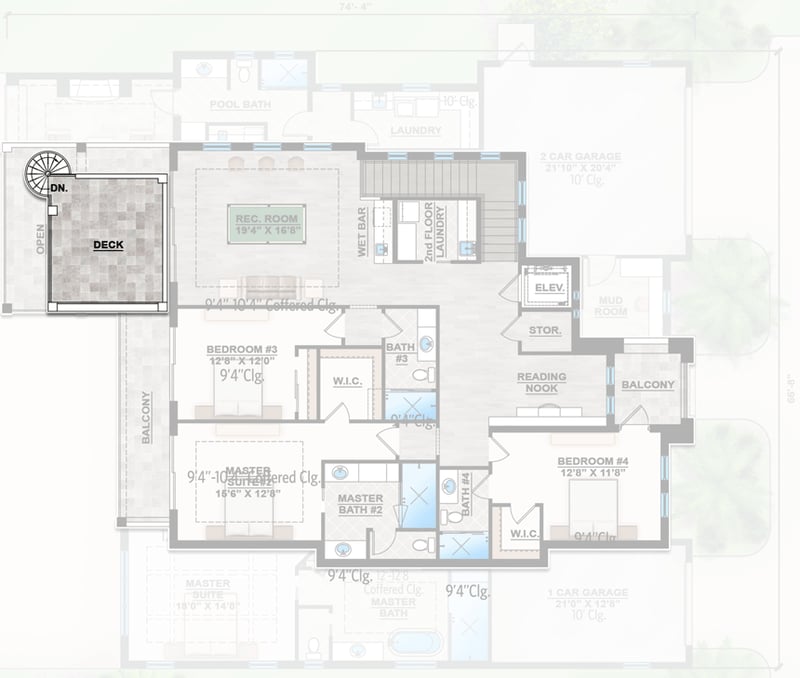

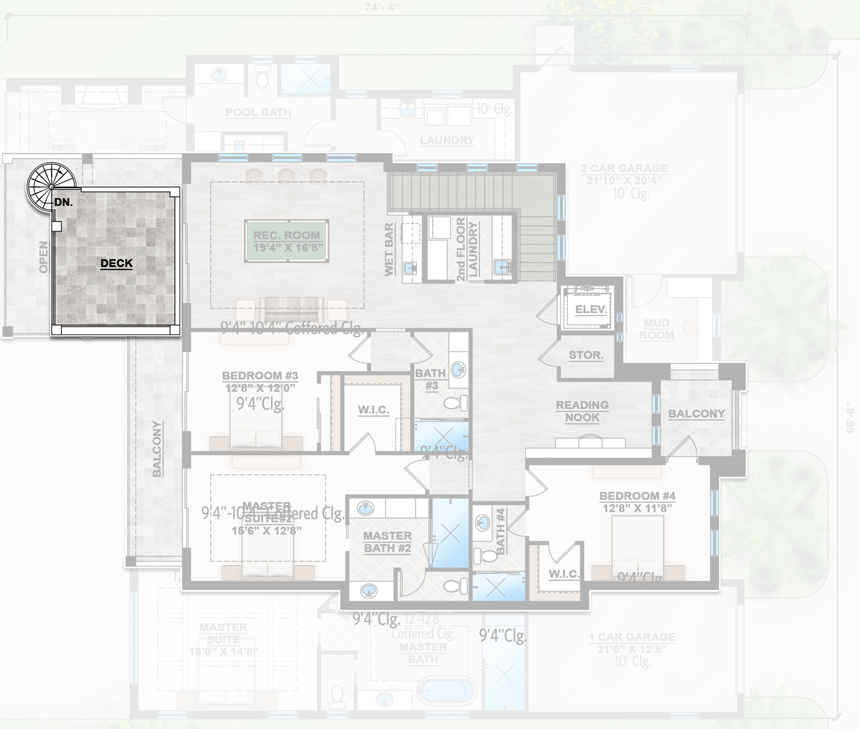

Contemporary Coastal Home Plan with Main-floor Master Bedroom - 86094BW floor plan - 3rd Floor

Plan details

Contemporary Coastal Home Plan with Main-floor Master Bedroom

  • 4,600

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,140
  • PDF - Single-Build $4,140
  • View all purchase option online

About This Plan

  • Clean vertical lines grace the front elevation of this Contemporary Coastal home plan, where wooden brackets support deep eaves created by the low-pitched roof.
  • Step inside to find a quiet study and mudroom framing the foyer, while the open and airy great room in the center of the design offers views onto the covered lanai through a multi-panel sliding door.
  • This home was made for entertaining with its gourmet kitchen and seamless flow between the interior living spaces and covered lanai.
  • The master suite is conveniently located on the main floor and includes access to the lanai, a massive walk-in closet, and 5-fixture bathroom.
  • Take the elevator or stairs to the second level to find a second master suite, two family bedrooms, a recreation room with a wet bar, and a balcony with a sun deck and spiral staircase that leads to the main-level's covered lanai.
  • Exterior walls: 8" CMU on 1st Floor; Concrete block on 2nd Floor

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,600 sq. ft.
  • 1st Floor: 2,647 sq. ft.
  • 2nd Floor: 1,953 sq. ft.
  • Lanai: 803 sq. ft.
  • Balcony / Veranda: 399 sq. ft.
  • Entry: 73 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 8"
  • Depth: 74' 4"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
