Contemporary Coastal House Plan with Separate First Floor and Second Floor Units

Plan 680072VR

  • 2,184

    Heated s.f.

  • 2

    Units

  • 42' 0"

    Width

  • 41' 0"

    Depth

  • This contemporary coastal house plan gives you two matching-and-separate 2 bed, 1 bath units, each giving you 992 square feet of heated living.
  • The second floor unit gets great light from windows set high on the the back and side walls.
  • In the family room, a ladder takes you to a 200 square foot loft.
  • A 10'-deep open deck wraps around all four sides of the second floor.
  • Related Plans: Get alternate versions with house plans 68633VR, 68666VR and 68775VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

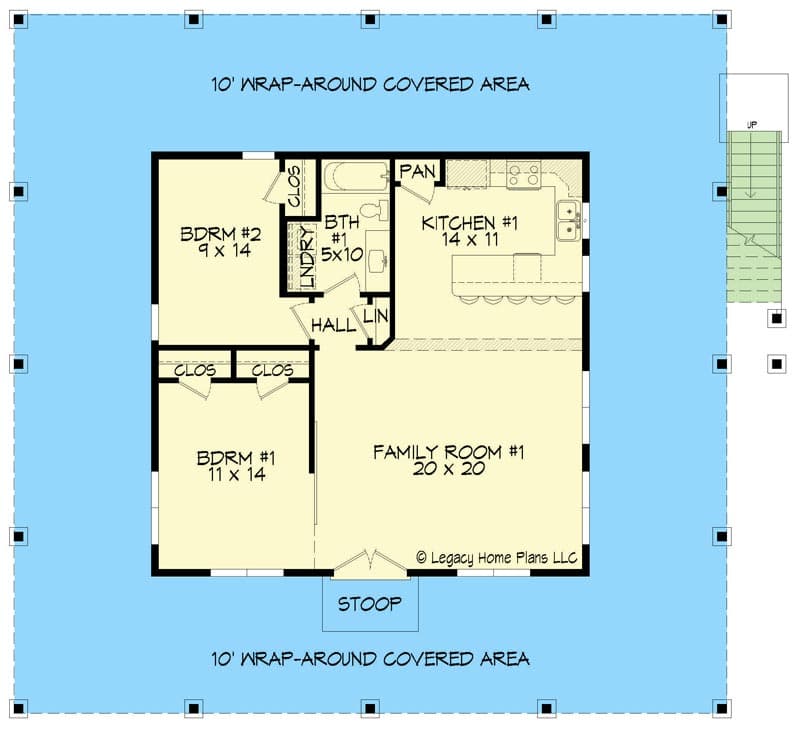

Contemporary Coastal House Plan with Separate First Floor and Second Floor Units - 680072VR floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

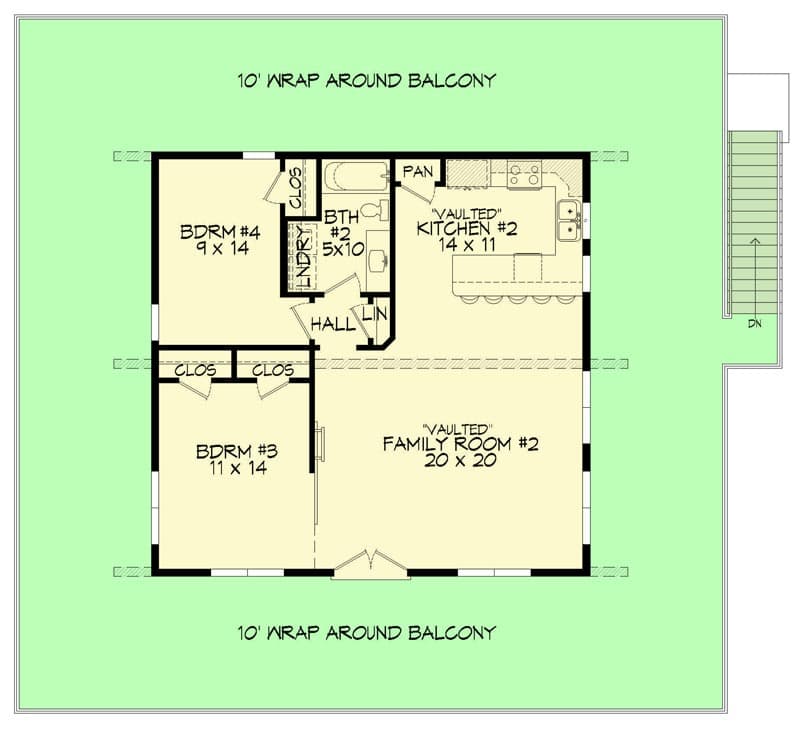

Contemporary Coastal House Plan with Separate First Floor and Second Floor Units - 680072VR floor plan - Second Level

Third Level Art Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

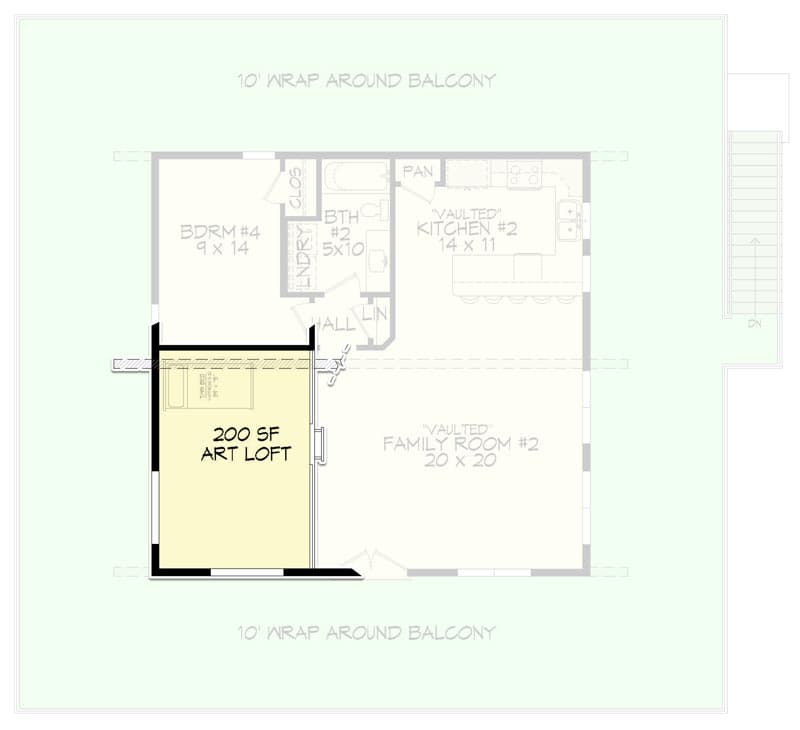

Contemporary Coastal House Plan with Separate First Floor and Second Floor Units - 680072VR floor plan - Third Level Art Loft

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Loft: 200 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Contemporary Coastal House Plan with Separate First Floor and Second Floor Units

  • 2,184

    Heated s.f.

  • 2

    Units

  • 42' 0"

    Width

  • 41' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,275
  • 5 Sets $1,360
  • 5 Sets + PDF $1,494
  • CAD + PDF - Single-Build $1,825
  • View all purchase option online

About This Plan

  • This contemporary coastal house plan gives you two matching-and-separate 2 bed, 1 bath units, each giving you 992 square feet of heated living.
  • The second floor unit gets great light from windows set high on the the back and side walls.
  • In the family room, a ladder takes you to a 200 square foot loft.
  • A 10'-deep open deck wraps around all four sides of the second floor.
  • Related Plans: Get alternate versions with house plans 68633VR, 68666VR and 68775VR.

Floor Plans

  • Main Level

  • Second Level

  • Third Level Art Loft

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Loft: 200 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
Plan 680072VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680072VR
|
Need Help? 800-854-7852
|
Plan 680072VR
