Contemporary Coastal House Plan with Study and Split-bed Layout

Plan 86106BW

  • 3,818

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Contemporary Coastal house plan features  3,818 square feet of living space with a generous great room that expands onto a covered lanai through a 4-panel glass door.
  • Coffered ceiling treatments throughout the home add elegance overhead, while a dual-island kitchen provides plenty of space for family and friends to enjoy each other's company.
  • The master bedroom suite features 2 walk-in closets, access to the covered porch, a freestanding tub in front of an oversized shower, and two vanities.
  • A quiet study, or home office, neighbors the master suite.
  • The secondary bedrooms are located behind the 3-car garage, each with their own full bath and walk-in closet.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

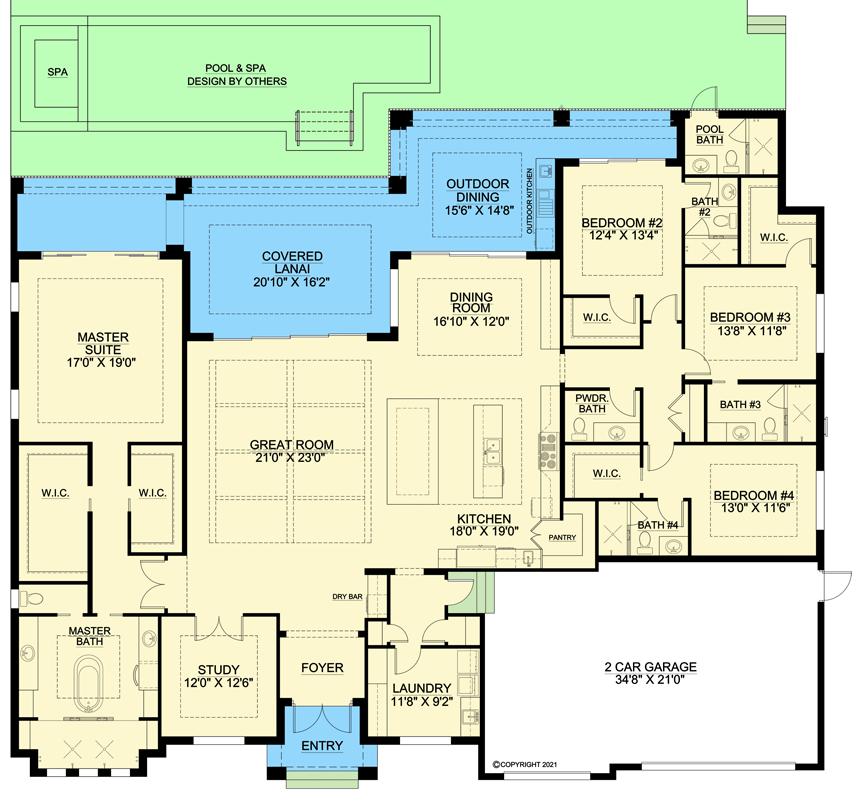

Contemporary Coastal House Plan with Study and Split-bed Layout - 86106BW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,818 sq. ft.
  • 1st Floor: 3,818 sq. ft.
  • Lanai: 792 sq. ft.
  • Entry: 74 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 84' 8"
  • Depth: 69' 8"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 785 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Master Bedroom Coffered 12' 0" to 13' 0"
Master Bath Flat 12' 0" to 13' 0"
Great Room Vaulted 14' 0" to 19' 4"
Dining Room Coffered 14' 0" to 15' 0"
Kitchen Coffered 14' 0" to 15' 0"
Entry Flat 17' 8"
Foyer Flat 16' 0"
Office Coffered 12' 0" to 13' 0"
Bedroom 2 Coffered 12' 0" to 12' 8"
Bedroom 3 Coffered 10' 0" to 10' 8"
Bath 2 Flat 10' 0"
Bath 3 Flat 10' 0"
Bath 4 Flat 10' 0"
Lanai Coffered 12' 0" to 13' 0"
Laundry Room Coffered 12' 0"
Garage Flat 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Coastal House Plan with Study and Split-bed Layout

  • 3,818

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,435
  • PDF - Single-Build $3,435
  • View all purchase option online

About This Plan

  • This Contemporary Coastal house plan features  3,818 square feet of living space with a generous great room that expands onto a covered lanai through a 4-panel glass door.
  • Coffered ceiling treatments throughout the home add elegance overhead, while a dual-island kitchen provides plenty of space for family and friends to enjoy each other's company.
  • The master bedroom suite features 2 walk-in closets, access to the covered porch, a freestanding tub in front of an oversized shower, and two vanities.
  • A quiet study, or home office, neighbors the master suite.
  • The secondary bedrooms are located behind the 3-car garage, each with their own full bath and walk-in closet.
