Contemporary Coastal or Mountain Plan for a Sloping Lot

Plan 68860VR

  • 1,612

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This contemporary coastal or mountain home is designed with a sloping lot in mind. With a simple square footprint, it is also designed with budget in mind.
  • The double garage resides on the ground level. Two bedrooms share a bath on this floor and a door takes you to a patio covered by the balcony above.
  • Oversized windows surround the second level with the ceilings going from 8' by the entry and 17' by the family room with balcony access.
  • The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony. Kitchen counters offer seating for seven.
  • Related Plans: Get alternate versions with house plans 68740VR, 68666VR and 68760VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Coastal or Mountain Plan for a Sloping Lot - 68860VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

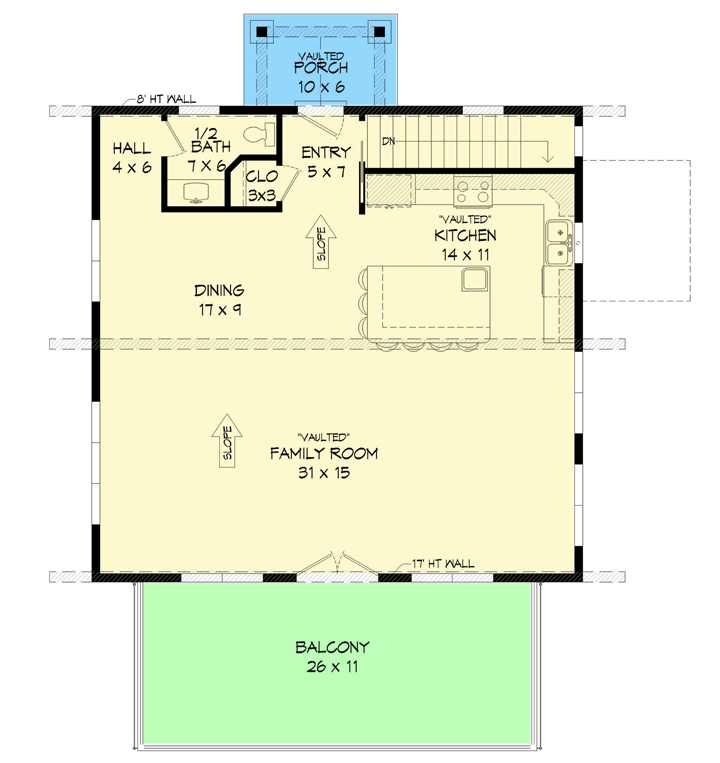

Contemporary Coastal or Mountain Plan for a Sloping Lot - 68860VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,612 sq. ft.
  • 1st Floor: 620 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Porch, Combined: 410 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 48' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 372 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Contemporary Coastal or Mountain Plan for a Sloping Lot

  • 1,612

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,160
  • 5 Sets + PDF $1,287
  • CAD + PDF - Single-Build $1,575
  • View all purchase option online

About This Plan

  • This contemporary coastal or mountain home is designed with a sloping lot in mind. With a simple square footprint, it is also designed with budget in mind.
  • The double garage resides on the ground level. Two bedrooms share a bath on this floor and a door takes you to a patio covered by the balcony above.
  • Oversized windows surround the second level with the ceilings going from 8' by the entry and 17' by the family room with balcony access.
  • The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony. Kitchen counters offer seating for seven.
  • Related Plans: Get alternate versions with house plans 68740VR, 68666VR and 68760VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,612 sq. ft.
  • 1st Floor: 620 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Porch, Combined: 410 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 48' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 372 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
Plan 68860VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68860VR
|
Need Help? 800-854-7852
|
Plan 68860VR
