Contemporary 2-Bed House Plan with 3rd Floor Artists Loft Accessible by Ship's Ladder

Plan 68740VR

  • 1,727

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2-3

    Stories

  • 2

    Cars

  • The simplicity of the square footprint of this contemporary coastal or mountain home keeps budget in mind. Paired with a sloped roof, a sleek, modern design is the result.
  • The double garage resides on the ground level, and includes additional storage space, a bedroom and full bath as well.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • Kitchen counters offer seating for six, and a nearby pantry closet increases storage space.
  • A large bedroom with a roomy walk-in closet has direct laundry access.
  • A ship ladder in the family room leads to a 300 square foot artist's loft, or flexible creative space.
  • Related Plans: Get a side-entry garage with house plans 68633VR (1,359 sq. ft.), 68760VR (1,570 sq. ft.), 68775VR (1,700 sq. ft.), 68860VR (1,612 sq. ft.) and 68921VR (1,792 sq. ft.). Get a front-facing garage with house plan 68666VR (1,359 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

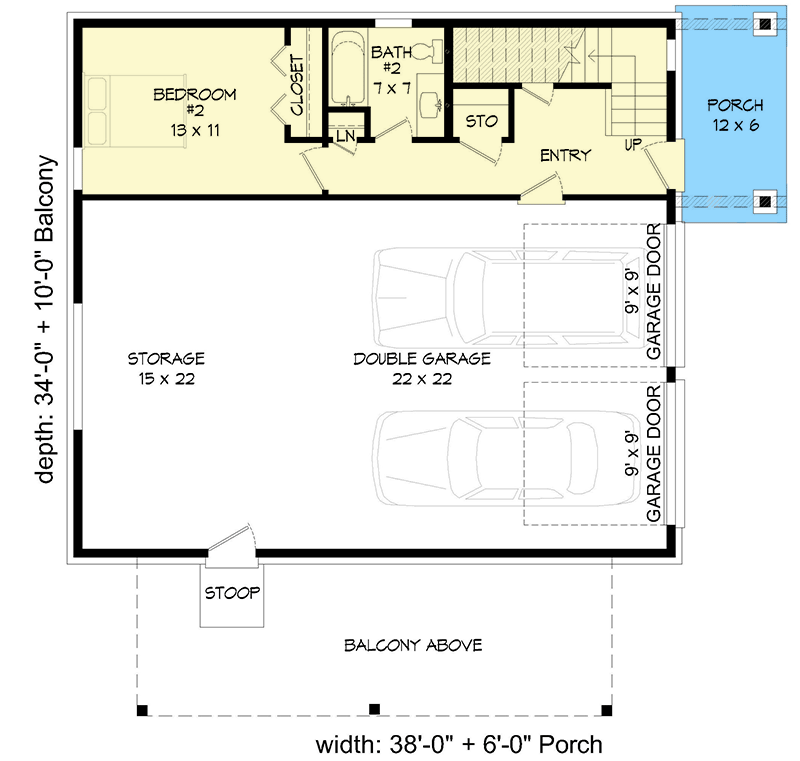

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary 2-Bed House Plan with 3rd Floor Artists Loft Accessible by Ship's Ladder - 68740VR floor plan - Main Level

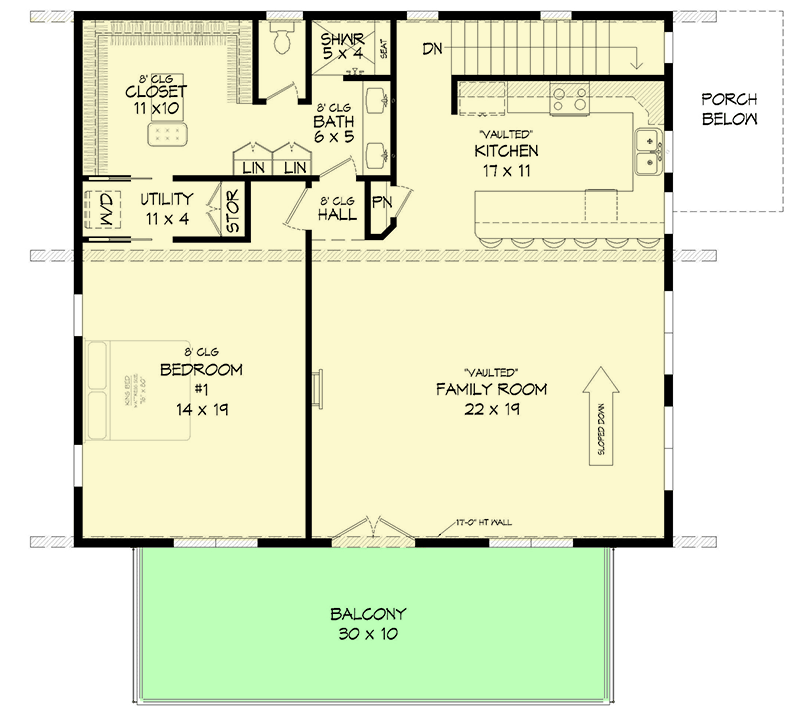

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary 2-Bed House Plan with 3rd Floor Artists Loft Accessible by Ship's Ladder - 68740VR floor plan - 2nd Floor

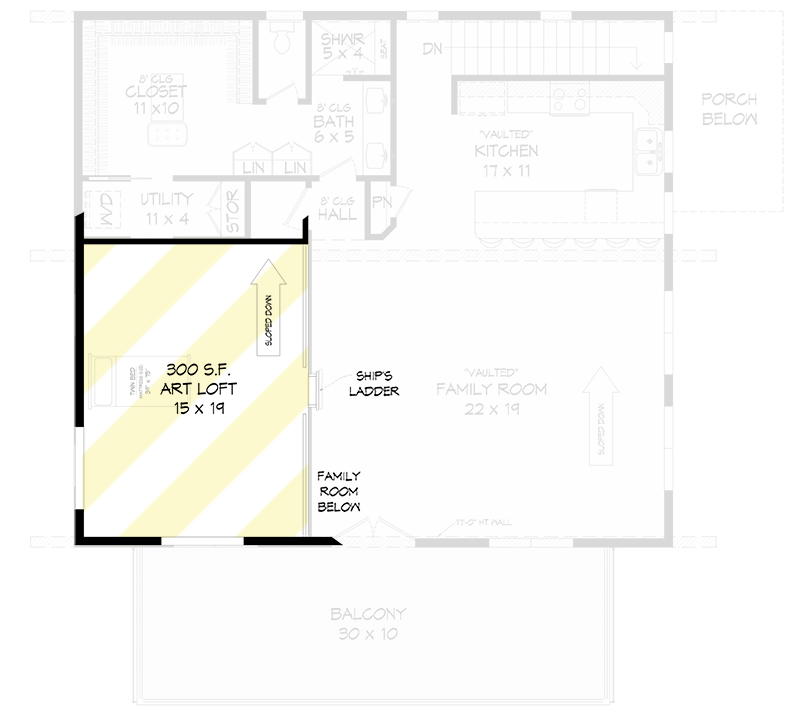

Loft
