Plan 770506JME Contemporary Craftsman Plan with Optional Lower Level

1,981 2-4 2.5 - 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Craftsman Plan with Optional Lower Level

Plan 770506JME

  • 1,981

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A 3-car garage extends from the front of this Contemporary Craftsman home plan to create a motor courtyard that welcomes friends and family.
  • The foyer leads into a vaulted great room that flows onto a 19' by 20' covered patio, complete with an outdoor kitchen.
  • The gourmet kitchen indulges in a corner pantry and level eating bar at the island with room for five seats, and the adjoining dining room features a beverage fridge in the built-in buffet.
  • Discover two bedrooms along the right side of the design, including the master bedroom with its 5-fixture bathroom residing behind a barn door.
  • Finish the basement for an additional 1,981 square feet of living space and enjoy a rec room with a billiards table and wet bar, home gym, two bedrooms, and bathroom with a sauna.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

This plan includes the following details:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections
  • Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

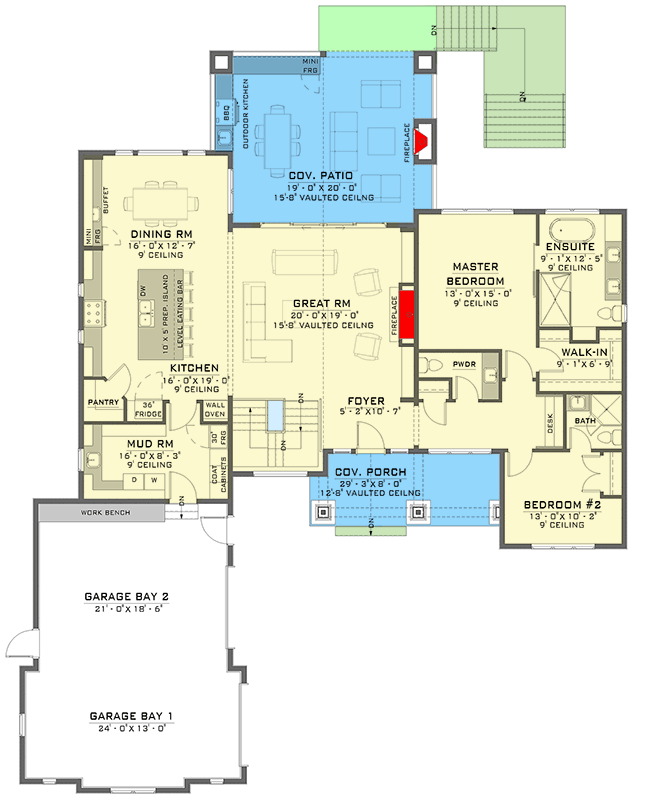

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Craftsman Plan with Optional Lower Level - 770506JME floor plan - Main Level

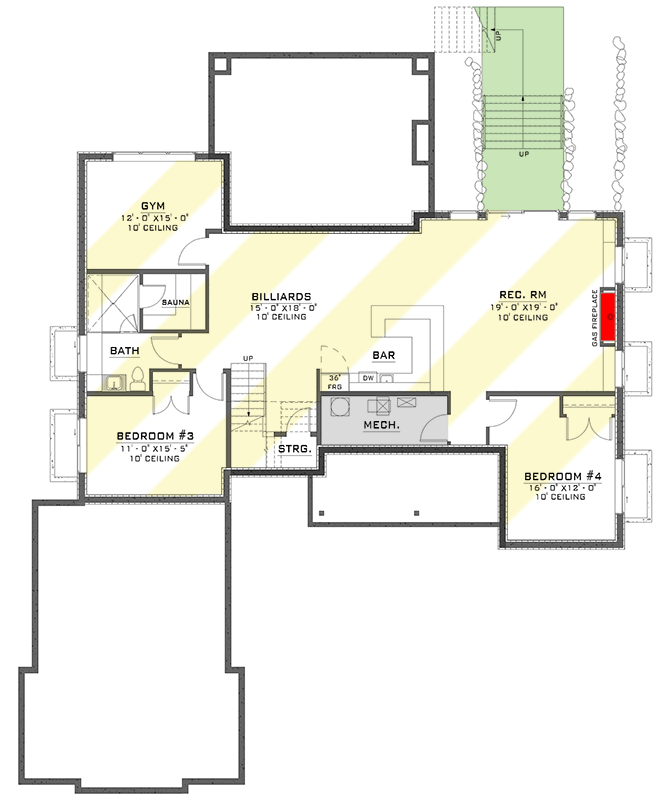

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Craftsman Plan with Optional Lower Level - 770506JME floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,981 sq. ft.
  • 1st Floor: 1,981 sq. ft.
  • Covered Patio: 451 sq. ft.
  • Porch, Combined: 589 sq. ft.
  • Porch, Front: 138 sq. ft.
  • Basement Unfinished: 1,981 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 82' 0"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 736 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Craftsman Plan with Optional Lower Level

  • 1,981

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • CAD + PDF - Single Build $1,695
  • CAD Unlimited + PDF $2,195
  • View all purchase option online

About This Plan

  • A 3-car garage extends from the front of this Contemporary Craftsman home plan to create a motor courtyard that welcomes friends and family.
  • The foyer leads into a vaulted great room that flows onto a 19' by 20' covered patio, complete with an outdoor kitchen.
  • The gourmet kitchen indulges in a corner pantry and level eating bar at the island with room for five seats, and the adjoining dining room features a beverage fridge in the built-in buffet.
  • Discover two bedrooms along the right side of the design, including the master bedroom with its 5-fixture bathroom residing behind a barn door.
  • Finish the basement for an additional 1,981 square feet of living space and enjoy a rec room with a billiards table and wet bar, home gym, two bedrooms, and bathroom with a sauna.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,981 sq. ft.
  • 1st Floor: 1,981 sq. ft.
  • Covered Patio: 451 sq. ft.
  • Porch, Combined: 589 sq. ft.
  • Porch, Front: 138 sq. ft.
  • Basement Unfinished: 1,981 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 82' 0"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 736 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
