Plan 64484SC

  • 2,659

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

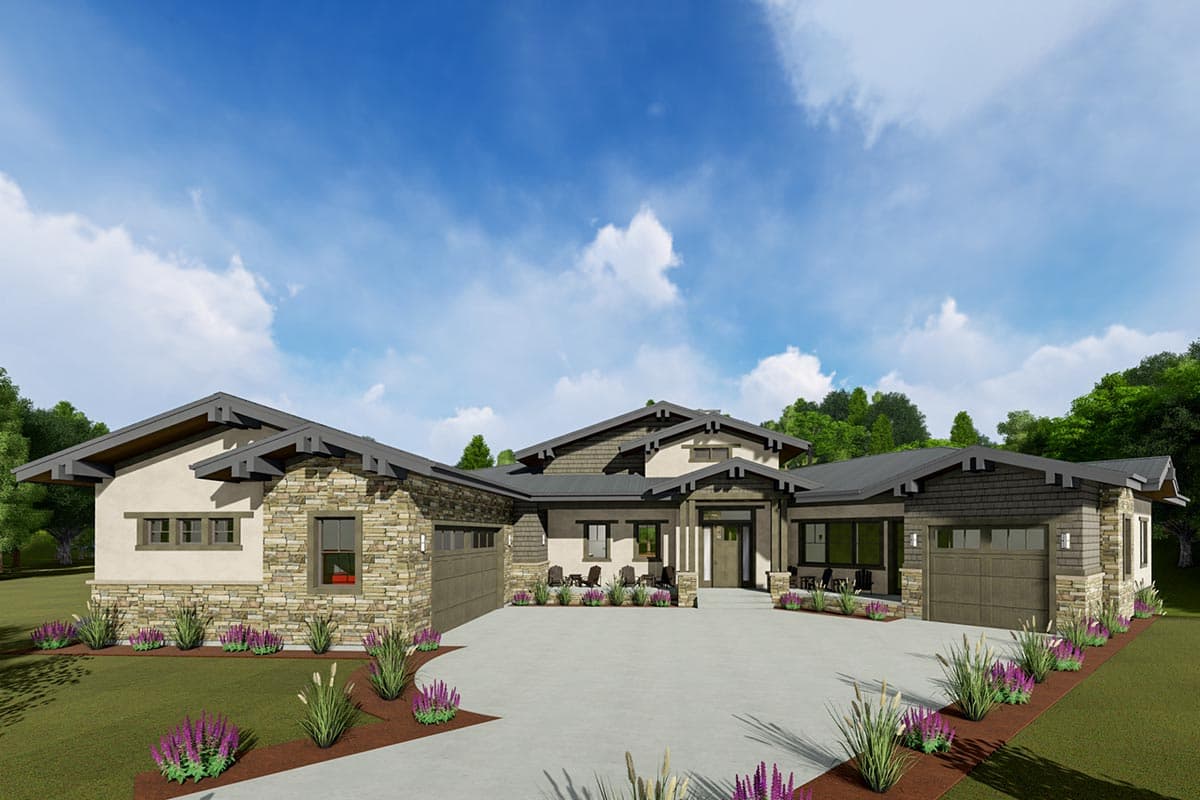

  • Three garage bays protrude from either side of the front of this contemporary Craftsman, creating a parking courtyard and welcoming guests. The optional, walk-out basement makes this house plan ideal for sloped lots.
  • An elongated front porch ushers you inside where the heart of the home greets you with an open floor plan. The double-sided fireplace allows you to enjoy the crackling fire throughout the shared living space.
  • A massive kitchen island offers seating for 6, and the partially-covered deck boasts ample space for outdoor dining and lounge furniture.
  • The first master bedroom on the main level occupies the left side of the home, and features a lavish en suite with a pass-through closet connecting to the laundry room.
  • Master bedroom 2 rests on the opposite side of the home and includes a 4-fixture bath.
  • The optional lower level nearly doubles the living space, and includes a sprawling rec / game room with a wet bar and 3 bedroom suites.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Floor Plan

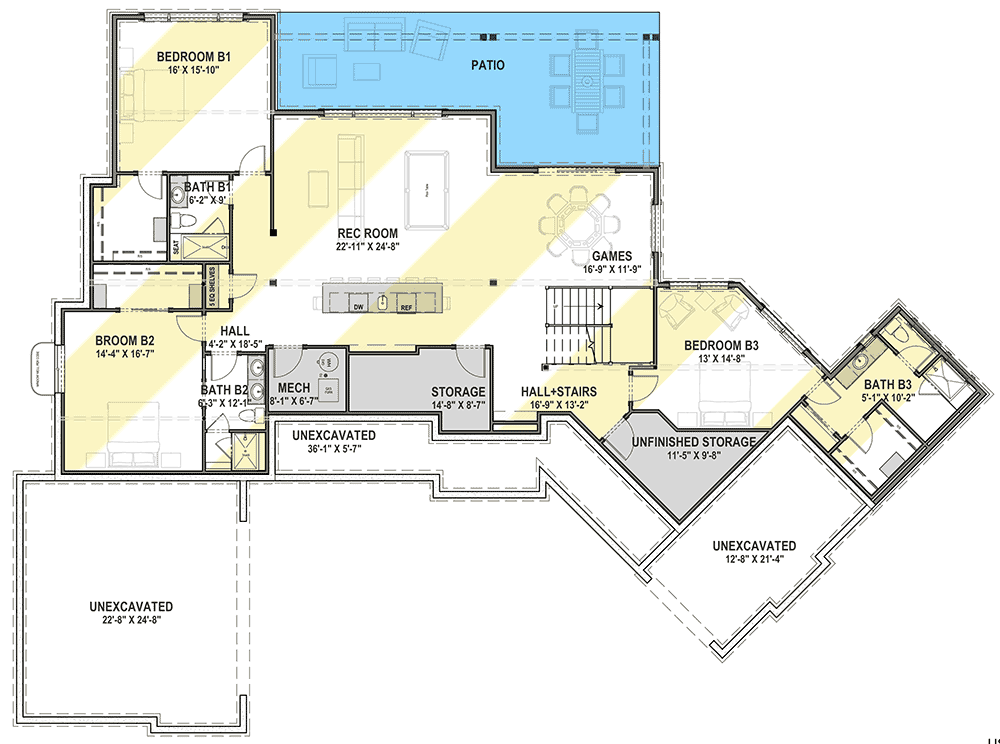

Optional Lower Level

Pinit white
Contemporary Craftsman with 2 Main-level Masters - 64484SC floor plan - Optional Lower Level

Plan details



Contemporary Craftsman with 2 Main-level Masters

  • 2,659

    Heated s.f.

  • 2 - 5

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,350
  • PDF - multi-use $1,550
  • CAD $1,550
  • CAD - multi-use $1,850
  • View all purchase option online

About This Plan

  • Three garage bays protrude from either side of the front of this contemporary Craftsman, creating a parking courtyard and welcoming guests. The optional, walk-out basement makes this house plan ideal for sloped lots.
  • An elongated front porch ushers you inside where the heart of the home greets you with an open floor plan. The double-sided fireplace allows you to enjoy the crackling fire throughout the shared living space.
  • A massive kitchen island offers seating for 6, and the partially-covered deck boasts ample space for outdoor dining and lounge furniture.
  • The first master bedroom on the main level occupies the left side of the home, and features a lavish en suite with a pass-through closet connecting to the laundry room.
  • Master bedroom 2 rests on the opposite side of the home and includes a 4-fixture bath.
  • The optional lower level nearly doubles the living space, and includes a sprawling rec / game room with a wet bar and 3 bedroom suites.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,659 sq. ft.
  • 1st Floor: 2,659 sq. ft.
  • Deck: 502 sq. ft.
  • Porch, Combined: 272 sq. ft.
  • Optional Lower Level: 2,457 sq. ft.
  • Basement Unfinished: 336 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, & 5
  • Full bathrooms: 2, 3, 4, & 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 101' 4"
  • Depth: 75' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 849 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
