Contemporary Duplex House Plan with Three Bedrooms and Smart Layout

Heated S.F.
3,558
Units
2
Width
Depth

Floor Plan

Plan 850056PKE

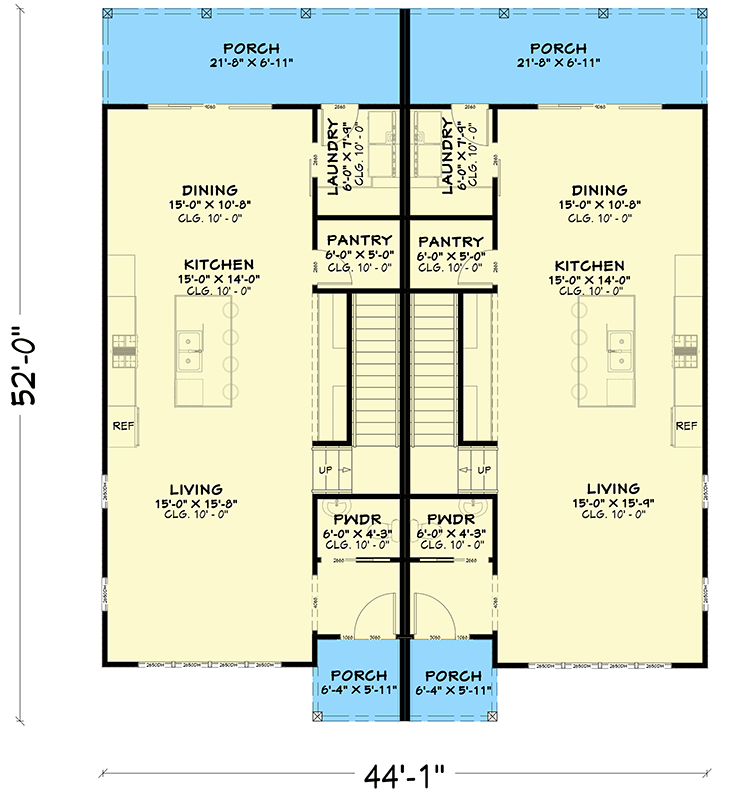

Floor Plan 1

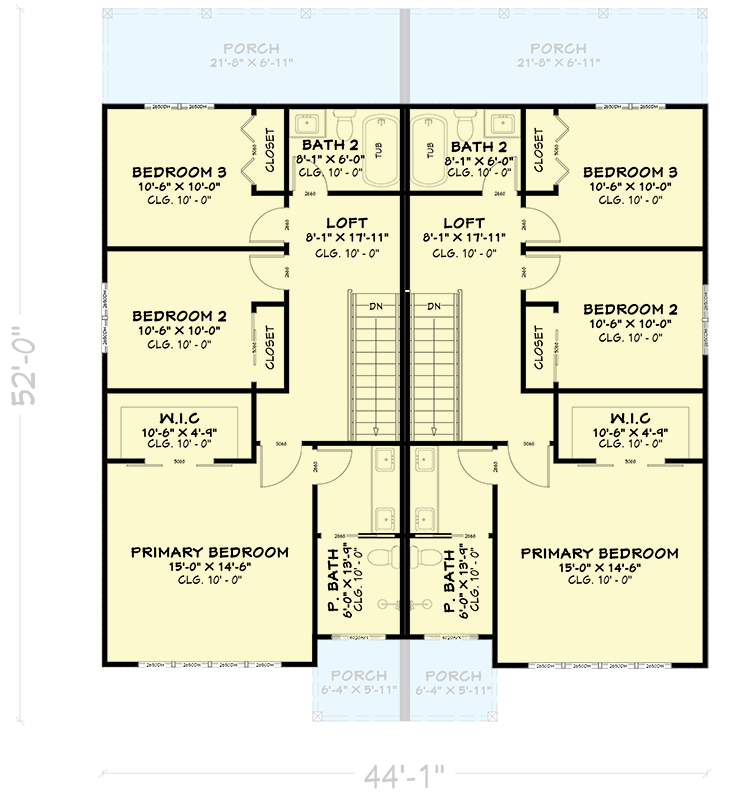

Floor Plan 2

Plan 850056PKE

M-F 9am-5pm EST |

1-203-761-8500

Plan 850056PKE: Contemporary Duplex House Plan with Three Bedrooms and Smart Layout - Floor Plan - - Contemporary

Plan 850056PKE: Contemporary Duplex House Plan with Three Bedrooms and Smart Layout - Floor Plan - - Contemporary

Plan Details

  • This modern duplex design offers 1,779 finished square feet per unit, featuring three bedrooms, two full baths, and one half bath in a sleek contemporary exterior style.
  • The entry welcomes you into a functional layout that includes a dedicated mudroom for seamless daily transitions.
  • The main floor centers around a flowing open-concept living space where the kitchen is enhanced by a convenient walk-in pantry.
  • Upstairs, the primary bedroom suite provides a private retreat, while two additional bedrooms are thoughtfully clustered nearby to maximize efficiency.
  • A versatile loft space on the upper level offers extra flexibility for a home office or a quiet reading nook.
  • Residents can enjoy indoor-outdoor living through a generous 152 square foot covered patio, perfect for relaxing at the end of the day.
Unit A & B
Heated Area
1,779Sq. Ft.
913 Sq. Ft. 1st
866 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
22'width
52'depth
Unfinished Areas
38 Sq. Ft. Porch, Front
152 Sq. Ft. Covered Patio

What's Included

  • Cover Sheet
  • Dimensioned Floor Plan(s)
  • Foundation Plan
  • Exterior Elevations
  • Roof Plan
  • Building Sections and Details
  • Window and Door Schedule with Kitchen Elevations
  • Electrical Power & Lighting Layout Plan(s)
  • General Notes and Details

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,558 sq. ft.

1st Floor

1,826 sq. ft.

2nd Floor

1,732 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

304 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 1"

Depth

52' 0"

Max Ridge Height

26' 2"

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

3,558 sq. ft.

1st Floor

1,826 sq. ft.

2nd Floor

1,732 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

304 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 1"

Depth

52' 0"

Max Ridge Height

26' 2"

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License
