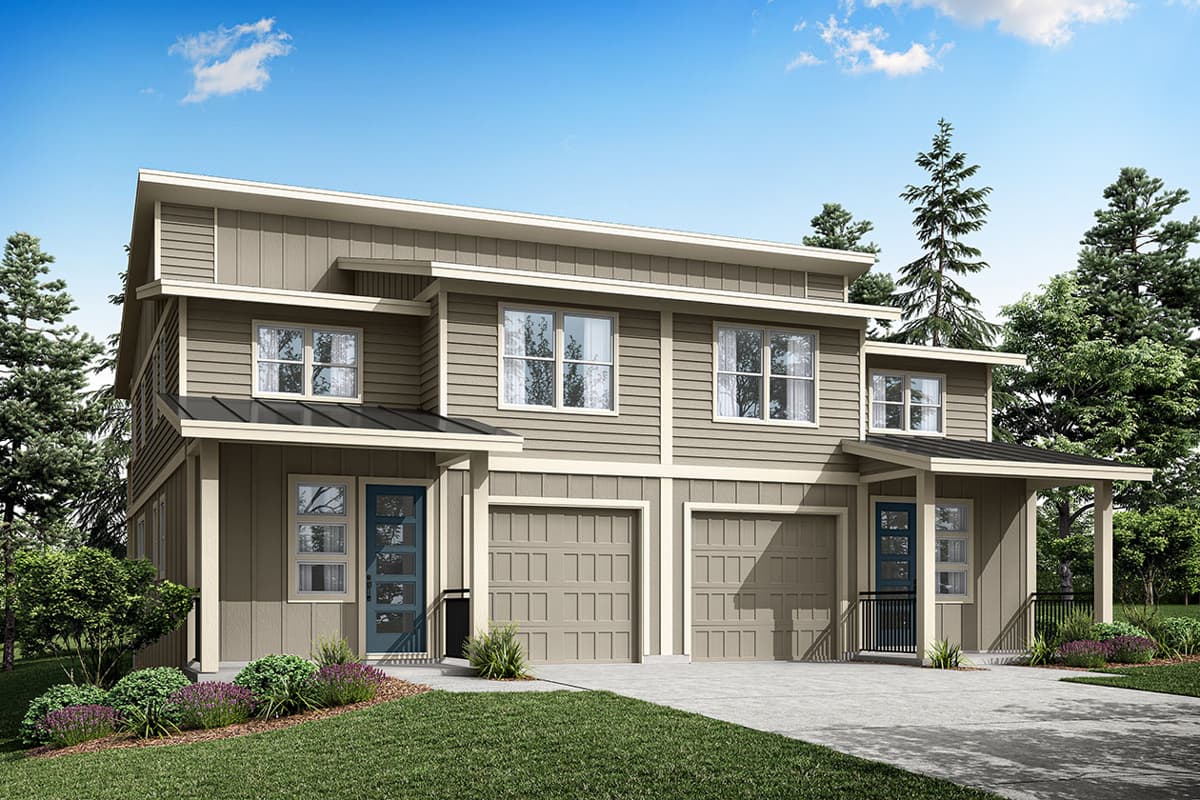

Plan 72428DA

Contemporary Duplex House Plan with Two Story 3 Bedroom Units - 1783 Sq Ft Each

Heated S.F.
3,566
Units
2
Width
Depth

Floor Plan

Plan 72428DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72428DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

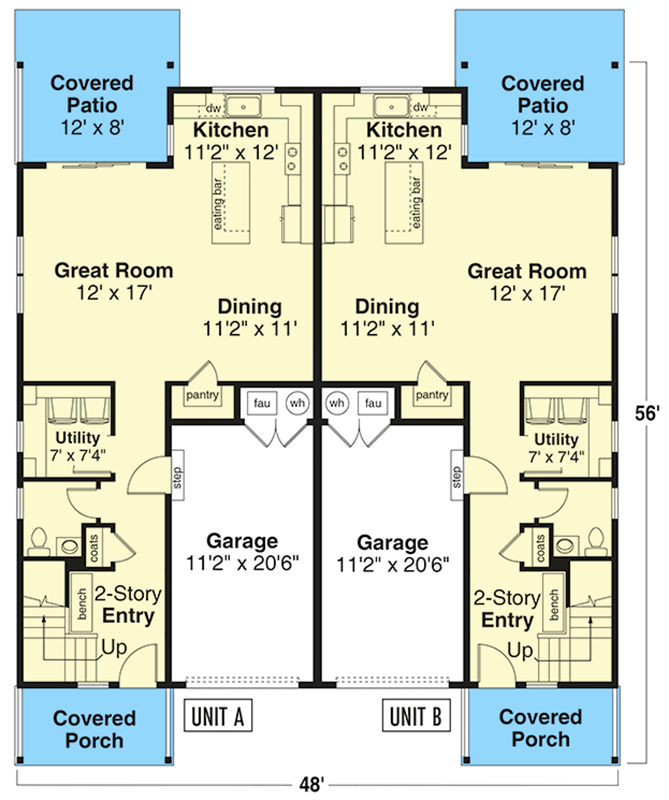

Plan 72428DA: Contemporary Duplex House Plan with Two Story 3 Bedroom Units - 1783 Sq Ft Each - Floor Plan - Main Level - Contemporary, Mid Century Modern, New American

2nd Floor

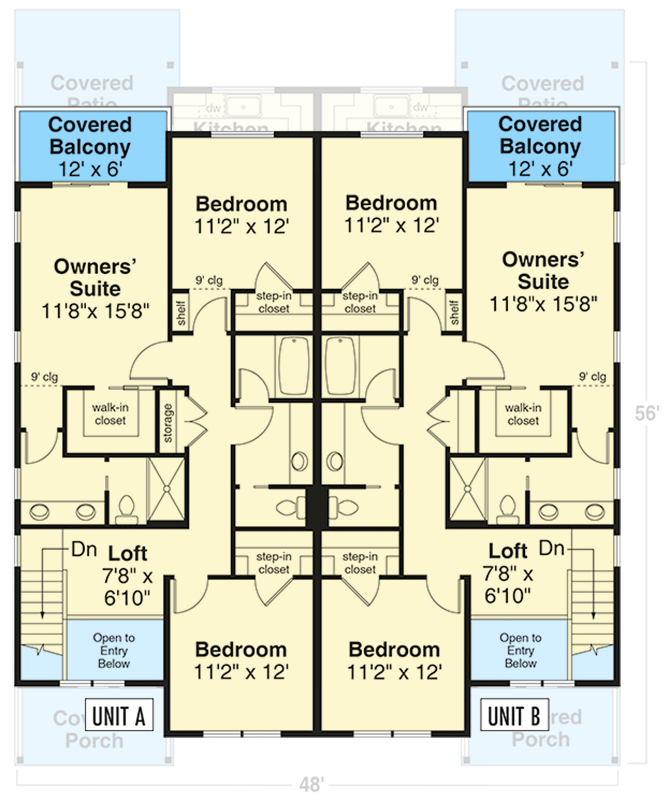

Plan 72428DA: Contemporary Duplex House Plan with Two Story 3 Bedroom Units - 1783 Sq Ft Each - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, New American

Plan Details

  • This contemporary duplex house plan offers modern design gives you matching side-by-side two-story units each with 3 beds, 2.5 baths and 1,783 square feet of heated living (817 square feet on the main floor and 966 square feet on the second floor). Each unit also gets its own 1-car 264 square foot garage.
  • The modern aesthetics and durability, with large windows flooding the interiors with natural light. A two-story entryway leads to an expansive great room and dining area, with a state-of-the-art kitchen featuring modern appliances and a walk-in pantry.
  • Adjacent to the kitchen, a utility room provides essential services, while a covered porch and patio offer private outdoor spaces. Upstairs, each unit has a luxurious owner's suite with a walk-in closet and ensuite bathroom, two additional bedrooms with a shared bathroom, and a covered balcony.
  • A versatile loft area overlooks the entry, adaptable for various uses.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,783Sq. Ft.
817 Sq. Ft. 1st
966 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
264 Sq. Ft.
Dimensions
24'width
56'depth
28' 3"height
Unfinished Areas
264 Sq. Ft. Garage
Unit B
Heated Area
1,783Sq. Ft.
817 Sq. Ft. 1st
966 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
264 Sq. Ft.
Dimensions
24'width
56'depth
28' 3"height
Unfinished Areas
264 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

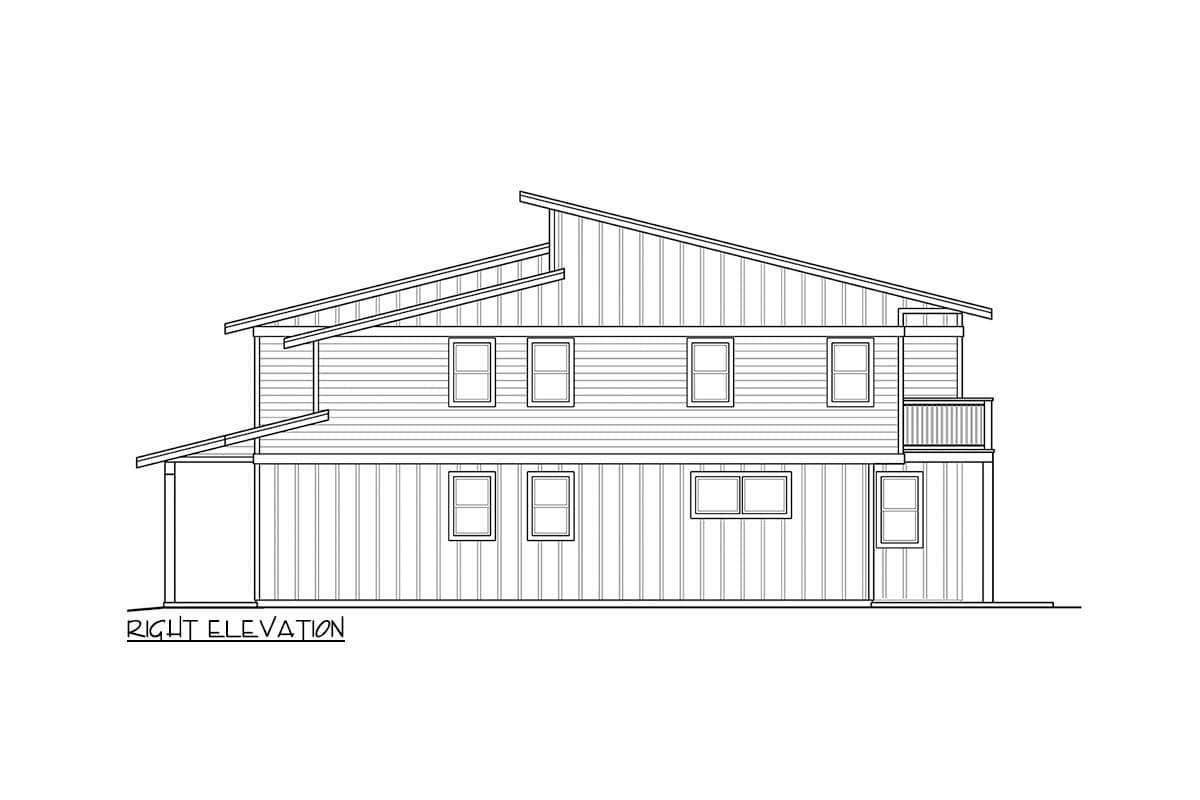

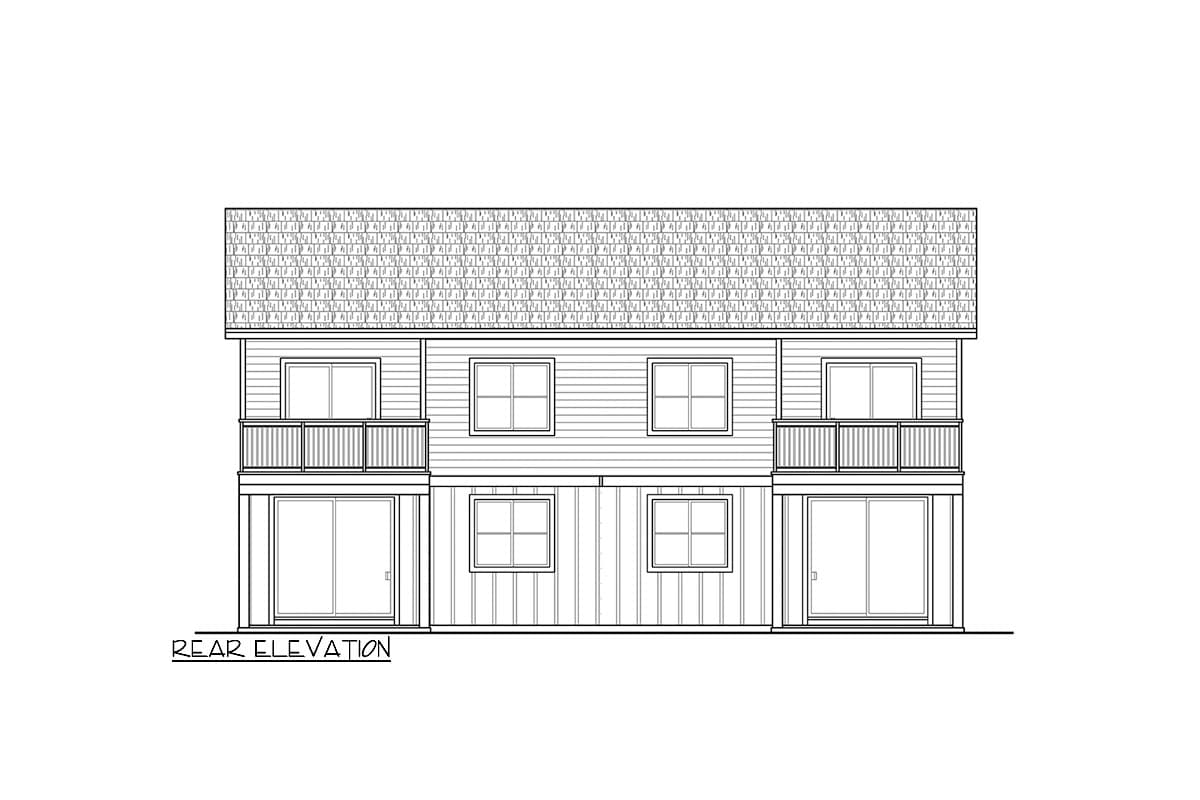

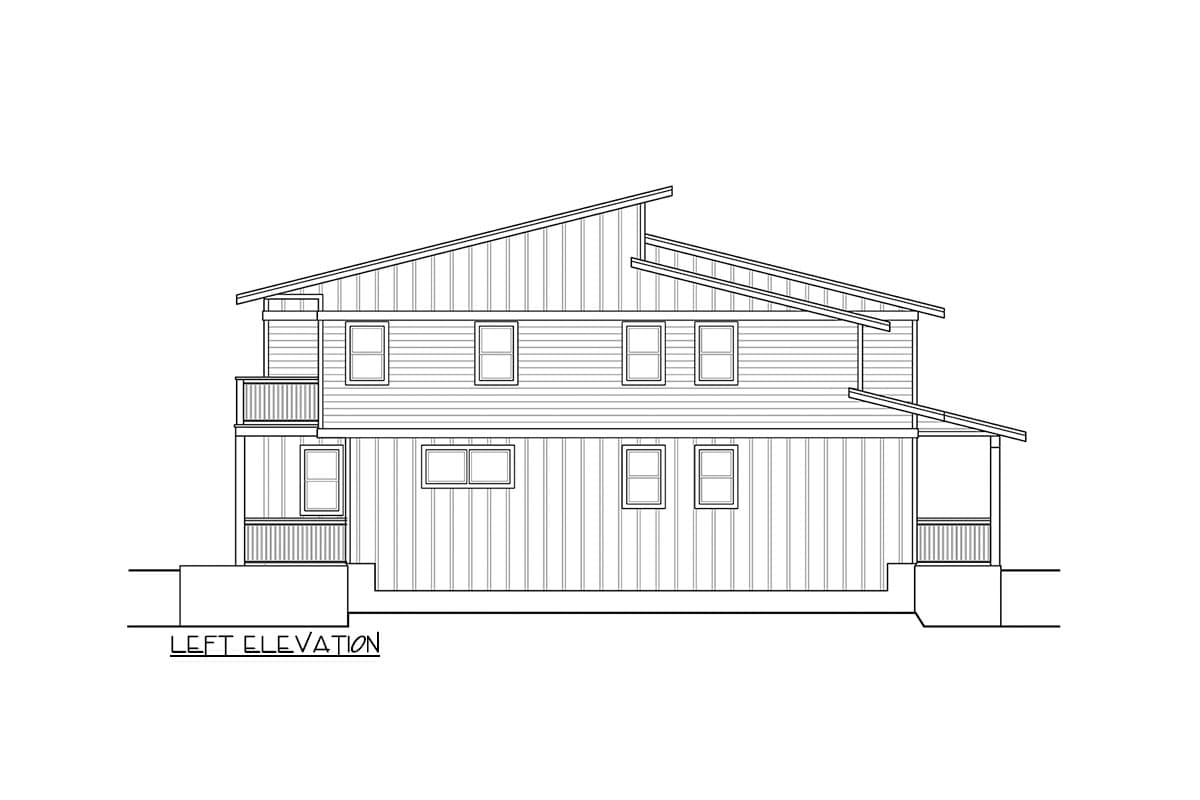

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,566 sq. ft.

1st Floor

1,634 sq. ft.

2nd Floor

1,932 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

56' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

264 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

New American

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

3,566 sq. ft.

1st Floor

1,634 sq. ft.

2nd Floor

1,932 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

56' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

264 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

New American

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom
