Plan 90290PD

Contemporary Duplex with a 1 Bedroom and a 2 Bedroom Unit - 839 Sq Ft and 1039 Sq Ft

Heated S.F.
1,932
Units
2
Width
Depth

Floor Plan

Plan 90290PD

Main Level
Main Level
Second Level
Second Level

Plan 90290PD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

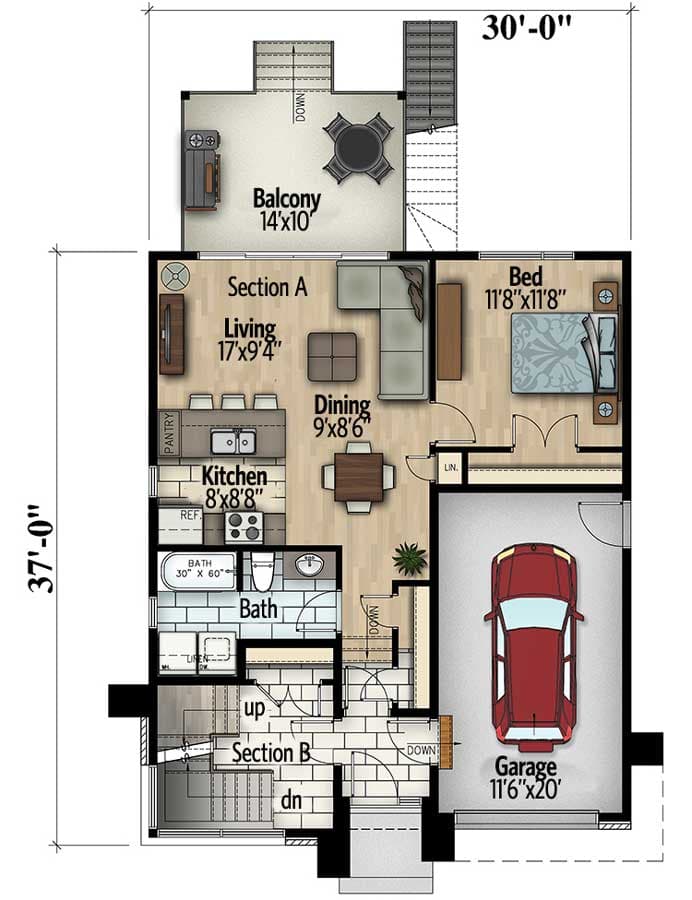

Plan 90290PD: Contemporary Duplex with a 1 Bedroom and a 2 Bedroom Unit - 839 Sq Ft and 1039 Sq Ft - Floor Plan - Main Level - Contemporary, Modern

Second Level

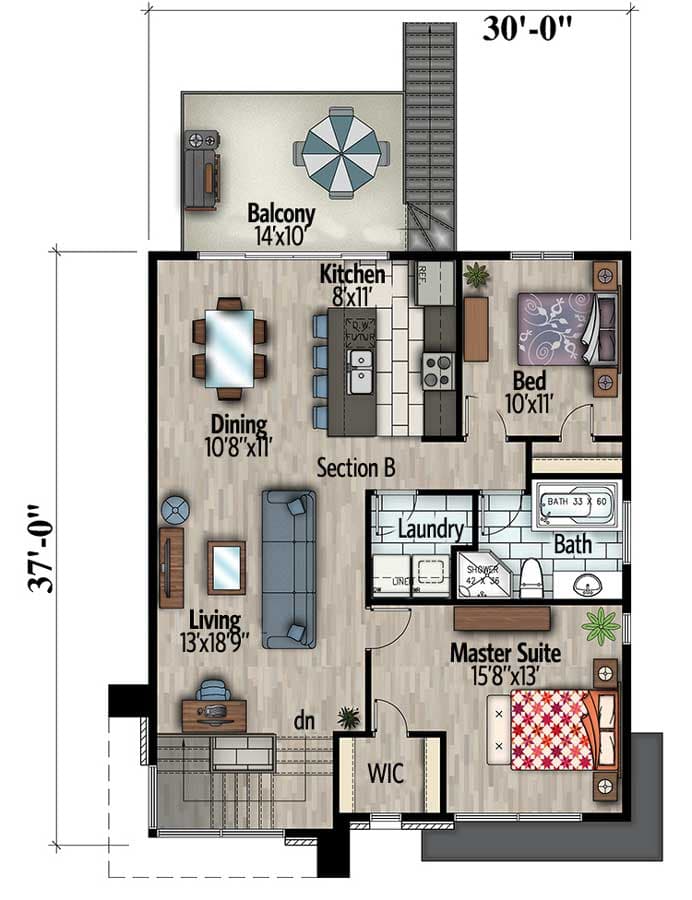

Plan 90290PD: Contemporary Duplex with a 1 Bedroom and a 2 Bedroom Unit - 839 Sq Ft and 1039 Sq Ft - Floor Plan - Second Level - Contemporary, Modern

Plan Details

  • This contemporary duplex house plan gives you a 1 bed, 1 bath first floor unit with 839 square feet of heated living and a 2 bed, 1 bath second floor unit with 1,039 square feet of heated living.
  • A grand two-story wall of windows sends light streaming into the stairwell.
  • The entry foyer directs you straight ahead to the smaller lower floor unit that has one bedroom.
  • The open floor plan makes the space feel larger and sliding glass doors take you outside to a large balcony.
  • Upstairs, the larger unit has two bedrooms and a shared bathroom.
  • The master suite faces front and has a walk-in closet.
  • You can dine at the raised eating bar of the kitchen island or eat in the dining area.
  • This unit has an equal size balcony so both units get outdoor space.
Unit A
Heated Area
839Sq. Ft.
839 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Cars
Attached
269 Sq. Ft.
Dimensions
30'width
37'depth
24' 9"height
Unfinished Areas
269 Sq. Ft. Garage
839 Sq. Ft. Basement Unfinished
Unit B
Heated Area
1,039Sq. Ft.
1039 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
30'width
37'depth
24' 9"height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,932 sq. ft.

1st Floor

839 sq. ft.

2nd Floor

1,093 sq. ft.

Basement Unfinished

839 sq. ft.

Porch, Front

18 sq. ft.

Porch, Rear

140 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

37' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

269 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,932 sq. ft.

1st Floor

839 sq. ft.

2nd Floor

1,093 sq. ft.

Basement Unfinished

839 sq. ft.

Porch, Front

18 sq. ft.

Porch, Rear

140 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

37' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

269 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans
