Plan 65799BS

Contemporary Florida-Style House Plan with 3 Bedrooms and Outdoor Kitchen

Name: Plan 65799BS: Contemporary Florida-Style House Plan with 3 Bedrooms and Outdoor Kitchen
Brand: Architectural Designs
SKU: 65799BS
Price: 1915.0 USD
Availability: InStock

Heated S.F.

1,915

Beds

Baths

Stories

Cars

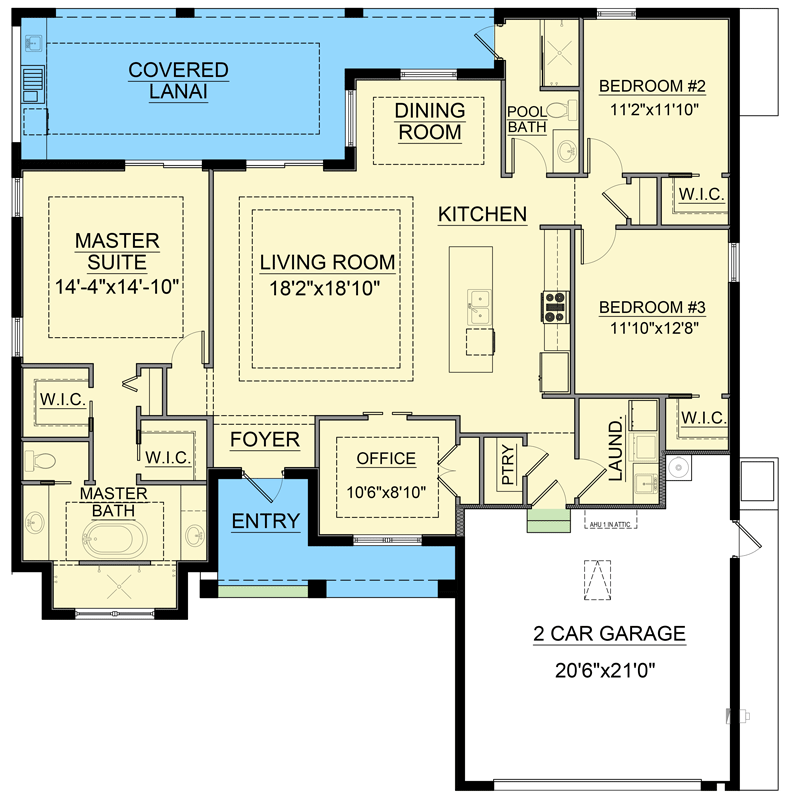

Floor Plan

Plan Details

This 1,915 sq. ft. contemporary Florida-style home features 3 bedrooms, 2 baths, and a spacious 495 sq. ft. 2-car garage.
The entry opens into a sophisticated layout that highlights an immediate sense of openness and clean architectural lines.
The heart of the home centers on a seamless flow between the formal dining area and the main living spaces, designed for effortless daily life.
A split-bedroom floor plan ensures privacy, positioning the primary suite away from the two secondary bedrooms for a quiet retreat.
A dedicated home office provides a functional space for remote work or study, tucked away from the high-traffic zones of the residence.
The expansive 353 sq. ft. rear lanai serves as an outdoor extension of the home, complete with an outdoor kitchen ideal for alfresco dining.
Main level living is enhanced by a convenient laundry room and thoughtful design details that maximize every square foot of the footprint.

What's Included

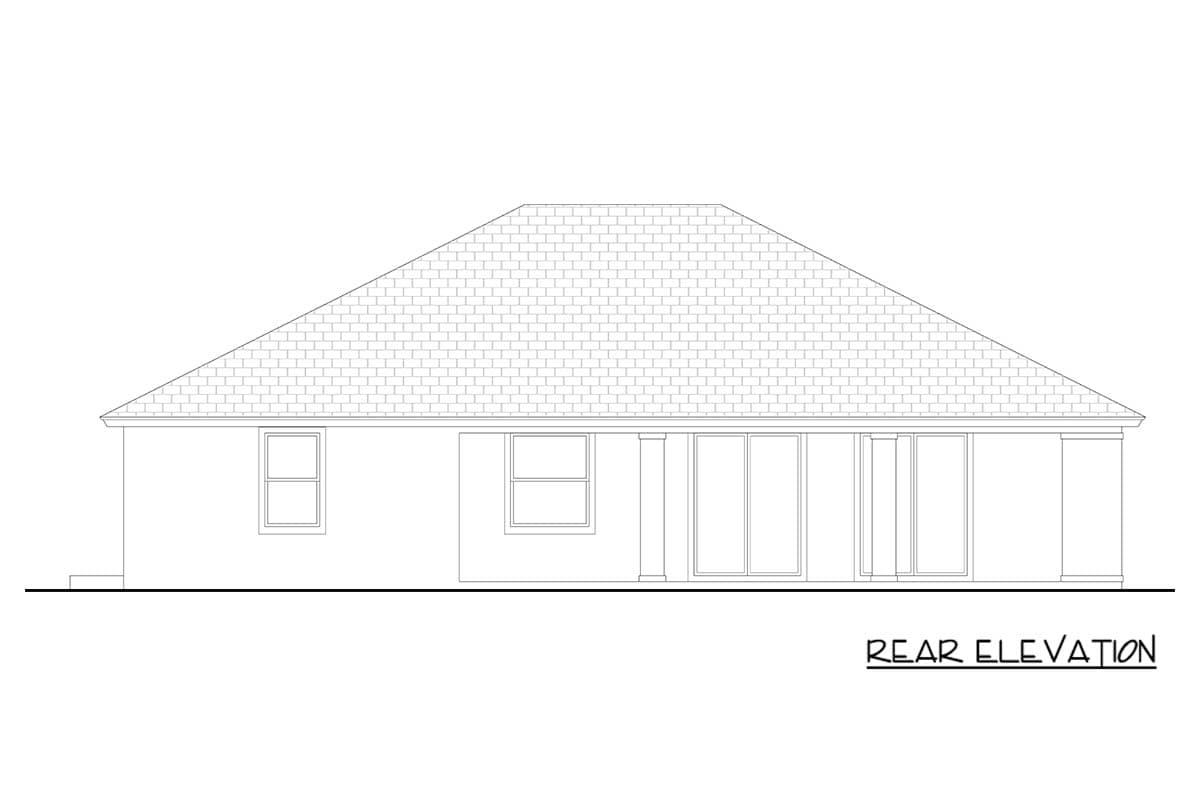

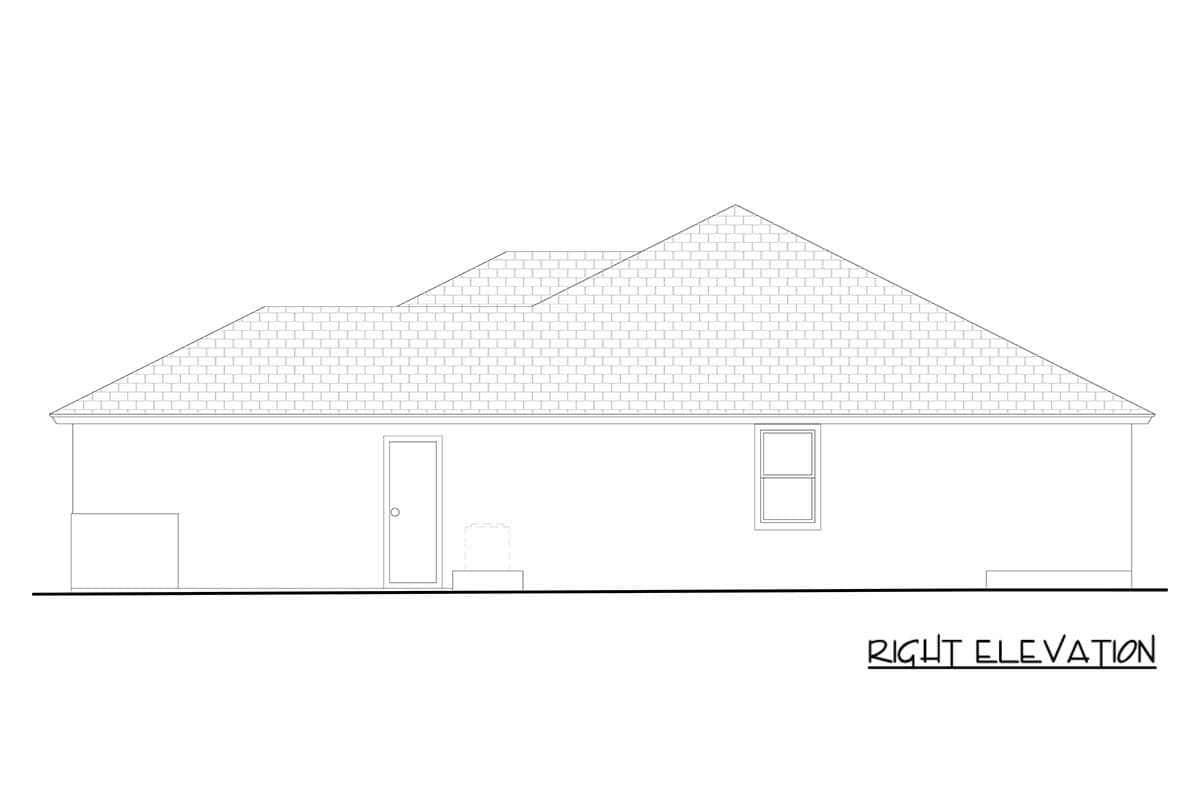

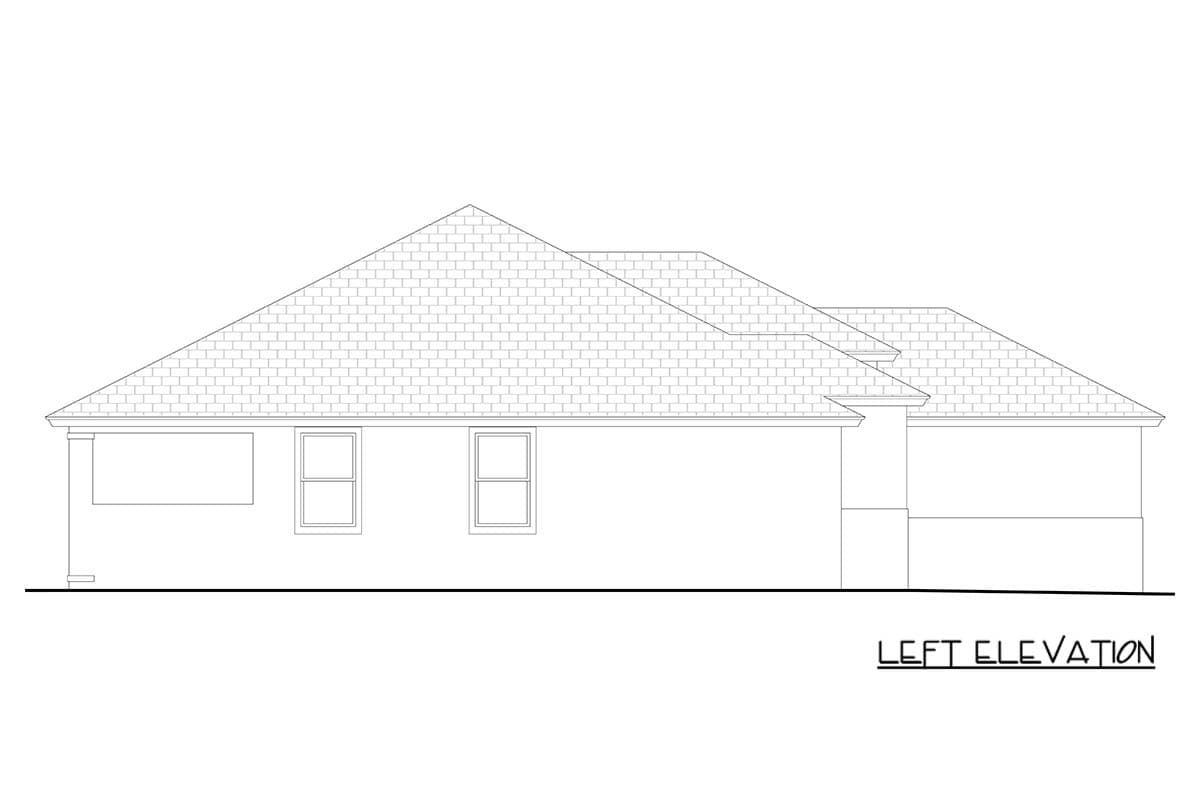

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
