Plan 65782BS

Contemporary Florida Style House Plan with 4 Bedrooms and Courtyard Entry

Name: Plan 65782BS: Contemporary Florida Style House Plan with 4 Bedrooms and Courtyard Entry
Brand: Architectural Designs
SKU: 65782BS
Price: 2712.26 USD
Availability: InStock

Heated S.F.

3,754

Beds

Baths

Stories

Cars

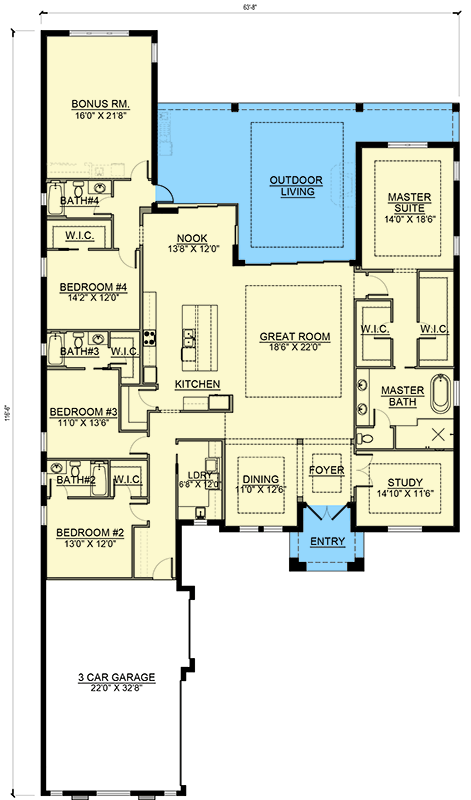

Floor Plan

Plan Details

This expansive 3,754 square foot Florida-style residence offers four bedrooms, four bathrooms, and a spacious three-car courtyard garage.

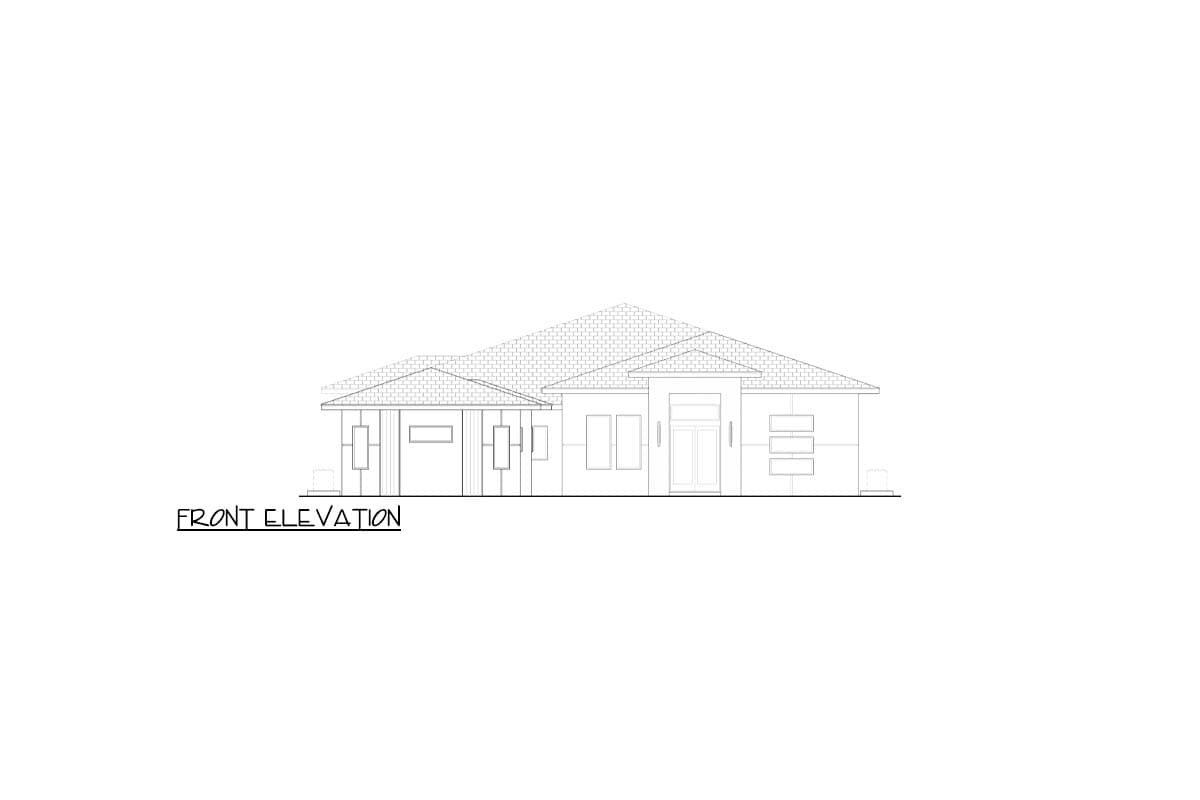

The sophisticated exterior features clean lines and a modern aesthetic, welcoming guests through a refined entrance that sets a tone of luxury.
Inside, the open-concept layout flows effortlessly between the formal dining area, a dedicated study, and the bright, airy main living spaces.
The primary suite is strategically positioned for maximum privacy, while the remaining three bedrooms are thoughtfully arranged to accommodate family and guests with ease.
A massive 723 square foot lanai serves as the heart of the home, creating a seamless transition for indoor-outdoor living and coastal relaxation.
The floor plan is further enhanced by a convenient mudroom, a charming breakfast nook for casual mornings, and a finished bonus room that provides flexible space for a home office or media center.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
