Plan 65783BS

Contemporary Florida Style House Plan with 4 Bedrooms and Courtyard Entry

Name: Plan 65783BS: Contemporary Florida Style House Plan with 4 Bedrooms and Courtyard Entry
Brand: Architectural Designs
SKU: 65783BS
Price: 4004.0 USD
Availability: InStock

Heated S.F.

4,004

Beds

Baths

4.5

Stories

Cars

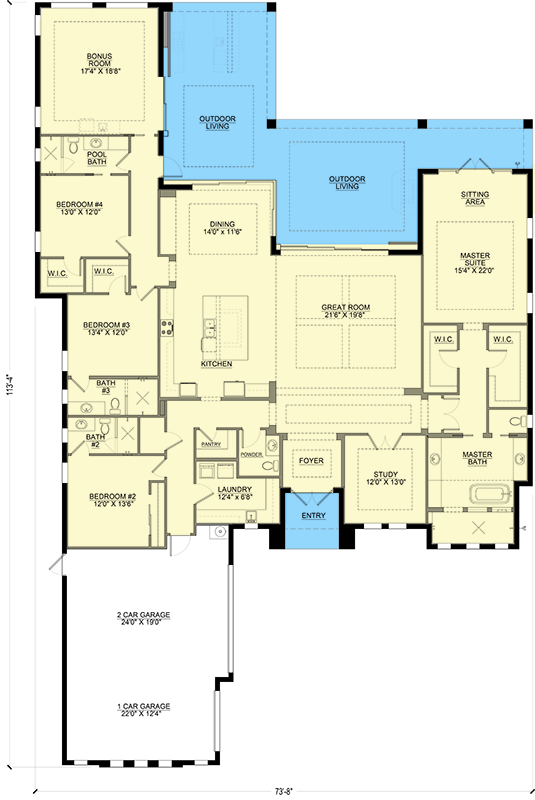

Floor Plan

Plan Details

Boasting 4,004 finished square feet, this contemporary Florida-style home features four bedrooms, four full bathrooms, one half-bath, and an attached three-car garage totaling 818 square feet.
The home welcomes you through an elegant courtyard entry that sets a sophisticated tone for the open-concept floor plan within.
The main living area is designed for seamless transitions, offering a spacious layout that connects the interior gathering spaces to the outdoors.
A private master suite serves as a luxurious retreat, complete with a sitting area and separation from the three secondary bedrooms to ensure maximum privacy.
Practical luxury is found throughout the design, including a dedicated library or study, a functional mudroom, and a convenient main-level laundry room.
An expansive 981-square-foot lanai provides a stunning outdoor oasis, featuring an outdoor kitchen that is ideal for taking advantage of warm weather and al fresco dining.
The design also includes a versatile finished bonus room, offering additional space for a home theater, gym, or flexible lifestyle needs.

What's Included

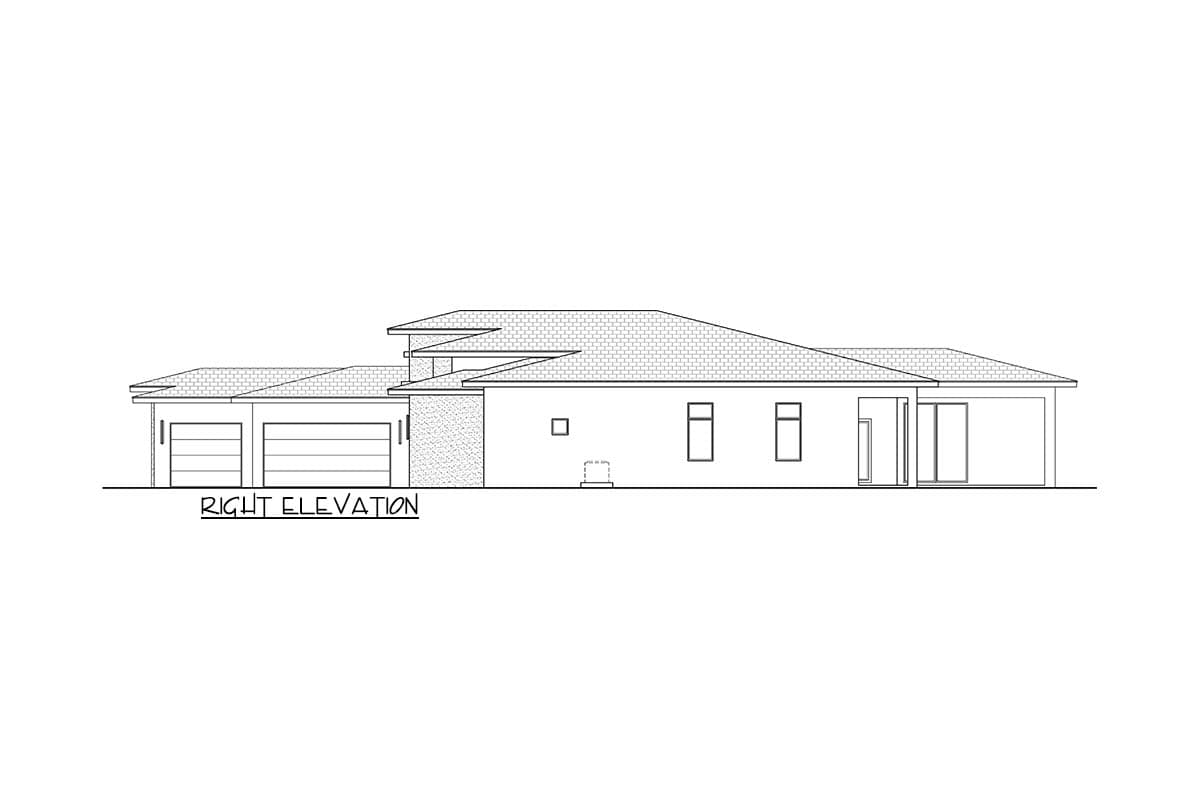

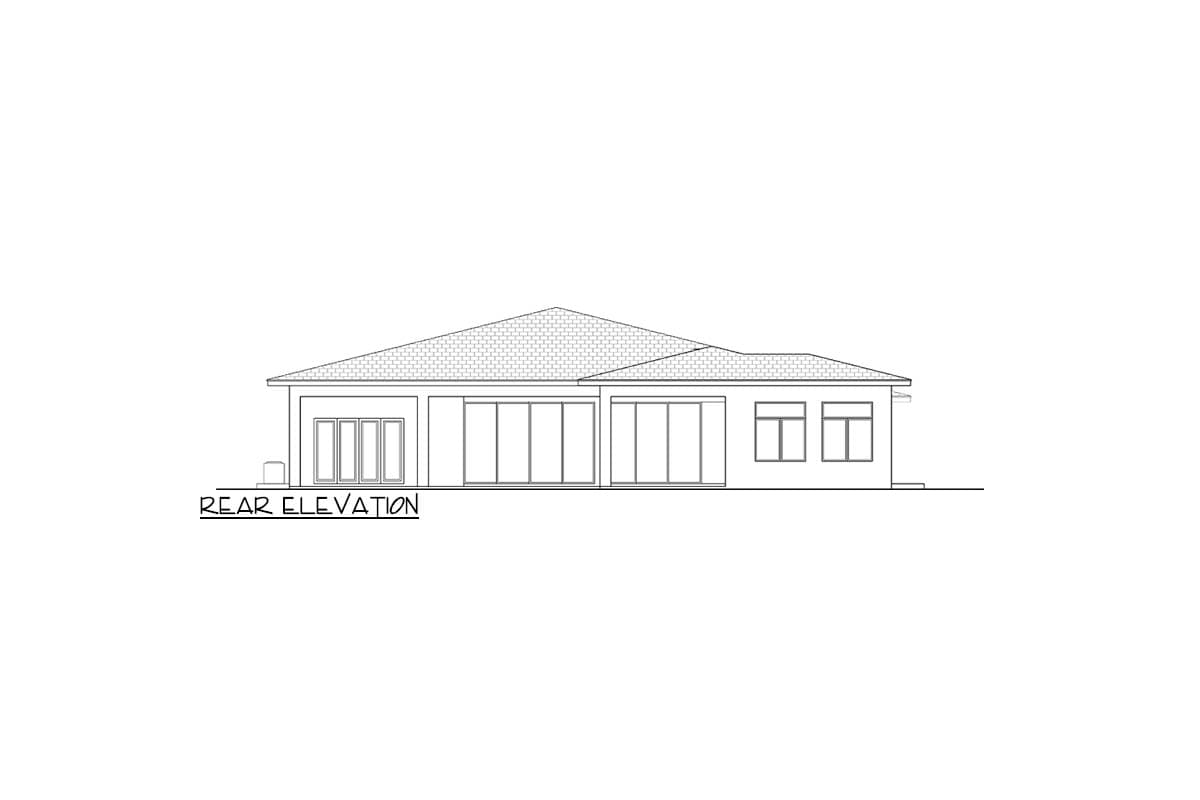

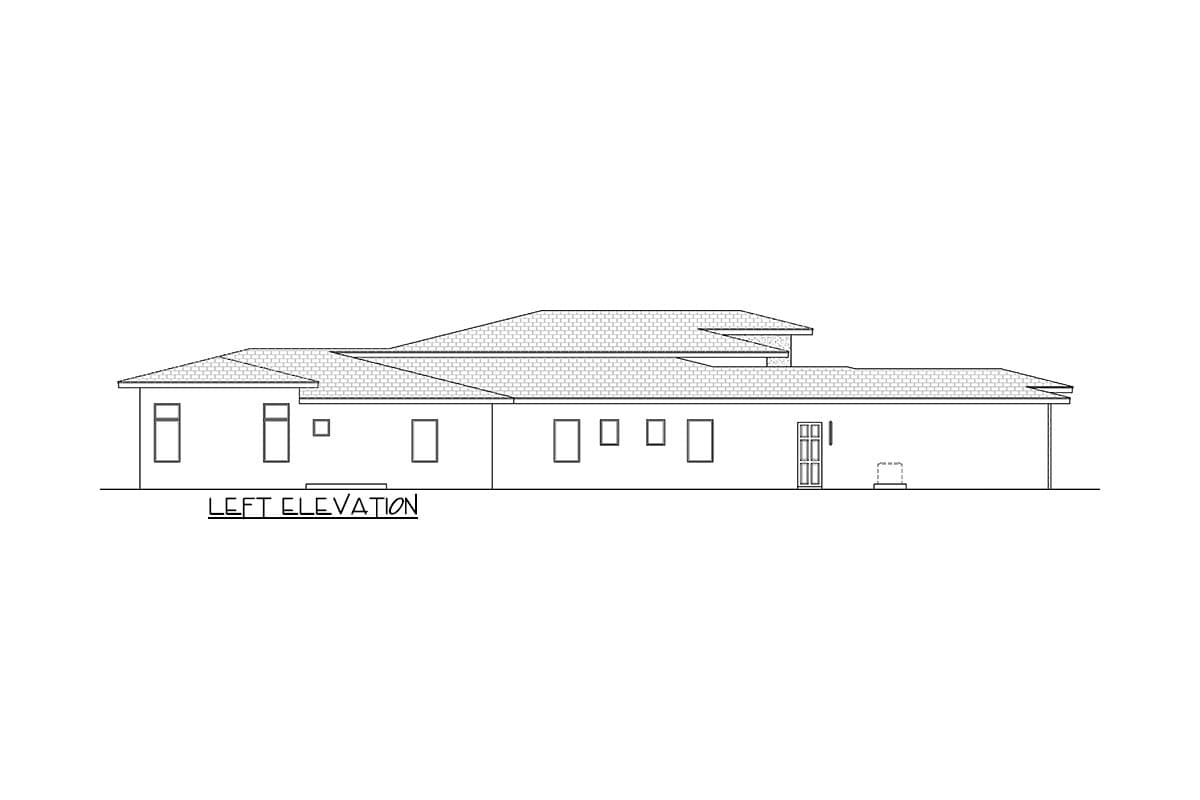

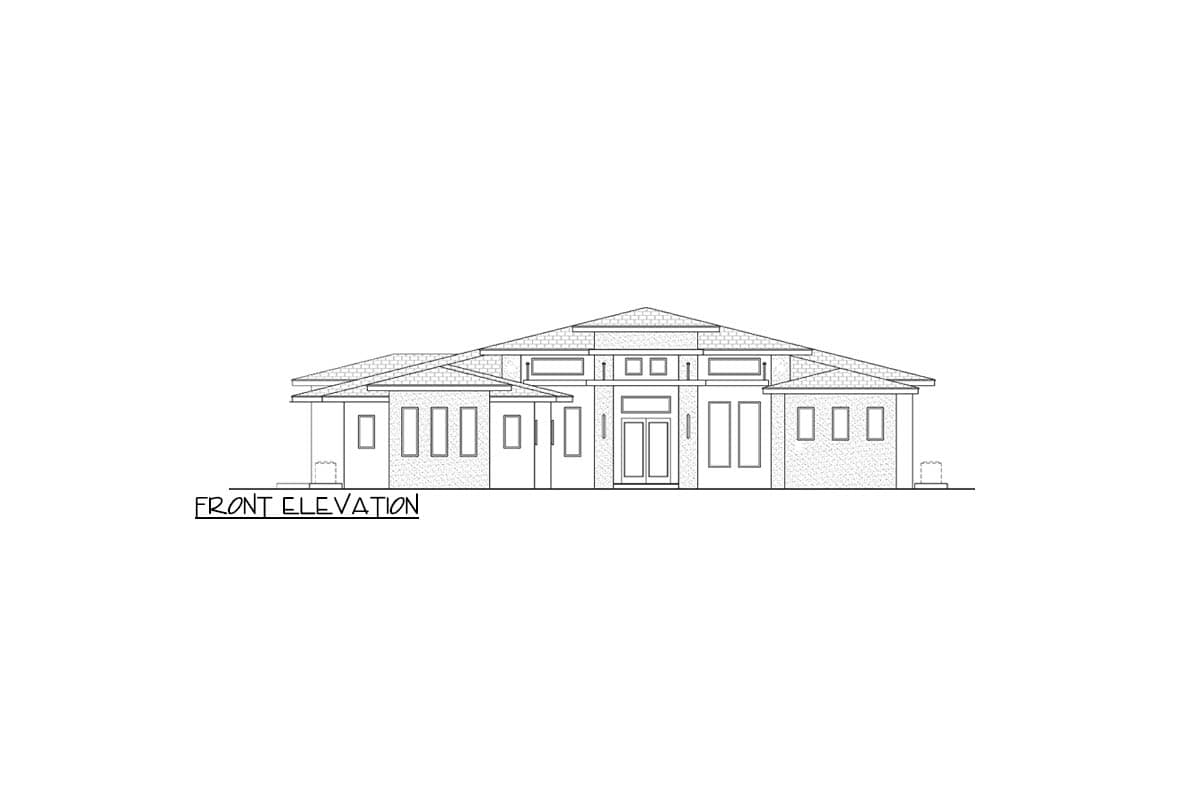

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
