Plan 85022MS

Exclusive

Contemporary Garage Studio - 615 Sq Ft

Heated S.F.
615
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 85022MS

Main Level
Main Level
2nd Floor
2nd Floor

Plan 85022MS

M-F 9am-5pm EST |

1-203-761-8500

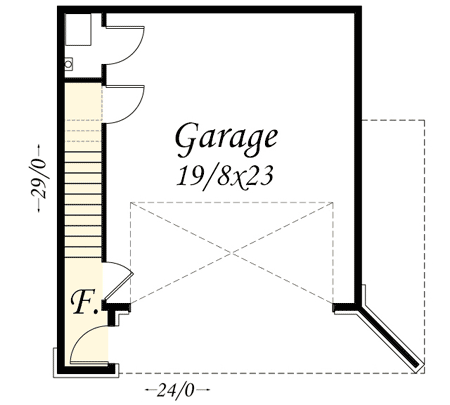

Main Level

Plan 85022MS: Contemporary Garage Studio - 615 Sq Ft - Floor Plan - Main Level - Carriage, Contemporary, Mid Century Modern

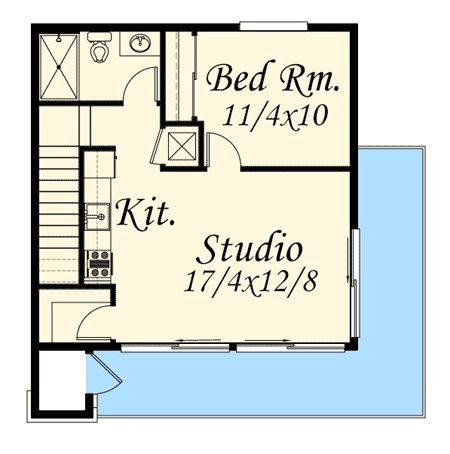

2nd Floor

Plan 85022MS: Contemporary Garage Studio - 615 Sq Ft - Floor Plan - 2nd Floor - Carriage, Contemporary, Mid Century Modern

Plan Details

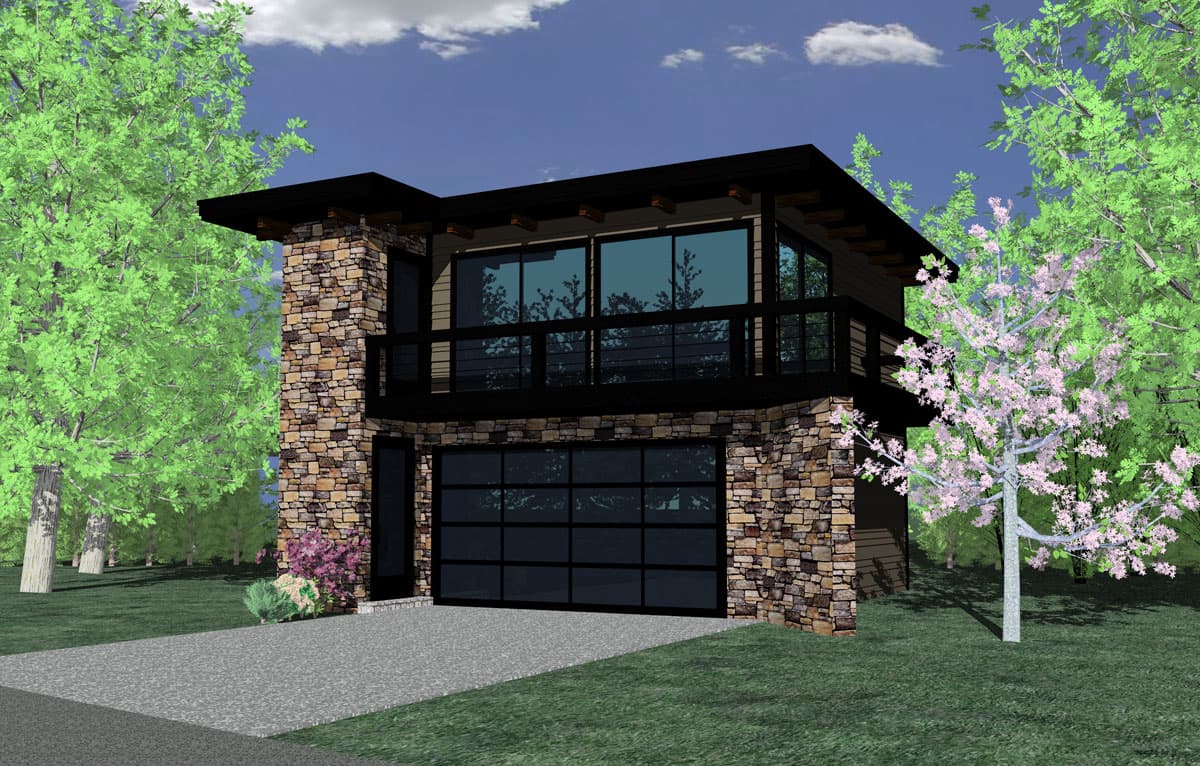

  • Stone and glass adorn the exterior of this Contemporary ADU with a 615 square foot garage and an equal amount of space dedicated to living.
  • The second floor living quarters consist of a living room with kitchenette and a separate bedroom with full bathroom.
  • This plan makes an ideal guest suite, in-law suite or rental income suite.
  • Roof pitch is 1/2 on 12.
  • Related Plan: This garage studio was designed to complement house plan 85021MS.

What's Included

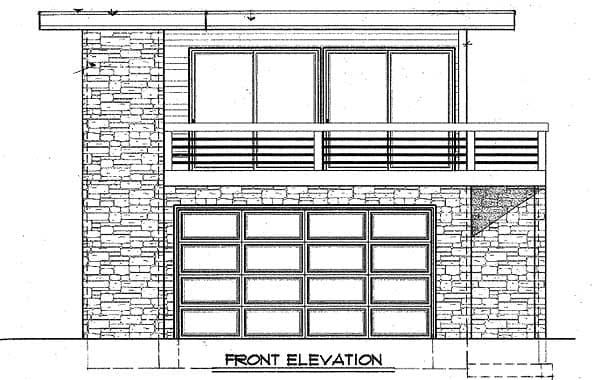

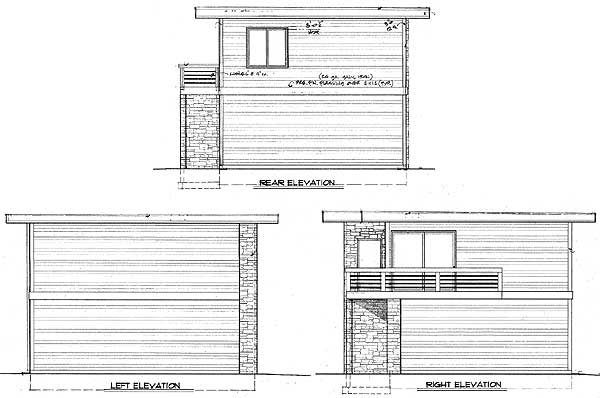

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

615 sq. ft.

2nd Floor

615 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

29' 0"

Max Ridge Height

21' 0"

Garage

Type

Drive Under

Area

615 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick and Truss

Architectural Style

Carriage

Contemporary

Mid Century Modern

Special Features

In-Law Suite

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Exclusive
