Plan 85022MS
EXCLUSIVE
Contemporary Garage Studio
Heated S.F.
615
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • Stone and glass adorn the exterior of this Contemporary Carriage House.
  • The second floor living quarters consist of a living room with kitchenette and a separate bedroom with full bathroom.
  • This plan makes an ideal guest suite, in-law suite or rental income suite.
  • Roof pitch is 1/2 on 12.
  • Related Plan: This garage studio was designed to complement house plan 85021MS.
What's Included
  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Garage Studio

  • 615

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

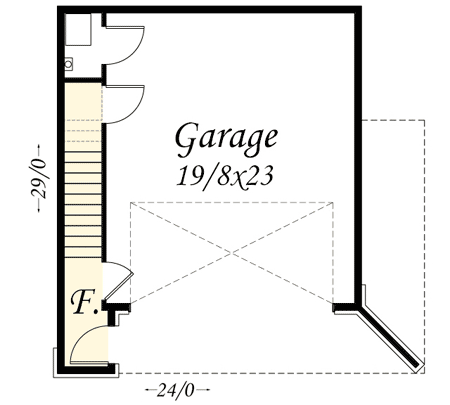

  • Main Level

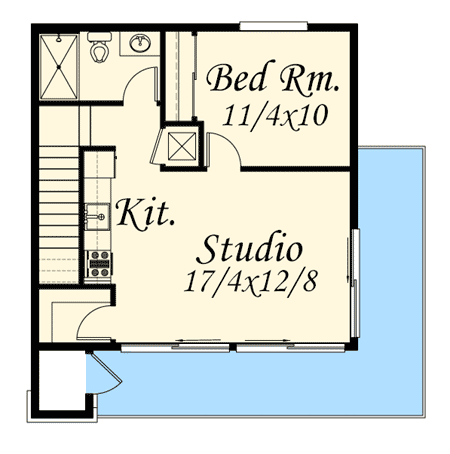

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 615 sq. ft.
  • 2nd Floor: 615 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 29' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 615 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
