Plan 68448VR
Contemporary Garage with RV Bay
Heated S.F.
454
Stories
1-2
Cars
2
Plan Details
  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Climb the stairs to reach an enormous loft studio that would make a great man cave.
  • There are plenty of windows to bring in light and a combination of board and battan plus siding to give the garage an interesting look.
  • Related Plans: Get more space with garage plan 68671VR and 68670VR (with a finished upstairs apartment). Get a larger version with 68491VR. Eliminate the loft with garage plans 68500VR and 68579VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

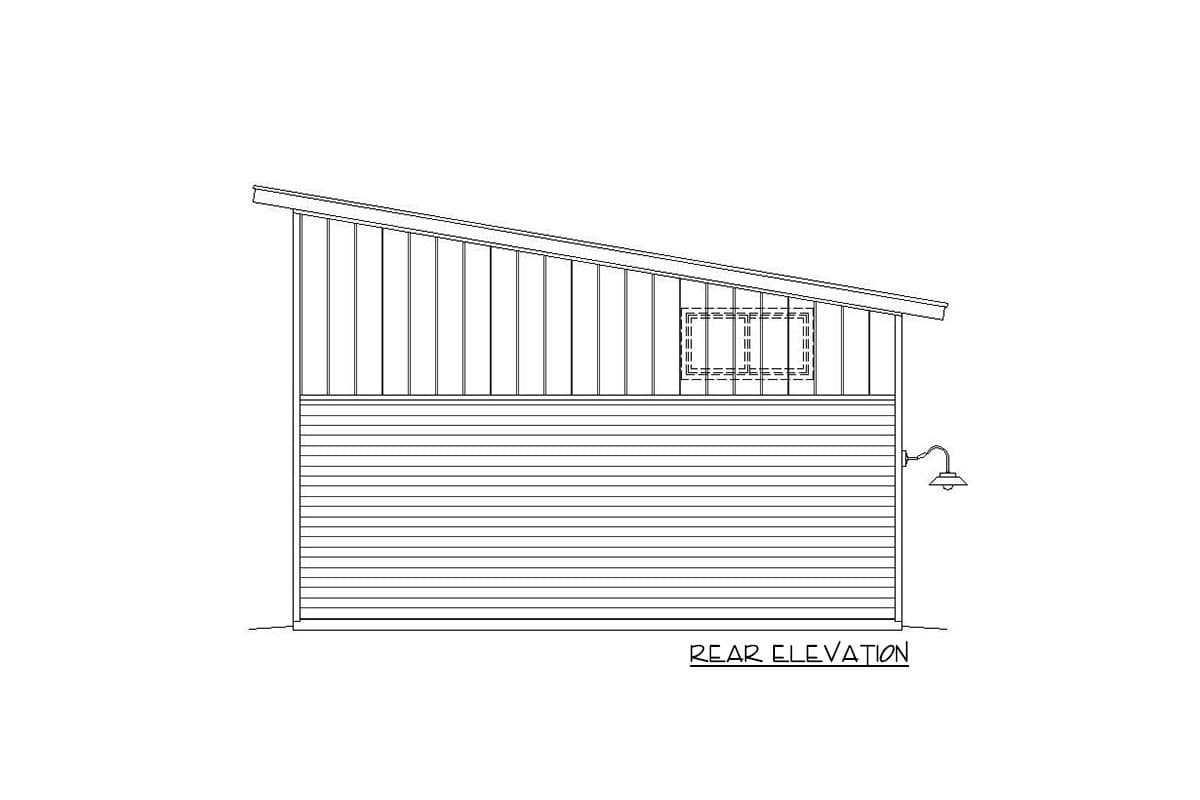

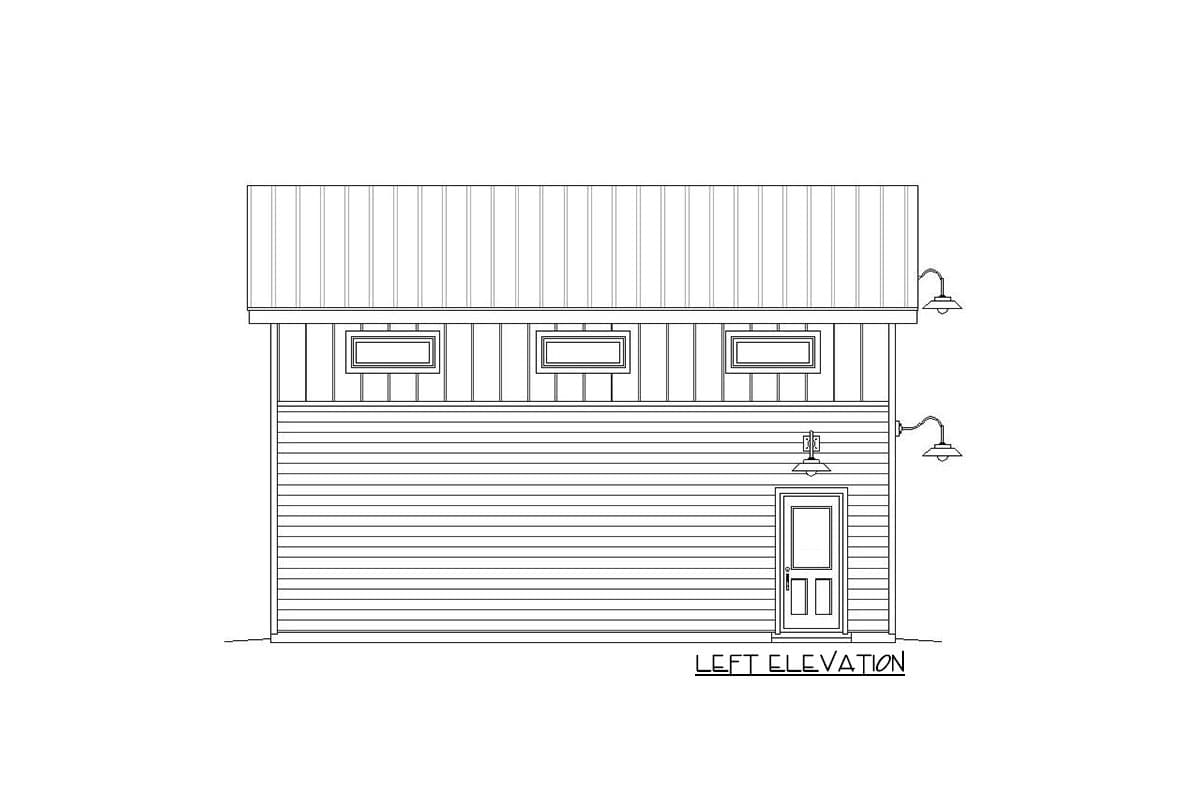

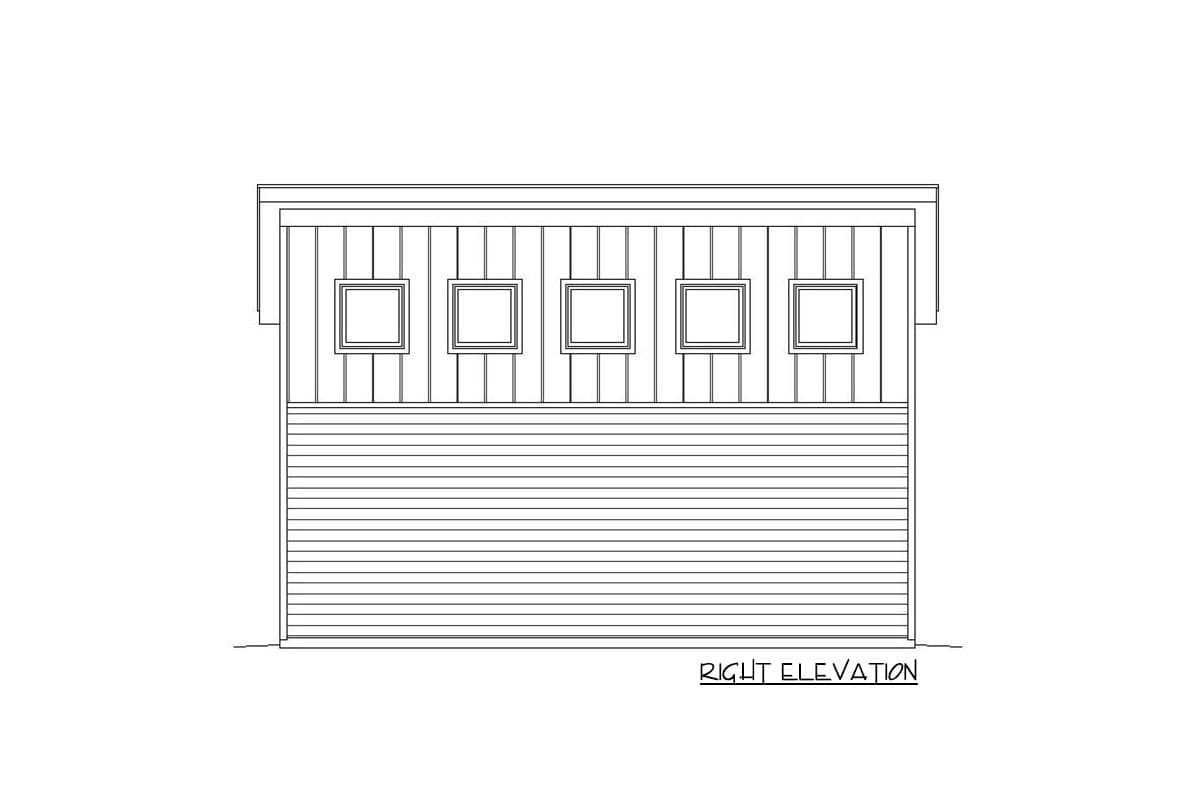

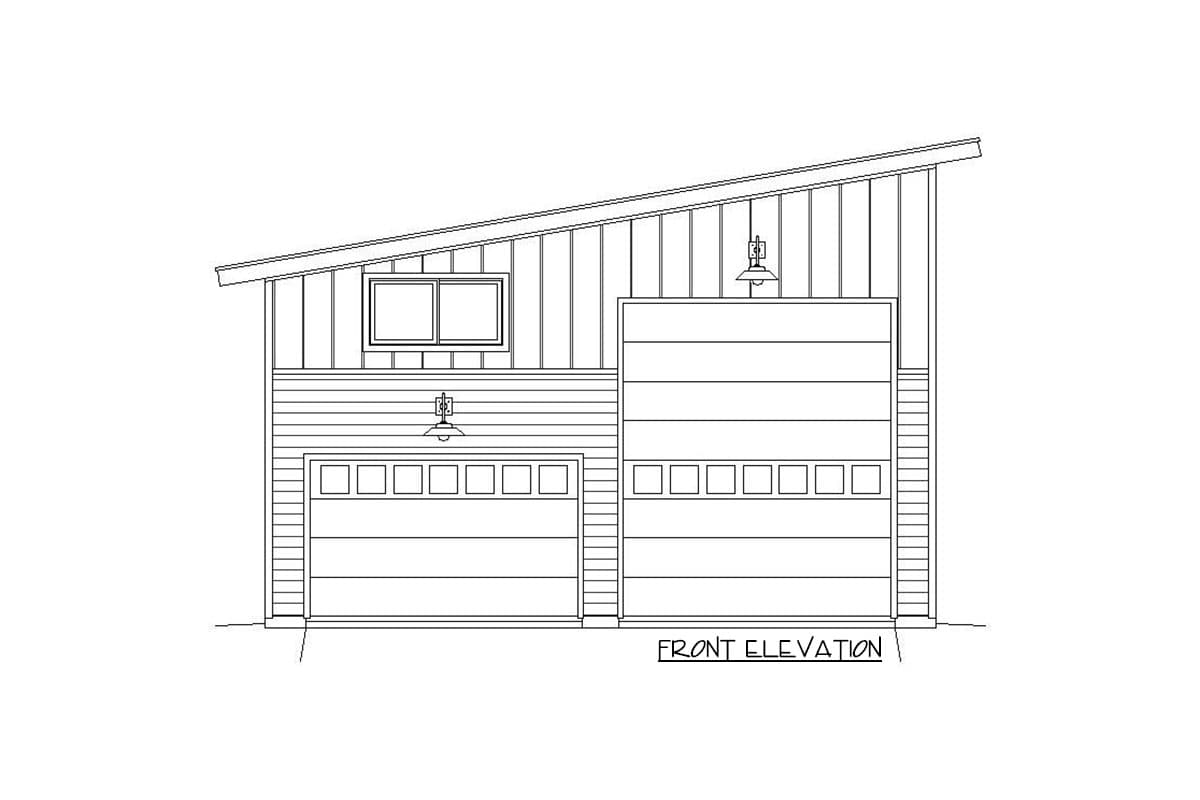

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Garage with RV Bay

  • 454

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1-2

    Floors

  • 2

    Car garage

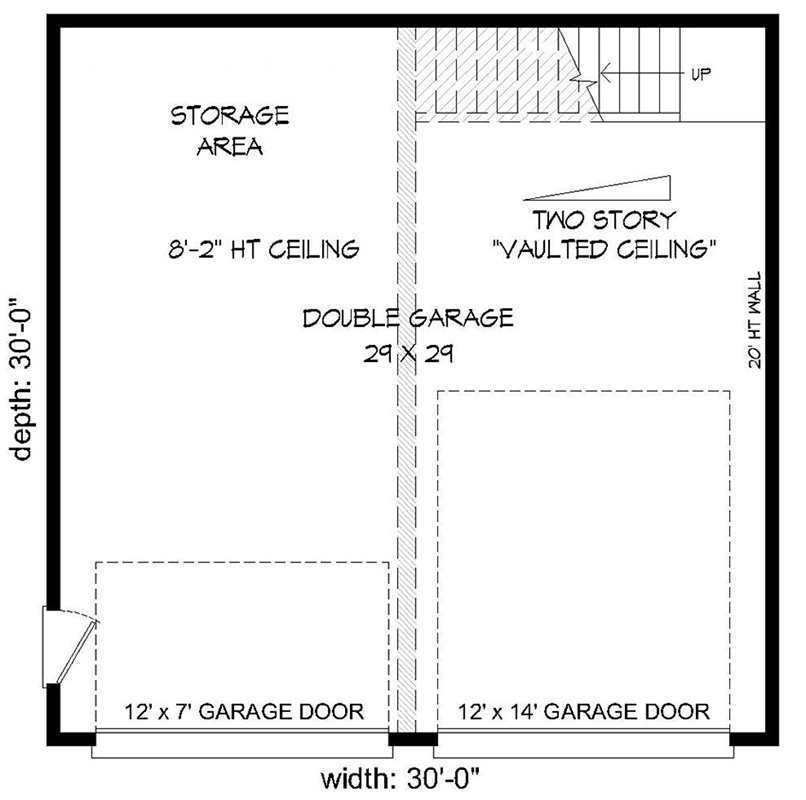

Floor Plan

  • Main Level

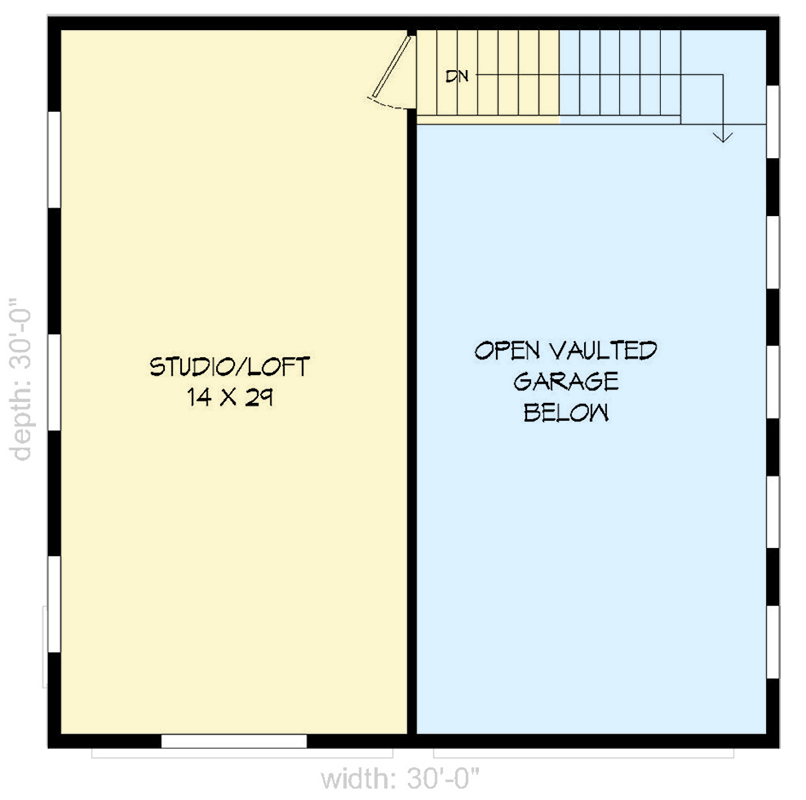

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 454 sq. ft.
  • 2nd Floor: 454 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 21' 5"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached, RV Garage
  • Area: 900 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 2"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
