RV Garage Plan Loft Accessible by Internal Stairs

Plan 68671VR

  • 575

    Heated s.f.

  • 2

    Stories

  • 3

    Cars

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Stairs in back of the  RV bay take you to the enormous loft studio.
  • There are plenty of windows to bring in light and a combination of board and batten plus siding to give the garage a contemporary look.
  • Related Plans: Flip the doors and move the stairs to the outside with garage plan 68670VR. And get smaller versions with garage plans 68448VR and 68491VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

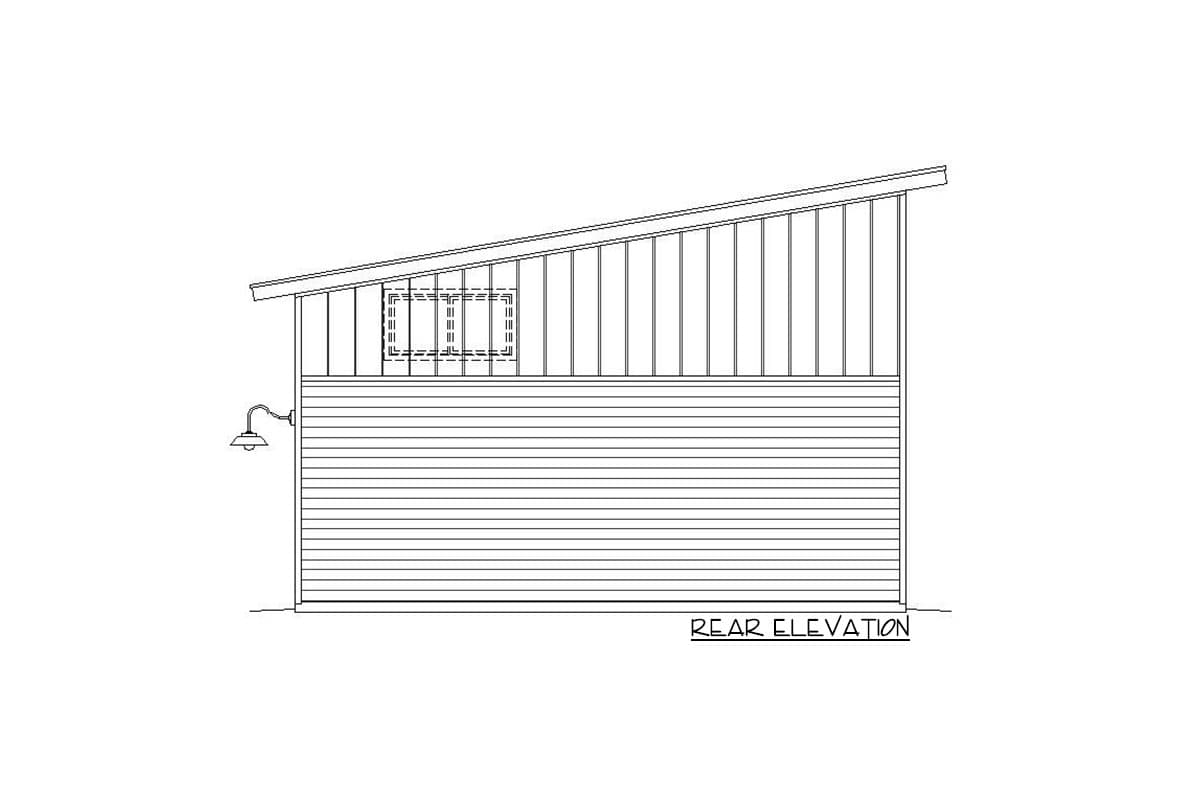

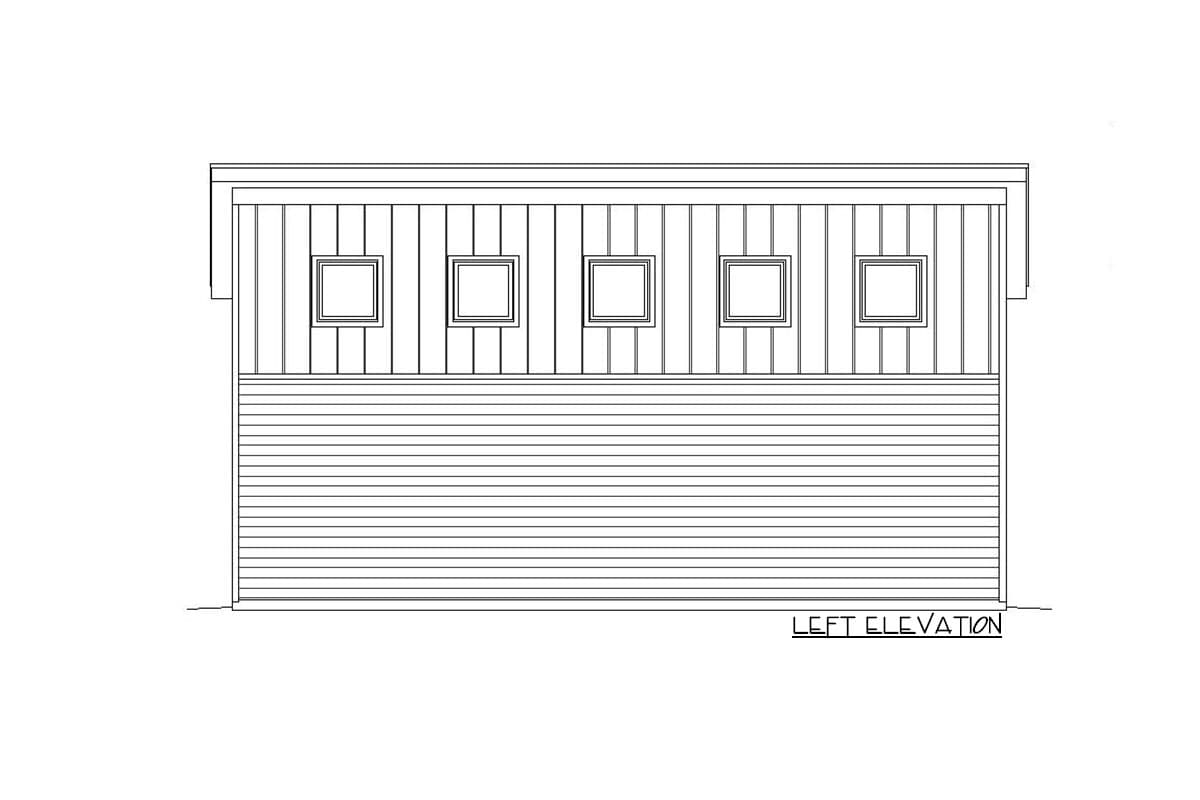

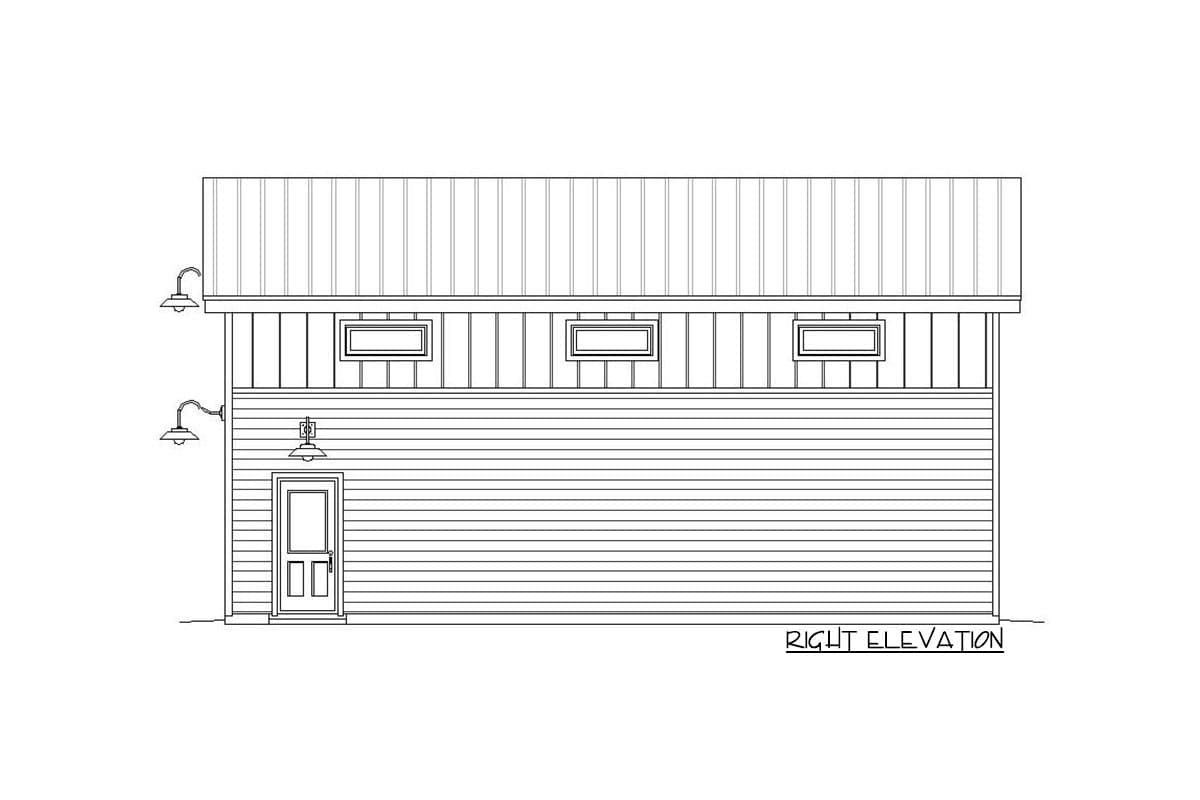

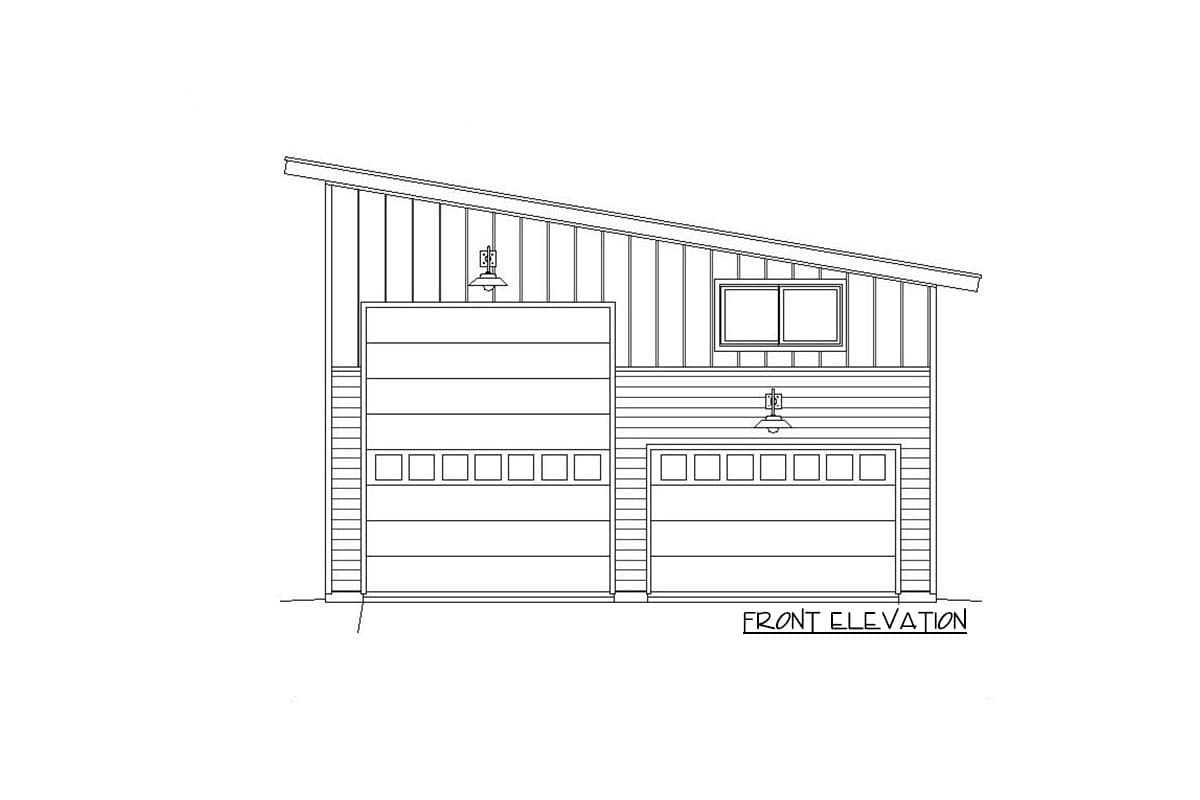

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

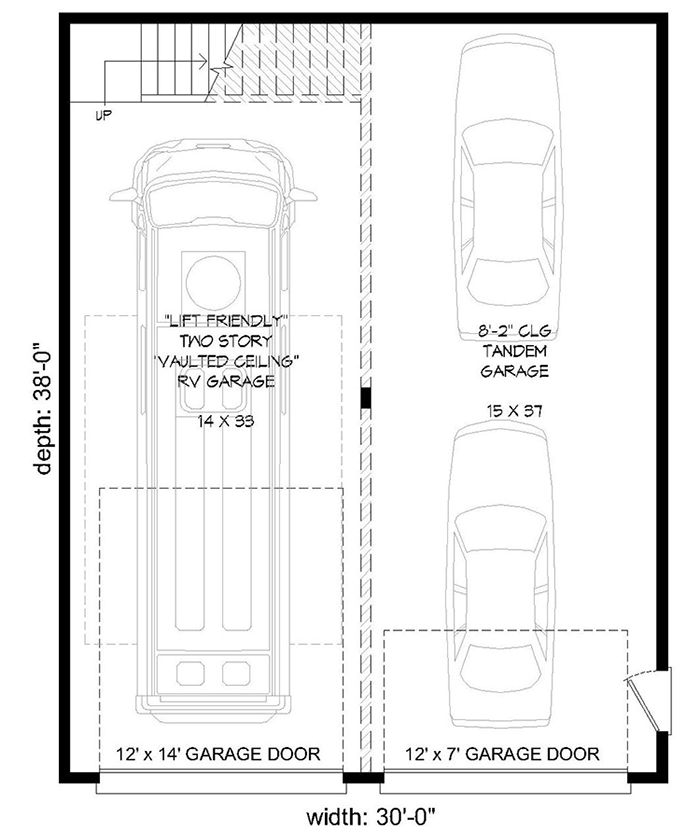

RV Garage Plan Loft Accessible by Internal Stairs - 68671VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

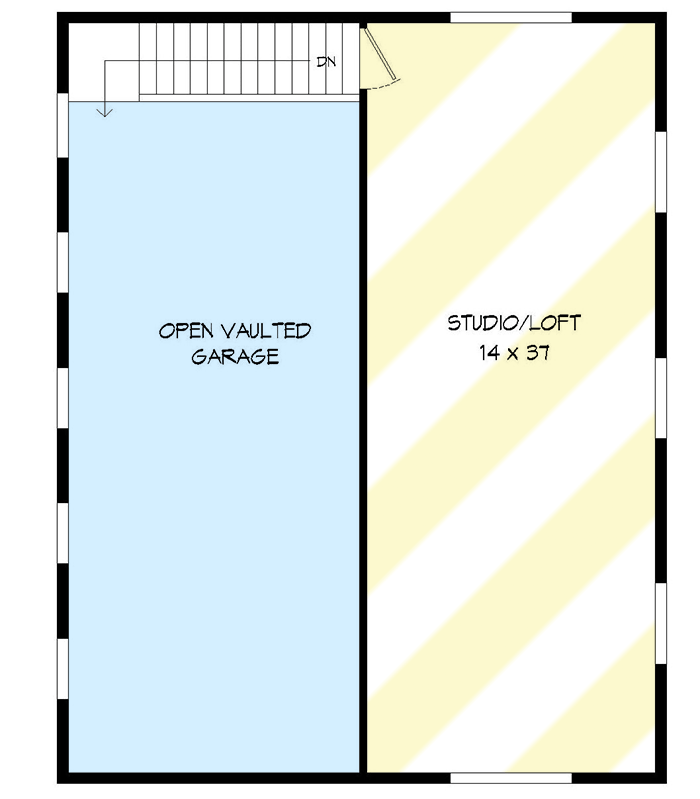

RV Garage Plan Loft Accessible by Internal Stairs - 68671VR floor plan - 2nd Floor

Architectural Style

Special features

RV Garage Plan Loft Accessible by Internal Stairs

  • 575

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 575 sq. ft.
  • 2nd Floor: 575 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 38' 0"
  • Max ridge height: 21' 5"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: RV Garage, Detached
  • Area: 1140 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 2"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
