Contemporary Hill Country Home Plan with Open Concept Layout

Plan 818045JSS

  • 3,759

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The stunning exterior of this Contemporary Hill Country home plan is capped by a seamed metal roof, while windows line the walls ensuring an interior that is filled with natural light.
  • The shared living spaces are centrally located and include a vaulted family room with a linear fireplace, dining area, and island kitchen. A 33' by 14' rear porch invites you to grill or dine outdoors.
  • Discover the primary suite and second bedroom consuming the right wing of the main level. The well-appointed primary bath boasts a separate tub and shower, two vanities, and a walk-in closet.
  • The side-entry garage considers the curb appeal and includes a 3rd bay that can double as a home gym. Step inside to find a family foyer with built-in lockers and a sizable pantry and laundry room behind pocket doors.
  • A loft greets you at the top of the stairs and guides you to bedroom suites 3 and 4.

  • Foundation plan
  • Detailed floorplans
  • Roof plan

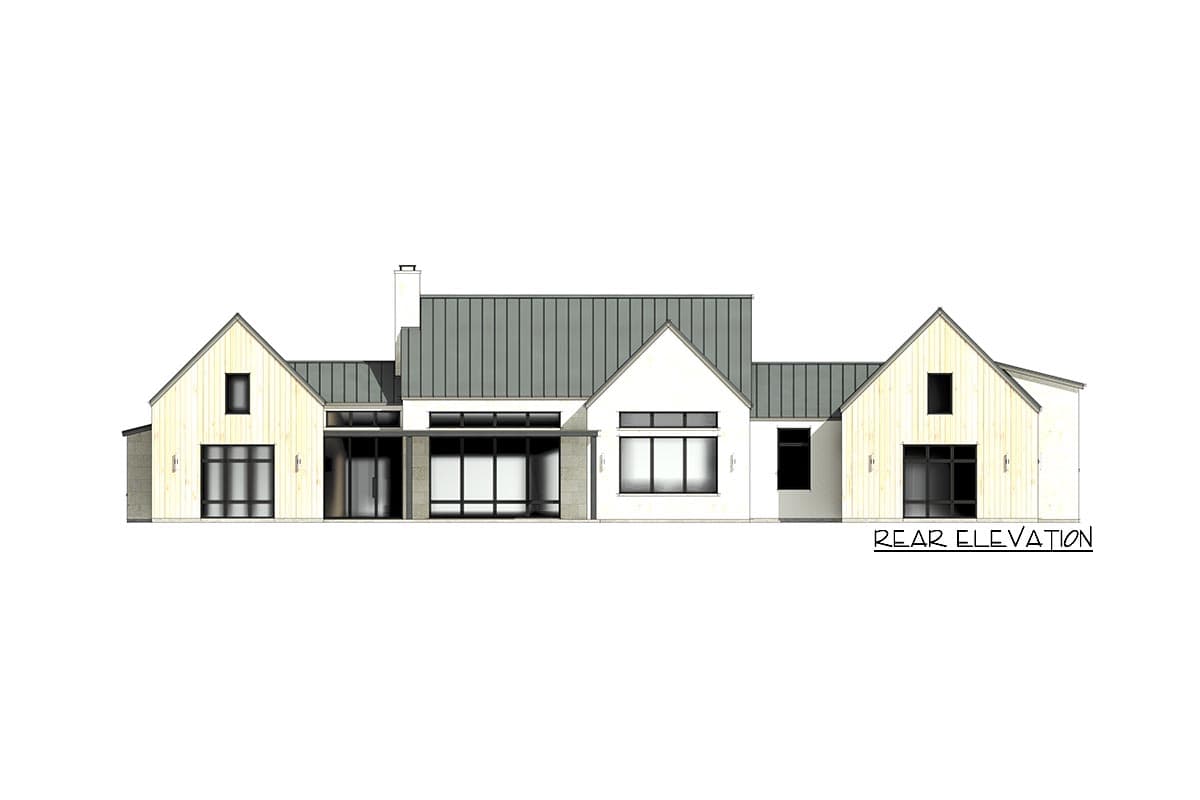

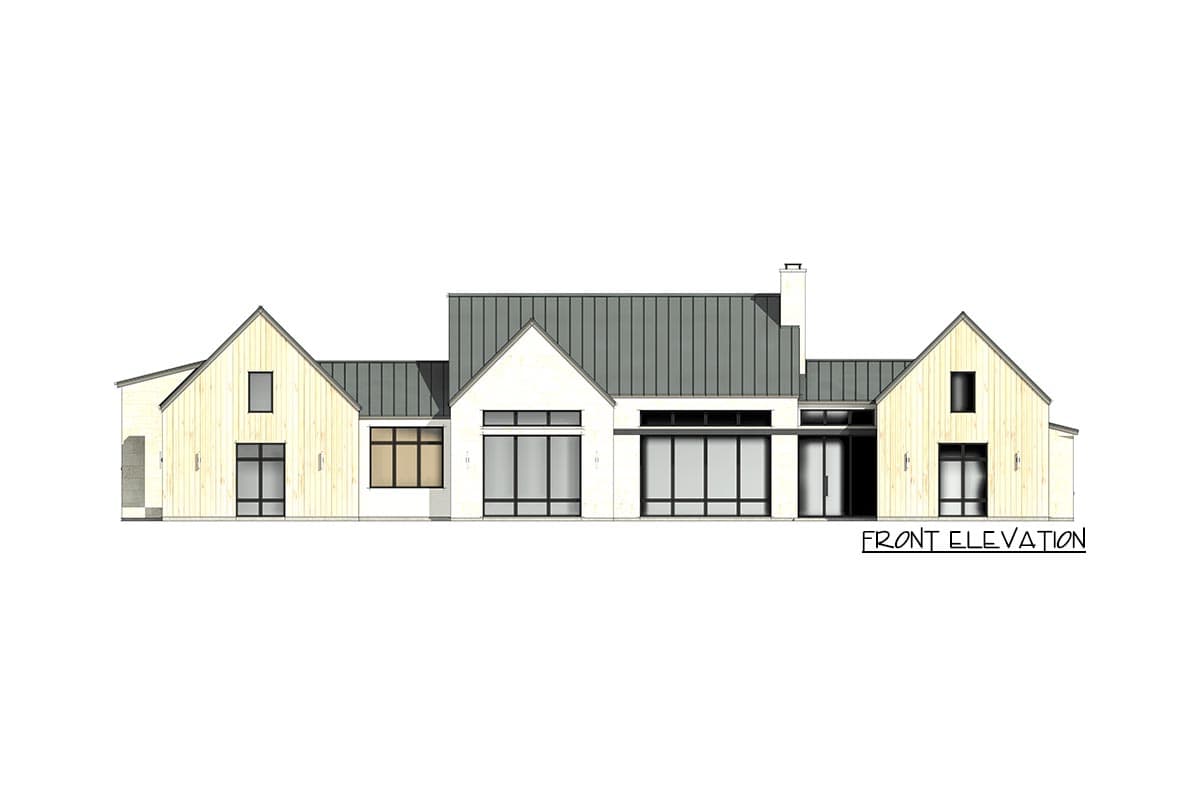

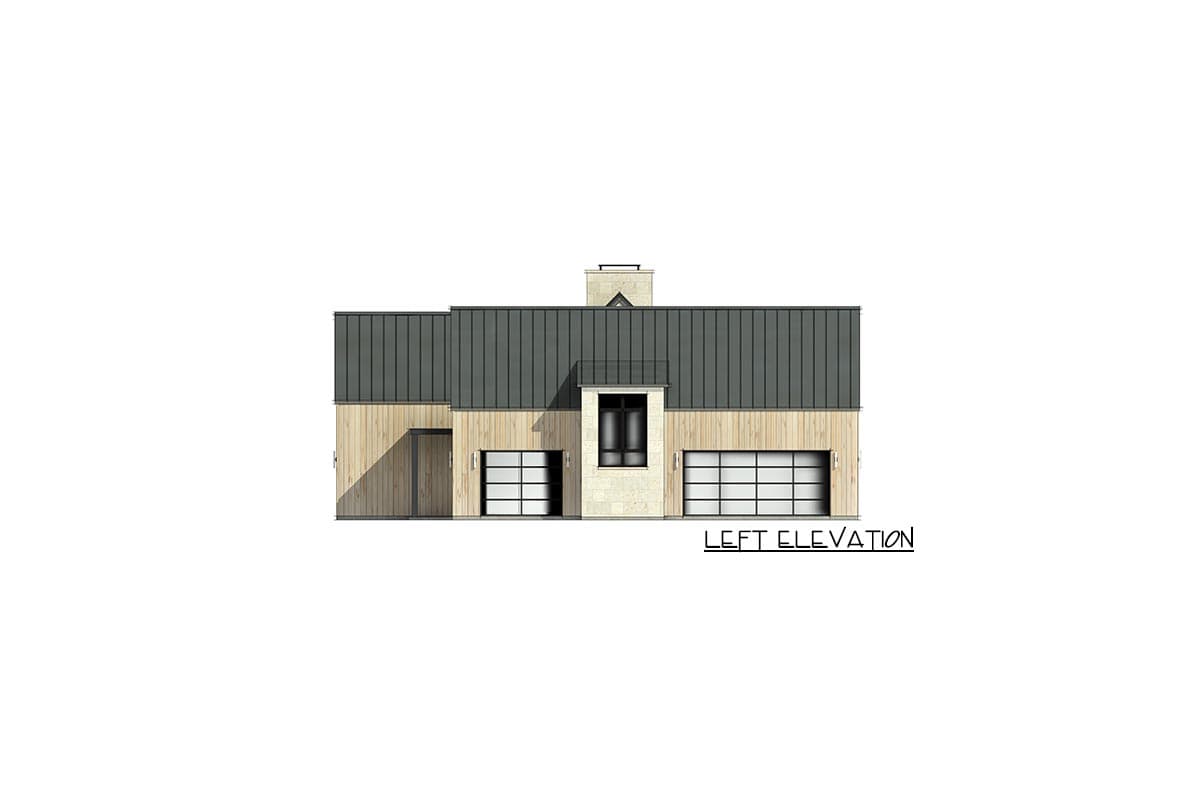

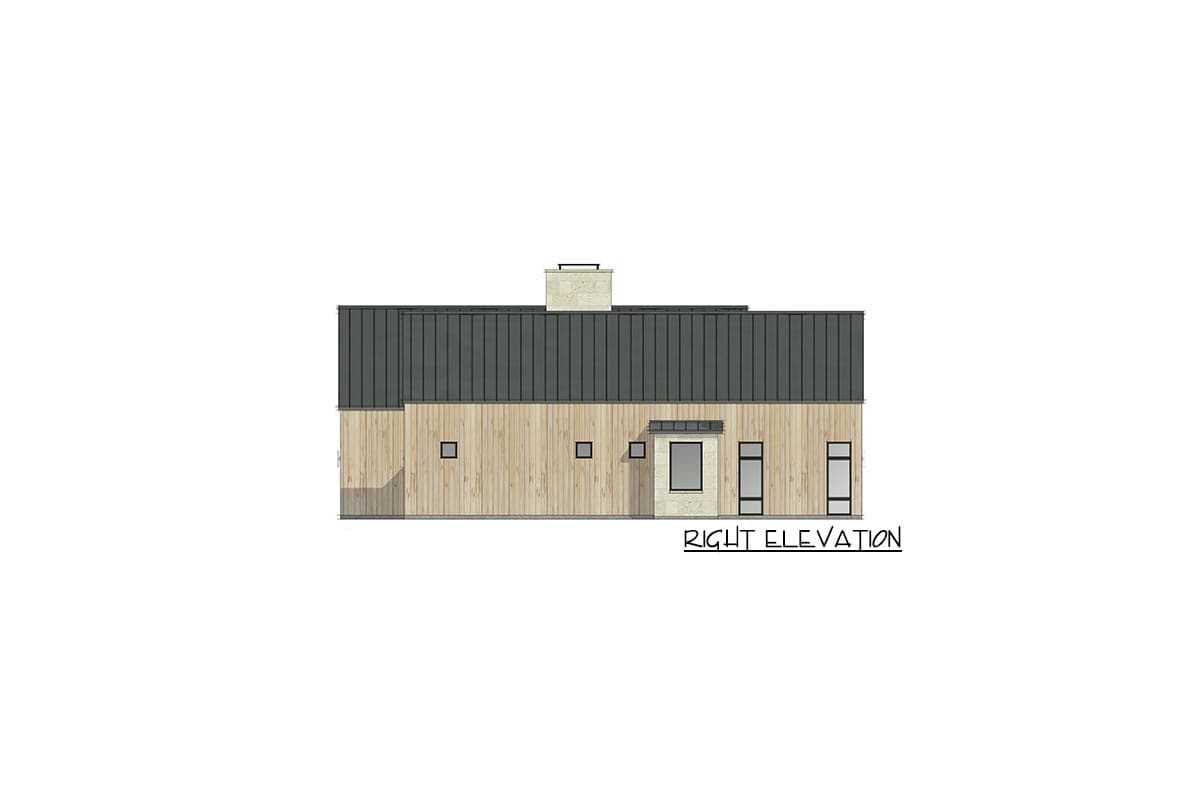

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

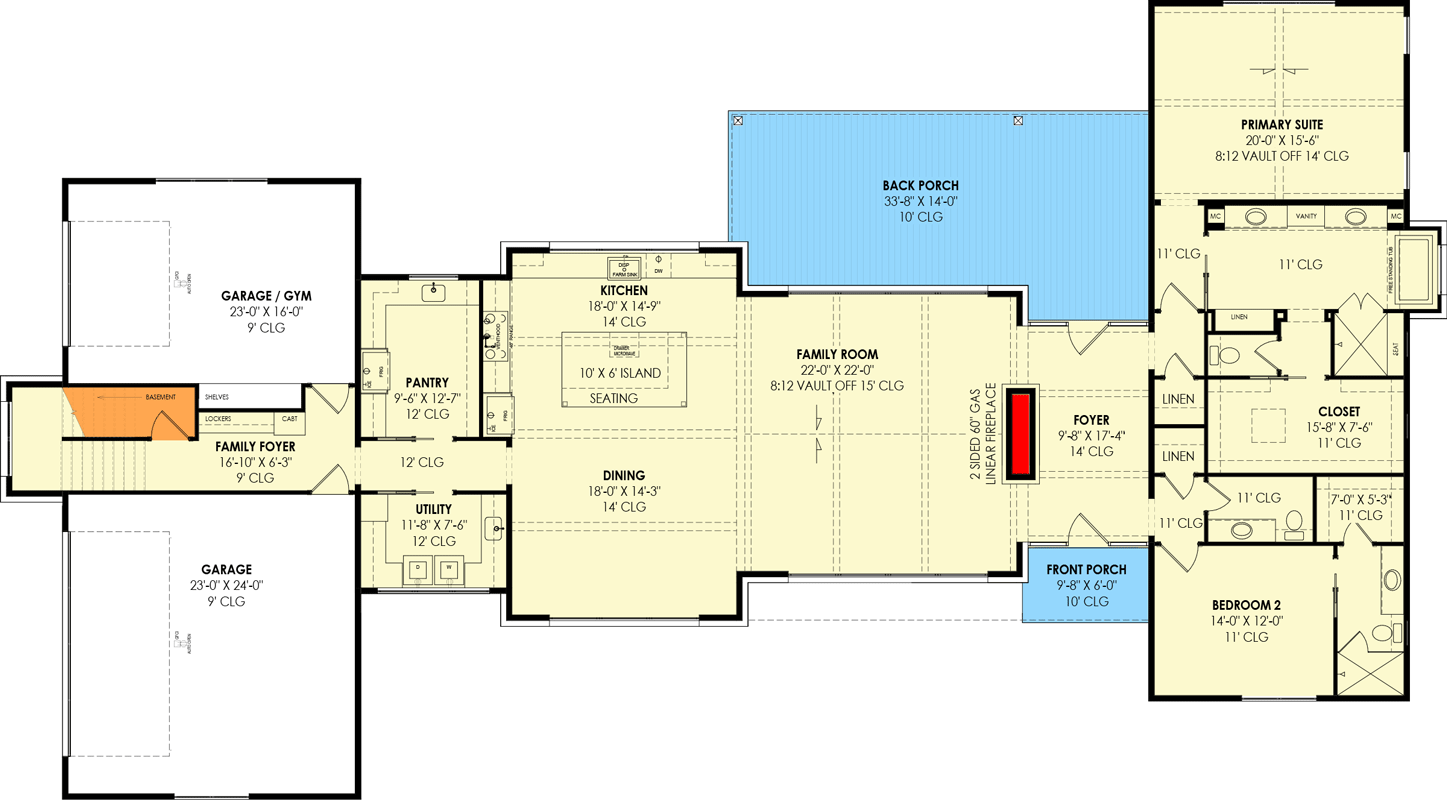

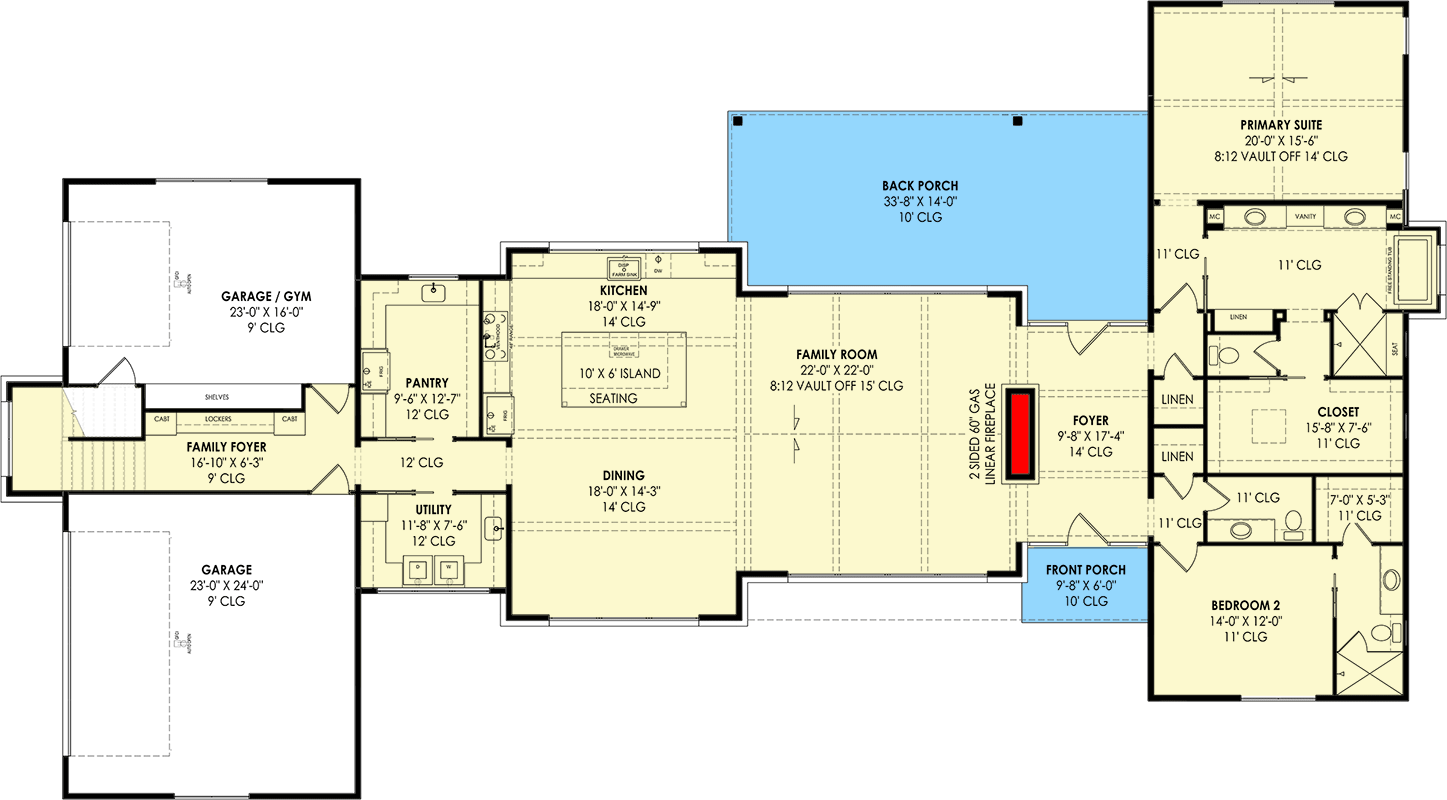

Contemporary Hill Country Home Plan with Open Concept Layout - 818045JSS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

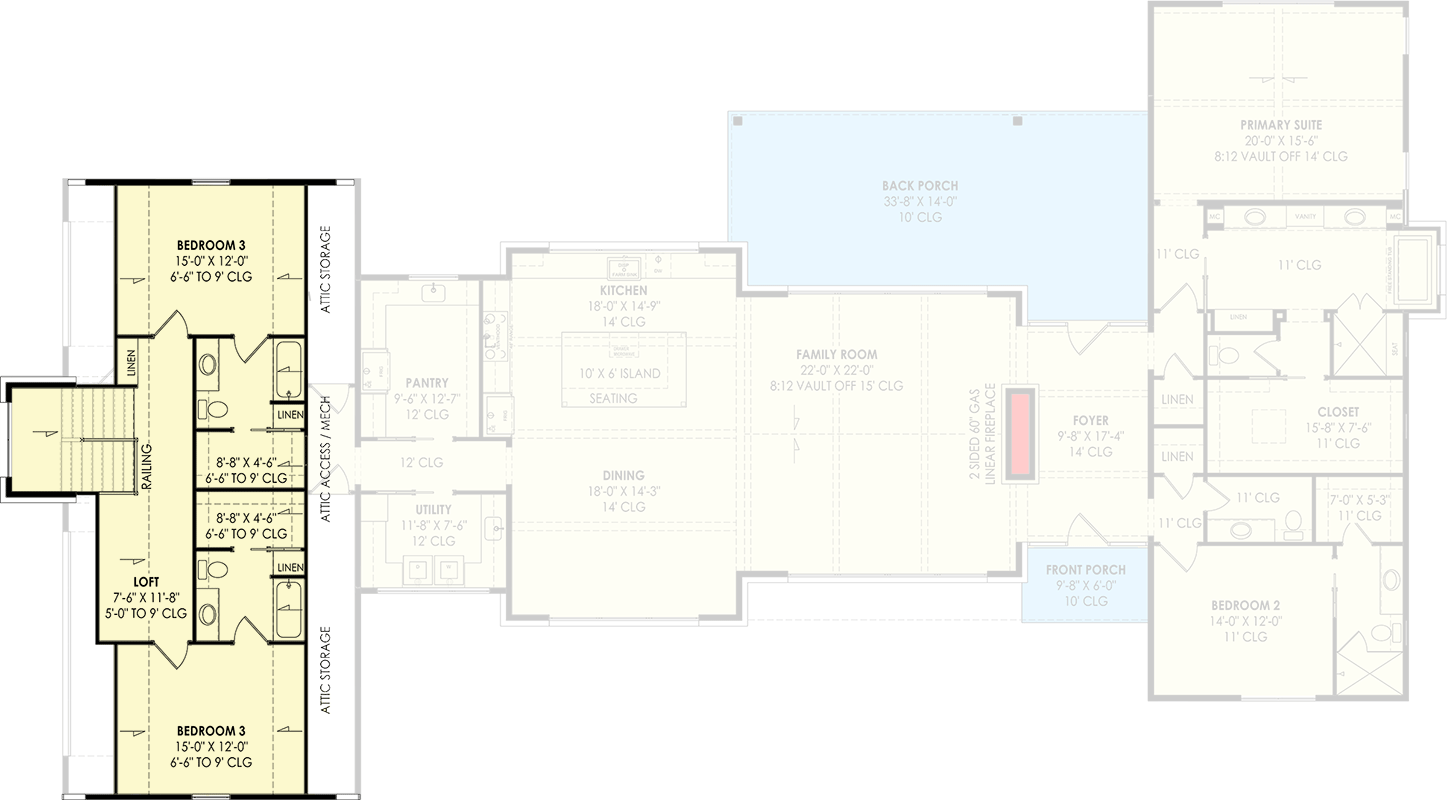

Contemporary Hill Country Home Plan with Open Concept Layout - 818045JSS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,759 sq. ft.
  • 1st Floor: 2,993 sq. ft.
  • 2nd Floor: 766 sq. ft.
  • Porch, Combined: 552 sq. ft.
  • Porch, Rear: 493 sq. ft.
  • Porch, Front: 59 sq. ft.
  • BRICK LEDGE:: 61 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 116' 0"
  • Depth: 64' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 996 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 14' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Contemporary Hill Country Home Plan with Open Concept Layout

  • 3,759

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • PDF - Unlimited Build $2,695
  • CAD Unlimited + PDF $2,995
  • View all purchase option online

About This Plan

  • The stunning exterior of this Contemporary Hill Country home plan is capped by a seamed metal roof, while windows line the walls ensuring an interior that is filled with natural light.
  • The shared living spaces are centrally located and include a vaulted family room with a linear fireplace, dining area, and island kitchen. A 33' by 14' rear porch invites you to grill or dine outdoors.
  • Discover the primary suite and second bedroom consuming the right wing of the main level. The well-appointed primary bath boasts a separate tub and shower, two vanities, and a walk-in closet.
  • The side-entry garage considers the curb appeal and includes a 3rd bay that can double as a home gym. Step inside to find a family foyer with built-in lockers and a sizable pantry and laundry room behind pocket doors.
  • A loft greets you at the top of the stairs and guides you to bedroom suites 3 and 4.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,759 sq. ft.
  • 1st Floor: 2,993 sq. ft.
  • 2nd Floor: 766 sq. ft.
  • Porch, Combined: 552 sq. ft.
  • Porch, Rear: 493 sq. ft.
  • Porch, Front: 59 sq. ft.
  • BRICK LEDGE:: 61 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 116' 0"
  • Depth: 64' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 996 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 14' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
