Contemporary Hill Country House Plan with Split-bed Layout
Heated S.F.
3,528
Beds
4
Baths
4.5
Stories
1
Cars
3
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

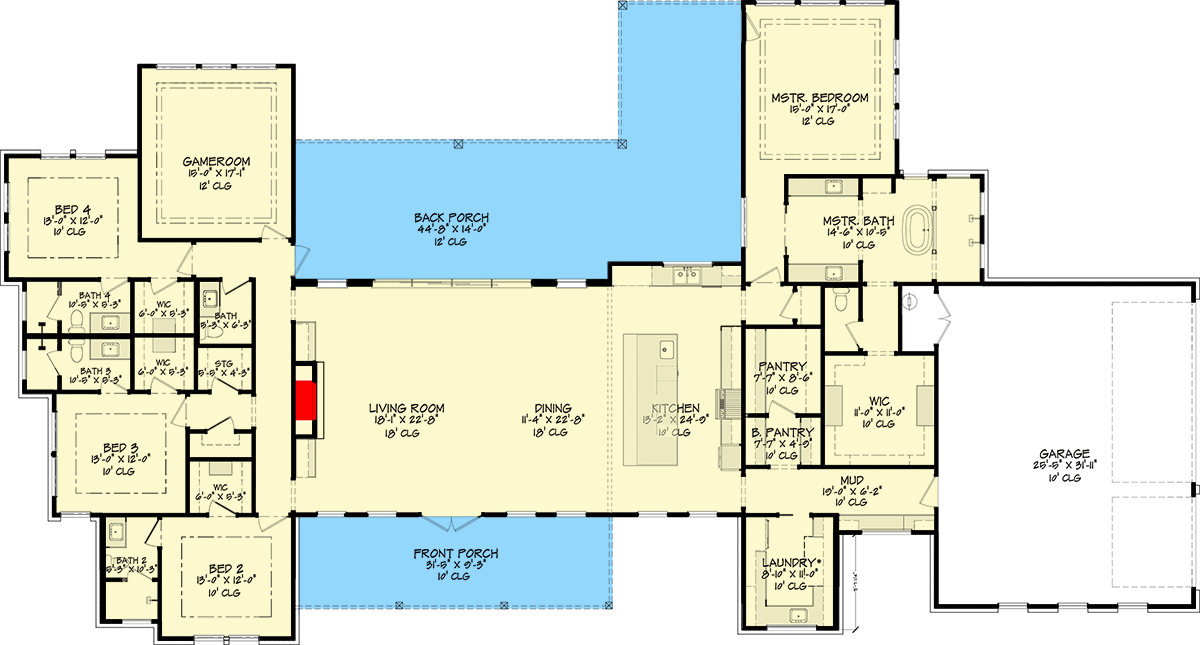

Contemporary Hill Country House Plan with Split-bed Layout - 150006HRP floor plan - Main Level

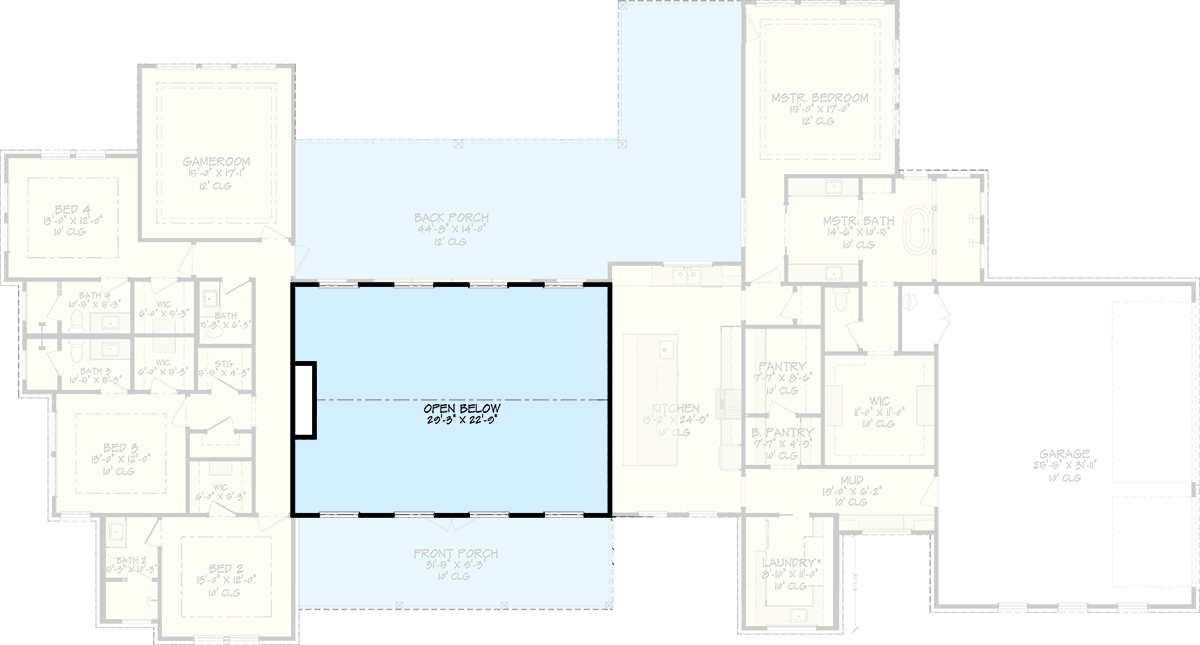

2nd Floor
Reverse Floor Plan

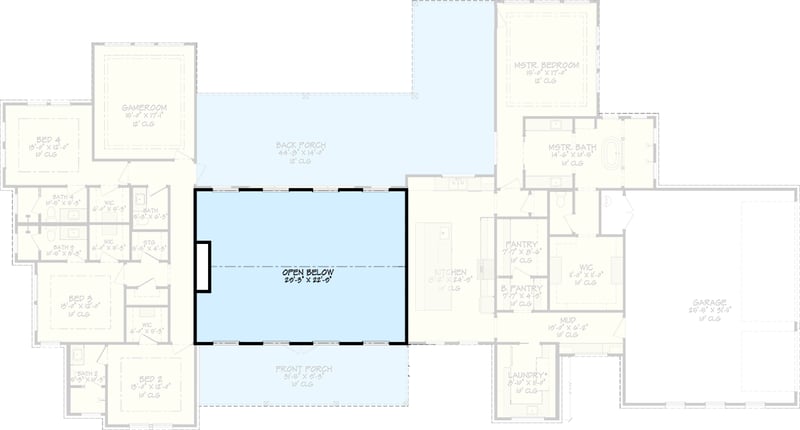

Contemporary Hill Country House Plan with Split-bed Layout - 150006HRP floor plan - 2nd Floor
Main Level - 3D
Reverse Floor Plan
Contemporary Hill Country House Plan with Split-bed Layout - 150006HRP floor plan - Main Level - 3D
Second Level - 3D
Reverse Floor Plan
Contemporary Hill Country House Plan with Split-bed Layout - 150006HRP floor plan - Second Level - 3D
Plan Details
  • This Contemporary Hill Country house plan features a central, open living space that is filled with natural lighting and flanked by front and rear porches.
  • The gourmet kitchen is home to a large island with a secondary, veggie sink and a nearby walk-in pantry that maximizes storage space.
  • A tray ceiling tops the secluded master bedroom that includes a freestanding tub in front of the 2-person shower in the ensuite.
  • Each of the three family bedrooms feature a walk-in closet and full bathroom, and share the left side of the design with a generous game room.
  • Enter the 3-car garage from the side and discover a mud hall with built-in cubbies and a large laundry room just inside.
What's Included

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.

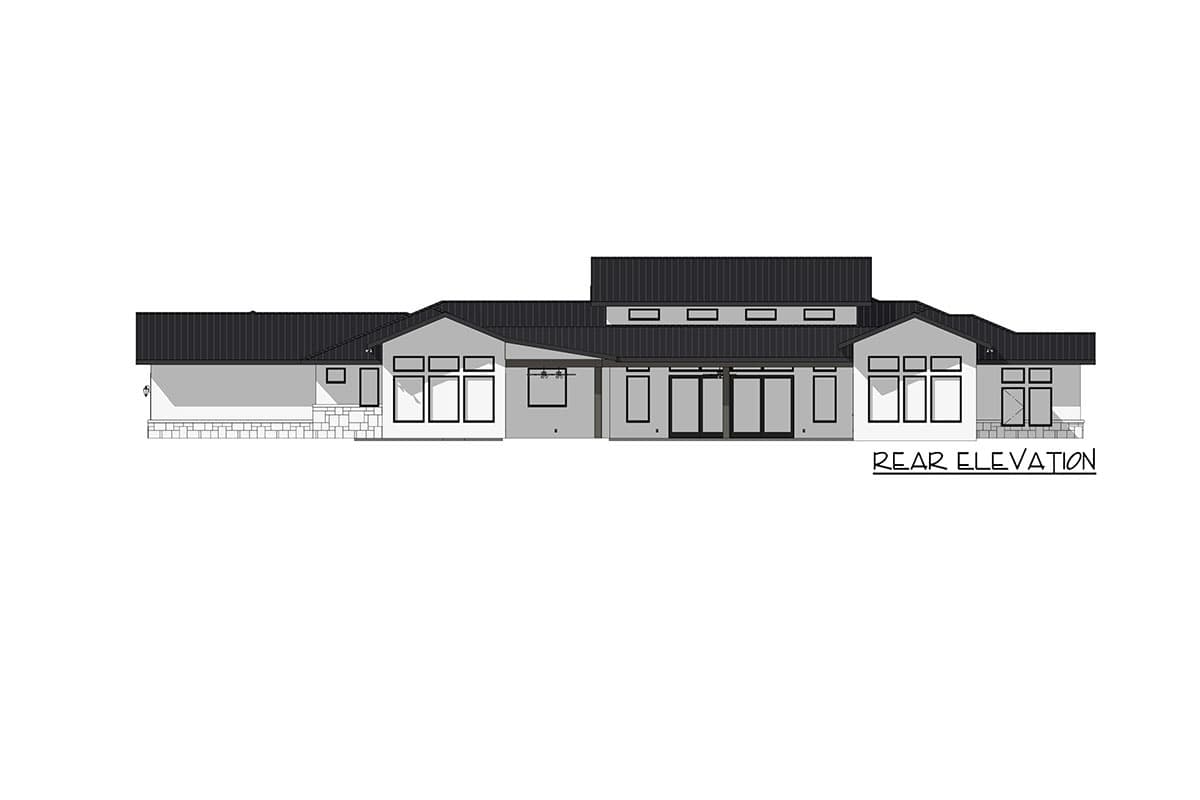

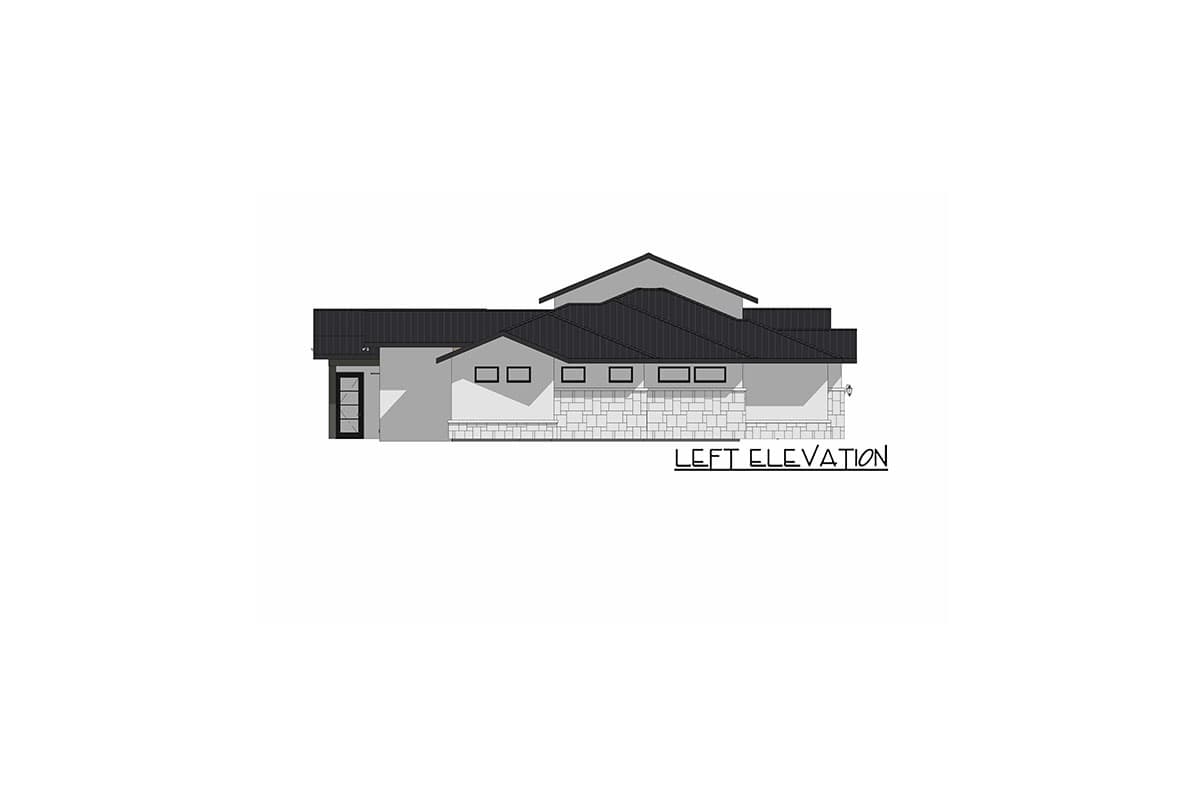

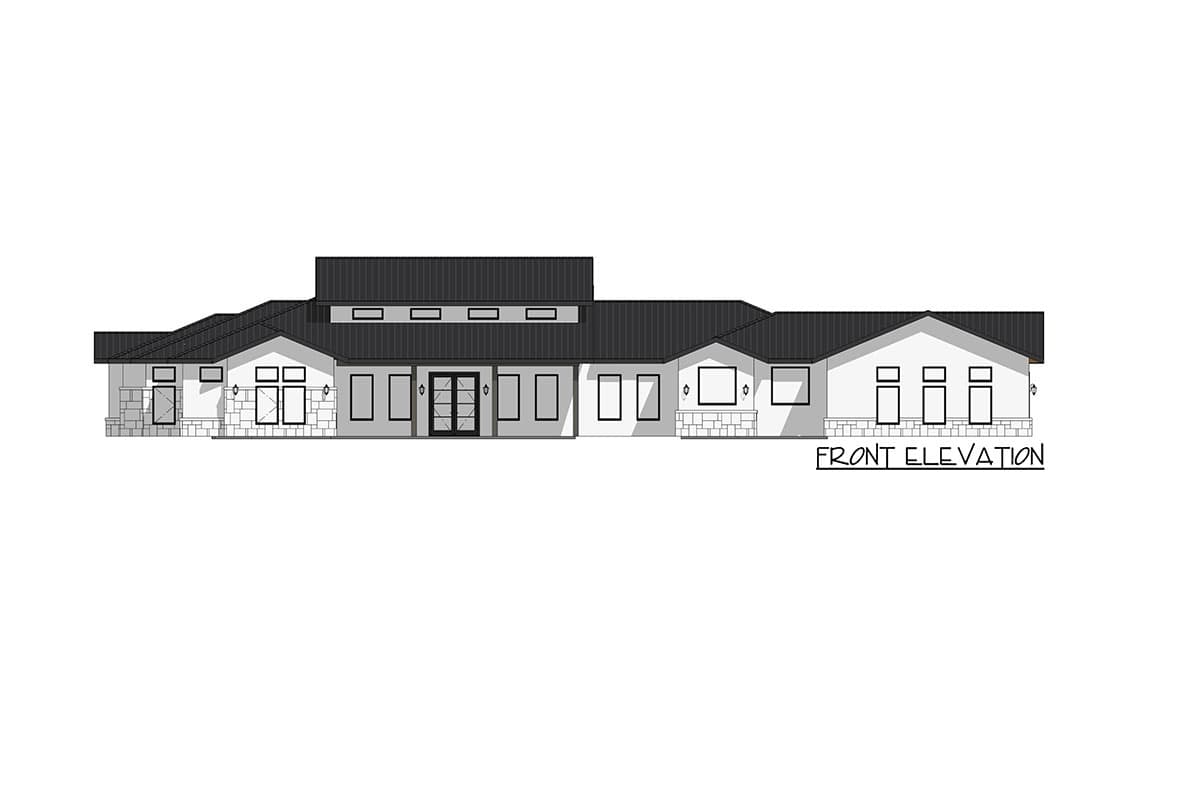

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
