Contemporary Home Plan for the Rear Sloping Lot with Up to 5 Bedrooms

Name: Plan 80969PM: Contemporary Home Plan for the Rear Sloping Lot with Up to 5 Bedrooms
Brand: Architectural Designs
SKU: 80969PM
Price: 1455.0 USD
Availability: InStock

Heated S.F.

2,084

Beds

Baths

Stories

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

Get up to 5 bedrooms when you finish the lower level of this contemporary home plan designed for your rear sloping lot. All three levels have outdoor spaces to enjoy to enjoy the views and fresh air.
Walk into the entry and past the stairs and you enter a 2-story open living space. A 3-sided fireplace divides the space and the kitchen has access to the outdoor living space. One bedroom and a bathroom and laundry complete the main floor.
Upstairs, two more bedrooms share a bathroom and an open rail looks over the living room below.
The lower level gives you a family or rec room and two more bedrooms plus a covered outdoor patio.
NOTE: This plan requires extra time for delivery. Contact us for a timeline before ordering if time is an issue.

What's Included

Please note this plan is designed to the National Building Code of Canada.

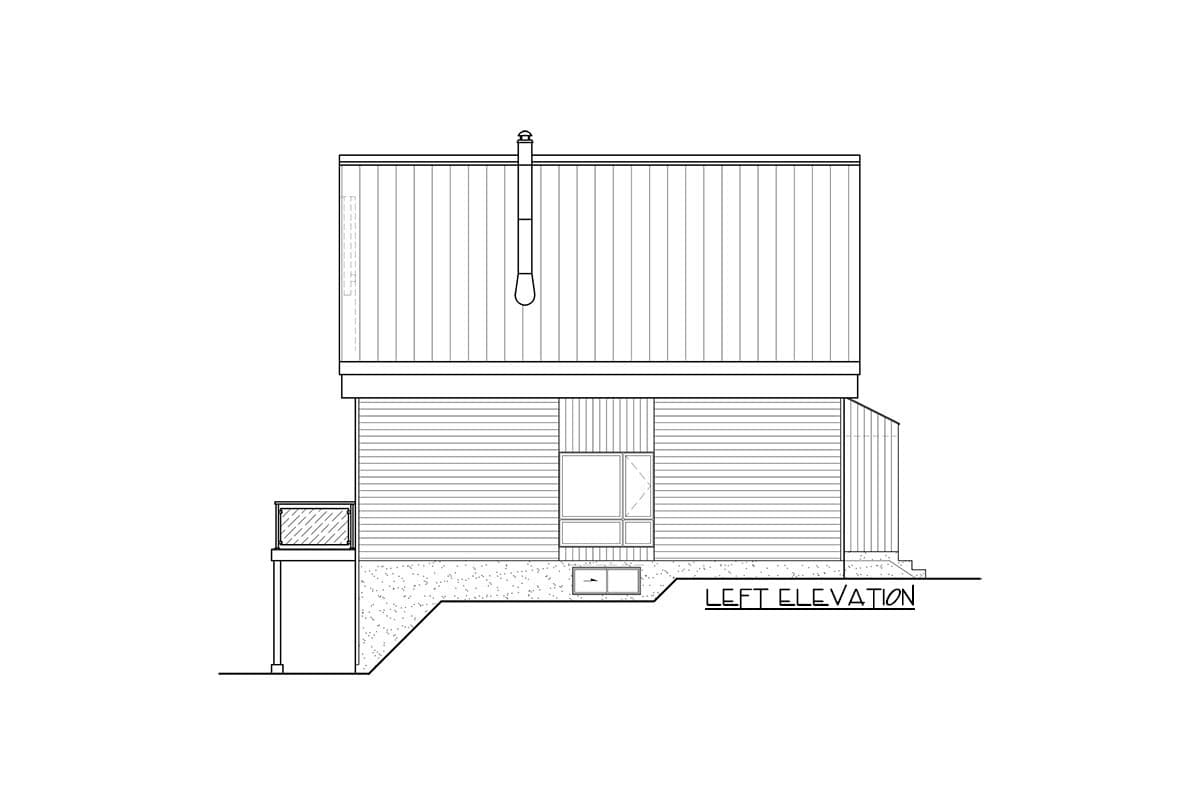

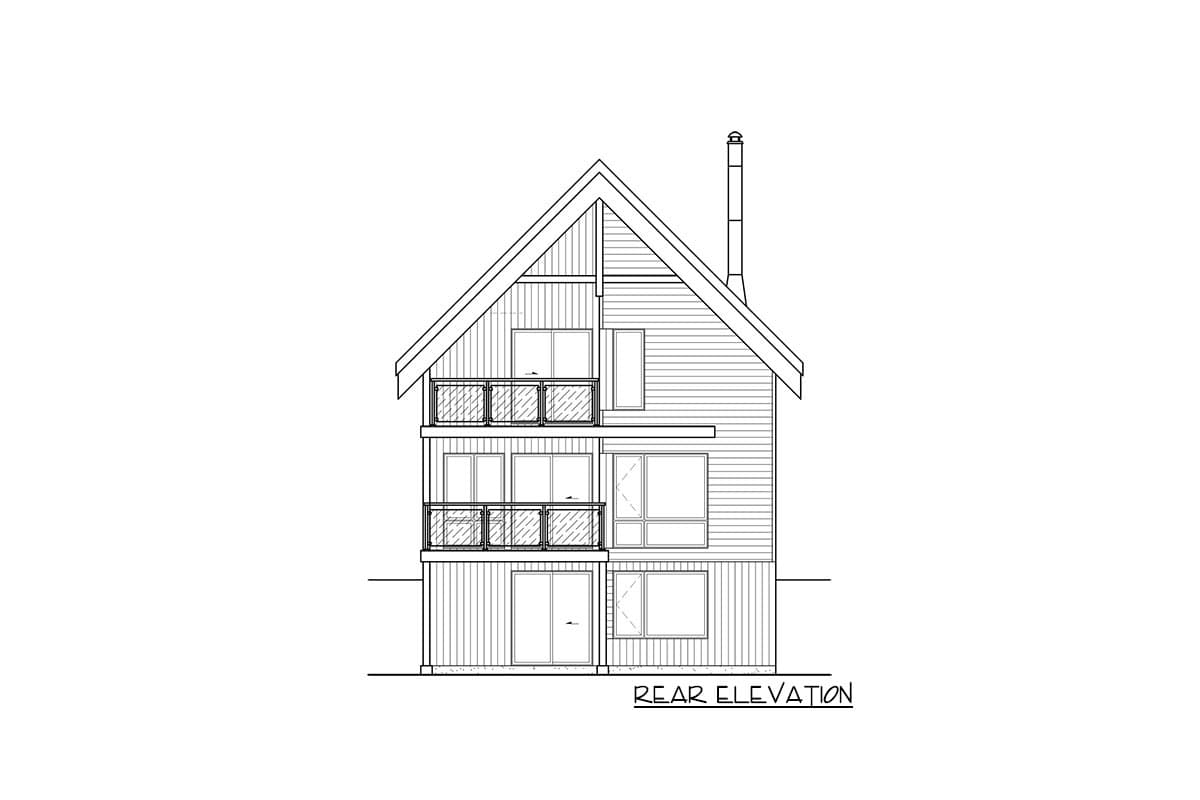

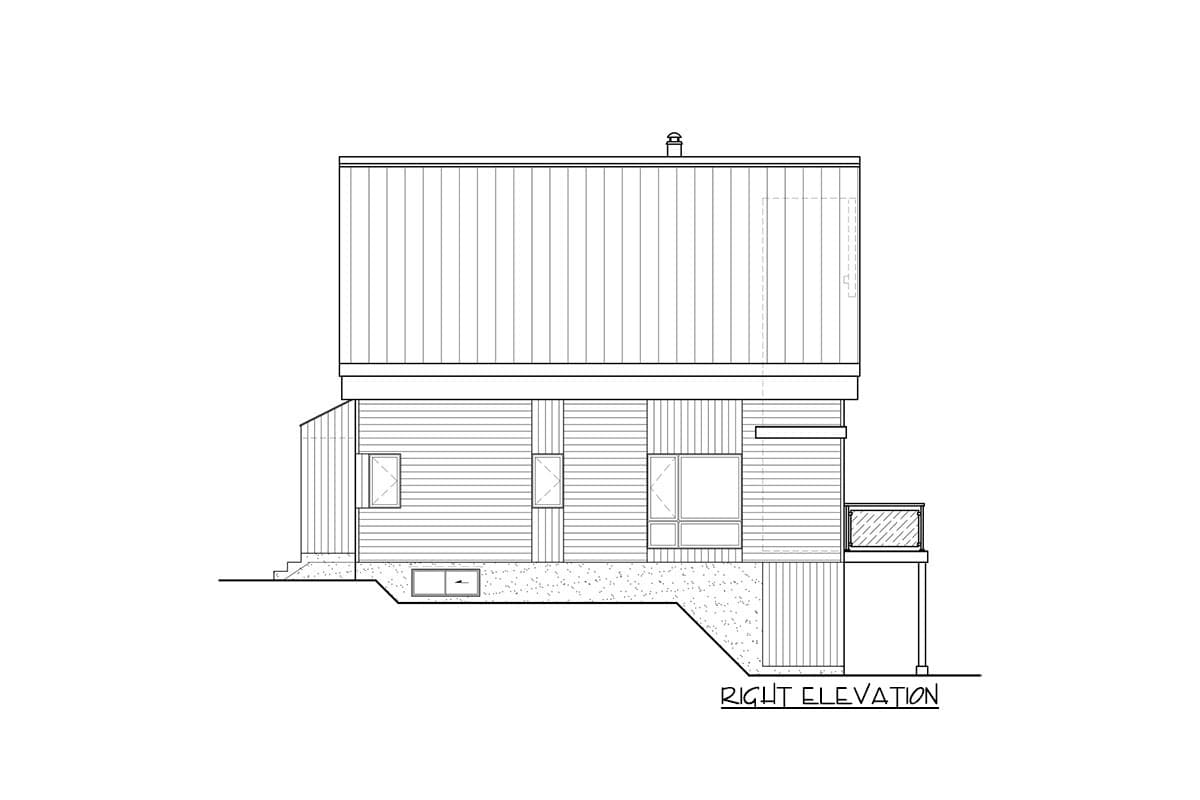

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
