Plan 68839VR Contemporary Home Plan with 2 RV Bays and 5 Bedrooms

2,740 5 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Home Plan with 2 RV Bays and 5 Bedrooms

Plan 68839VR

  • 2,740

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This contemporary house plan has two RV bays (12' wide by 13'6" high) and a porch that wraps around the entire home (with an exception being the back-left corner). The second floor offers even more outside space.
  • Transom windows and tall walls of glass brighten the upper floor and there's even a solarium with sliding glass doors to the balcony.
  • The open layout makes the whole living area feel huge.
  • The second floor is an open vault ceiling that starts at 9’ and goes up to 14’-8” at the great room wall and further to 16’1 at the foyer.
  • There's room for a king size bed in the bedroom and a big walk-in closet and bathroom. Two additional bedrooms are separated by a shared bath.
  • Back on the ground level, two bedrooms are accessible from the left covered porch and share a bath (accessible from the RV garage).
  • Related Plans: Eliminate the ground floor bedrooms with house plan 68496VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

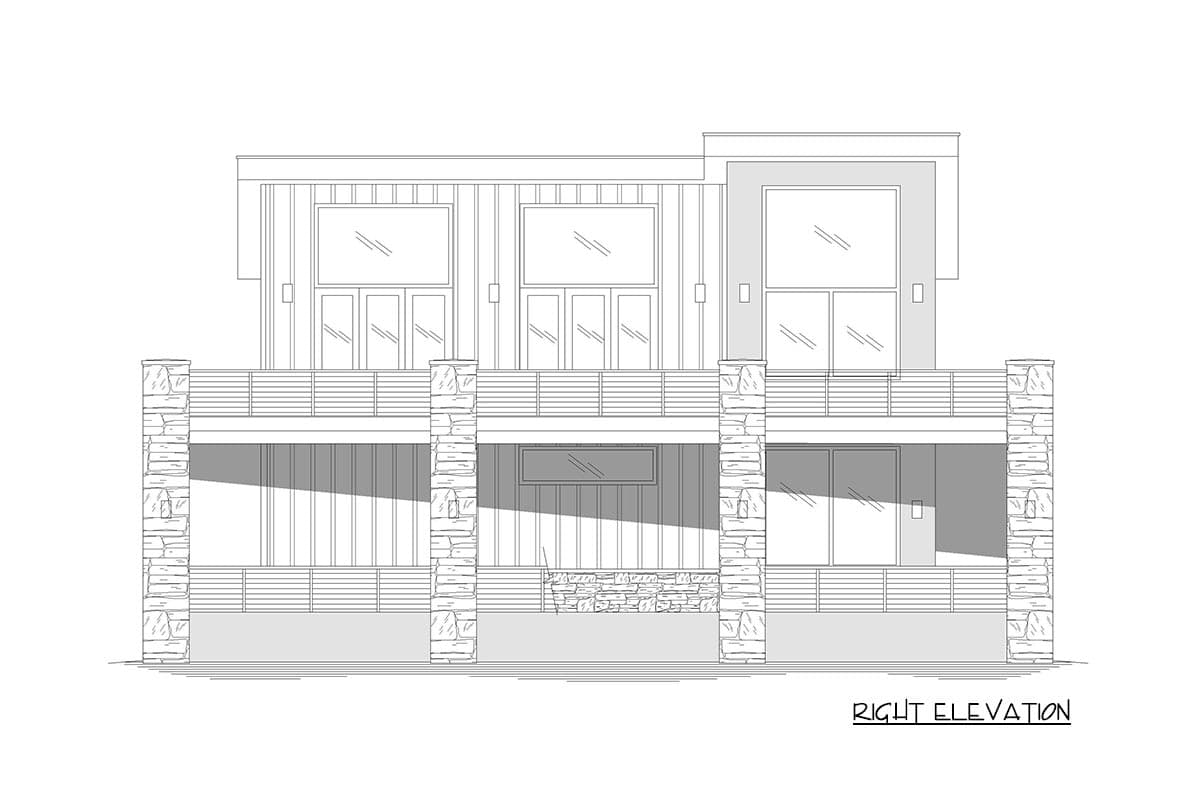

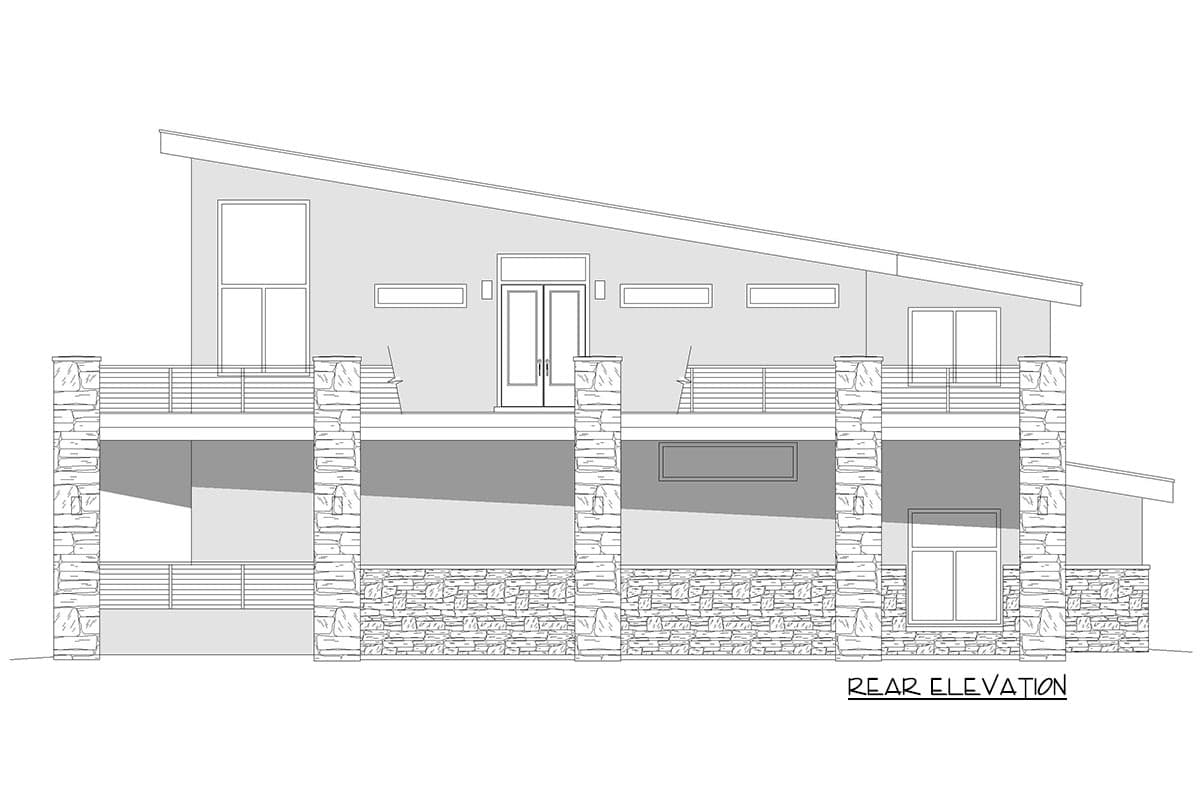

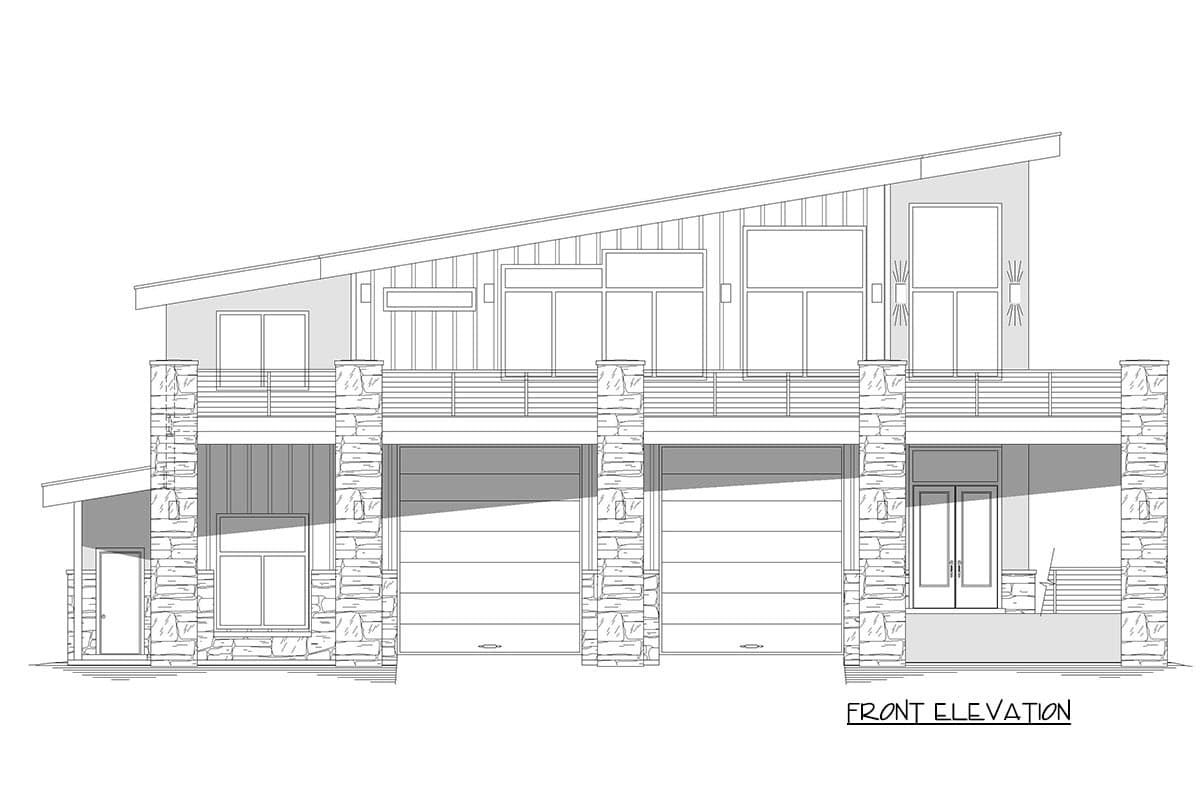

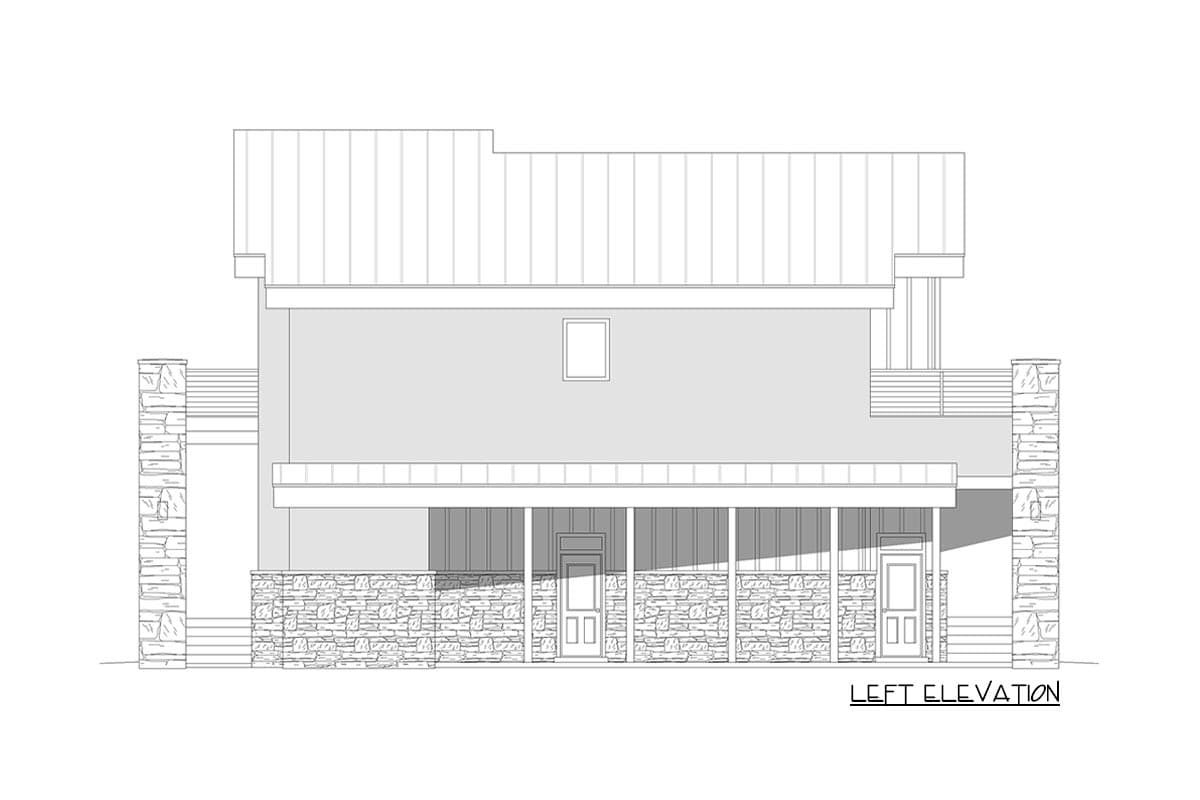

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

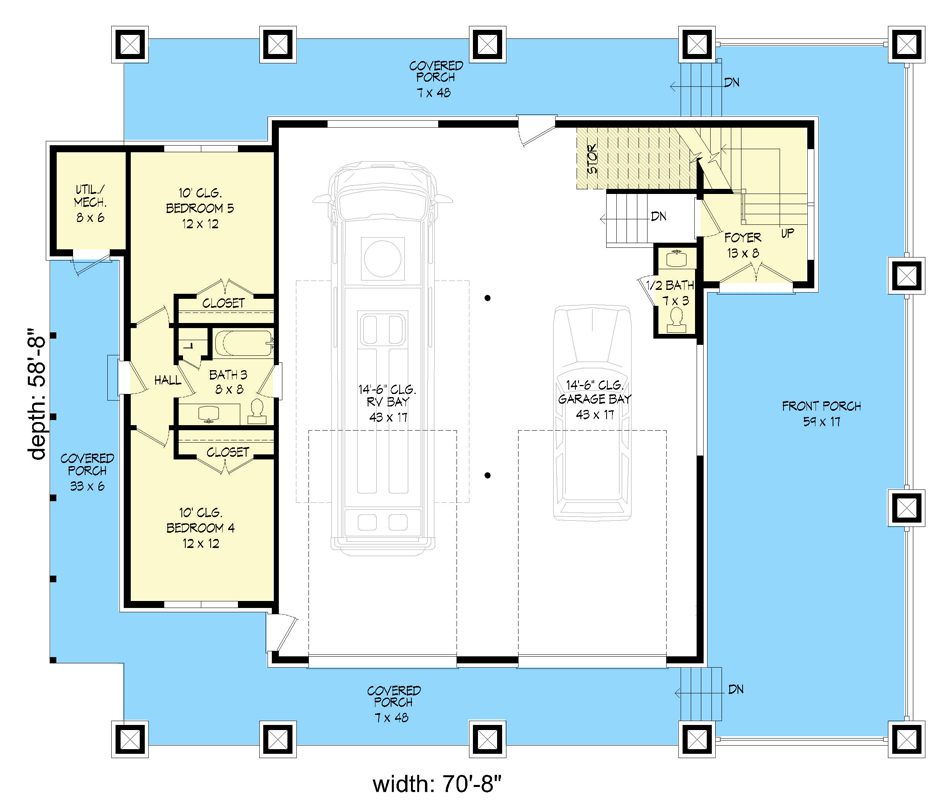

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Home Plan with 2 RV Bays and 5 Bedrooms - 68839VR floor plan - Main Level

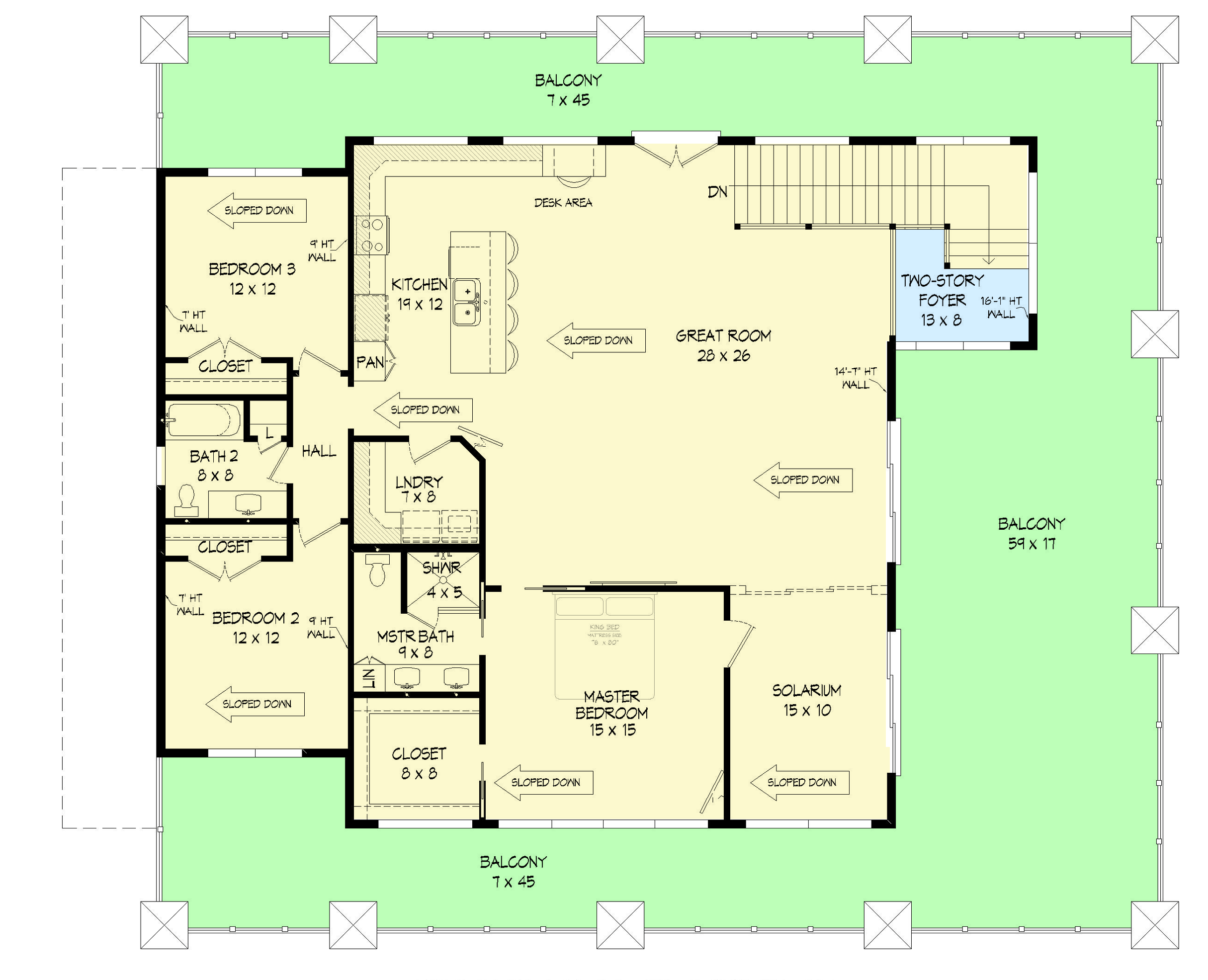

Upper Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Home Plan with 2 RV Bays and 5 Bedrooms - 68839VR floor plan - Upper Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,740 sq. ft.
  • 1st Floor: 628 sq. ft.
  • 2nd Floor: 2,112 sq. ft.
  • Covered Patio: 1,755 sq. ft.
  • Balcony / Veranda: 1,557 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 8"
  • Depth: 58' 8"
  • Max ridge height: 34' 0"

Garage

  • Type: RV Garage, Drive Under, Attached
  • Area: 1484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 6"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Contemporary Home Plan with 2 RV Bays and 5 Bedrooms

  • 2,740

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • 5 Sets $1,560
  • 5 Sets + PDF $1,619
  • CAD + PDF - Single-Build $1,945
  • View all purchase option online

About This Plan

  • This contemporary house plan has two RV bays (12' wide by 13'6" high) and a porch that wraps around the entire home (with an exception being the back-left corner). The second floor offers even more outside space.
  • Transom windows and tall walls of glass brighten the upper floor and there's even a solarium with sliding glass doors to the balcony.
  • The open layout makes the whole living area feel huge.
  • The second floor is an open vault ceiling that starts at 9’ and goes up to 14’-8” at the great room wall and further to 16’1 at the foyer.
  • There's room for a king size bed in the bedroom and a big walk-in closet and bathroom. Two additional bedrooms are separated by a shared bath.
  • Back on the ground level, two bedrooms are accessible from the left covered porch and share a bath (accessible from the RV garage).
  • Related Plans: Eliminate the ground floor bedrooms with house plan 68496VR.

Floor Plans

  • Main Level

  • Upper Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,740 sq. ft.
  • 1st Floor: 628 sq. ft.
  • 2nd Floor: 2,112 sq. ft.
  • Covered Patio: 1,755 sq. ft.
  • Balcony / Veranda: 1,557 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 8"
  • Depth: 58' 8"
  • Max ridge height: 34' 0"

Garage

  • Type: RV Garage, Drive Under, Attached
  • Area: 1484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 6"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 68839VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68839VR
|
