Contemporary Home Plan with Stacked Front Decks

Plan 666172RAF

  • 6,307

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • A blend of siding materials pair with a low-pitched roof to form this quintessential Contemporary house plan.
  • Multiple light-infused living spaces consume the main level, including a two-story living room, great room, and dining area. Easy access to the covered patio encourages outdoor living.
  • An oversized opening connects the living spaces to the kitchen with an eating bar at the island, and a second sink and range is located in the adjacent prep kitchen.
  • Four bedrooms and a laundry room are located upstairs, including the master suite with its private deck, enormous closet with a dresser island, and wet room in the ensuite.
  • The double garage shares the lower level with a rec room, home gym, laundry room, and fifth bedroom suite.

Included:
Cover Sheet with plan info
General notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans

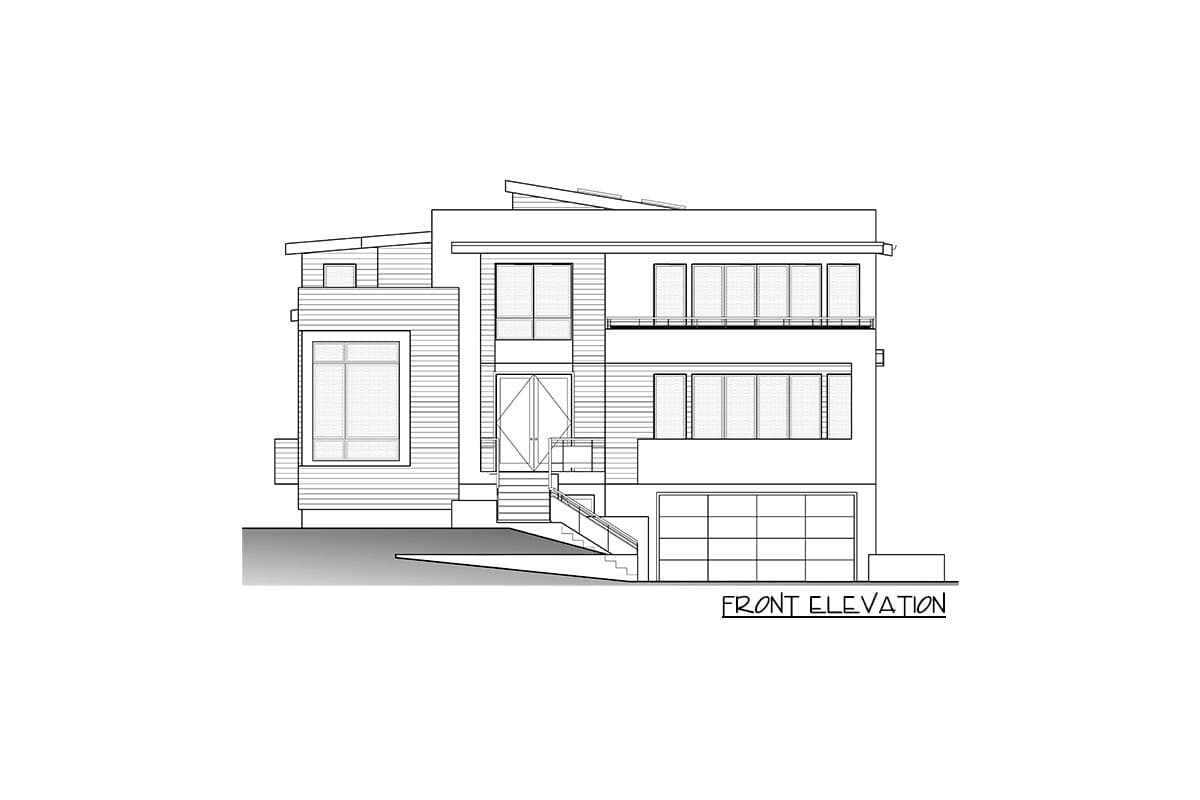

Elevations
Building cross section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

These items are NOT included:

Architectural or Engineering Stamp  - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings  - handled locally when required
Electrical Drawings  - handled locally when required
Energy Calculations  - handled locally when required
Foundation and Framing plans   - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

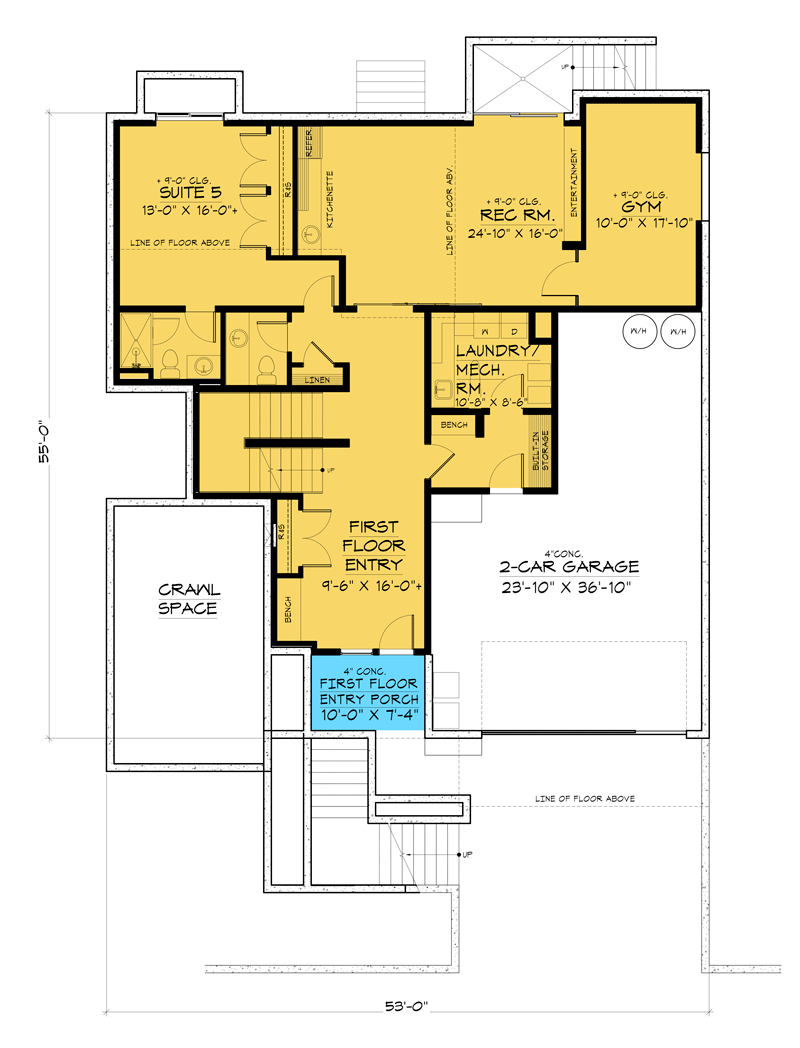

Contemporary Home Plan with Stacked Front Decks - 666172RAF floor plan - Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

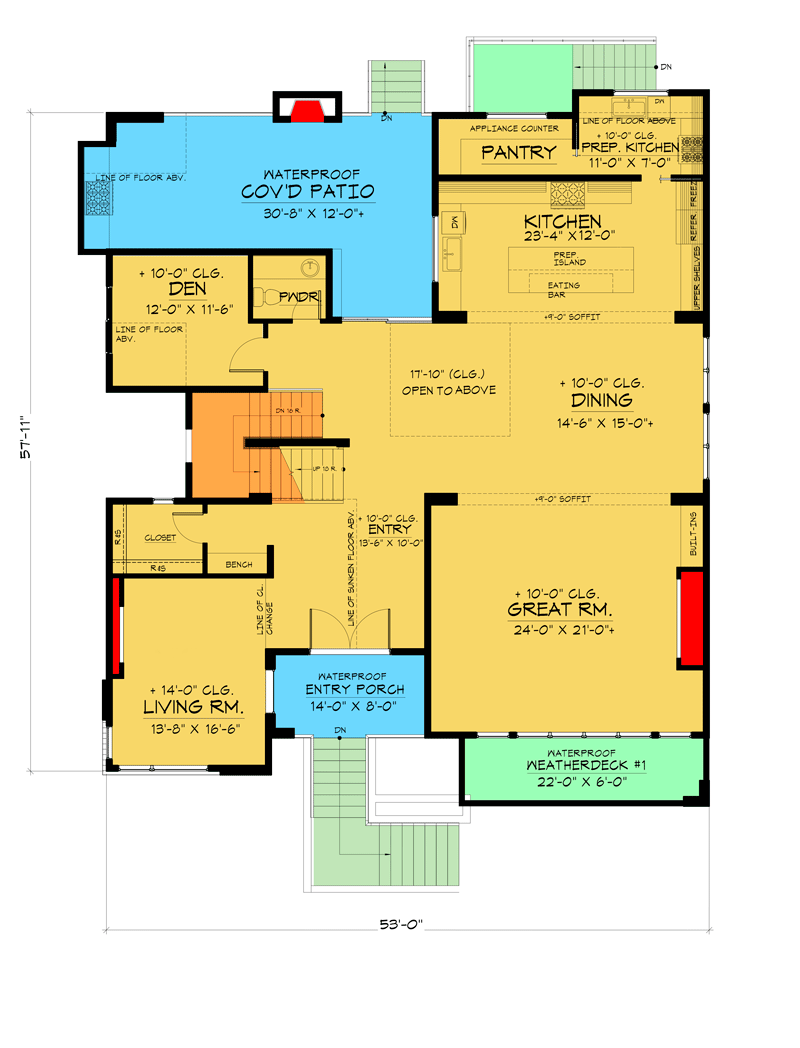

Contemporary Home Plan with Stacked Front Decks - 666172RAF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

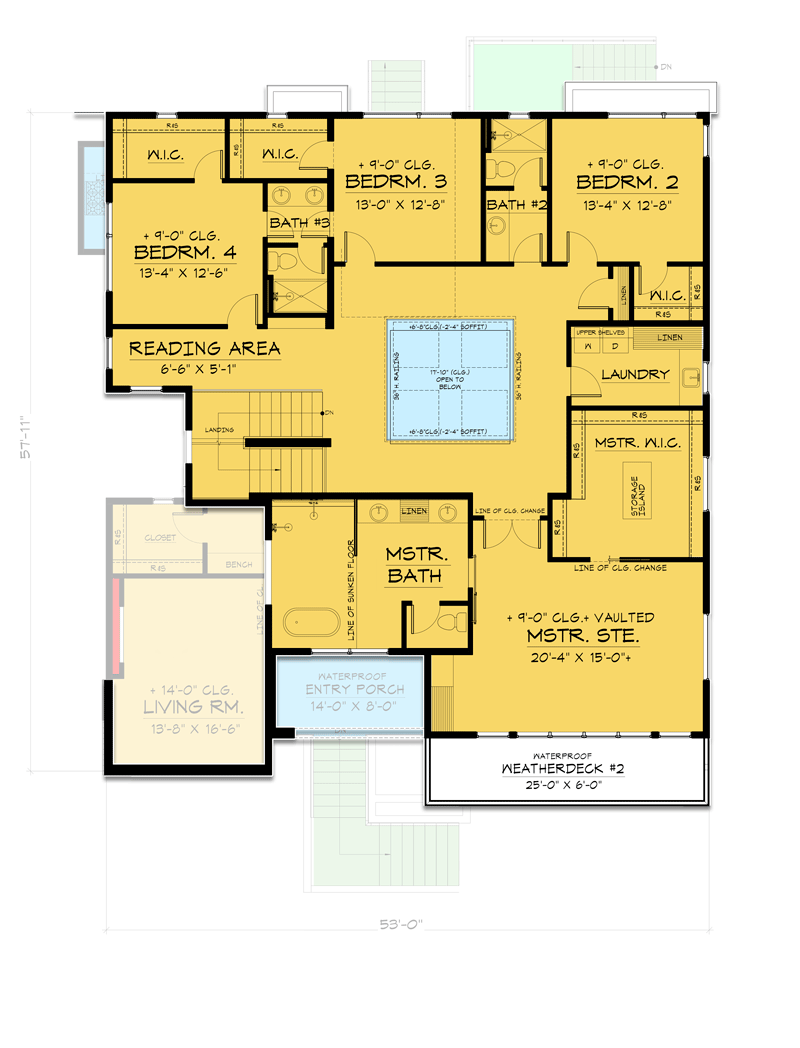

Contemporary Home Plan with Stacked Front Decks - 666172RAF floor plan - Upper Level

Contemporary Home Plan with Stacked Front Decks

  • 6,307

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Lower Level

  • Main Level

  • Upper Level

Plan Details

Square Footage Breakdown

  • Total: 6,307 sq. ft.
  • Lower Level: 1,637 sq. ft.
  • 1st Floor: 2,423 sq. ft.
  • 2nd Floor: 2,247 sq. ft.
  • Weatherdeck #2: 150 sq. ft.

Dimensions

  • Width: 53' 0"
  • Depth: 63' 0"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 744 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 1 on 12
  • Framing Type: Truss
