Plan 77657FB

Exclusive

Contemporary House Plan with 3-Car Garage and Wrap Around Porch - 4164 Sq Ft

Heated S.F.
4,164
Beds
4 - 5
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 77657FB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 77657FB

M-F 9am-5pm EST |

1-203-761-8500

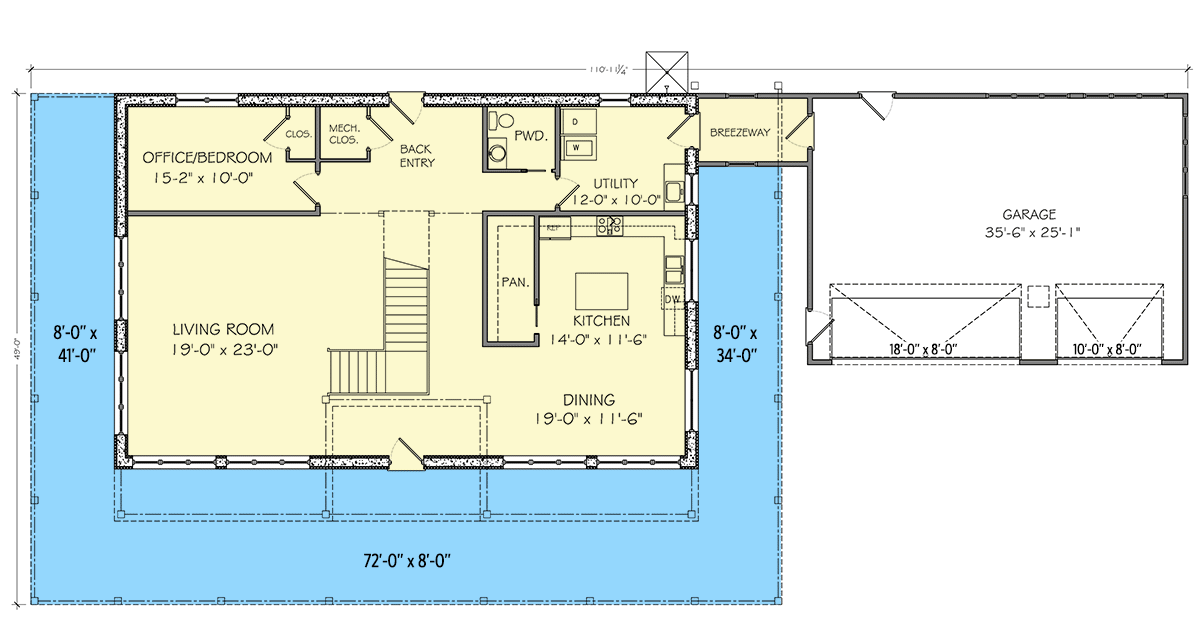

Main Level

Plan 77657FB: Contemporary House Plan with 3-Car Garage and Wrap Around Porch - 4164 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

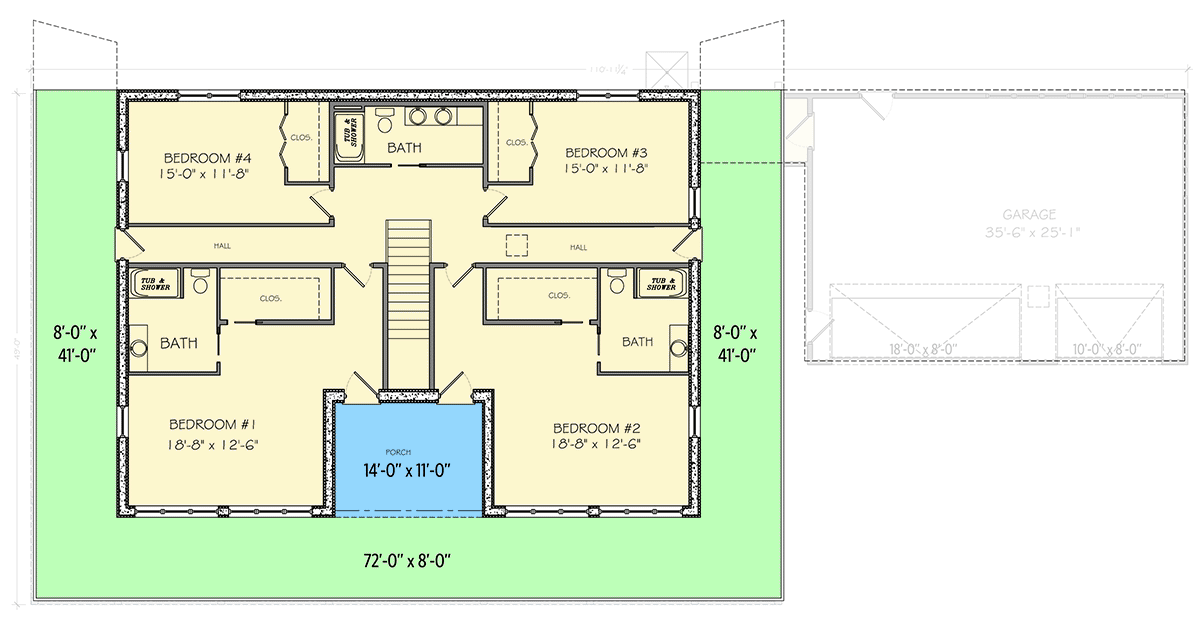

2nd Floor

Plan 77657FB: Contemporary House Plan with 3-Car Garage and Wrap Around Porch - 4164 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

  • This contemporary house plan gives you 4,164 square feet of heated living space with a flex bedroom/home office giving you the potential to have 4 or 5 bedrooms.
  • The 945 square foot 3-car garage has a 2-car and a 1-car bay and accesses the home by a convenient breezeway.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,164 sq. ft.

1st Floor

2,093 sq. ft.

2nd Floor

2,071 sq. ft.

Porch, Front

156 sq. ft.

Deck

1,234 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

ICF

Optional Type(s)

2x6

Dimensions

Width

110' 11"

Depth

49' 0"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Stacked Porches

Two Master Suites

Walk-in Pantry

Wraparound Porch

Plan Collections

Exclusive
