Contemporary House Plan with Casita

Plan 85182MS

  • 2,877

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Beautiful slanted roof lines add drama to this Contemporary house plan.
  • Vertical and horizontal siding mixed with stone and stucco give the home a unique look.
  • The entry foyer has a two-story ceiling and sliding barn doors close off the private den to the right.
  • In back, the cooking, eating and living areas are all combined into one large, open space.
  • Upstairs, all three bedrooms are vaulted and there's a cozy loft that faces the front of your lot.
  • While the casita (ideal for in-law accommodations)is attached to the house, it has its own garage, utility room and separate entrance plus a private patio. It gives you 387 square feet that are in addition to the square footage listed for the main floor of the home.

Each plan set is drawn to 1/4" scale and includes the following:

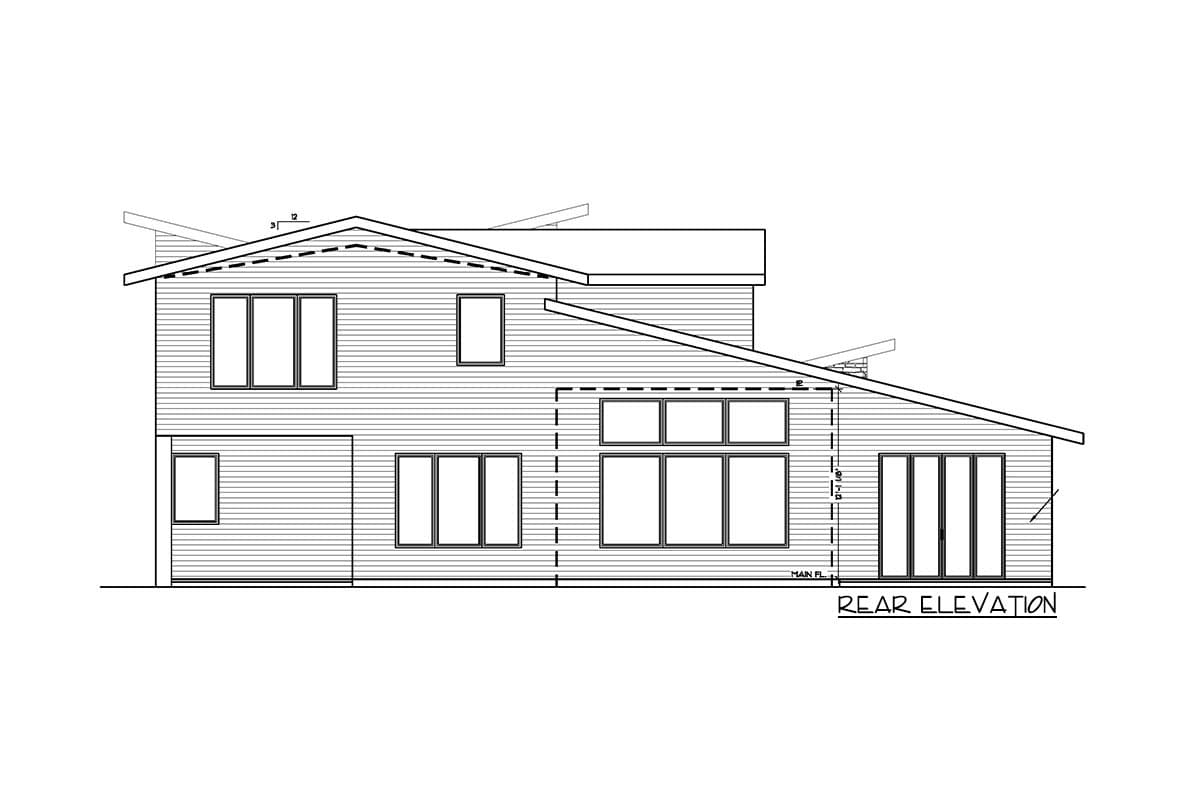

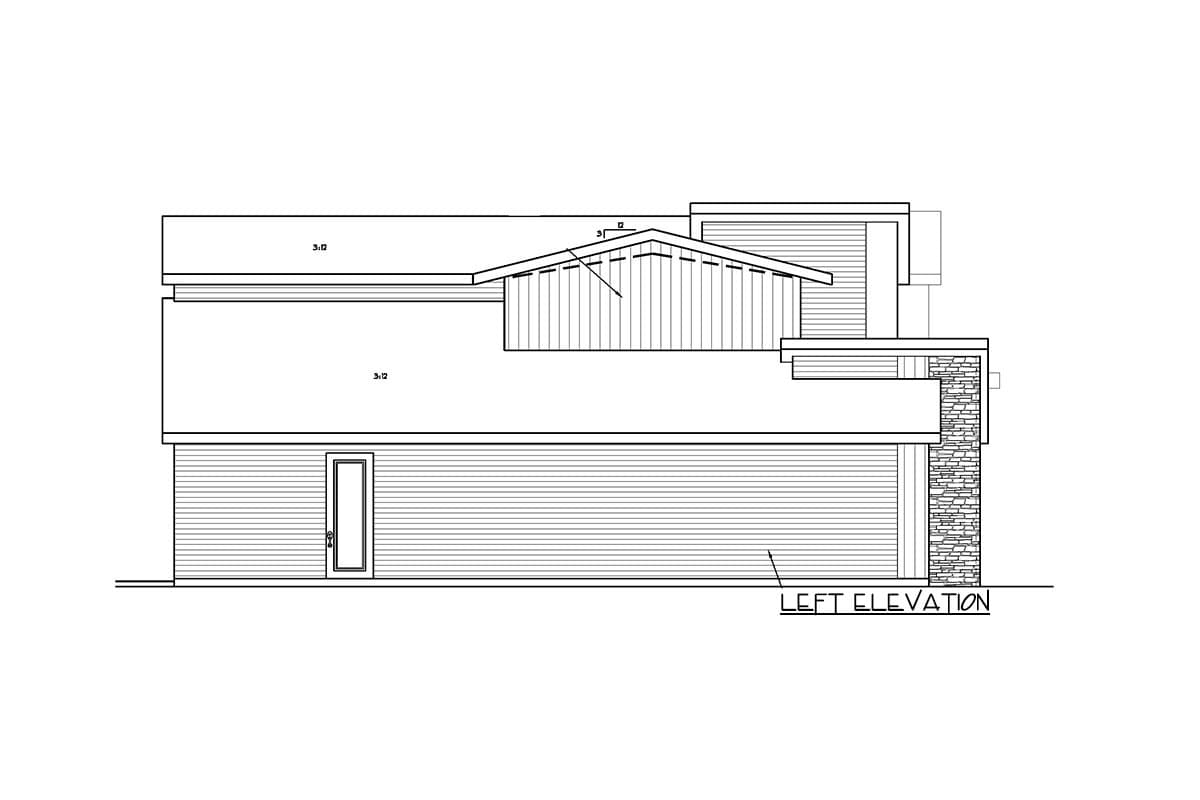

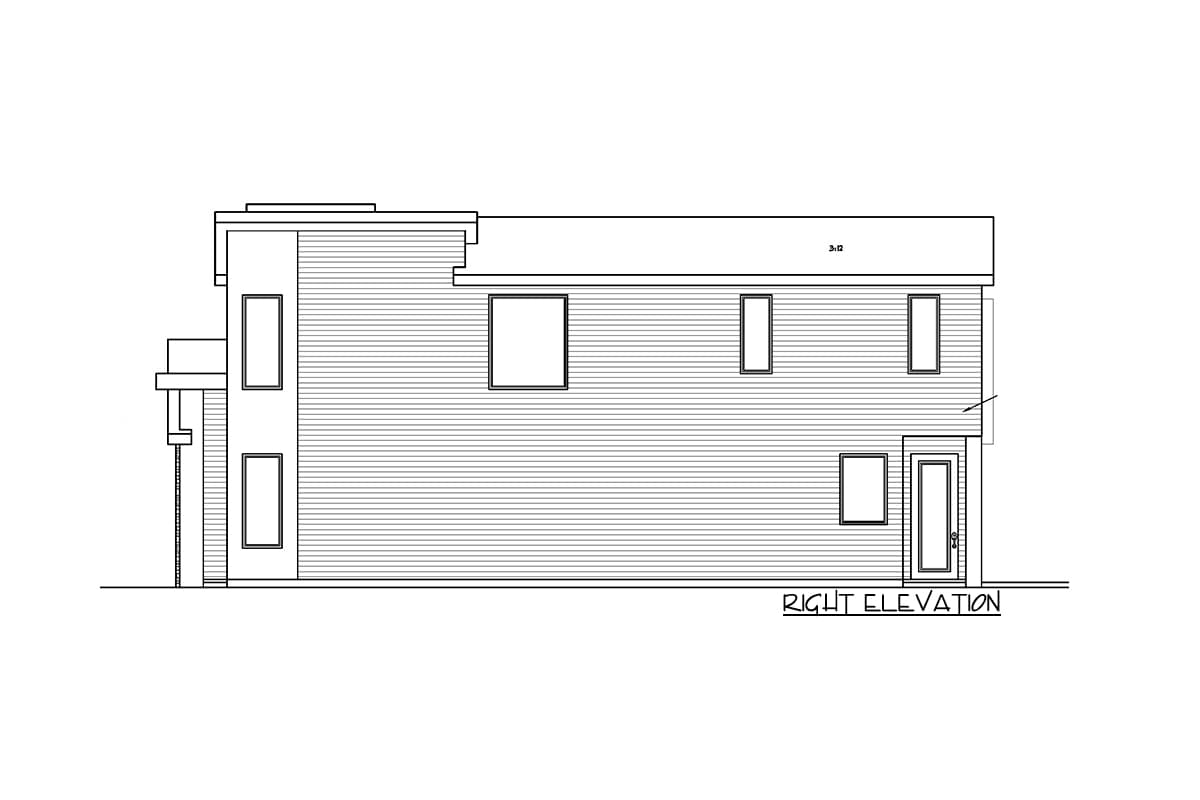

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

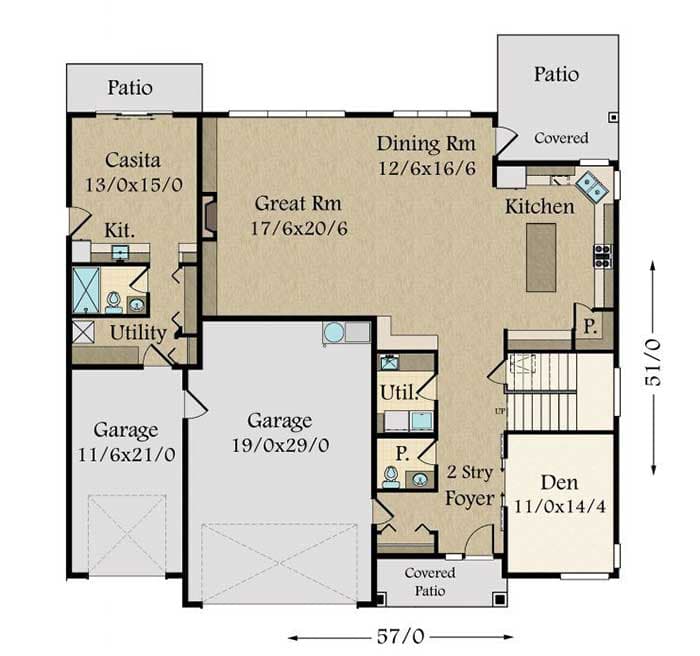

Contemporary House Plan with Casita - 85182MS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

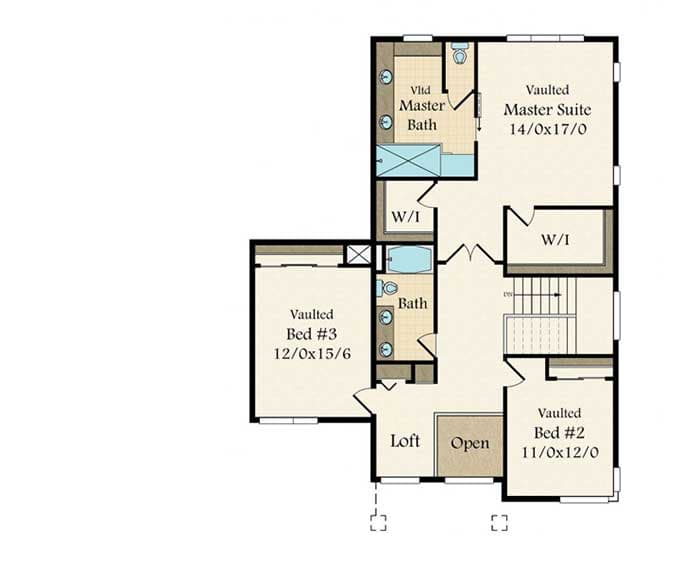

Contemporary House Plan with Casita - 85182MS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,877 sq. ft.
  • 1st Floor: 1,522 sq. ft.
  • 2nd Floor: 1,355 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 51' 0"

Garage

  • Type: Attached
  • Area: 793 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Architectural Style

Special features

Plan Collections

Contemporary House Plan with Casita

  • 2,877

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,697
  • 6 Sets $2,013
  • CAD + PDF - Single-Build $2,877
  • PDF - Unlimited Build $2,897
  • CAD - Unlimited Build $3,677
  • View all purchase option online

About This Plan

  • Beautiful slanted roof lines add drama to this Contemporary house plan.
  • Vertical and horizontal siding mixed with stone and stucco give the home a unique look.
  • The entry foyer has a two-story ceiling and sliding barn doors close off the private den to the right.
  • In back, the cooking, eating and living areas are all combined into one large, open space.
  • Upstairs, all three bedrooms are vaulted and there's a cozy loft that faces the front of your lot.
  • While the casita (ideal for in-law accommodations)is attached to the house, it has its own garage, utility room and separate entrance plus a private patio. It gives you 387 square feet that are in addition to the square footage listed for the main floor of the home.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,877 sq. ft.
  • 1st Floor: 1,522 sq. ft.
  • 2nd Floor: 1,355 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 51' 0"

Garage

  • Type: Attached
  • Area: 793 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
Plan 85182MS
