Plan: 23576JD

Contemporary House Plan With Garage Options

3,205 4 3 2 3
Pageloader

Contemporary House Plan With Garage Options

Plan 23576JD

  • 3,205

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4 bedroom house plan has modern styling with an angular look and dynamic exterior. It comes in two versions giving you 3 car or 2 car (see house plan 23575JD) options.
  • The covered entry shelters the double doors that give way to the wide foyer with coat closet and powder room. A den to the side gives you a quiet retreat to enjoy.
  • The main part of the home gives you an open floor plan with the great room, dining room and kitchen combined into a singular space. A fireplace in the great room creates an attractive focal point. And two sets of sliding doors - one off the dining area and another of the kitchen - give you access to the covered living area in back.
  • The kitchen has a large pantry and an island with seating for four. The family entry is steps away and makes unloading groceries a breeze.
  • The upstairs is dedicated to bedrooms and a bonus room over the garage which is included in the total living area figures.
  • The roof is a truss design with a 3:12 main pitch and a 5:12 secondary pitch.
  • Related Plan: Get a 2 car garage with house plan 23575JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

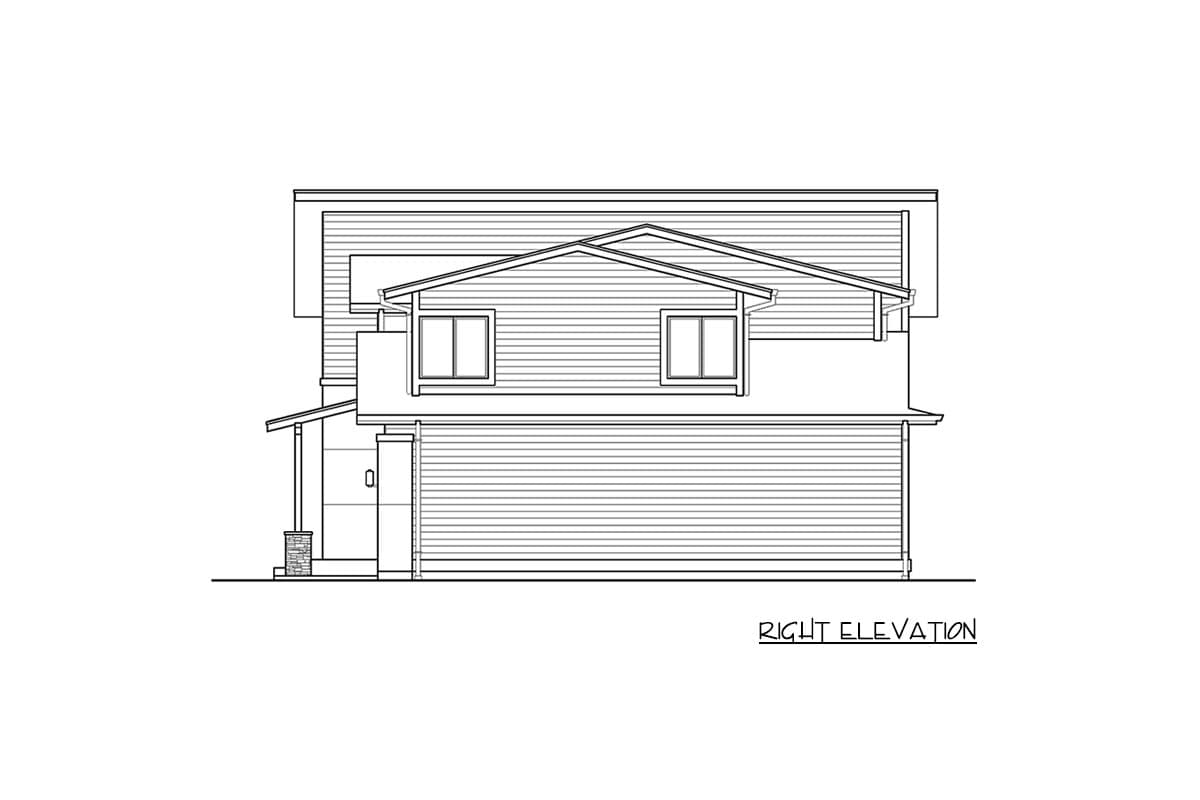

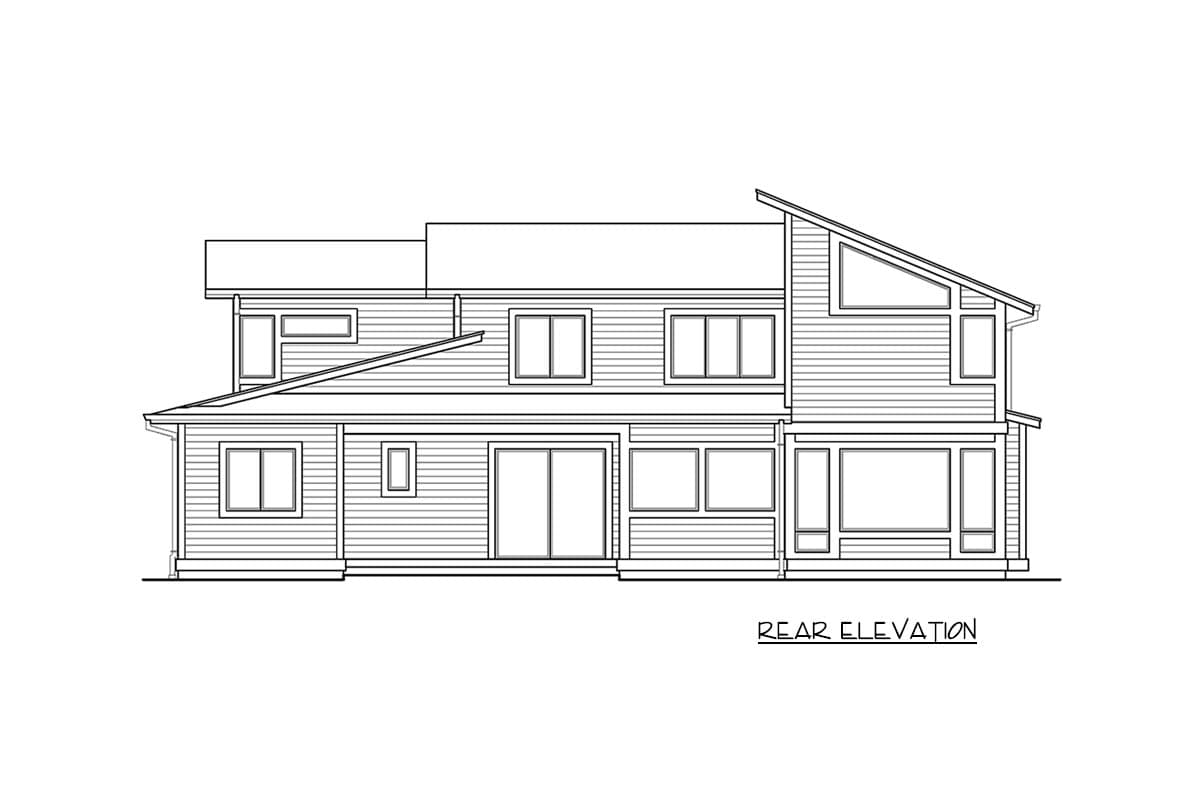

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Contemporary House Plan With Garage Options

  • 3,205

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets PLUS $1,600
  • CAD - multi-use $2,500
  • View all purchase option online

About This Plan

  • This 4 bedroom house plan has modern styling with an angular look and dynamic exterior. It comes in two versions giving you 3 car or 2 car (see house plan 23575JD) options.
  • The covered entry shelters the double doors that give way to the wide foyer with coat closet and powder room. A den to the side gives you a quiet retreat to enjoy.
  • The main part of the home gives you an open floor plan with the great room, dining room and kitchen combined into a singular space. A fireplace in the great room creates an attractive focal point. And two sets of sliding doors - one off the dining area and another of the kitchen - give you access to the covered living area in back.
  • The kitchen has a large pantry and an island with seating for four. The family entry is steps away and makes unloading groceries a breeze.
  • The upstairs is dedicated to bedrooms and a bonus room over the garage which is included in the total living area figures.
  • The roof is a truss design with a 3:12 main pitch and a 5:12 secondary pitch.
  • Related Plan: Get a 2 car garage with house plan 23575JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

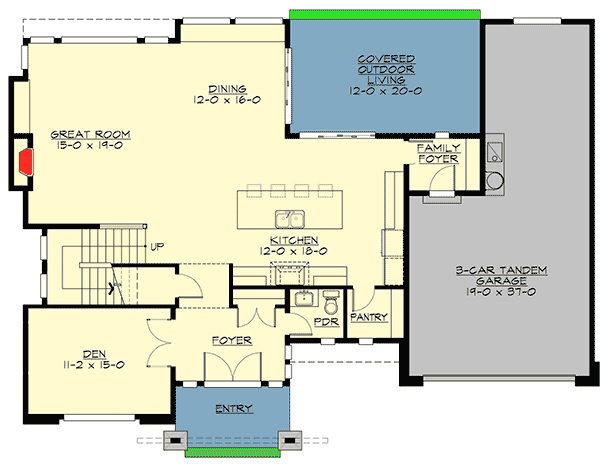

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,205 sq. ft.
  • 1st Floor: 1,398 sq. ft.
  • 2nd Floor: 1,807 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 45' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

  • Contemporary
  • Modern
  • Northwest

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
