Contemporary House Plan with Media Room

Plan 737016LVL

  • 2,282

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Split garages with a center foyer present a balanced facade to this Contemporary house plan.
  • On the ground level, the media room gets a wet bar for entertaining and sliding glass doors to the rear patio.
  • Finish the optional guest suite to add more space.
  • The main floor is high up and has a gorgeous two story foyer with open railing plus an angled wall in the great room.
  • The master bedroom also has angled walls.
  • Open space in back combines the kitchen, dining area and large great room.
  • The large deck out back has plenty of room for table and chairs.
  • A ladder in bedrooms 1 and 2 lead up to play lofts.
  • Related plan: Get a different exterior with house plan 737018LVL (2,048 sq. ft.).

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections
Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

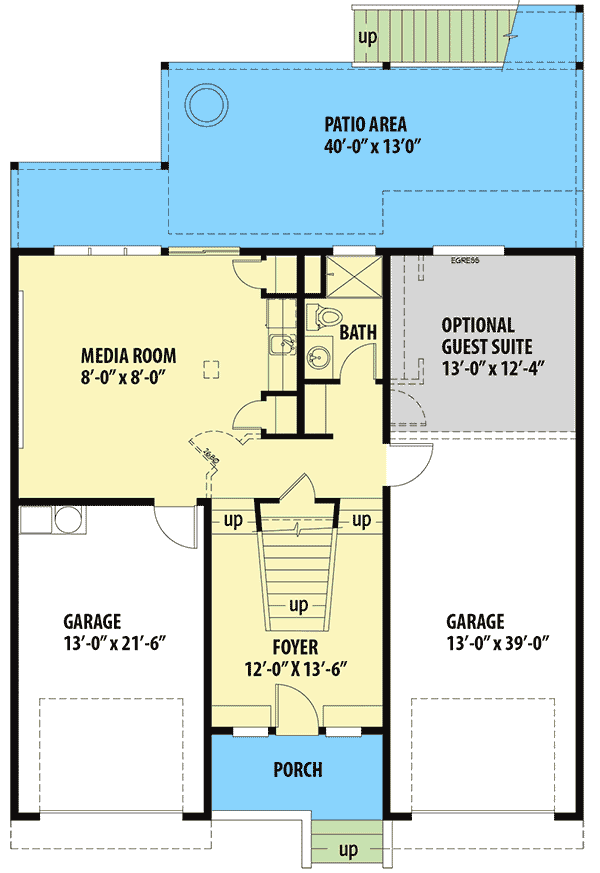

Contemporary House Plan with Media Room - 737016LVL floor plan - Main Floor

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

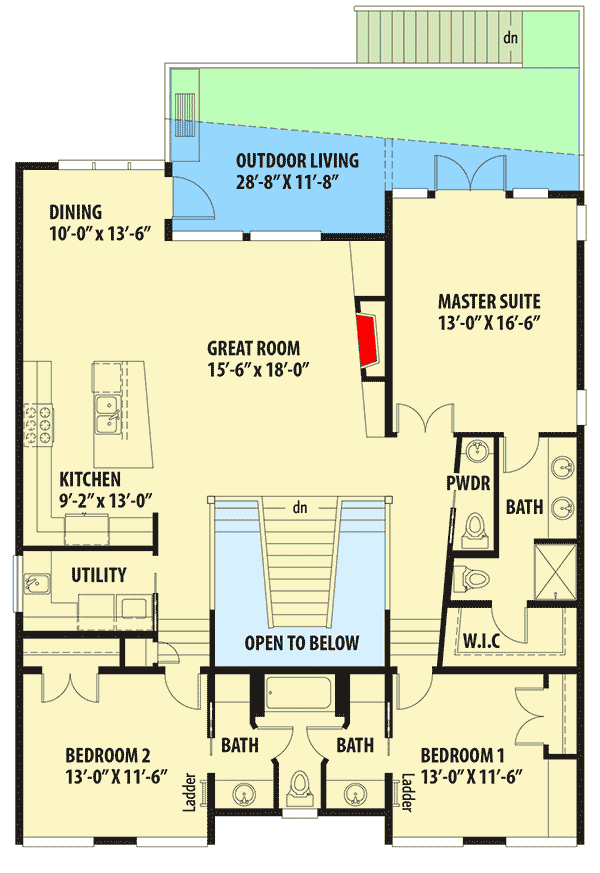

Contemporary House Plan with Media Room - 737016LVL floor plan - 2nd Floor

Kids' Lofts

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary House Plan with Media Room - 737016LVL floor plan - Kids' Lofts

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,282 sq. ft.
  • Lower Level: 630 sq. ft.
  • 1st Floor: 1,652 sq. ft.
  • Covered Patio: 446 sq. ft.
  • Porch, Combined: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 59' 0"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 639 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary House Plan with Media Room

  • 2,282

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • CAD - Single-Build $2,000
  • View all purchase option online

About This Plan

  • Split garages with a center foyer present a balanced facade to this Contemporary house plan.
  • On the ground level, the media room gets a wet bar for entertaining and sliding glass doors to the rear patio.
  • Finish the optional guest suite to add more space.
  • The main floor is high up and has a gorgeous two story foyer with open railing plus an angled wall in the great room.
  • The master bedroom also has angled walls.
  • Open space in back combines the kitchen, dining area and large great room.
  • The large deck out back has plenty of room for table and chairs.
  • A ladder in bedrooms 1 and 2 lead up to play lofts.
  • Related plan: Get a different exterior with house plan 737018LVL (2,048 sq. ft.).

Floor Plans

  • Main Floor

  • 2nd Floor

  • Kids' Lofts

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,282 sq. ft.
  • Lower Level: 630 sq. ft.
  • 1st Floor: 1,652 sq. ft.
  • Covered Patio: 446 sq. ft.
  • Porch, Combined: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 59' 0"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 639 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Truss
