Plan 737014LVL
Contemporary House Plan with Open Layout
Heated S.F.
1,843
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A blend of different roof lines adds great visual appeal to this Contemporary house plan.
  • Transom windows over the front door brighten the foyer.
  • Head back to the big, open living space at the back of the house where the views stretch across from the kitchen through the dining area and into the great room.
  • A walk-in food storage pantry and kitchen island give you excellent storage.
  • All three bedrooms are up on the second floor where they share loft space and a handy second floor laundry room.
  • Open railing lets you look down into the foyer below.
What's Included
This house plan has 8 pages as follows:
  1. Cover sheet with rendering and plan index
  2. Foundation/lower floor plan
  3. Main floor and upper floor plan
  4. Floor framing and roof framing plans
  5. Optional third car garage framing

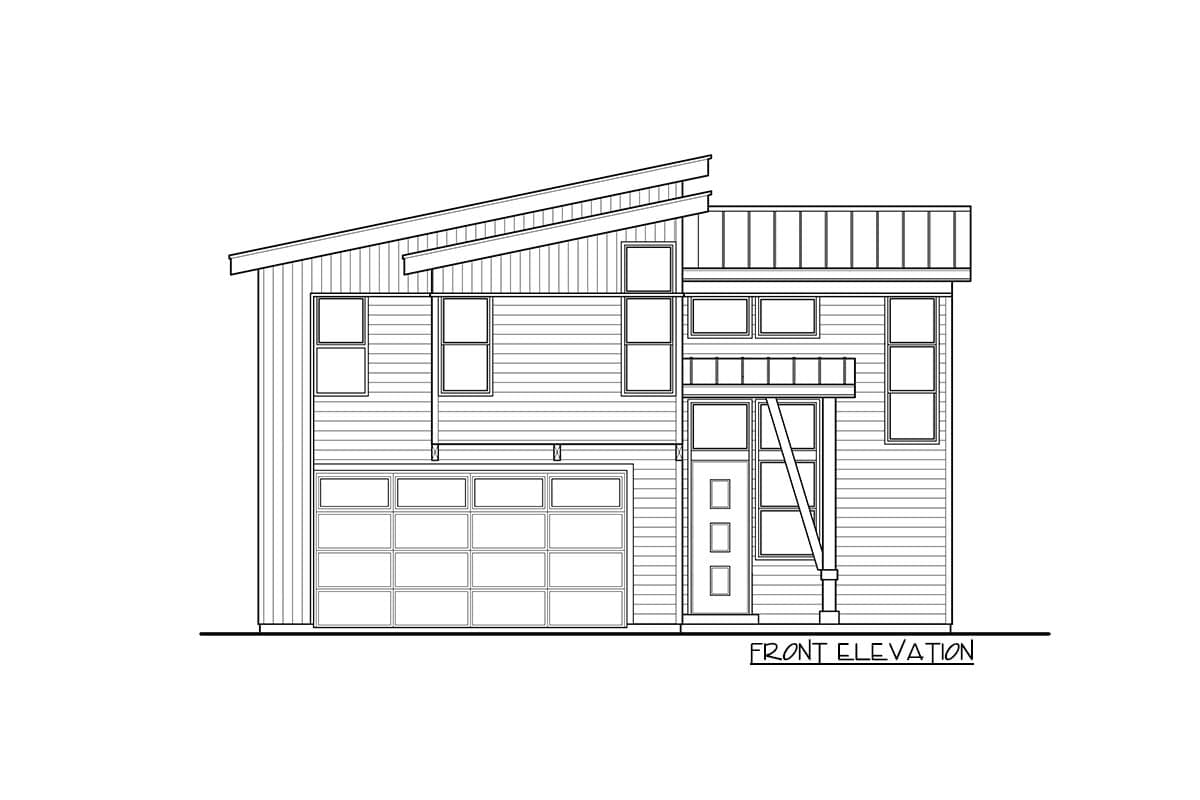

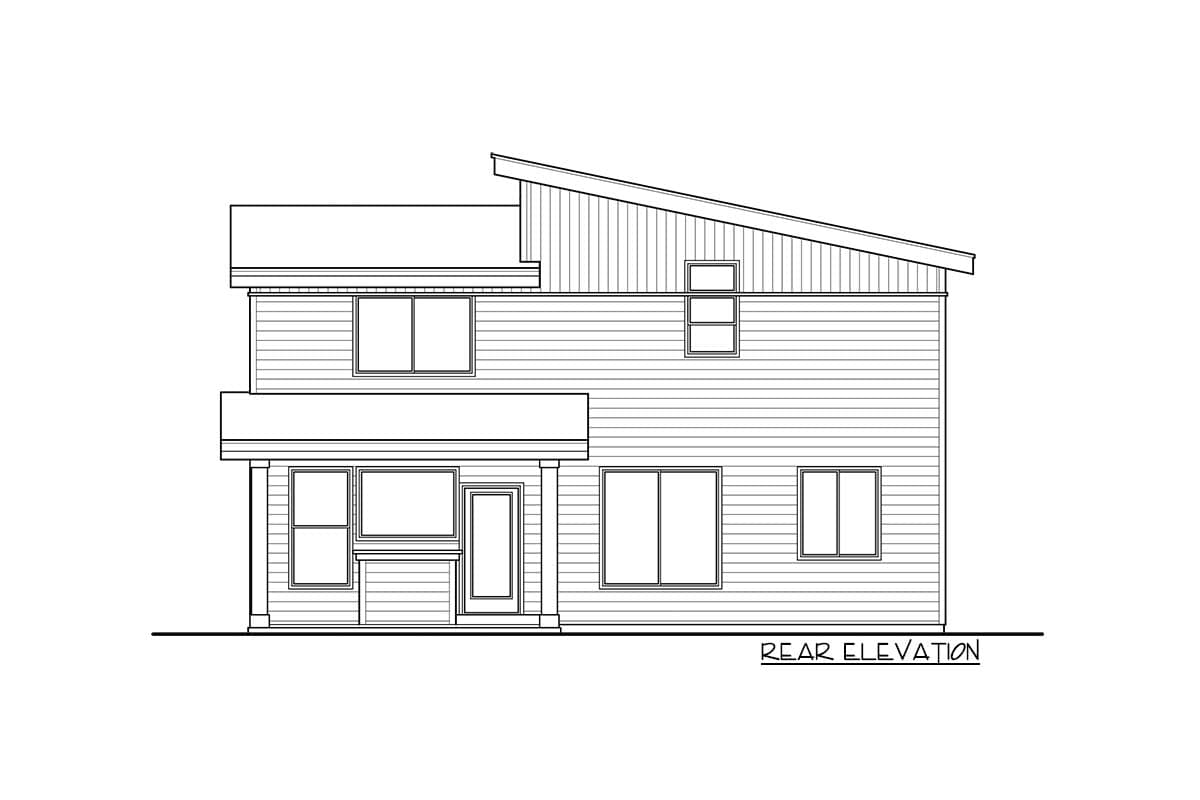

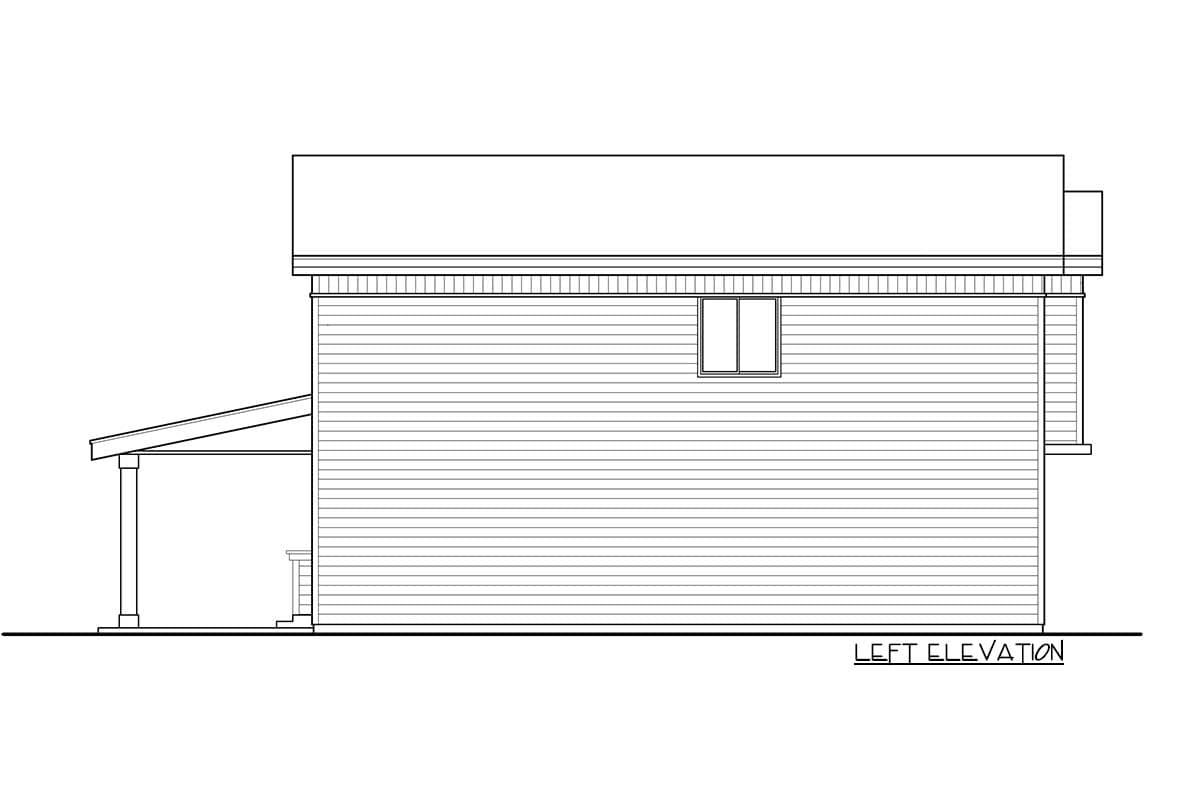

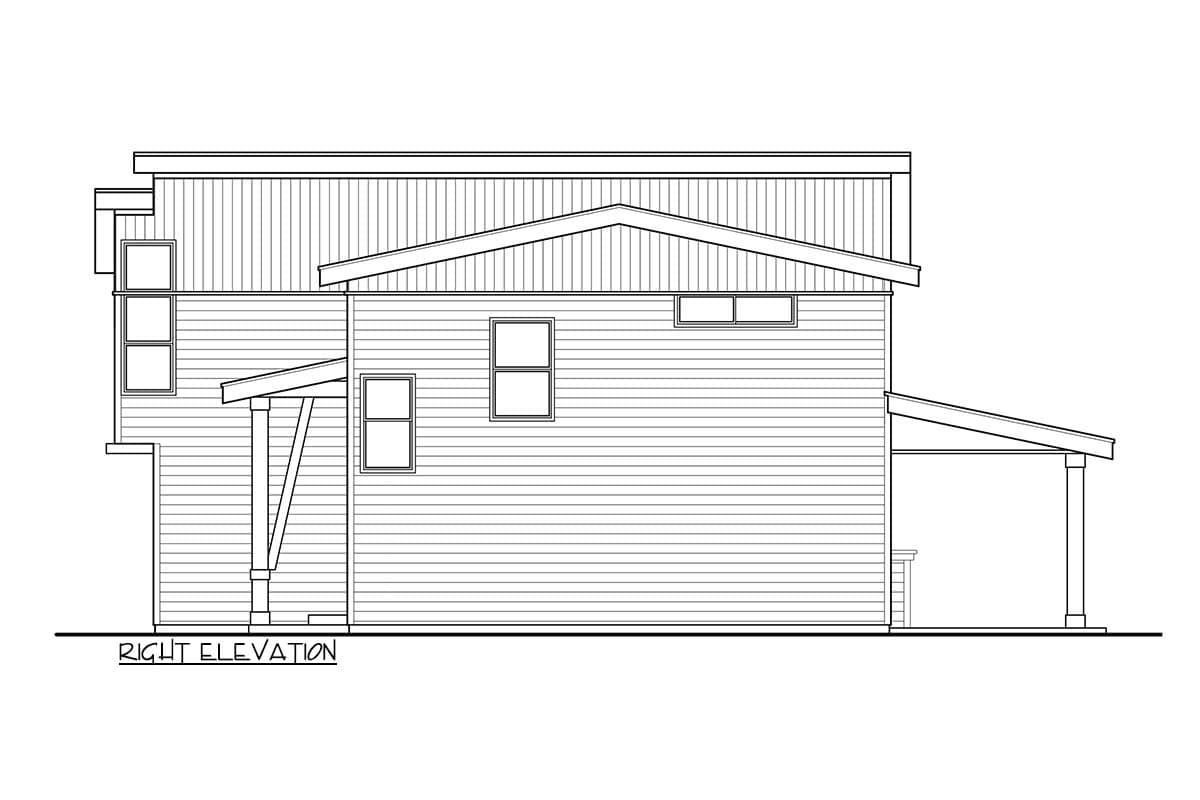

  6. Building elevations
  7. Building elevations; optional third car plan
  8. Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary House Plan with Open Layout

  • 1,843

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

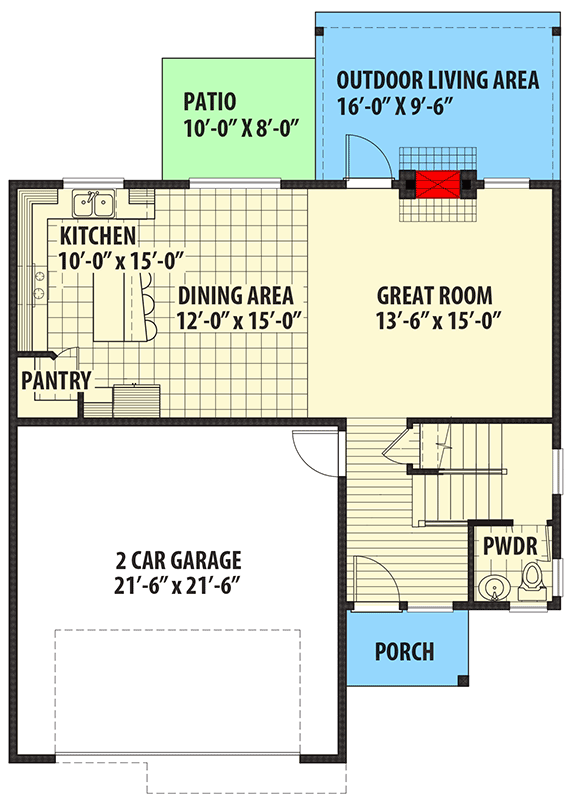

  • Main Level

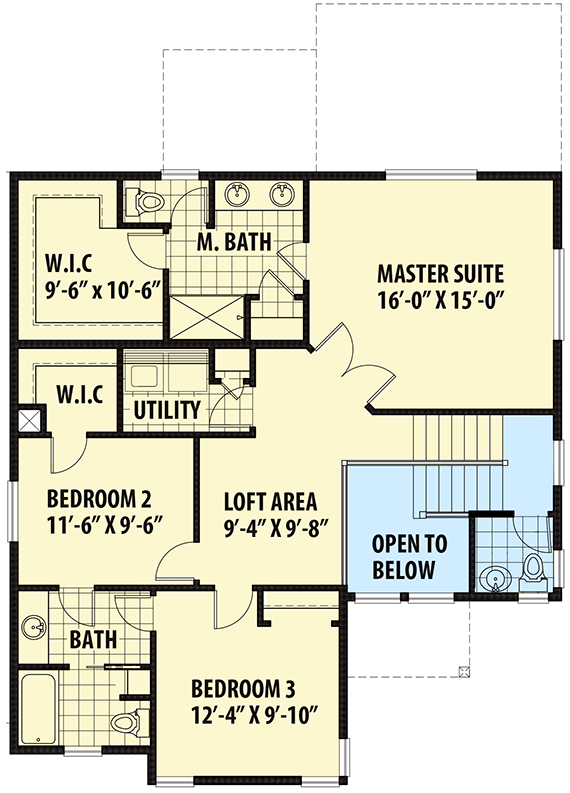

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,843 sq. ft.
  • 1st Floor: 745 sq. ft.
  • 2nd Floor: 1,098 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 49' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 478 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
