Contemporary House Plan with Outdoor Living Room

Plan 23763JD

  • 3,278

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

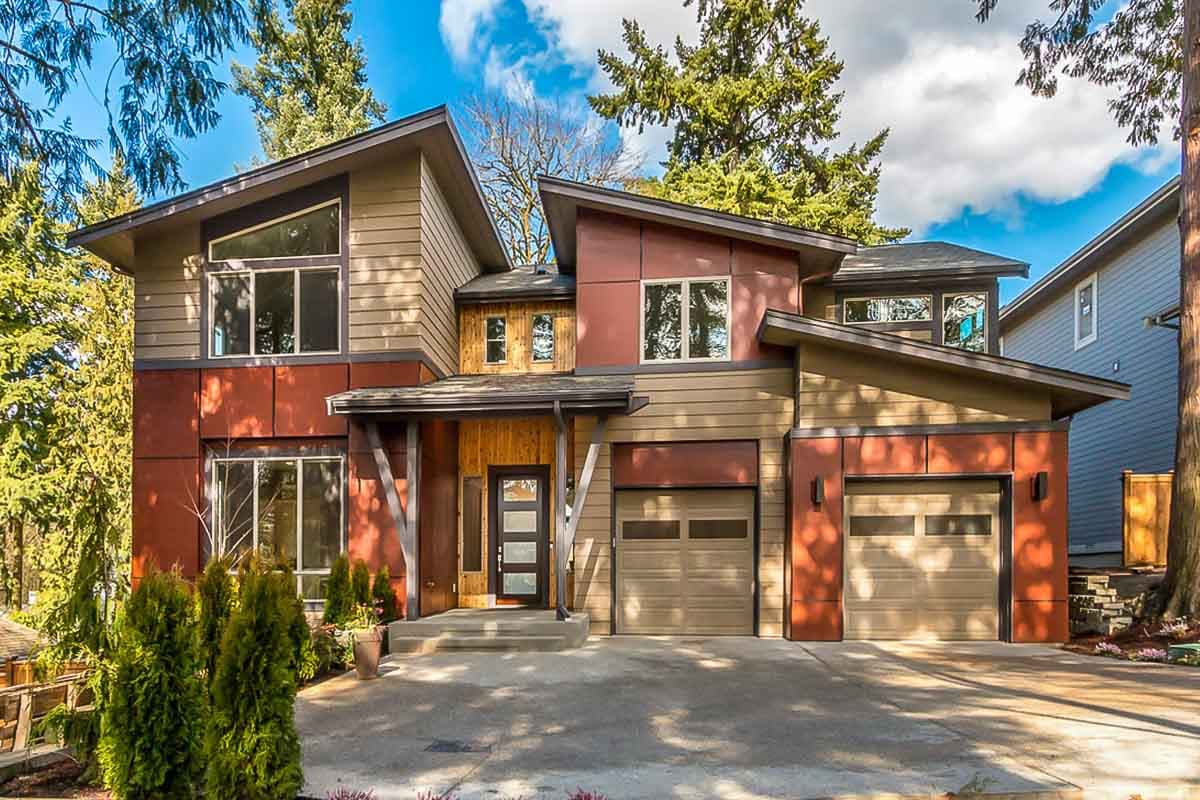

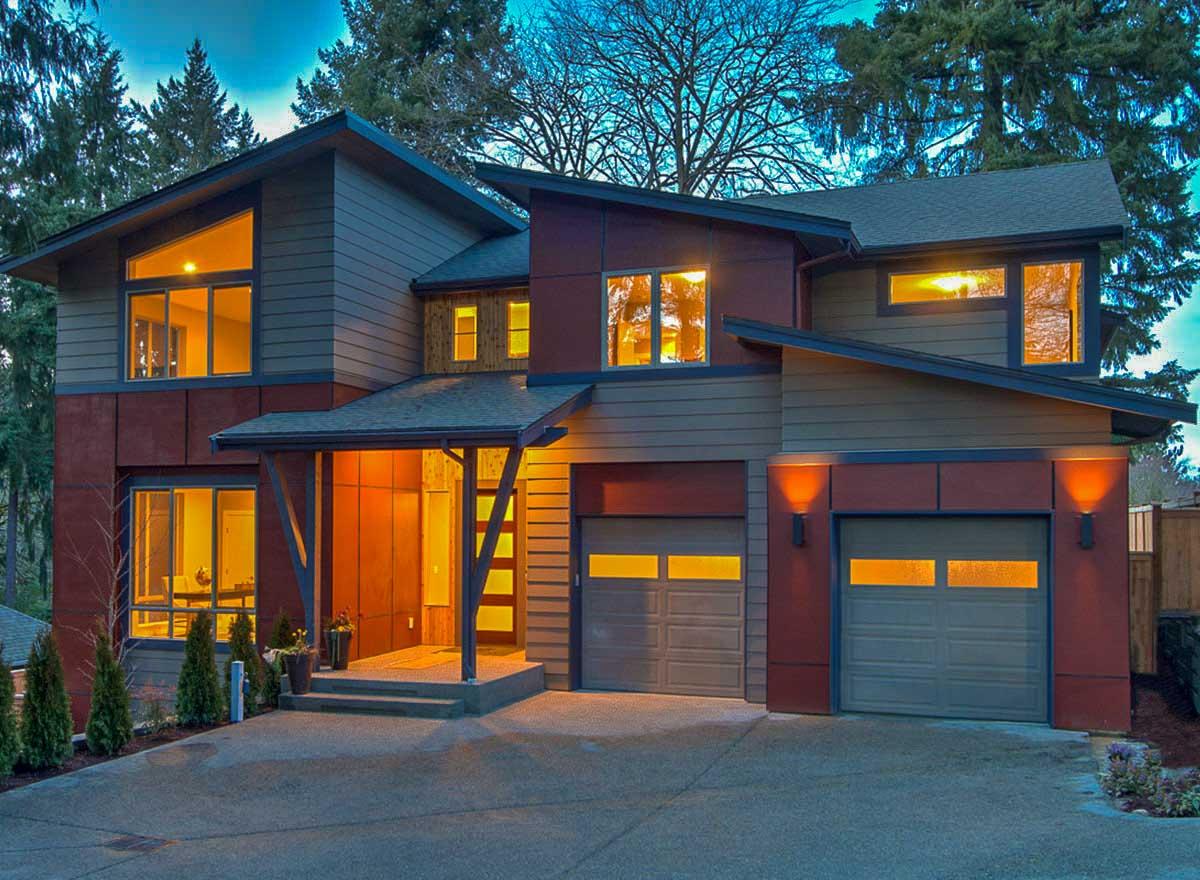

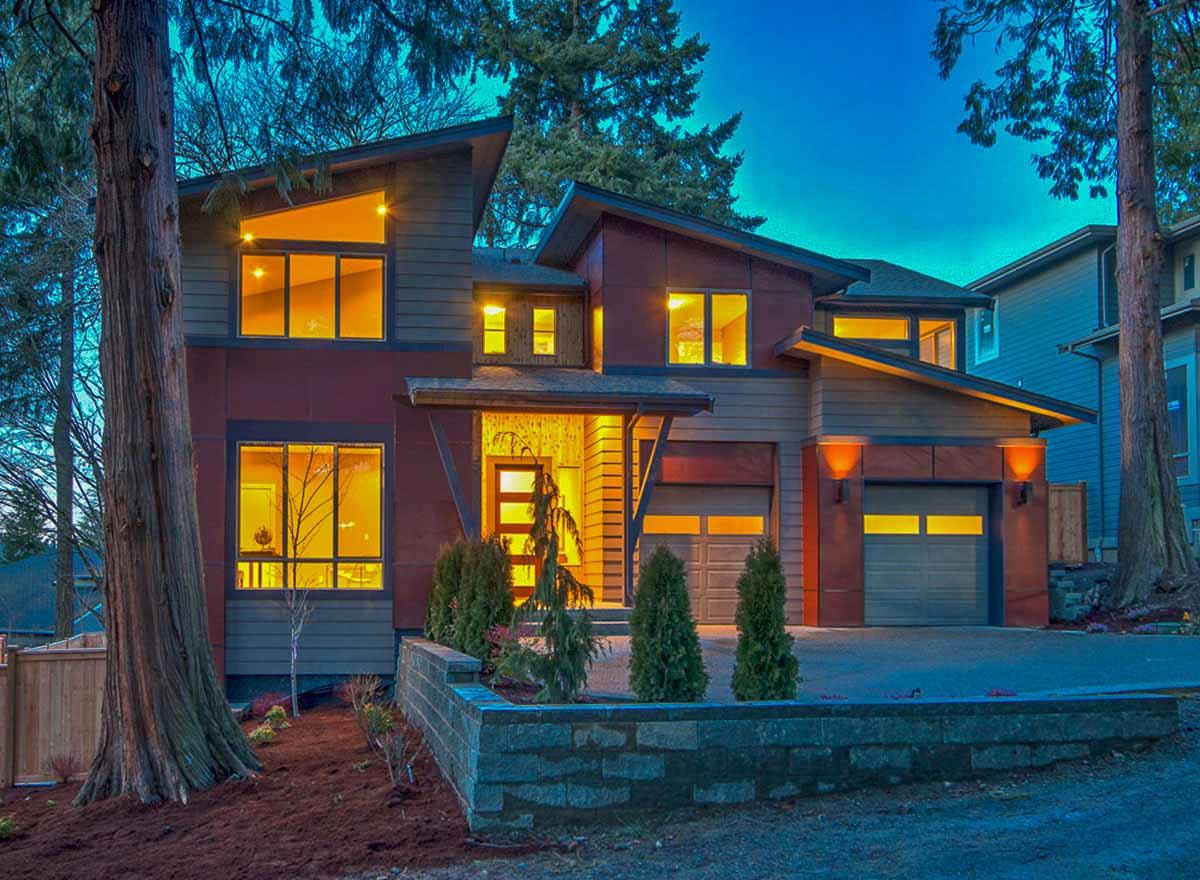

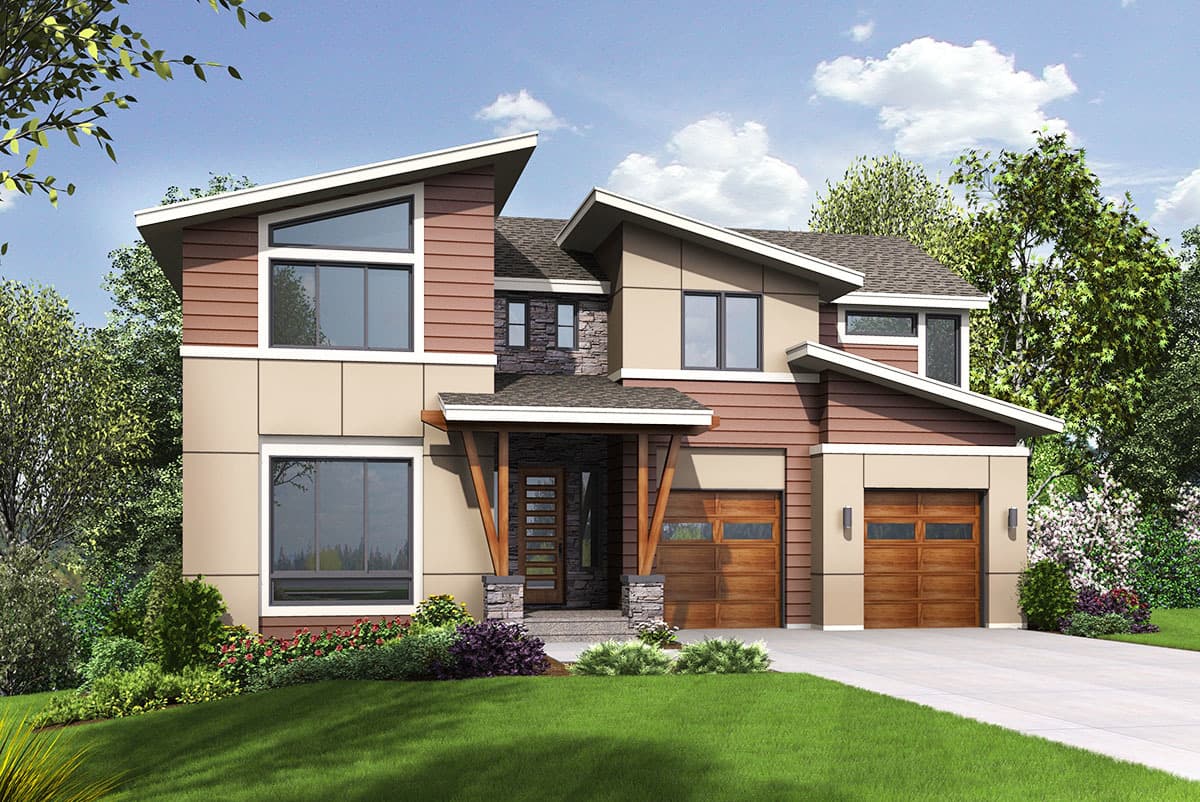

  • Slanted shed roof lines add excitement and a contemporary flair to this Northwest house plan that fits well on a narrow lot.

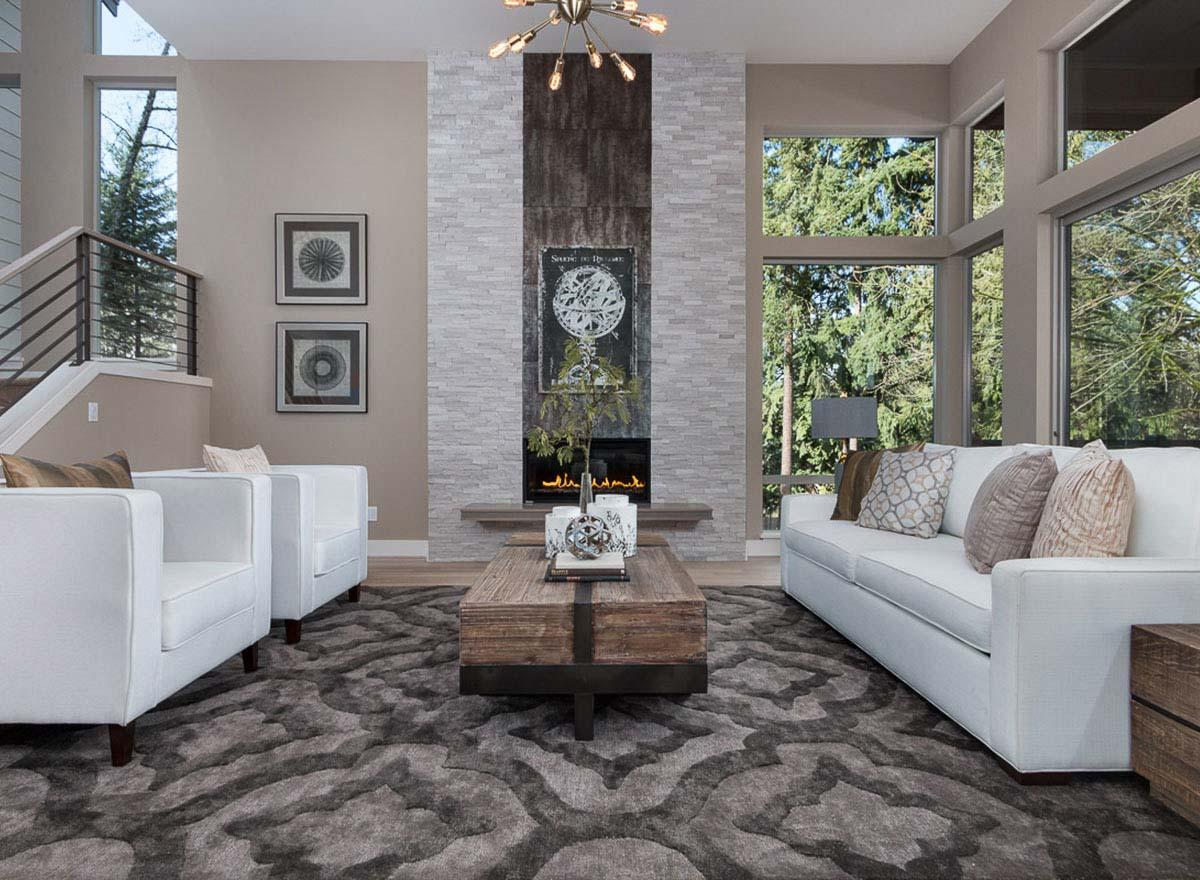

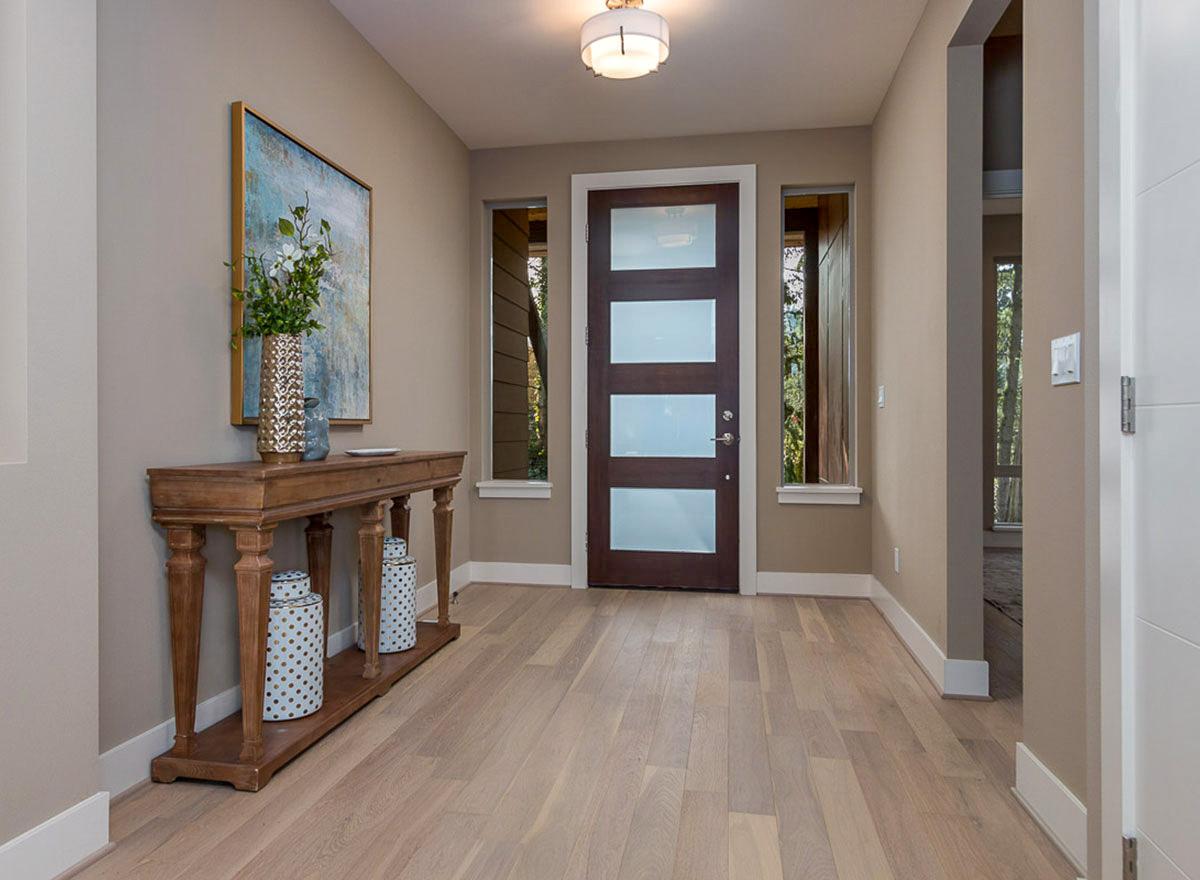

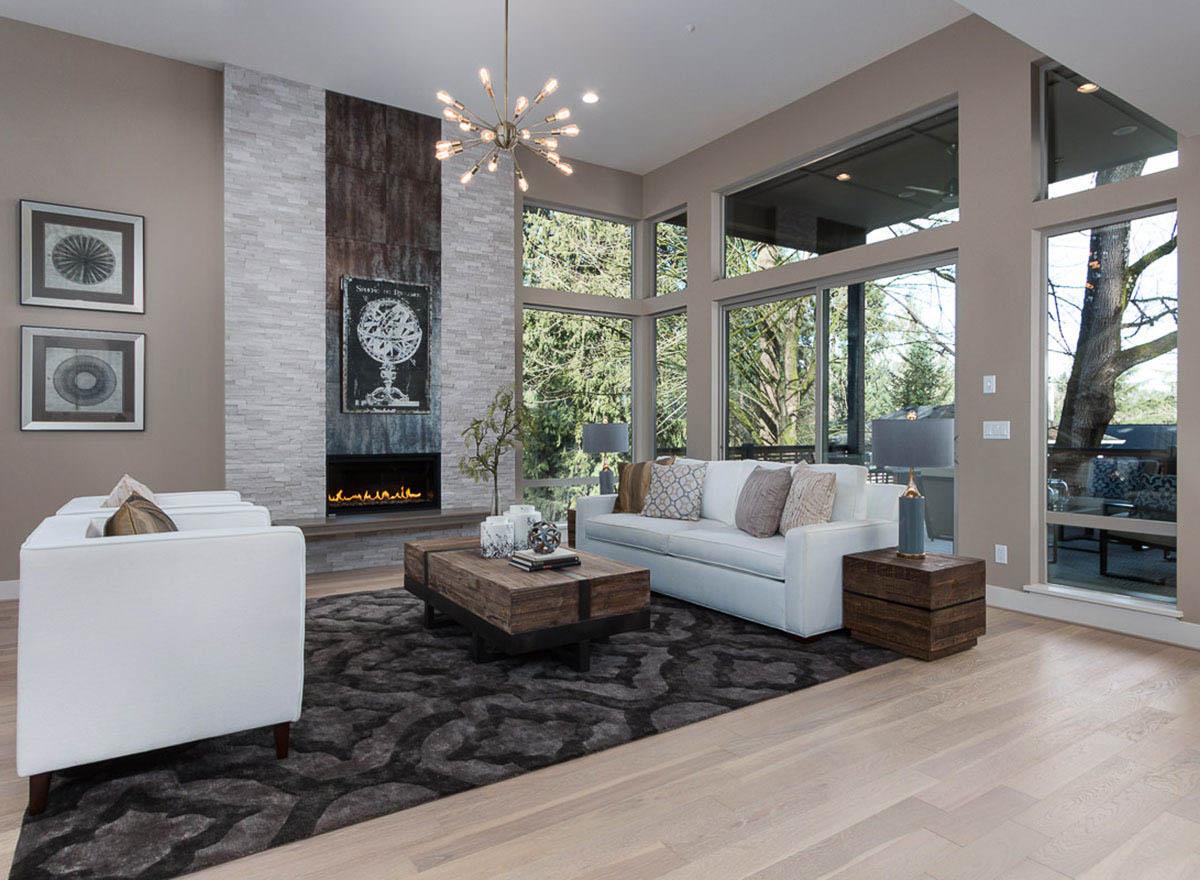

  • From the wide foyer you can see straight back into the L-shaped family living area.

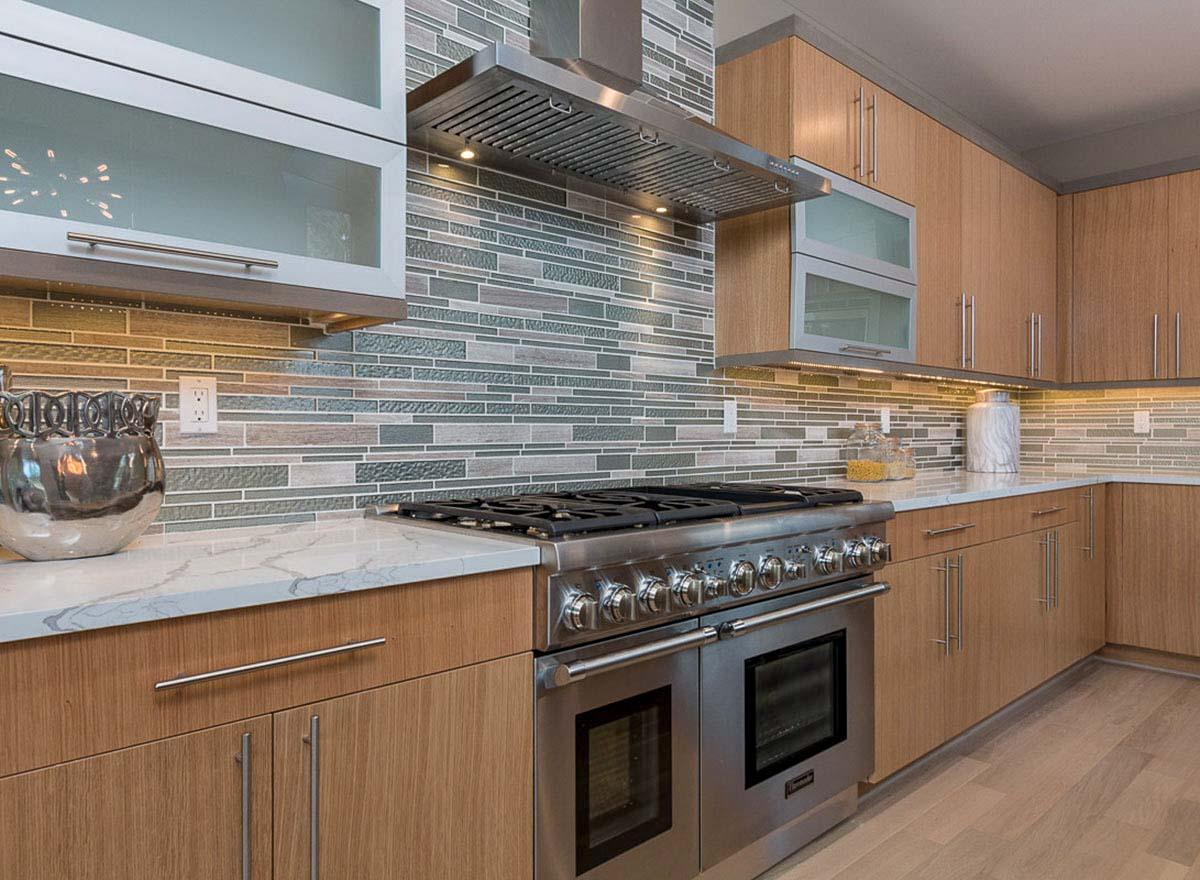

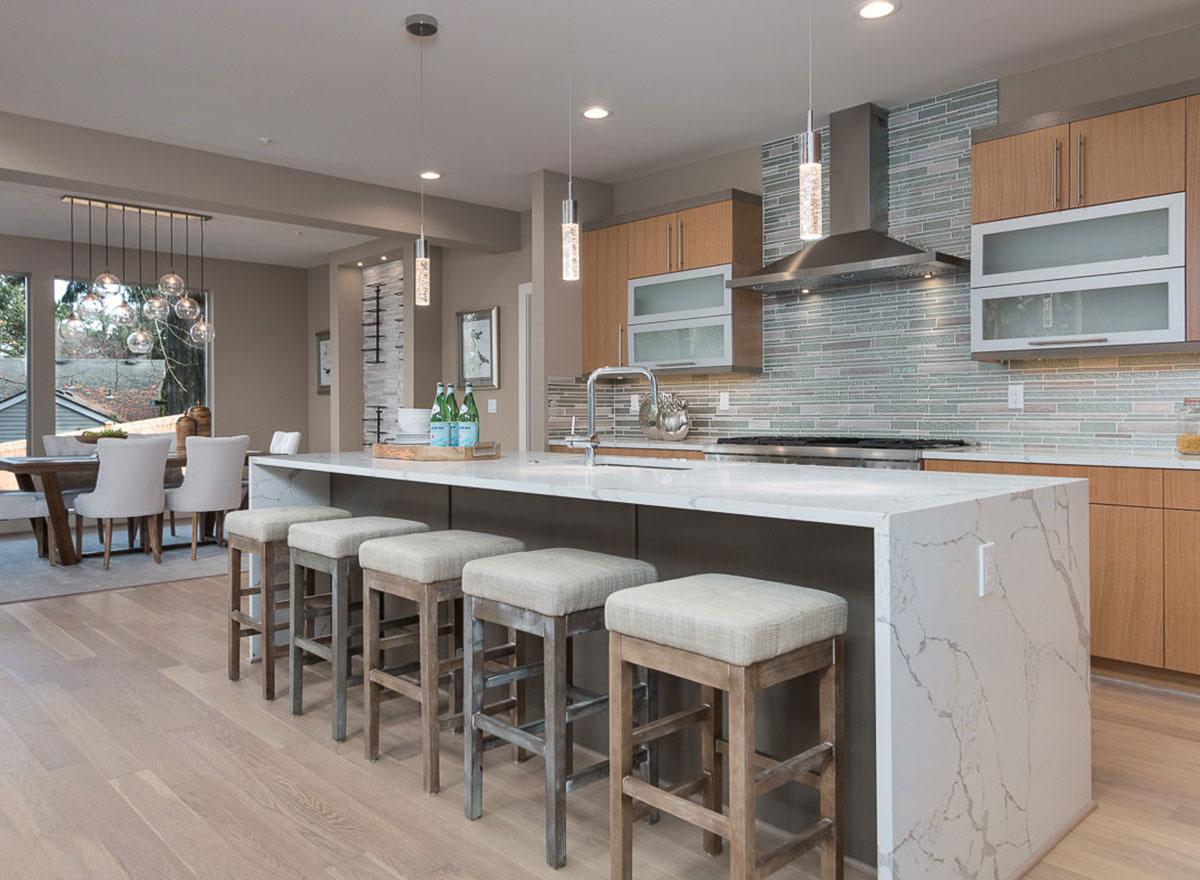

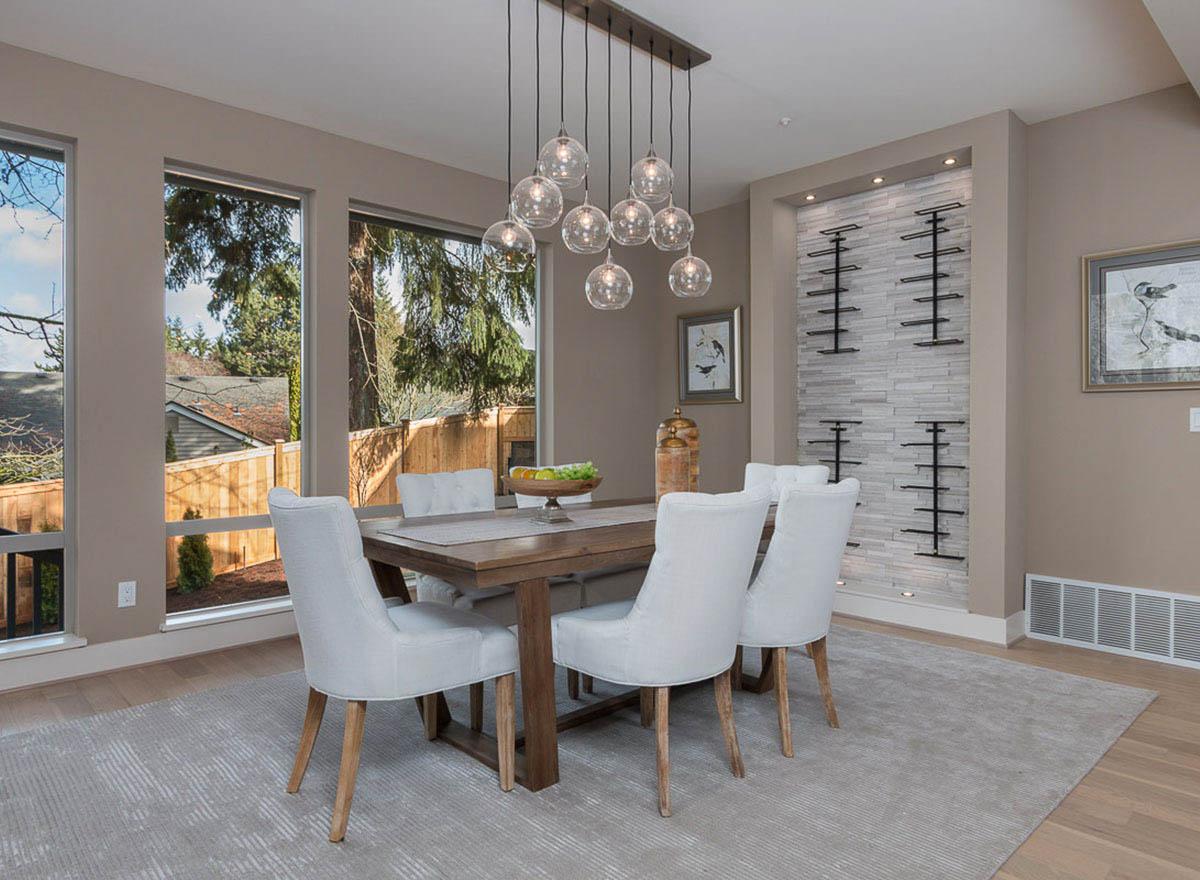

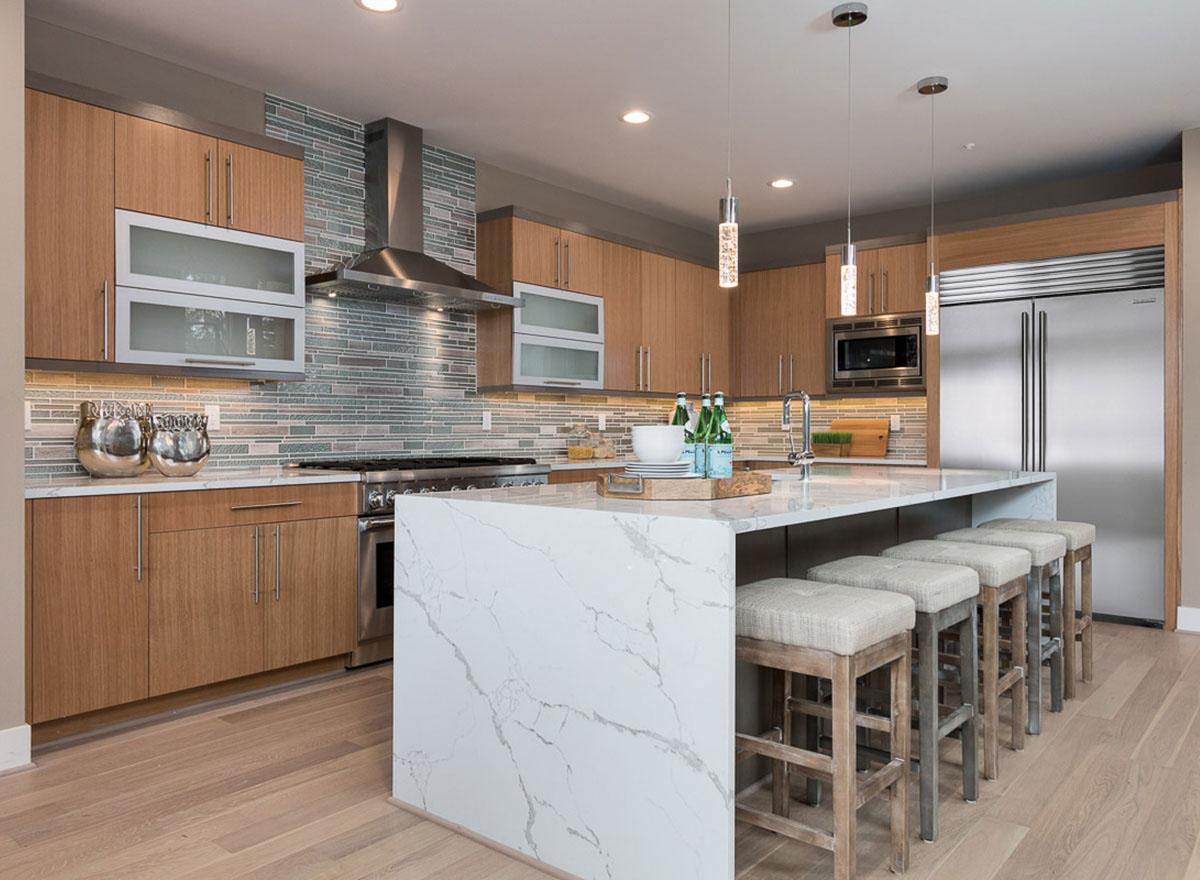

  • With its open layout, this area lets everyone be in the same space while cooking, eating or watching TV.

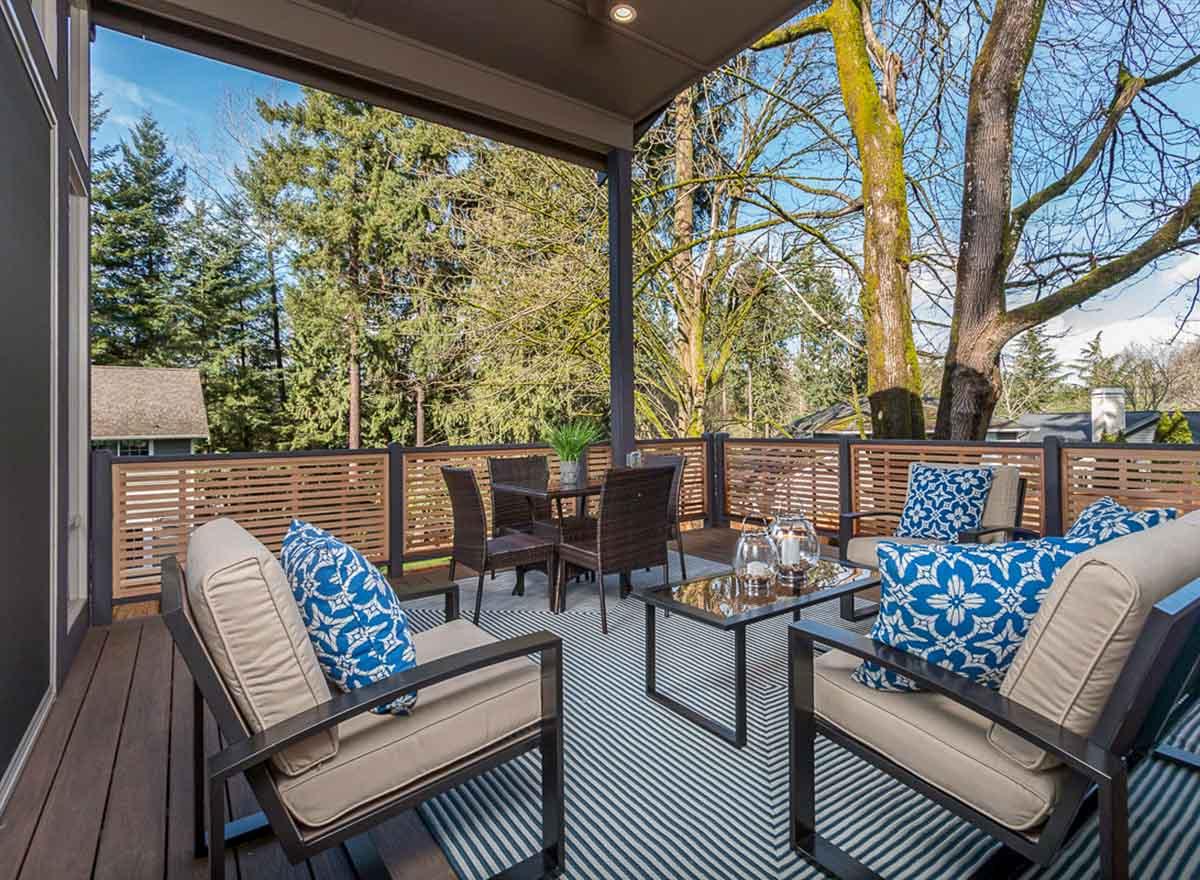

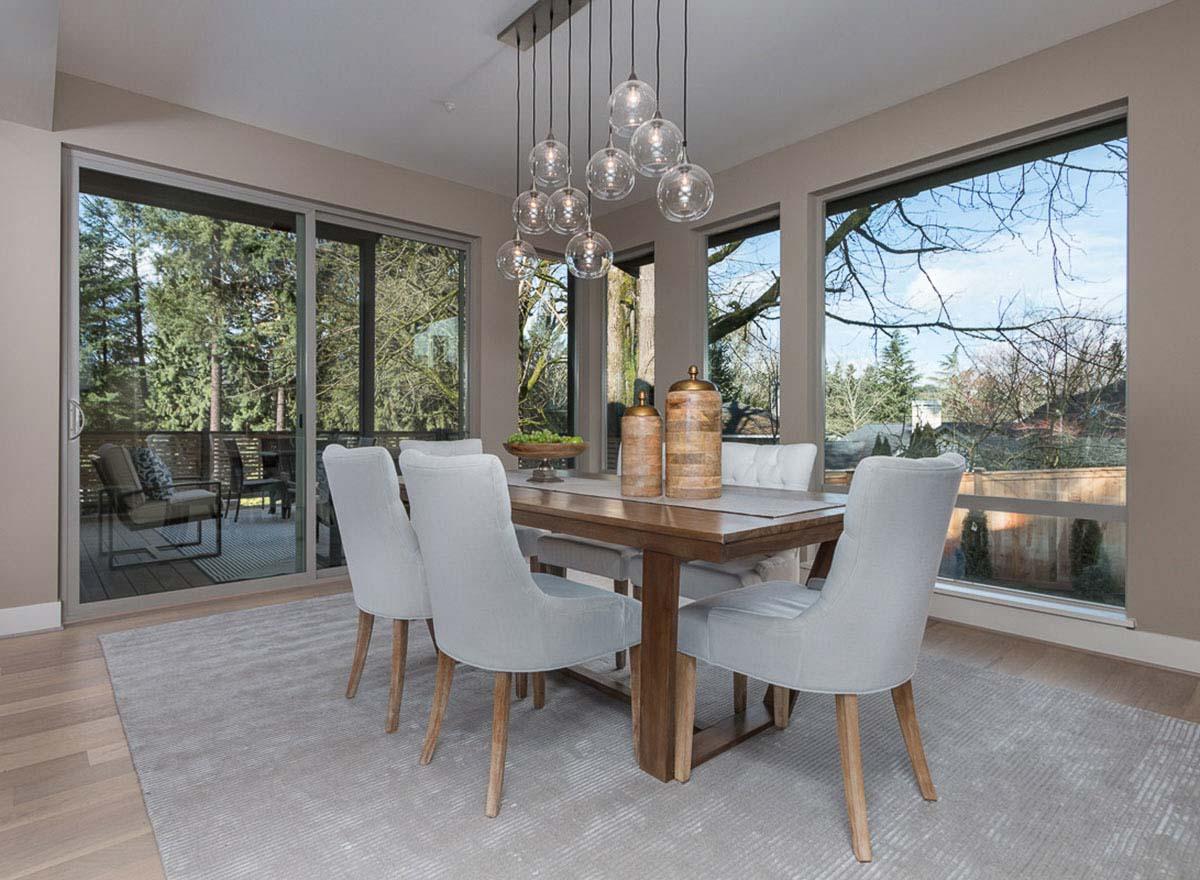

  • The large covered outdoor living area is reached through two sets of sliding glass doors.

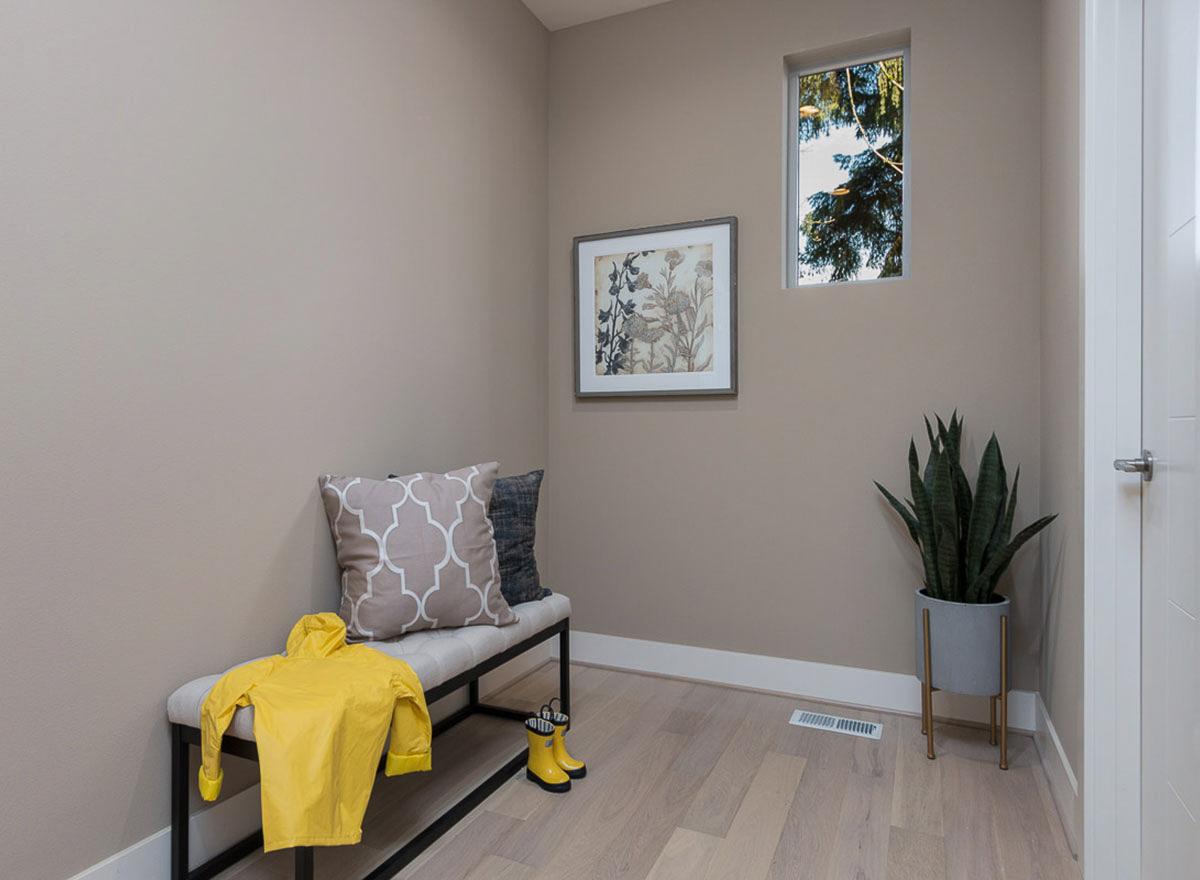

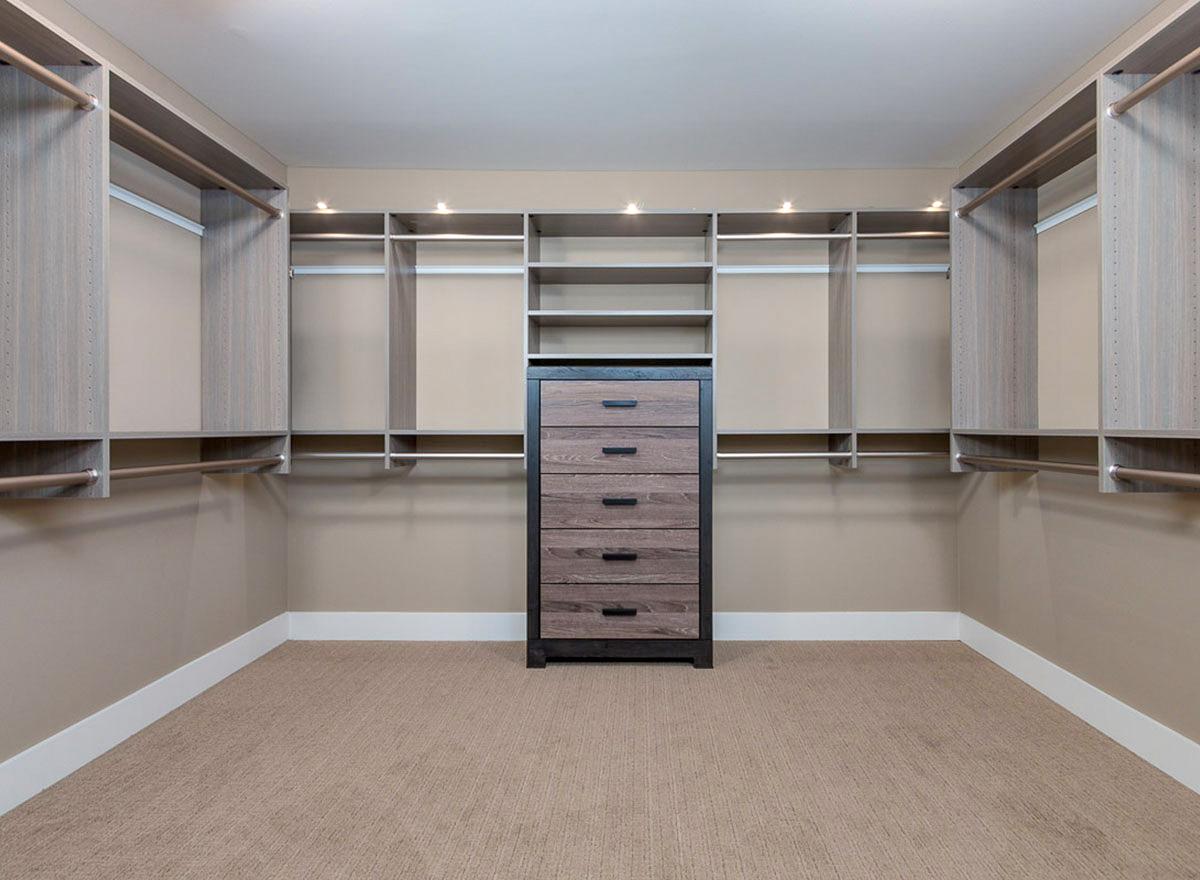

  • Practical features include a family foyer, big walk-in coat closet and an equal-size walk-in pantry.

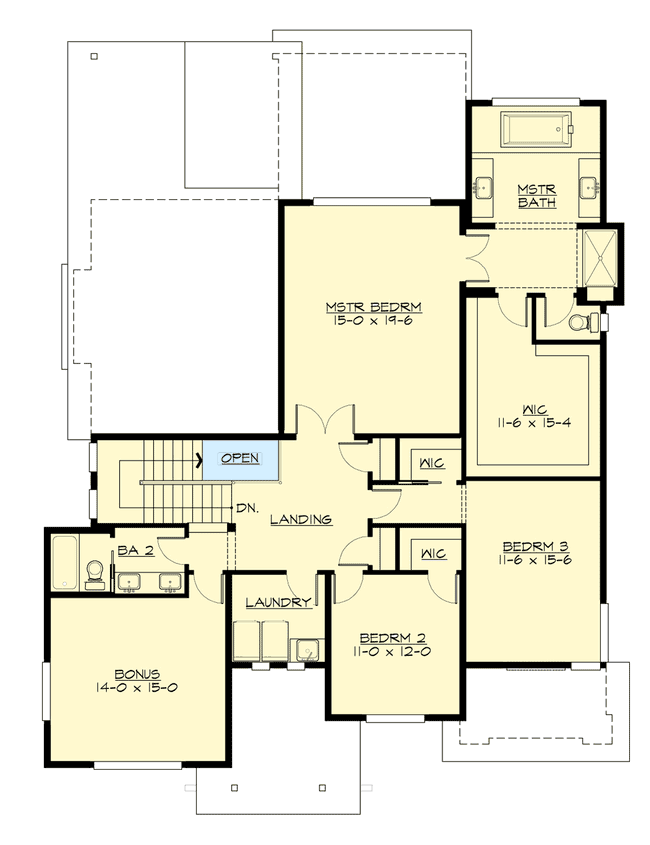

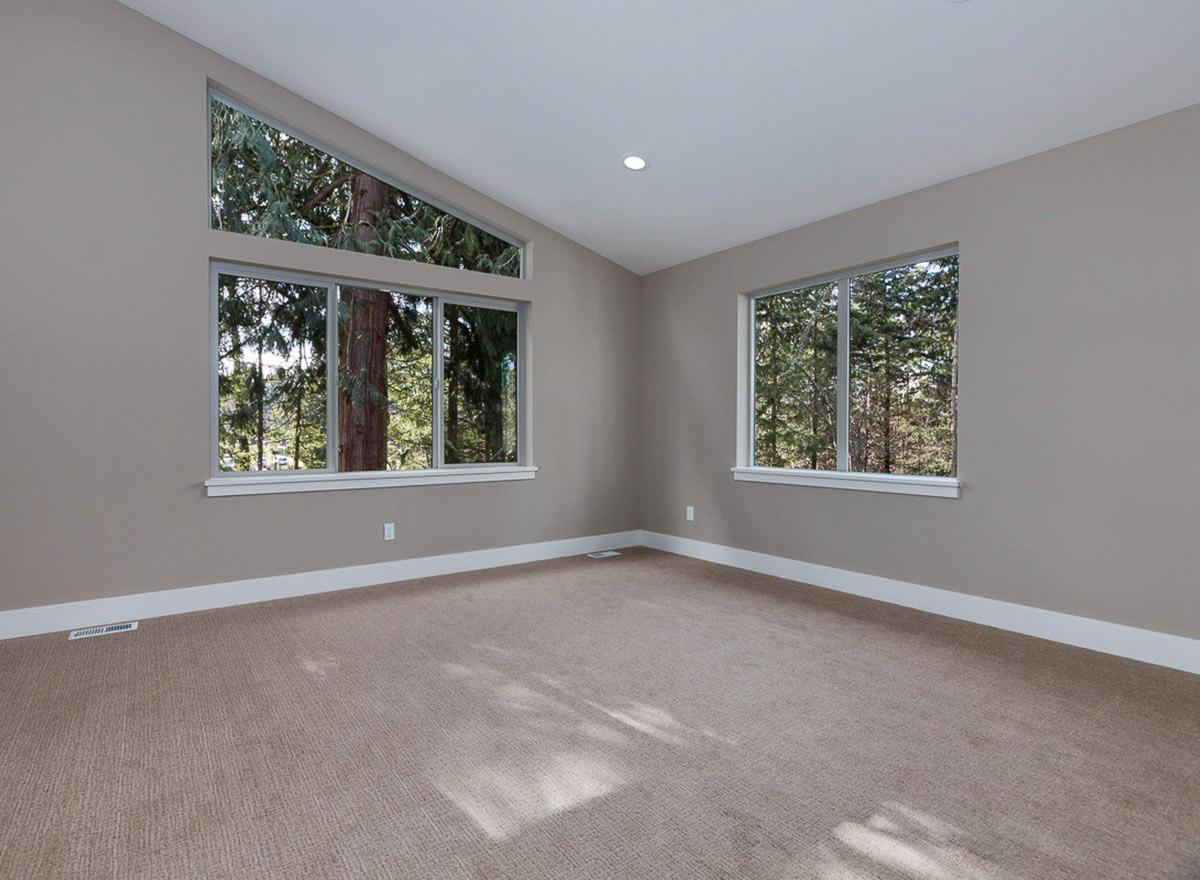

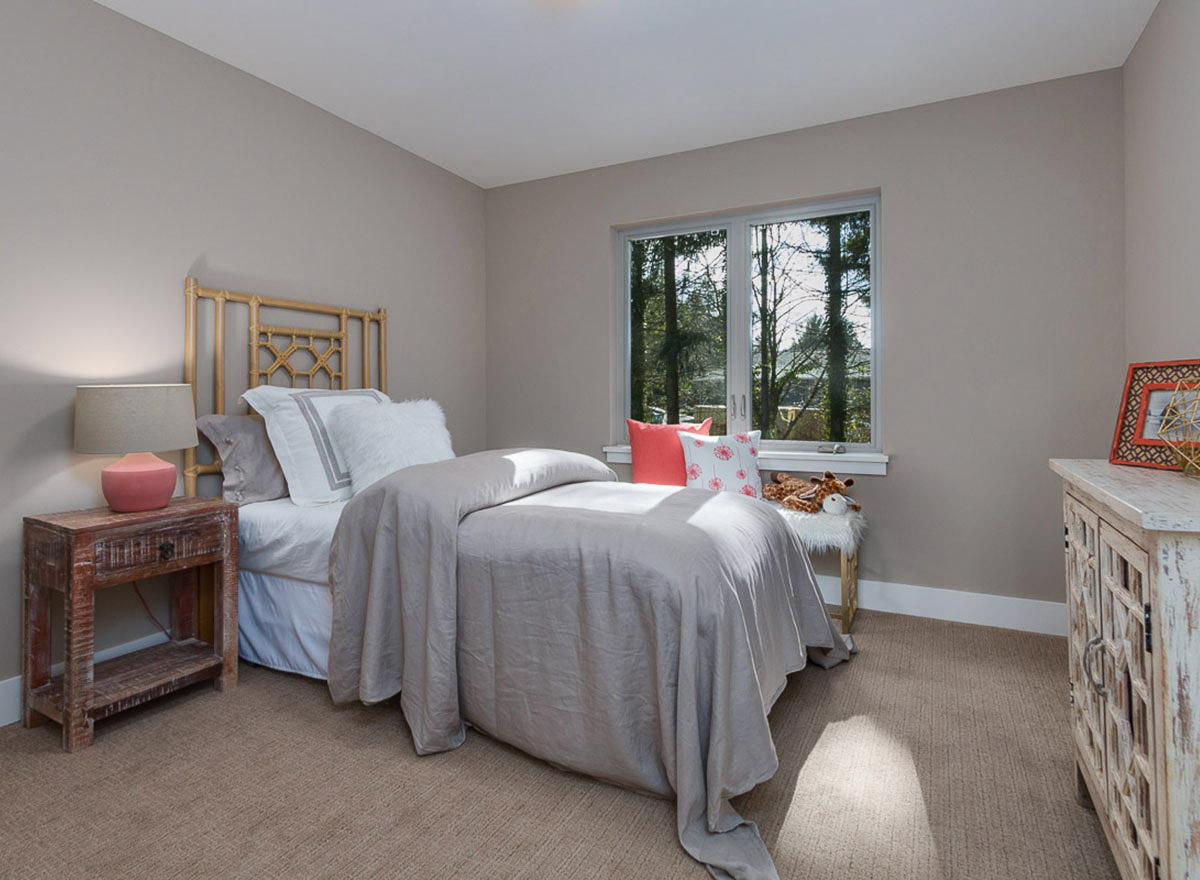

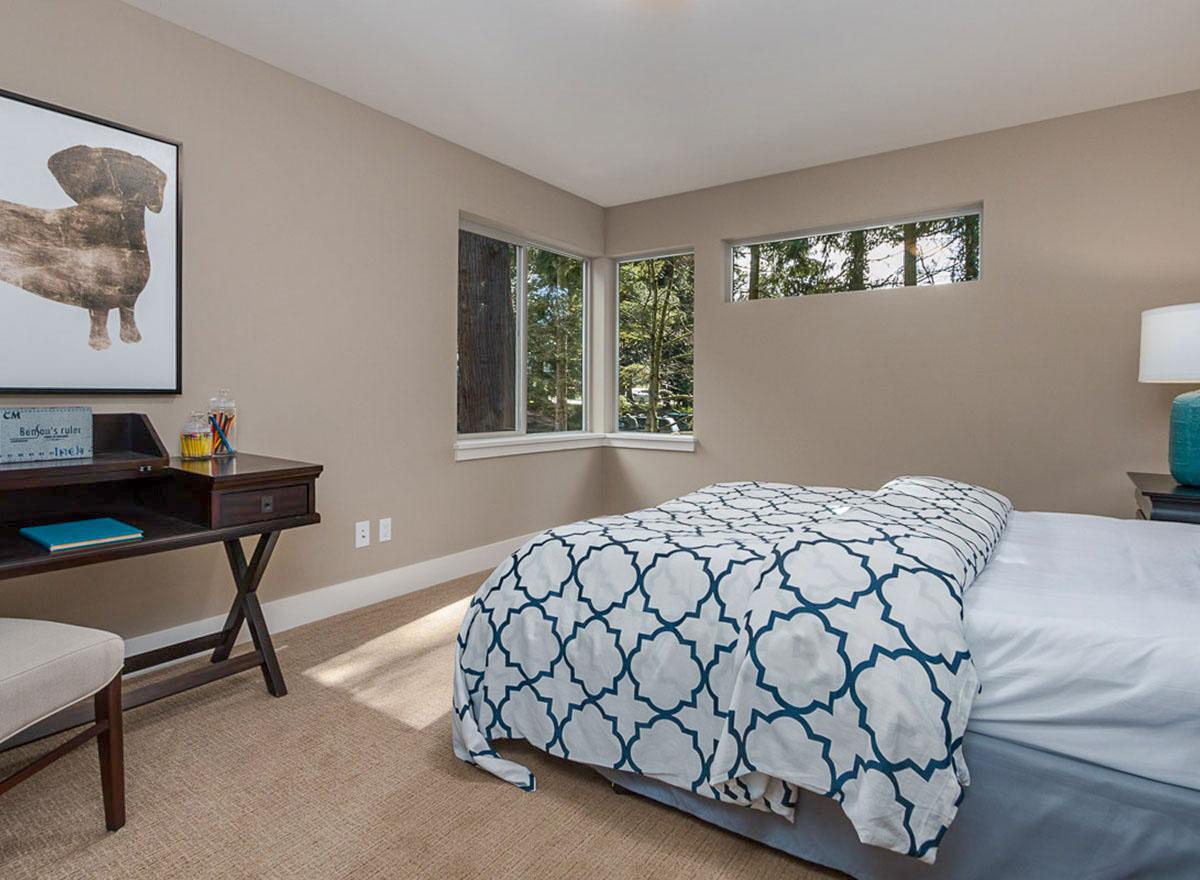

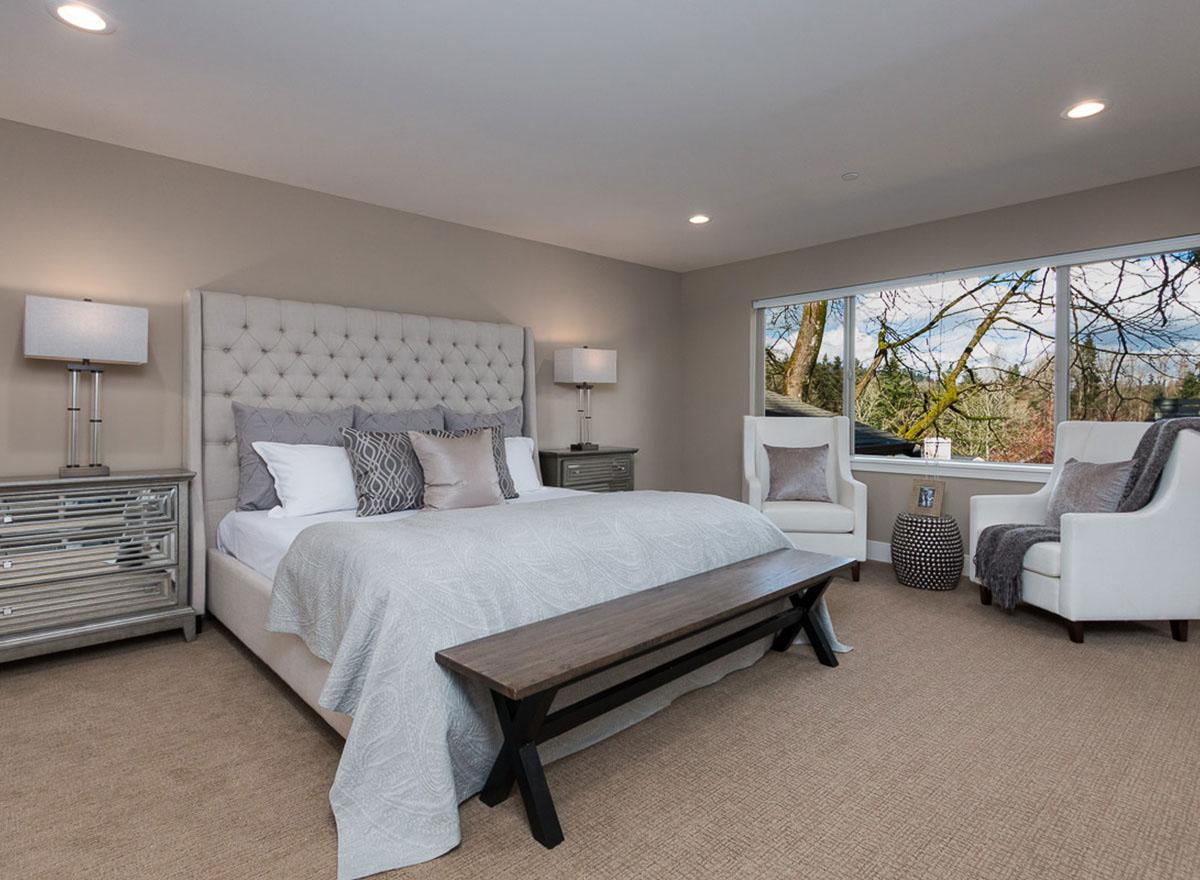

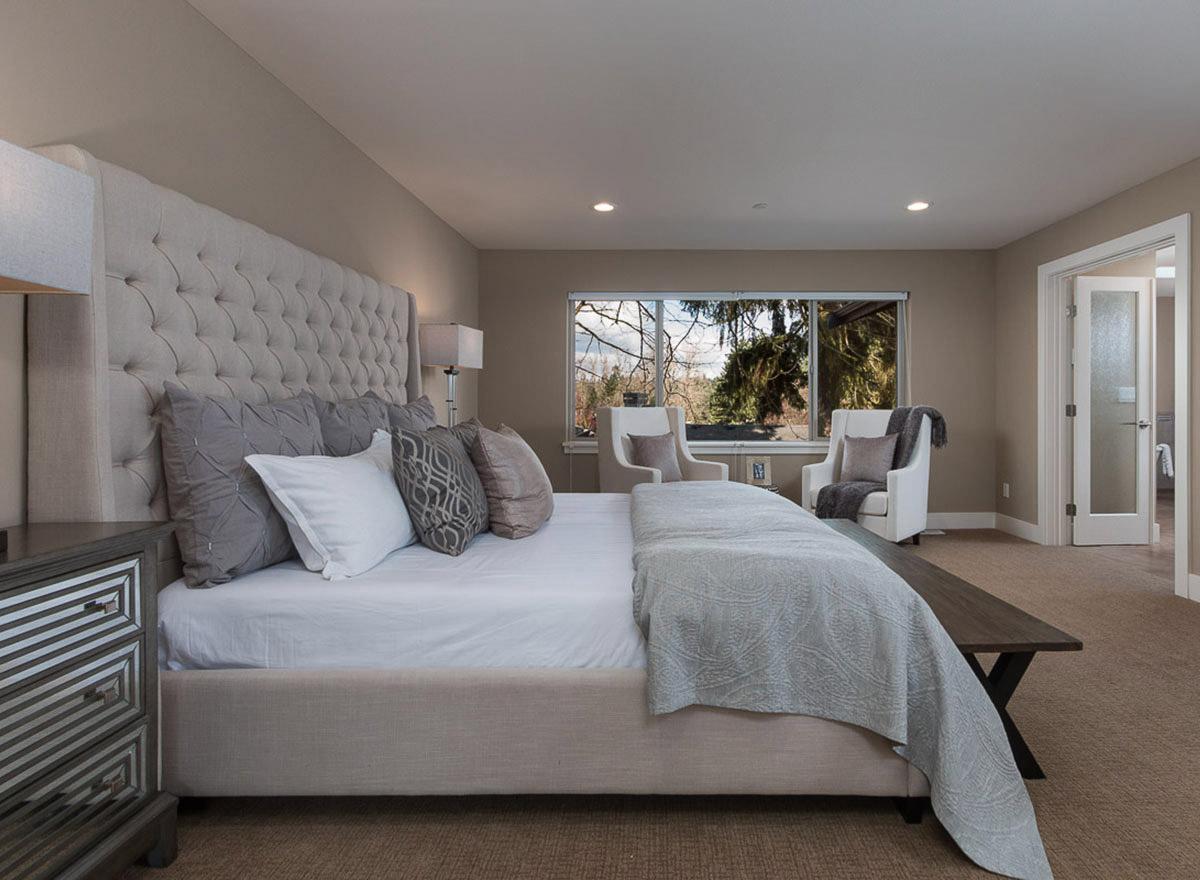

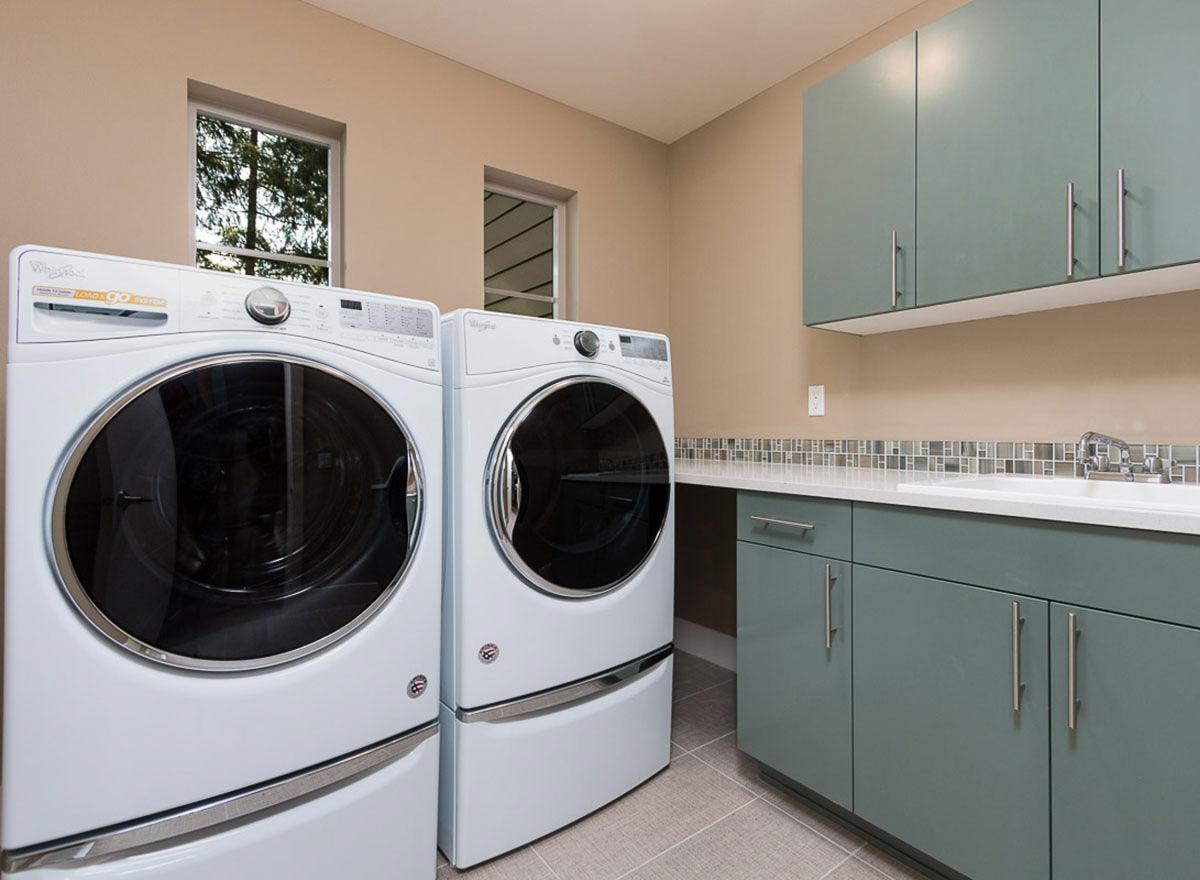

  • All three bedrooms are upstairs along with a handy laundry room and a big bonus room.
  • Related Plan: Get a finished lower level with house plan 23685JD.
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

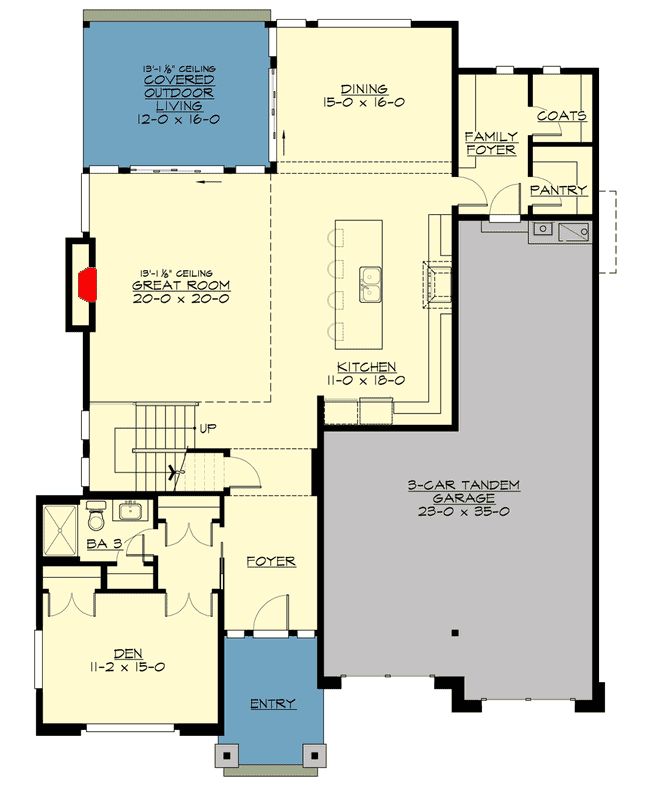

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,278 sq. ft.
  • 1st Floor: 1,596 sq. ft.
  • 2nd Floor: 1,682 sq. ft.
  • Porch, Rear: 192 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Dimensions

  • Width: 48' 0"
  • Depth: 63' 6"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Details: 3 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
