Contemporary House Plan with with Third-Level Bonus Room

Plan 23807JD

  • 4,570

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 3

    Stories

  • 2

    Cars

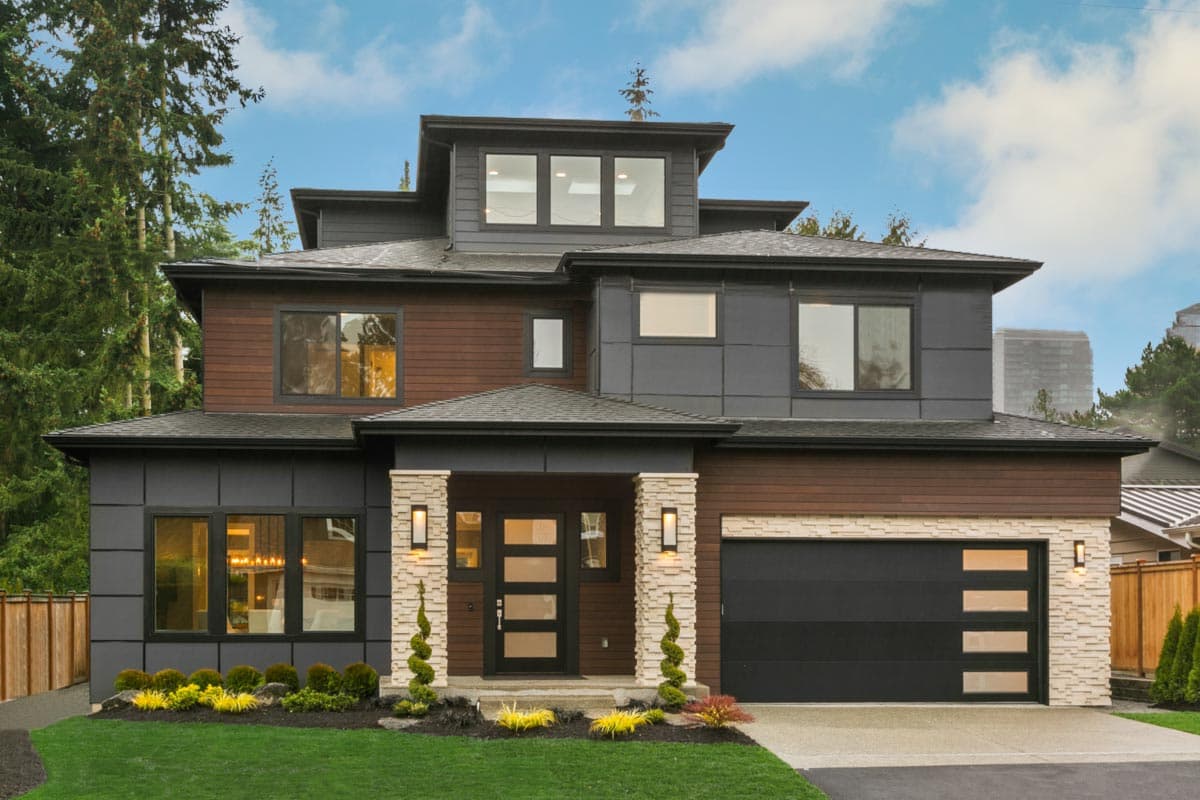

  • Large fiber cement panels, horizontal siding, and stone accents compliment one another on the exterior of this contemporary house plan.

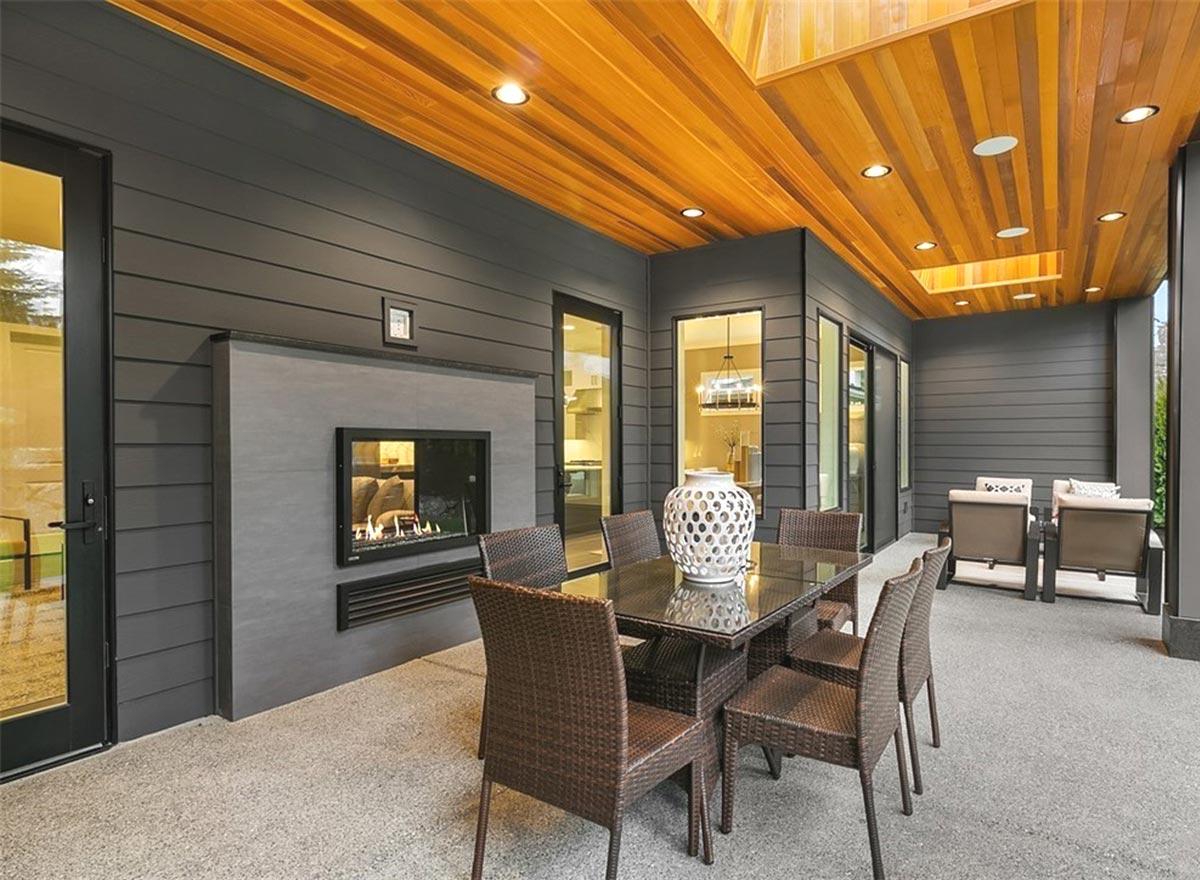

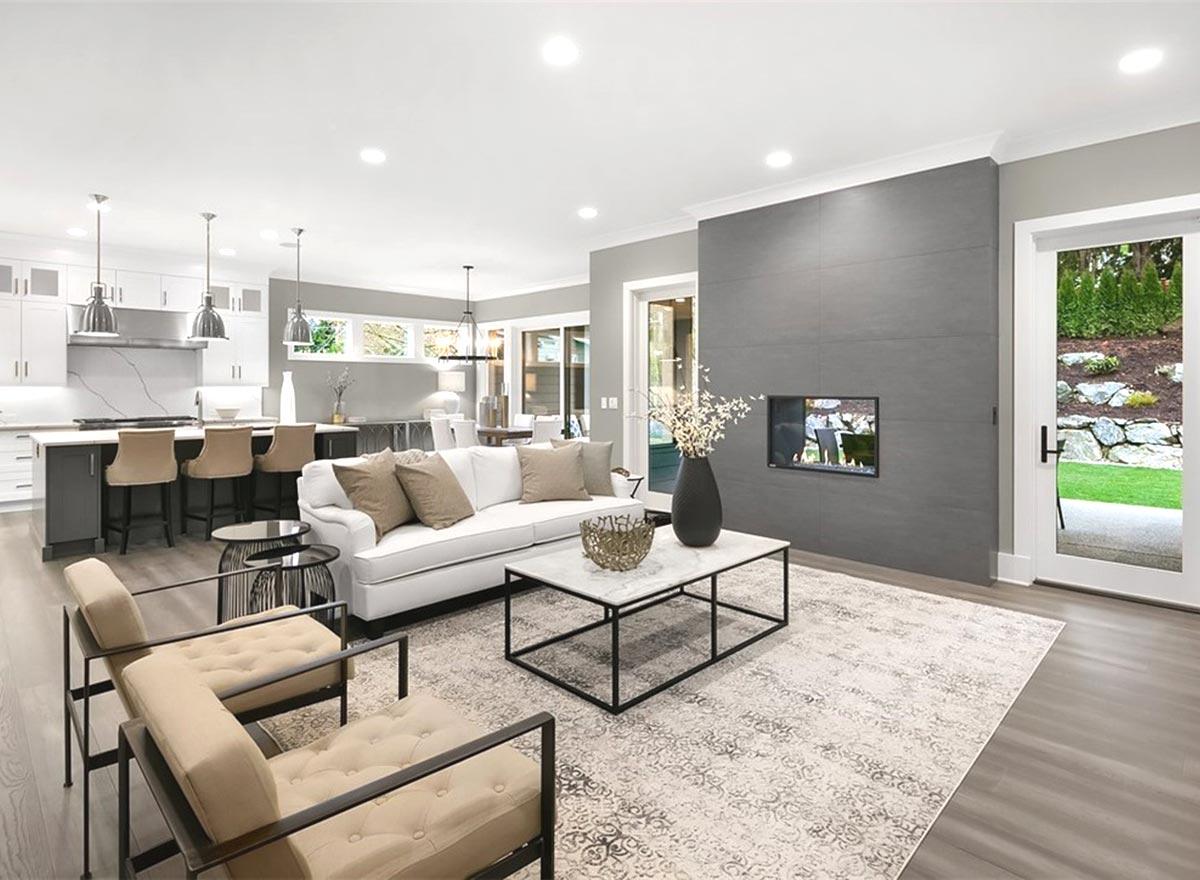

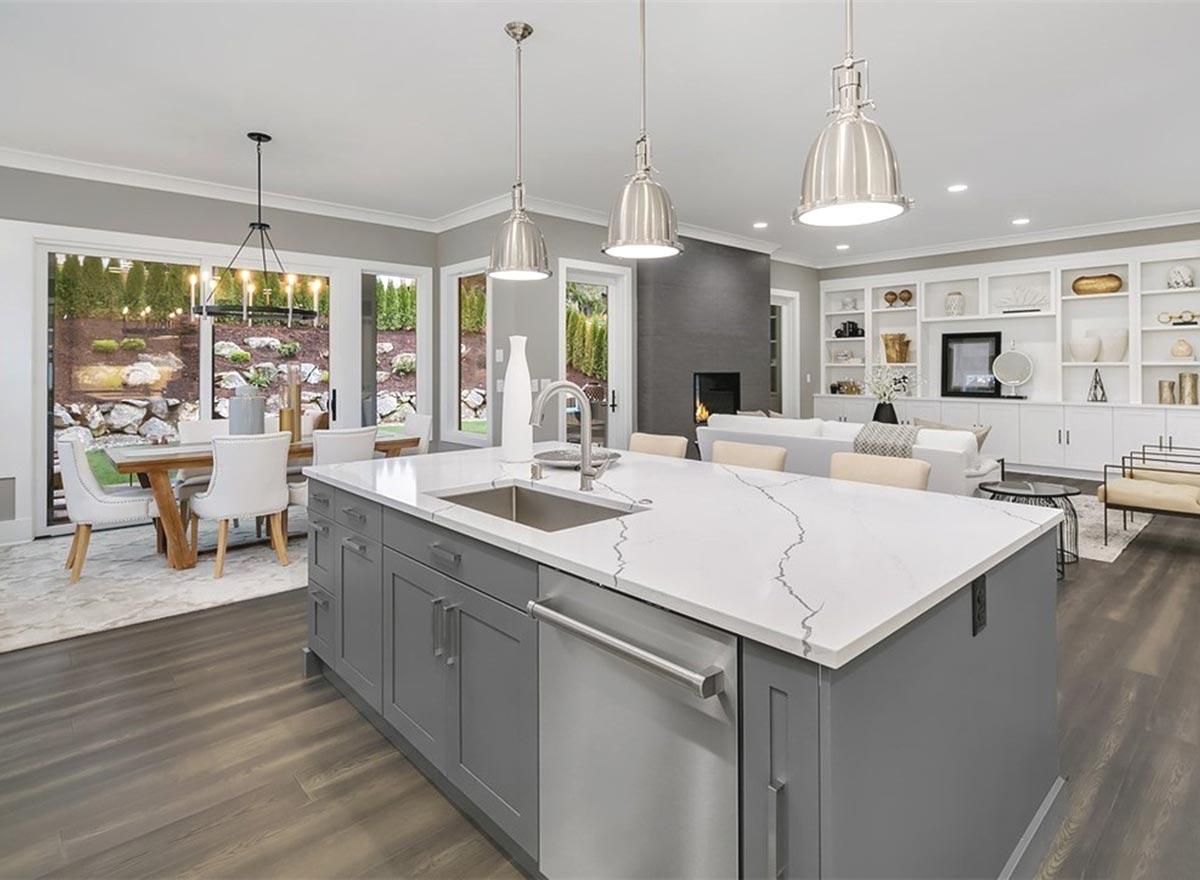

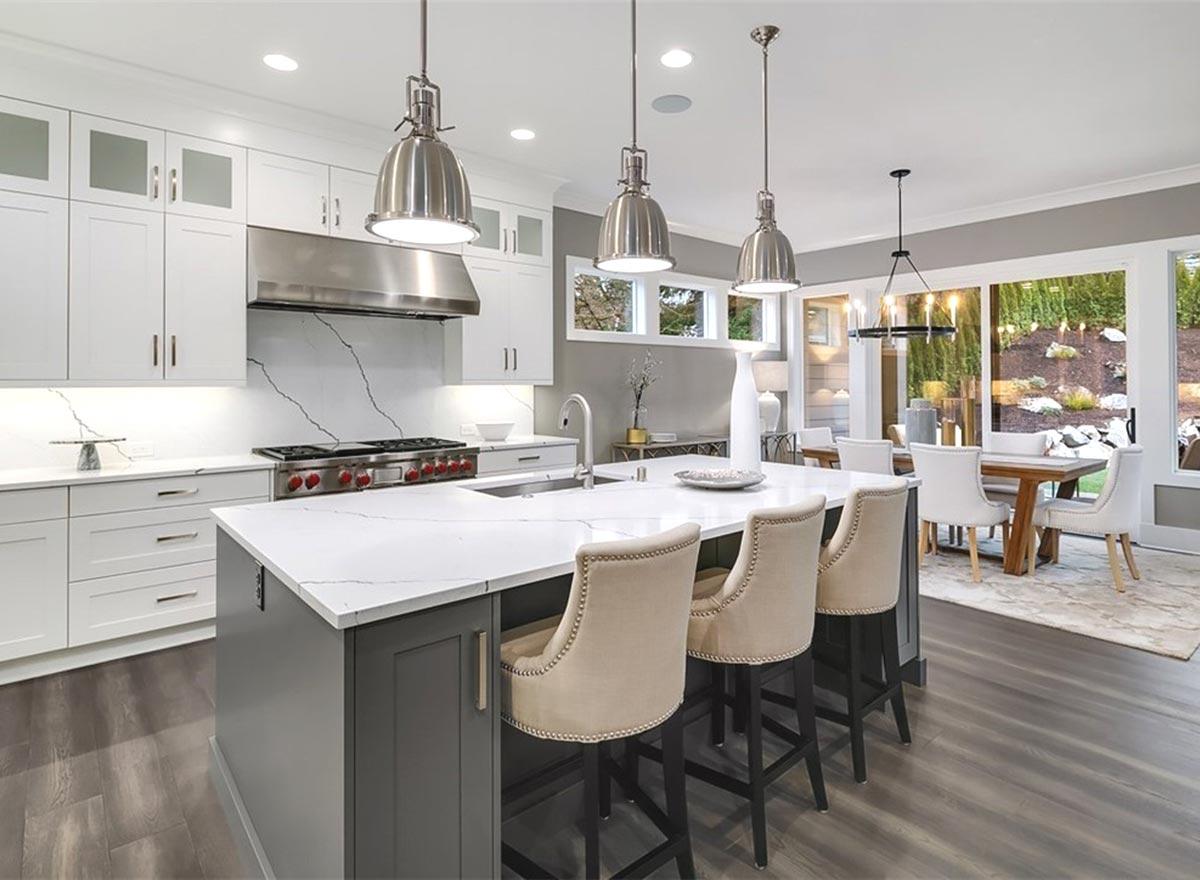

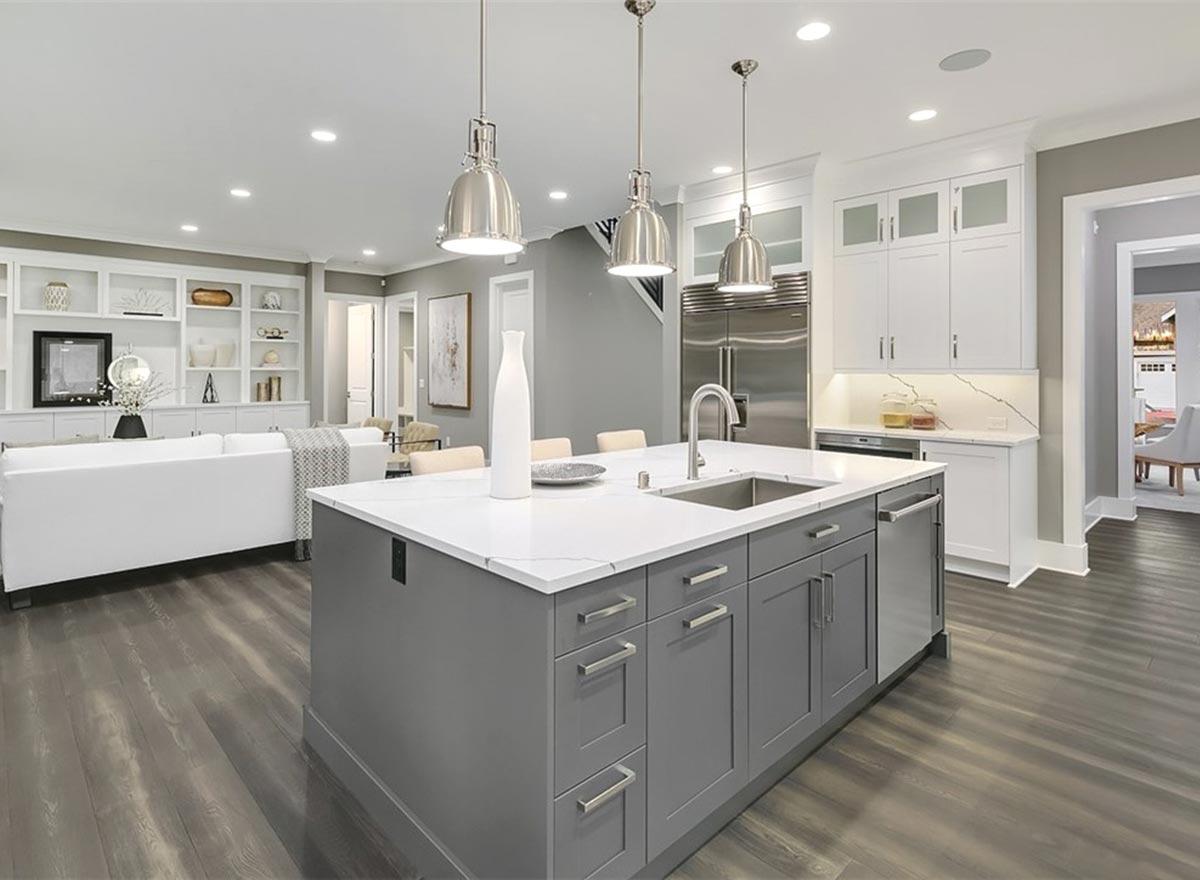

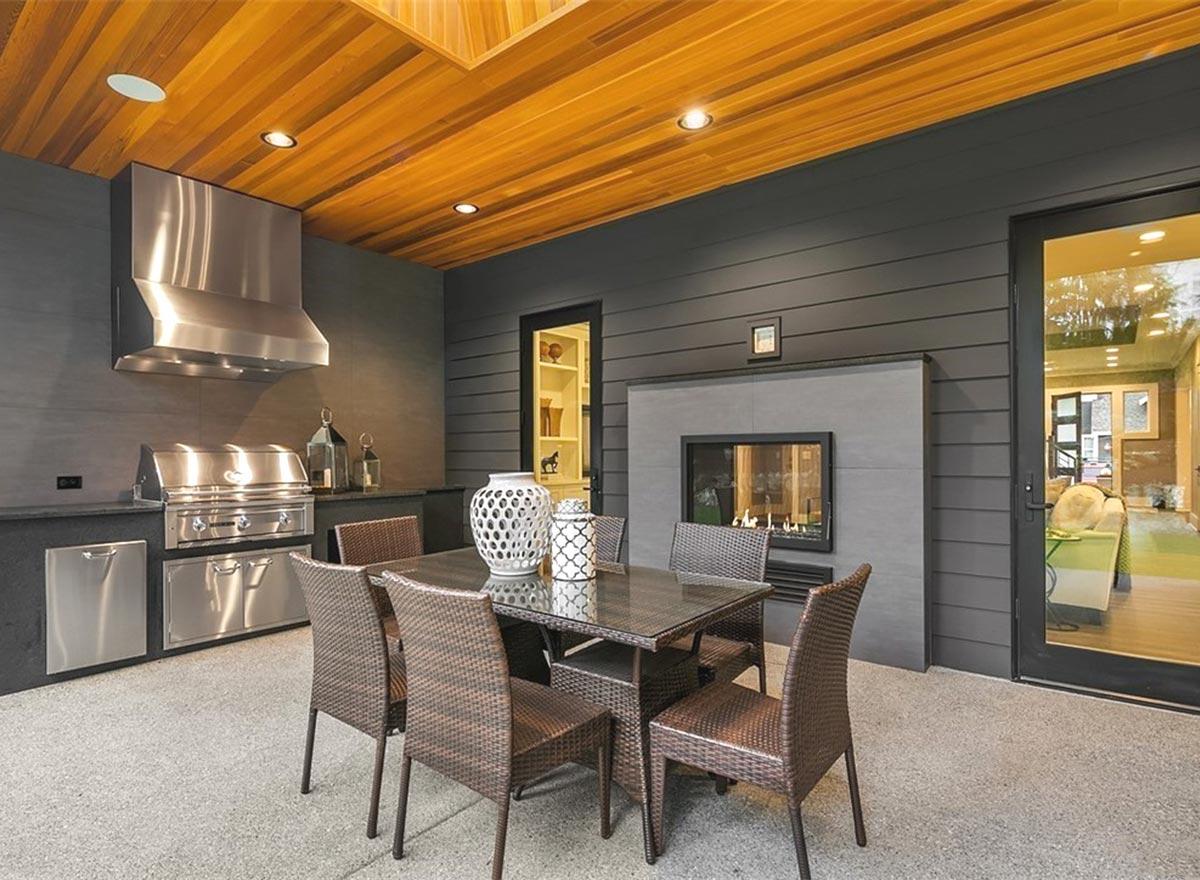

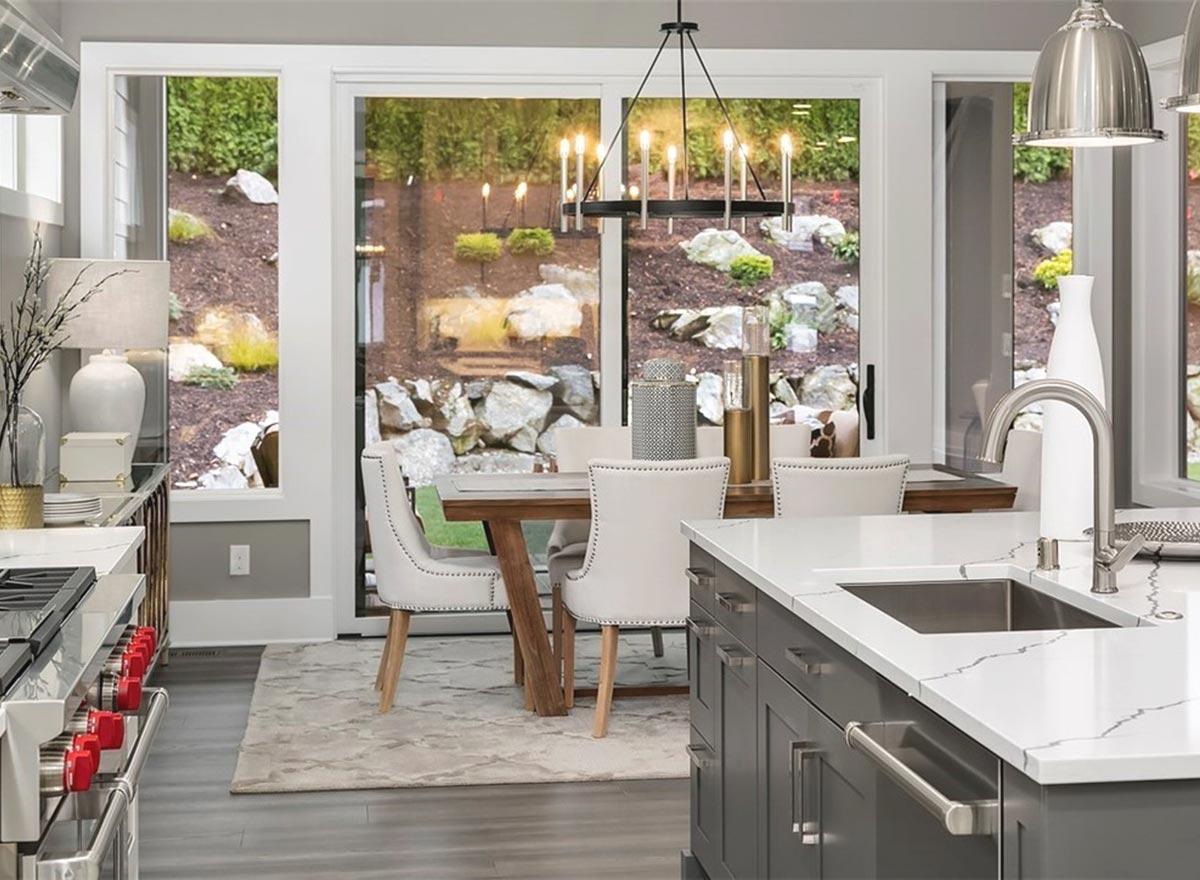

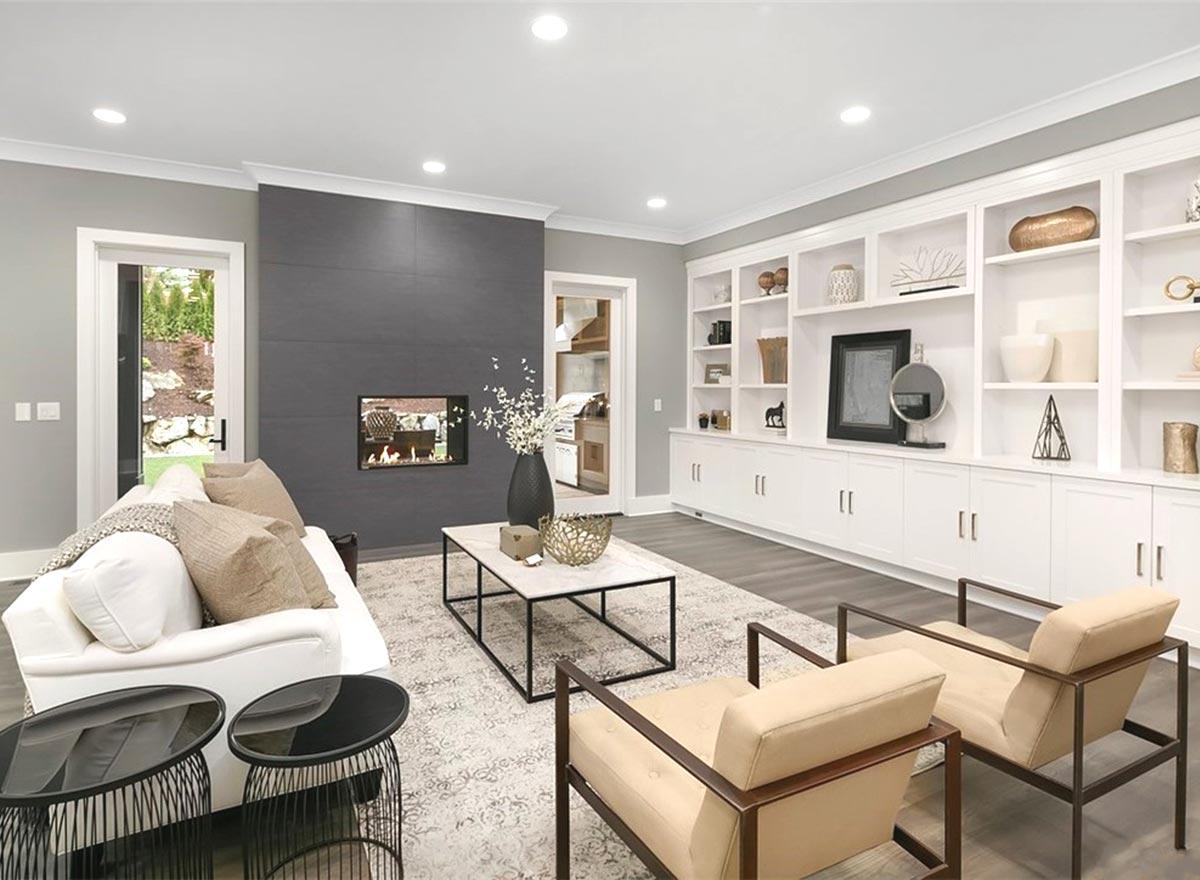

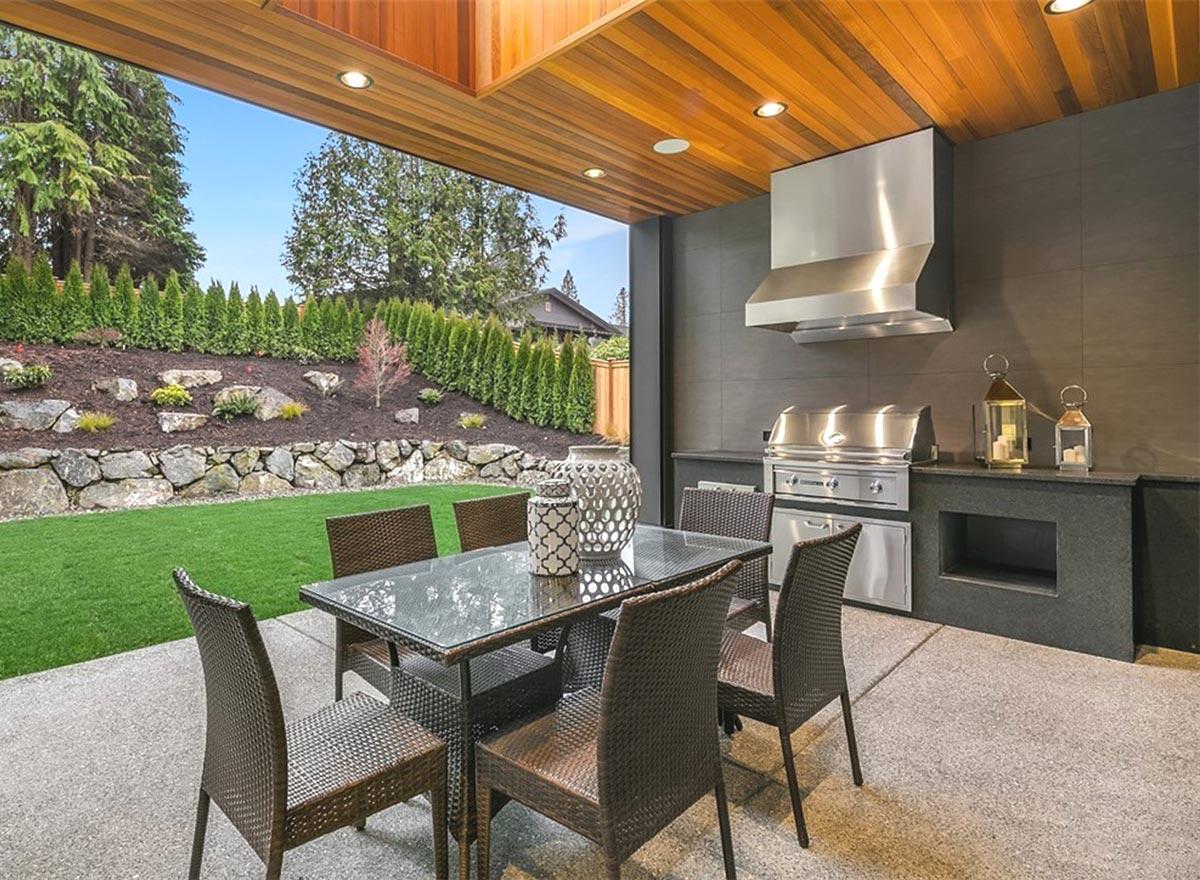

  • An open layout provides a comfortable space for everyday living and combines the great room, kitchen, and breakfast nook. Oversized windows allow abundant natural light to permeate the space, and two doors on either side of the fireplace lead to a covered porch.

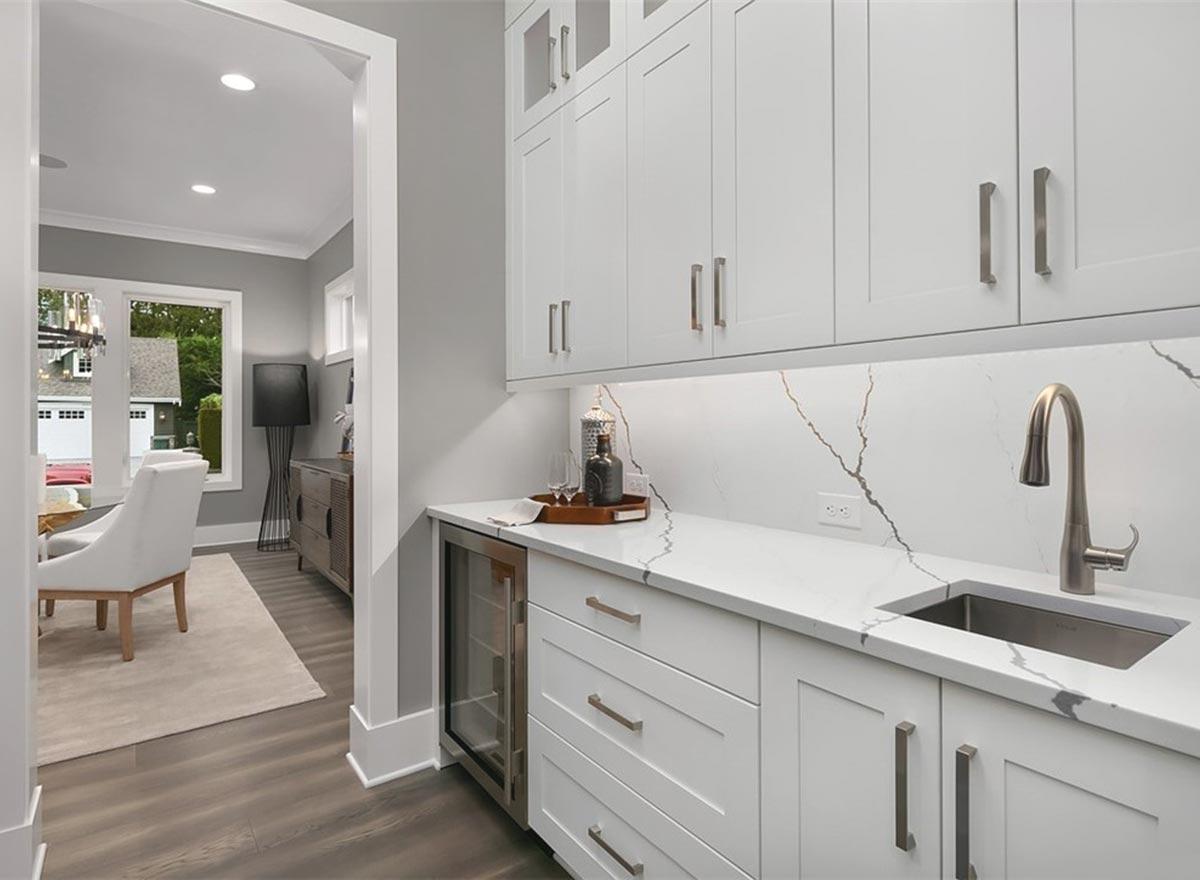

  • A butler's pantry connects the dining room to the kitchen, and sits across from a spacious walk-in pantry for additional storage.

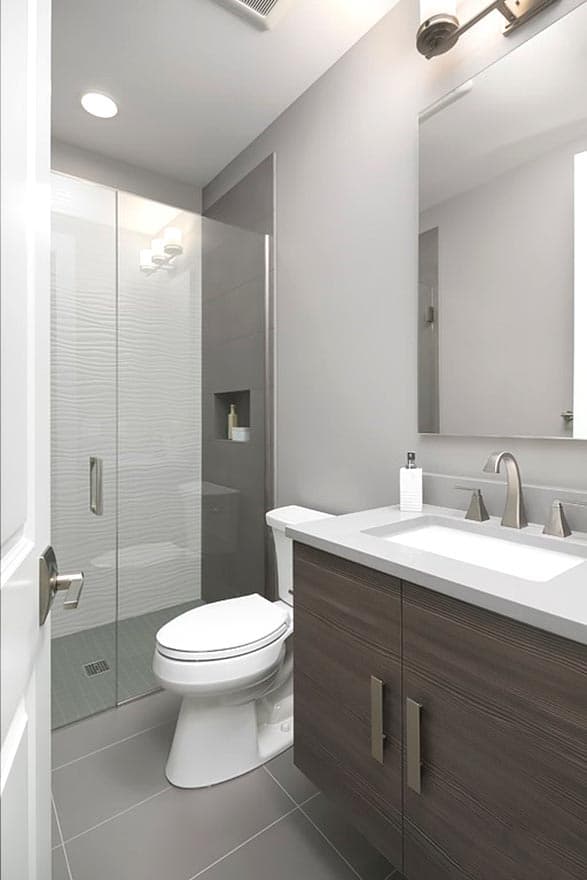

  • Guests will delight in the privately situated main-level bedroom, which includes a full bathroom.

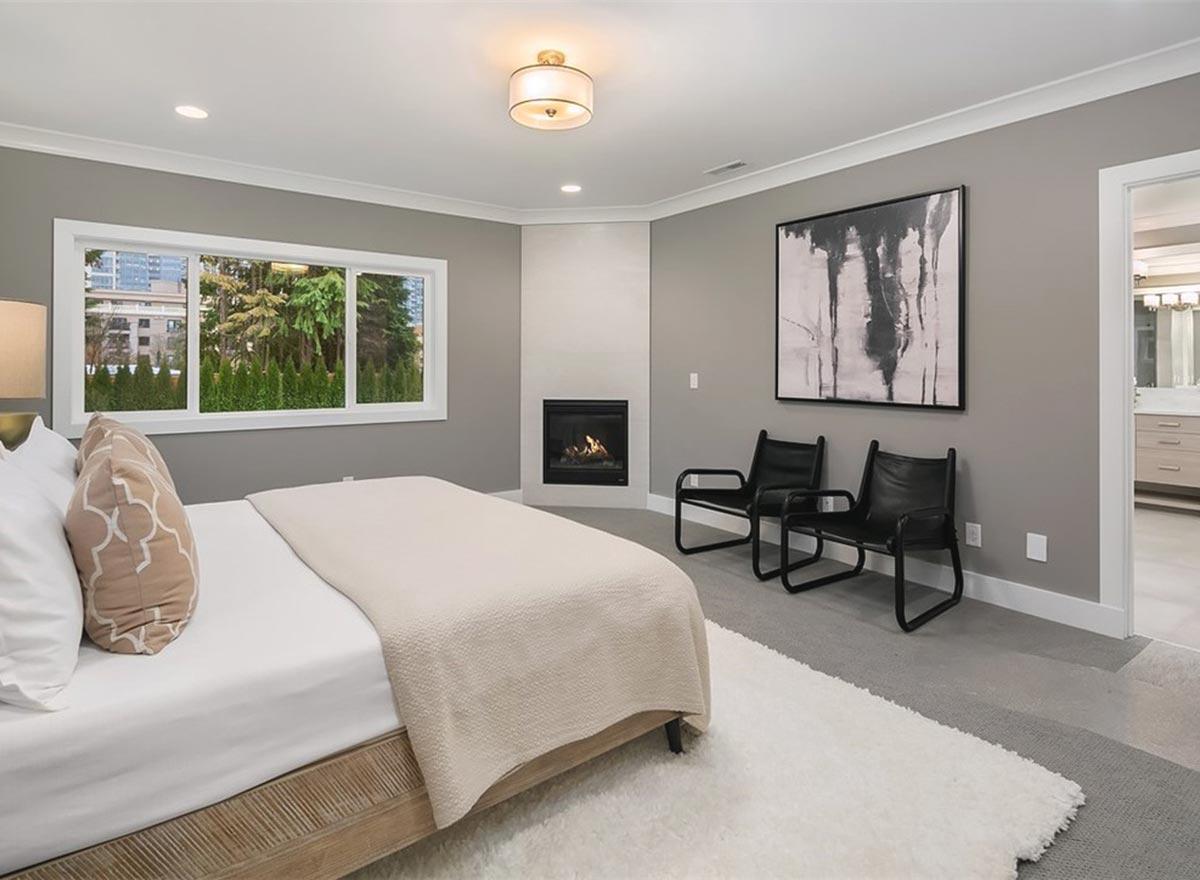

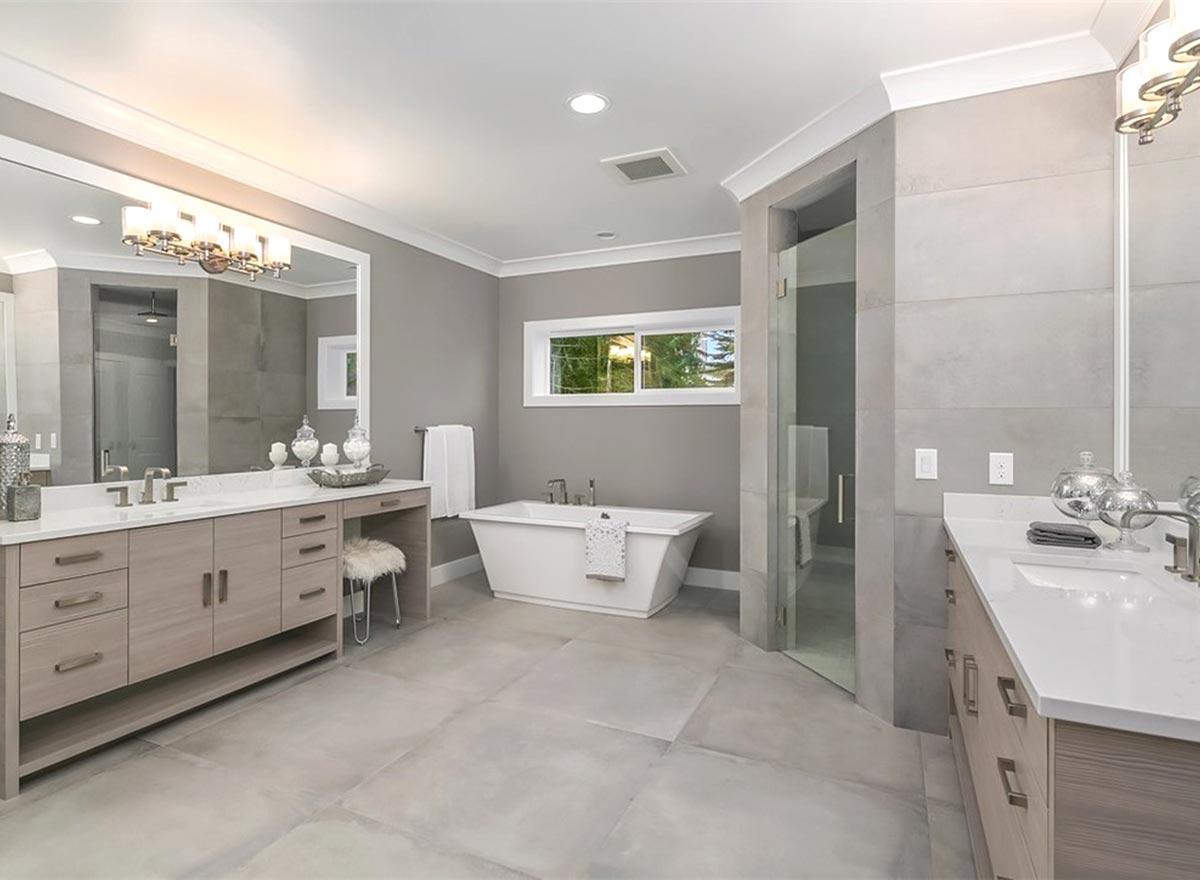

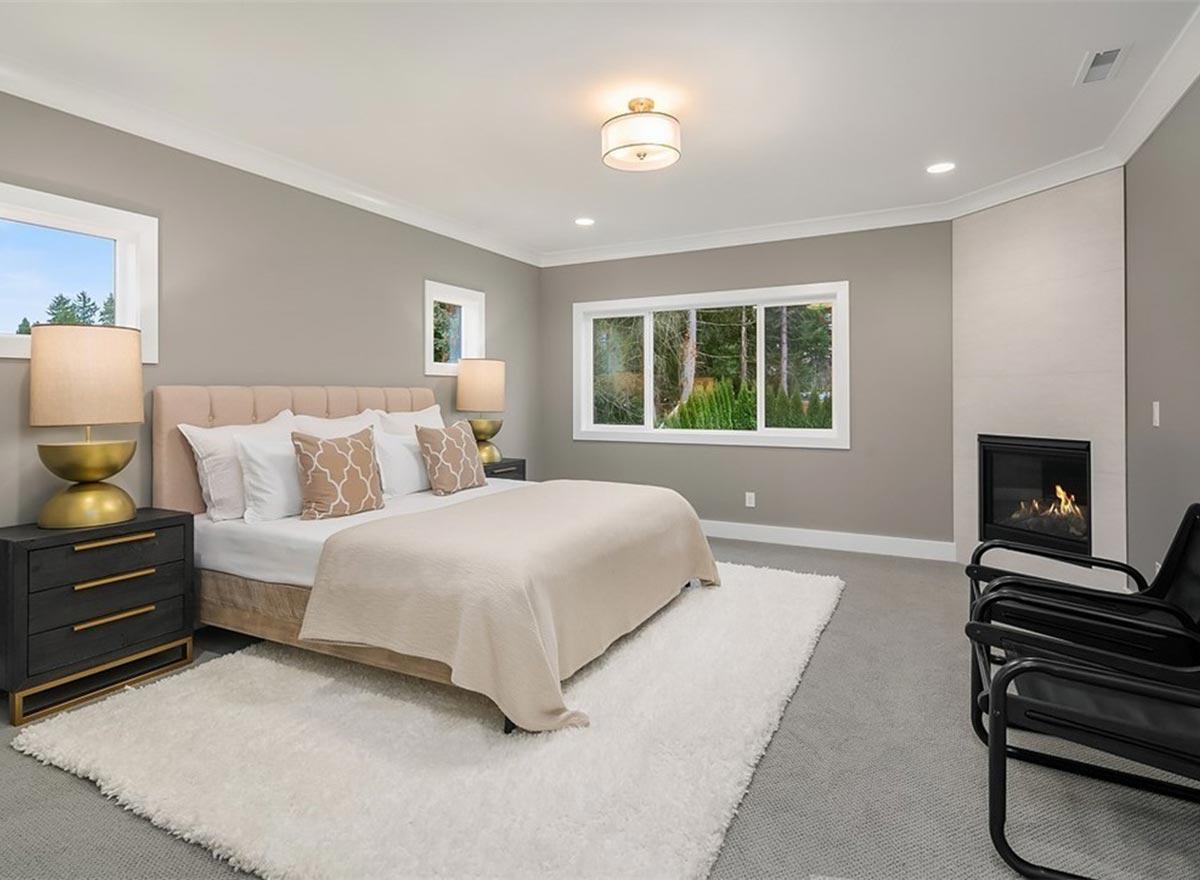

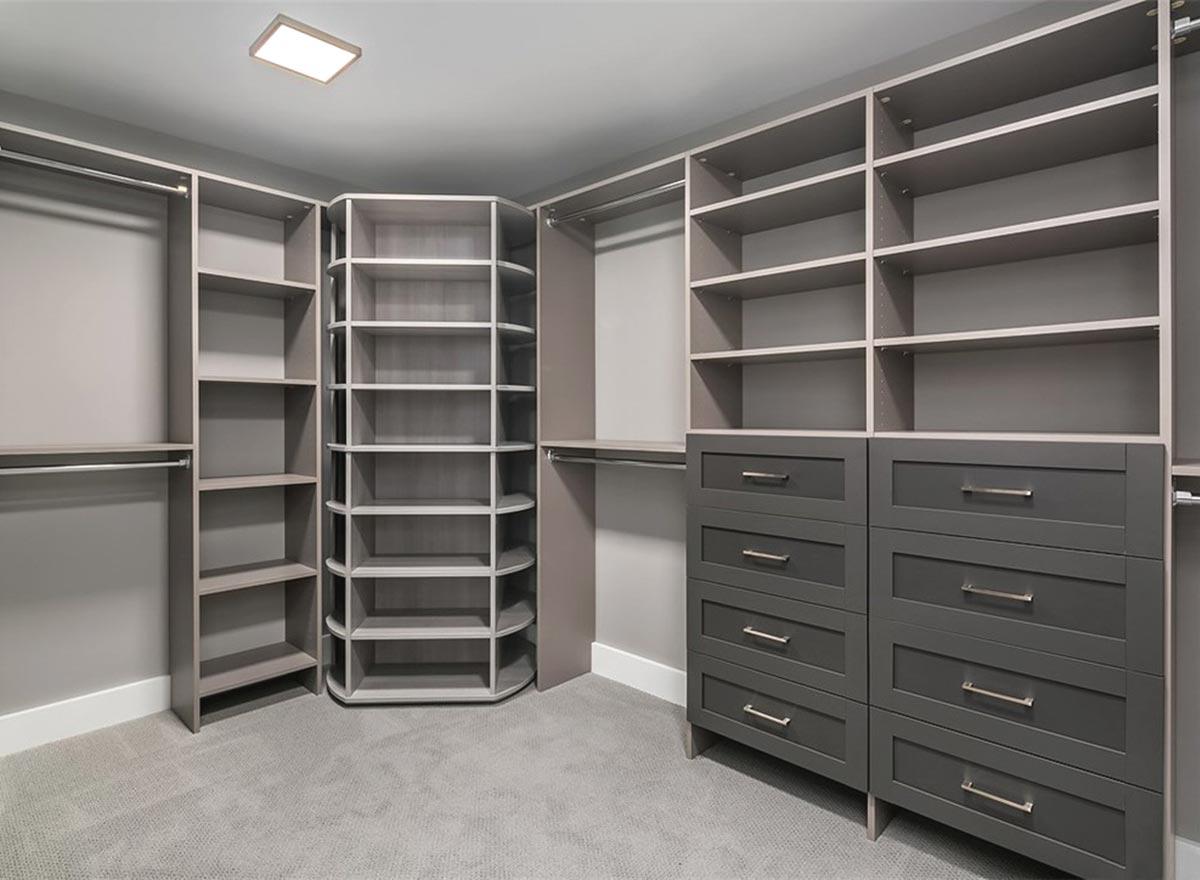

  • Upstairs, french doors lead to a spacious master bedroom with a corner fireplace, which neighbors a laundry room for ease of use. The lavish ensuite includes dual vanities, a custom shower and freestanding tub, and a sizable walk-in closet.

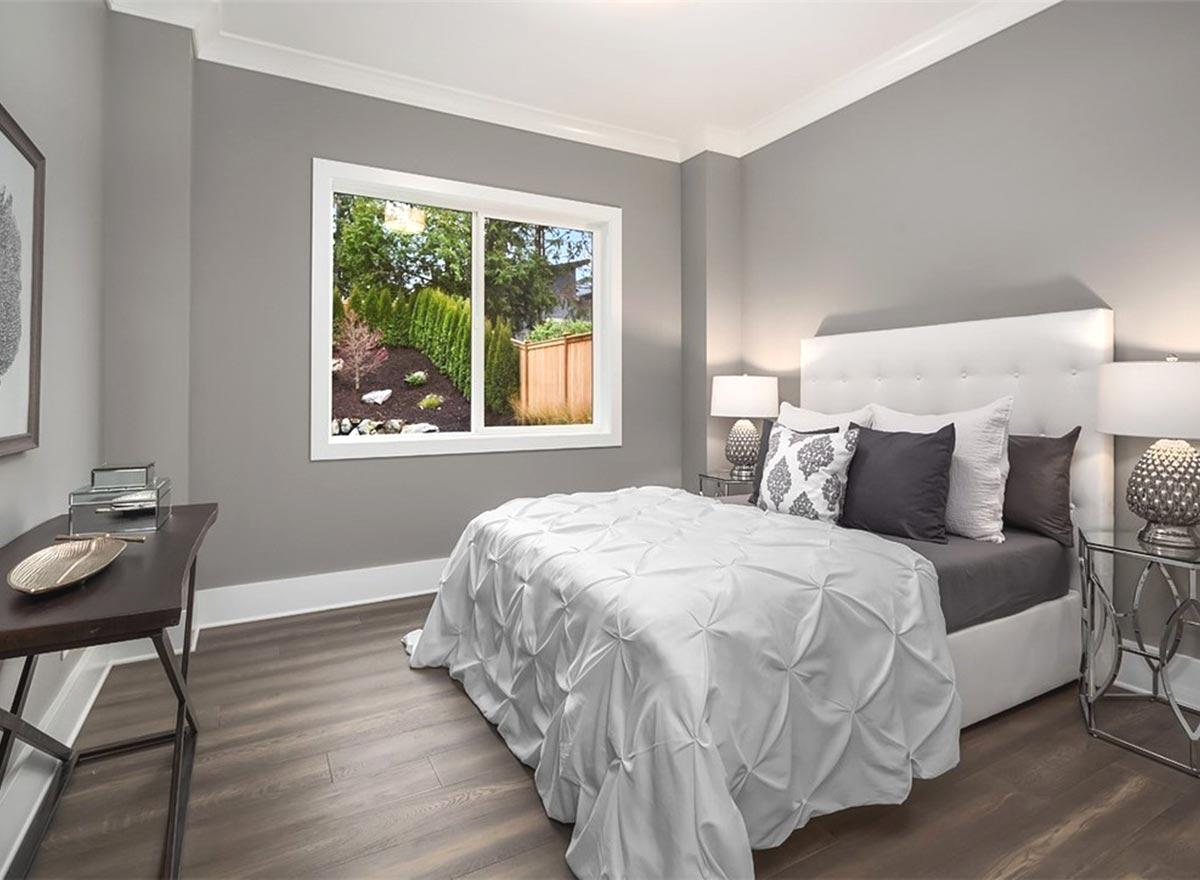

  • Three additional bedrooms each have their own full bath.

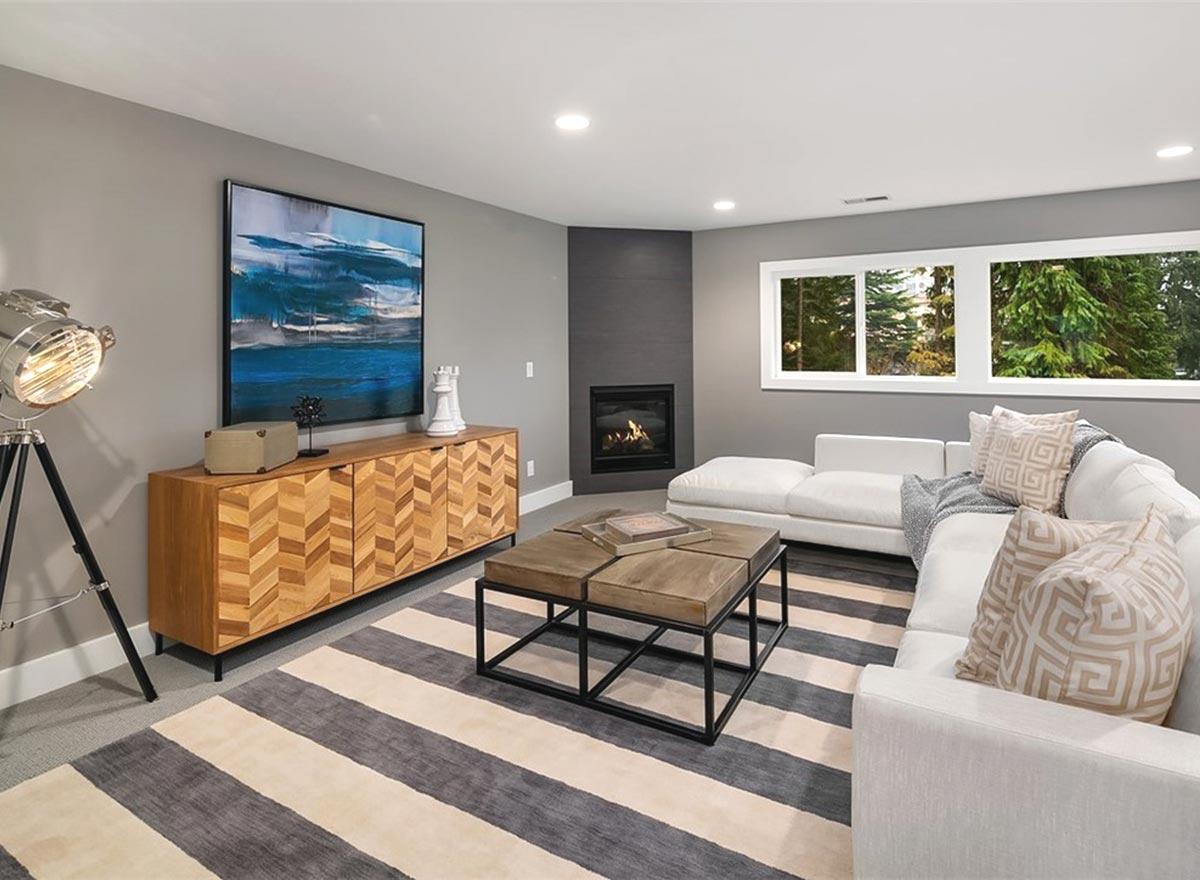

  • A third level bonus room - included in the total living area figures - has a wet bar and provides the homeowner with the utmost flexibility.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

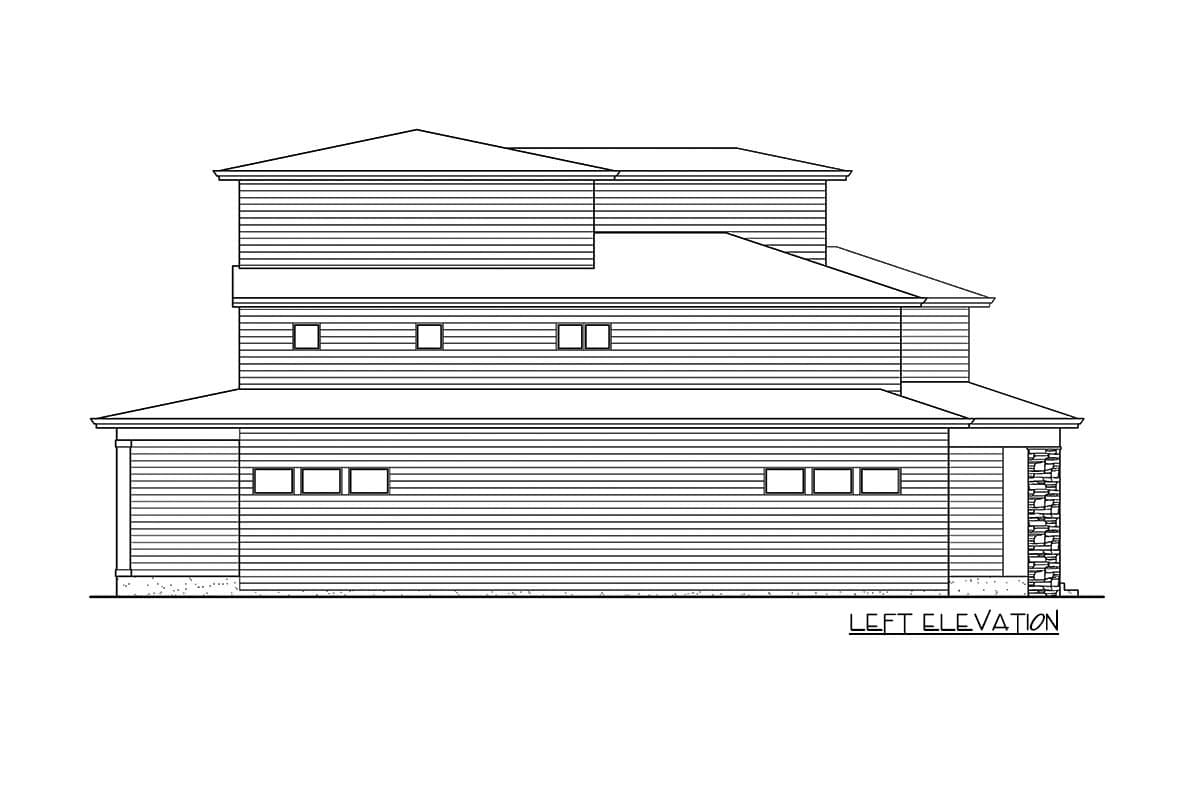

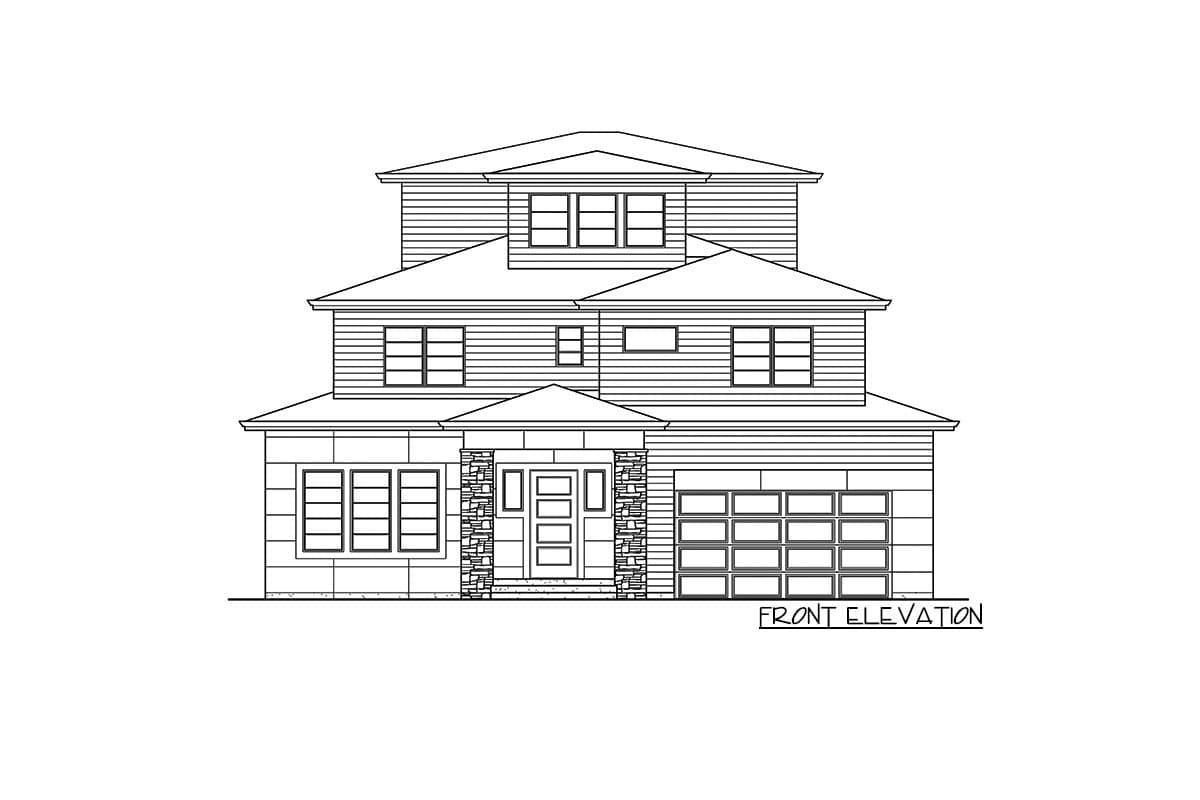

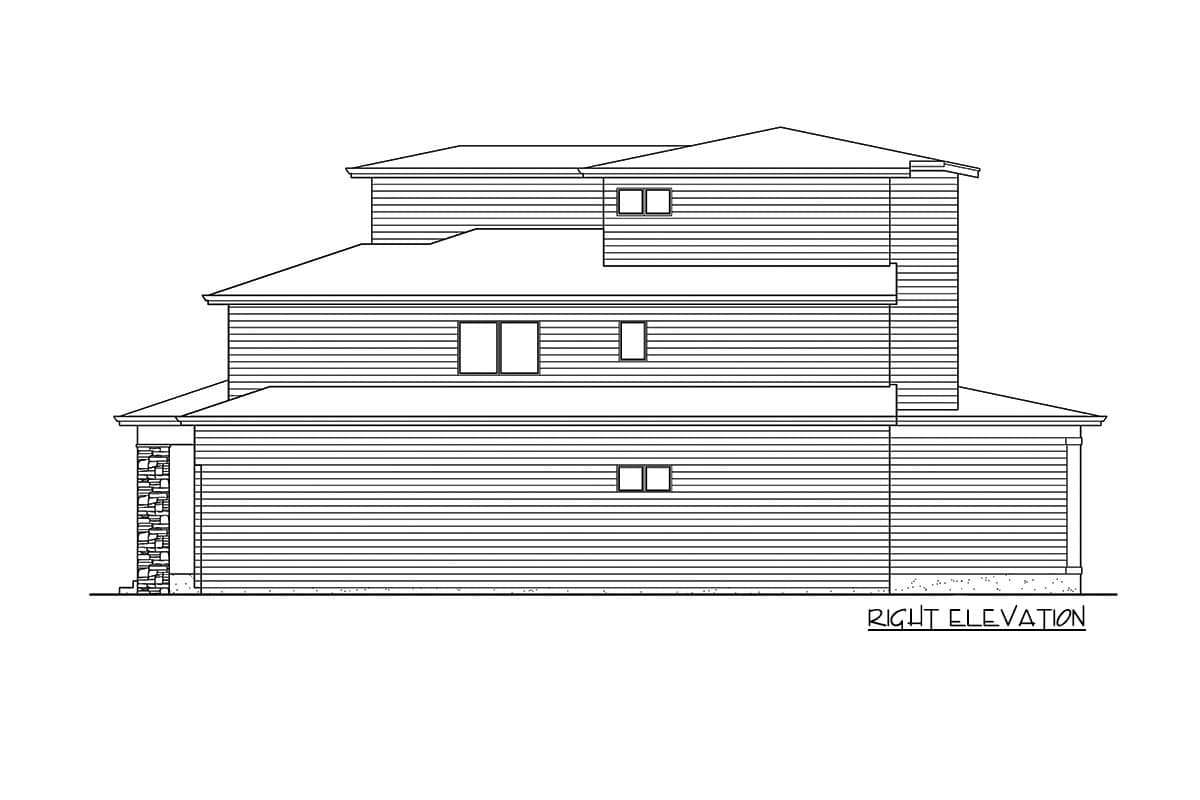

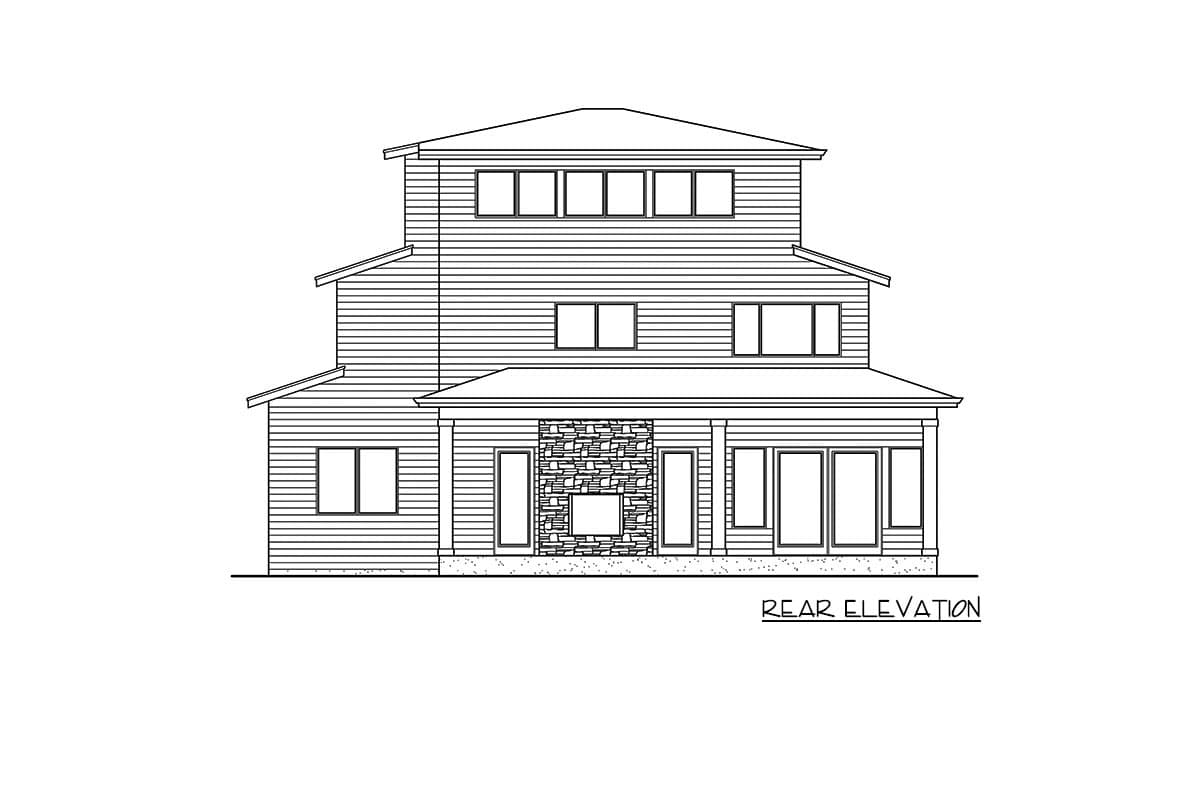

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Contemporary House Plan with with Third-Level Bonus Room

  • 4,570

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,000
  • 5 Sets PLUS $2,150
  • CAD - multi-use $3,500
  • View all purchase option online

About This Plan

  • Large fiber cement panels, horizontal siding, and stone accents compliment one another on the exterior of this contemporary house plan.
  • An open layout provides a comfortable space for everyday living and combines the great room, kitchen, and breakfast nook. Oversized windows allow abundant natural light to permeate the space, and two doors on either side of the fireplace lead to a covered porch.
  • A butler's pantry connects the dining room to the kitchen, and sits across from a spacious walk-in pantry for additional storage.
  • Guests will delight in the privately situated main-level bedroom, which includes a full bathroom.
  • Upstairs, french doors lead to a spacious master bedroom with a corner fireplace, which neighbors a laundry room for ease of use. The lavish ensuite includes dual vanities, a custom shower and freestanding tub, and a sizable walk-in closet.
  • Three additional bedrooms each have their own full bath.
  • A third level bonus room - included in the total living area figures - has a wet bar and provides the homeowner with the utmost flexibility.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

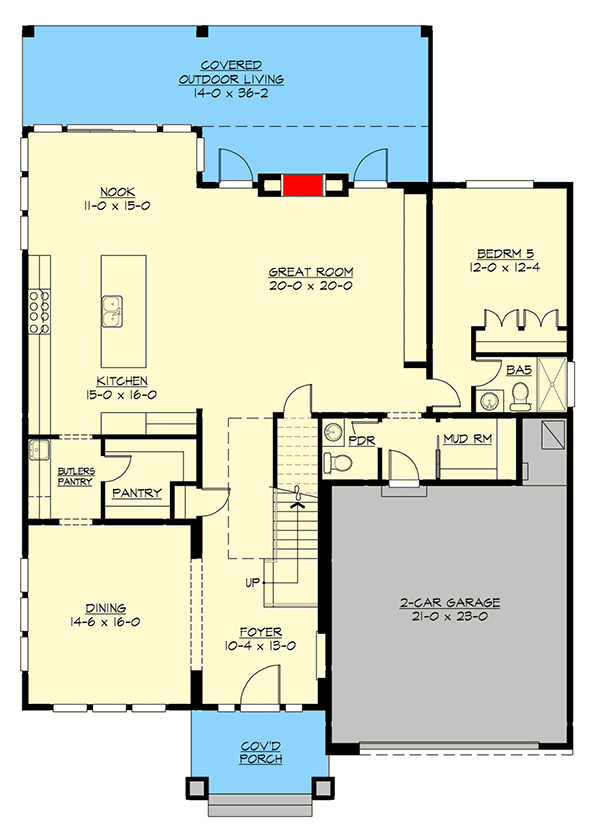

  • Main Level

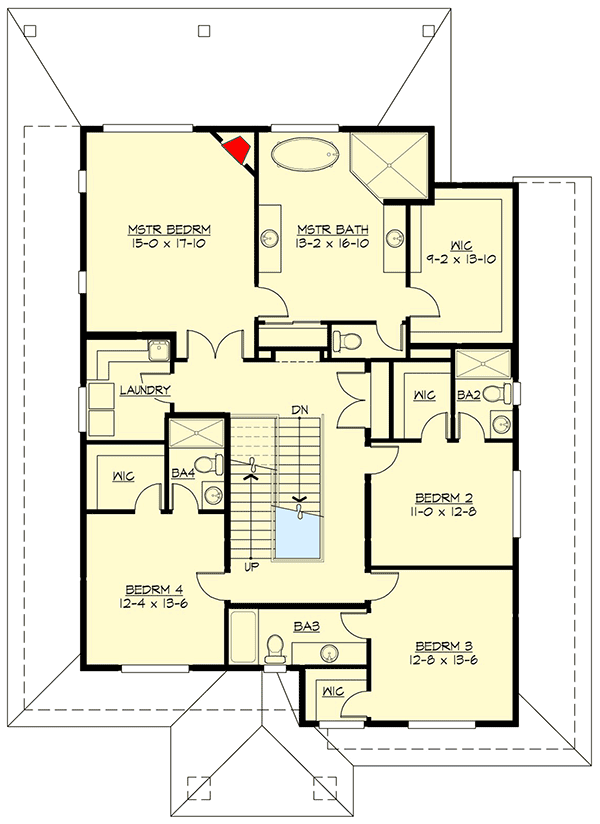

  • 2nd Floor

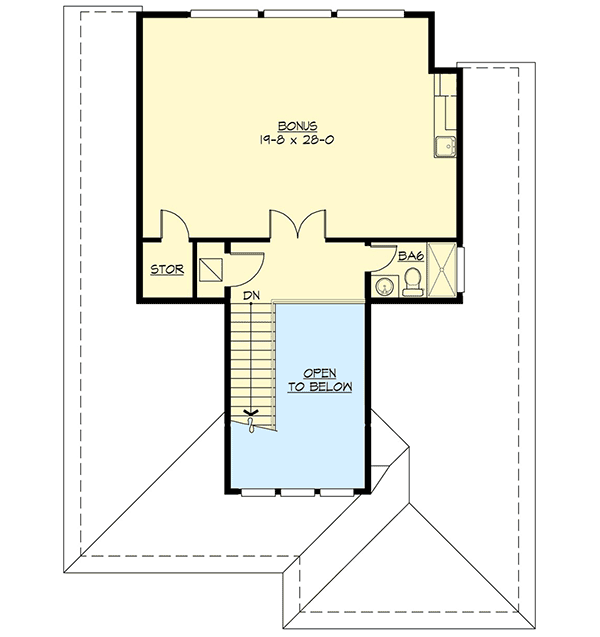

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,570 sq. ft.
  • 1st Floor: 1,926 sq. ft.
  • 2nd Floor: 1,902 sq. ft.
  • 3rd Floor: 742 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 69' 0"
  • Max ridge height: 32' 10"

Garage

  • Type: Attached
  • Area: 534 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
