Contemporary Loft Plan with Large Second Floor Balcony

Plan 68780VR

  • 503

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • Enjoy the versatility of this loft plan with a covered porch on the ground level and a balcony upstairs.
  • The lower level has a 9' by 7' garage door on the side and room for one vehicle and storage. Stairs line the back wall and take you to the loft level.
  • The second floor is wide open with ceilings has ceilings going from 7' to 11'. A bathroom is tucked away in the back-right corner and there are two sinks and a refrigerator up against the wall separating the loft from the stairs.
  • This plan can be used as a home office, a guest house or an artist studio.
  • Related Plans: Get a smaller version with house plan 68751VR and get a version with a mini kitchen with house plans 68557VR and 68769VR. Move the stairs to the outside with 68968VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

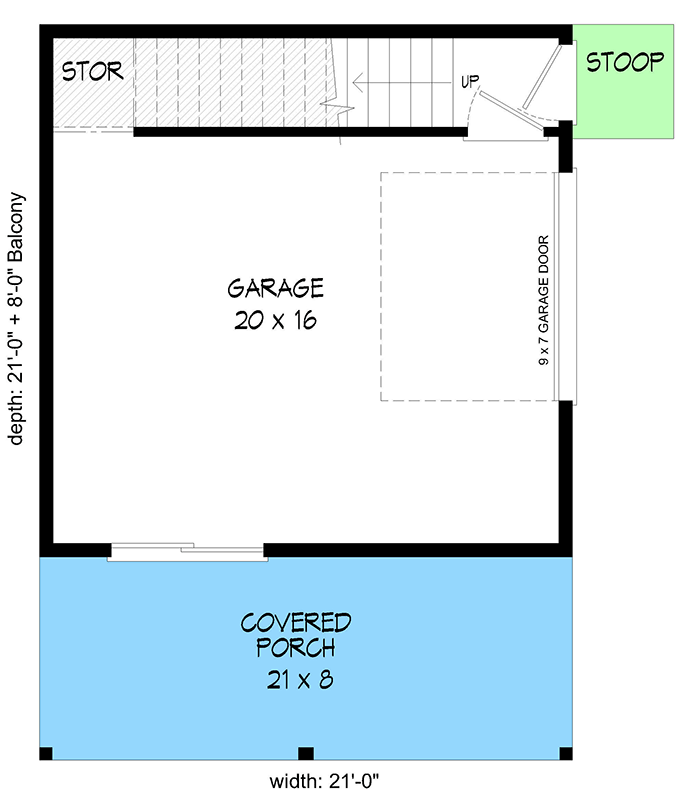

Contemporary Loft Plan with Large Second Floor Balcony - 68780VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

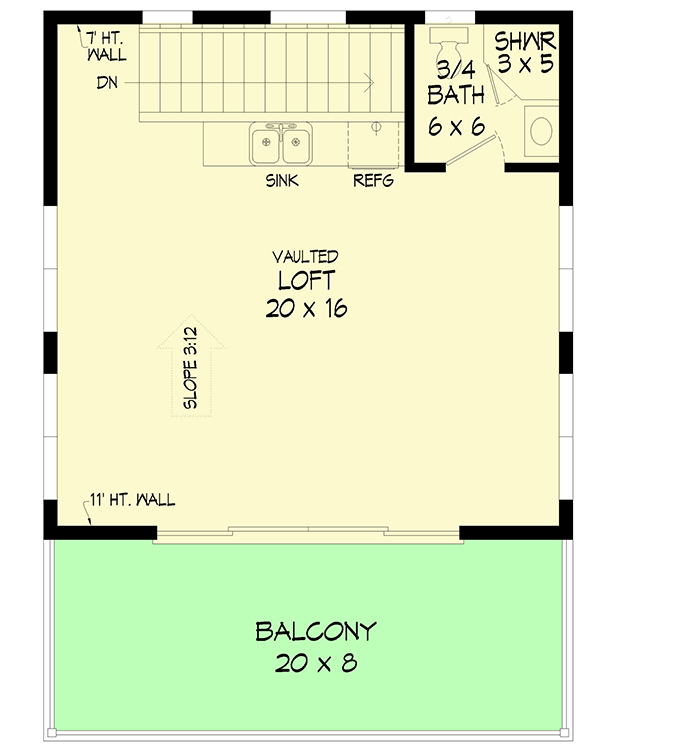

Contemporary Loft Plan with Large Second Floor Balcony - 68780VR floor plan - 2nd Floor

Architectural Style

Special features

Plan Collections

Contemporary Loft Plan with Large Second Floor Balcony

  • 503

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 503 sq. ft.
  • 1st Floor: 62 sq. ft.
  • 2nd Floor: 441 sq. ft.

Dimensions

  • Width: 21' 0"
  • Depth: 29' 0"
  • Max ridge height: 22' 8"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 379 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 11' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
