Modern Detached Garage Plan with Vaulted Loft with Balcony

Plan 68751VR

378
Heated s.f.
2
Stories
1
Cars

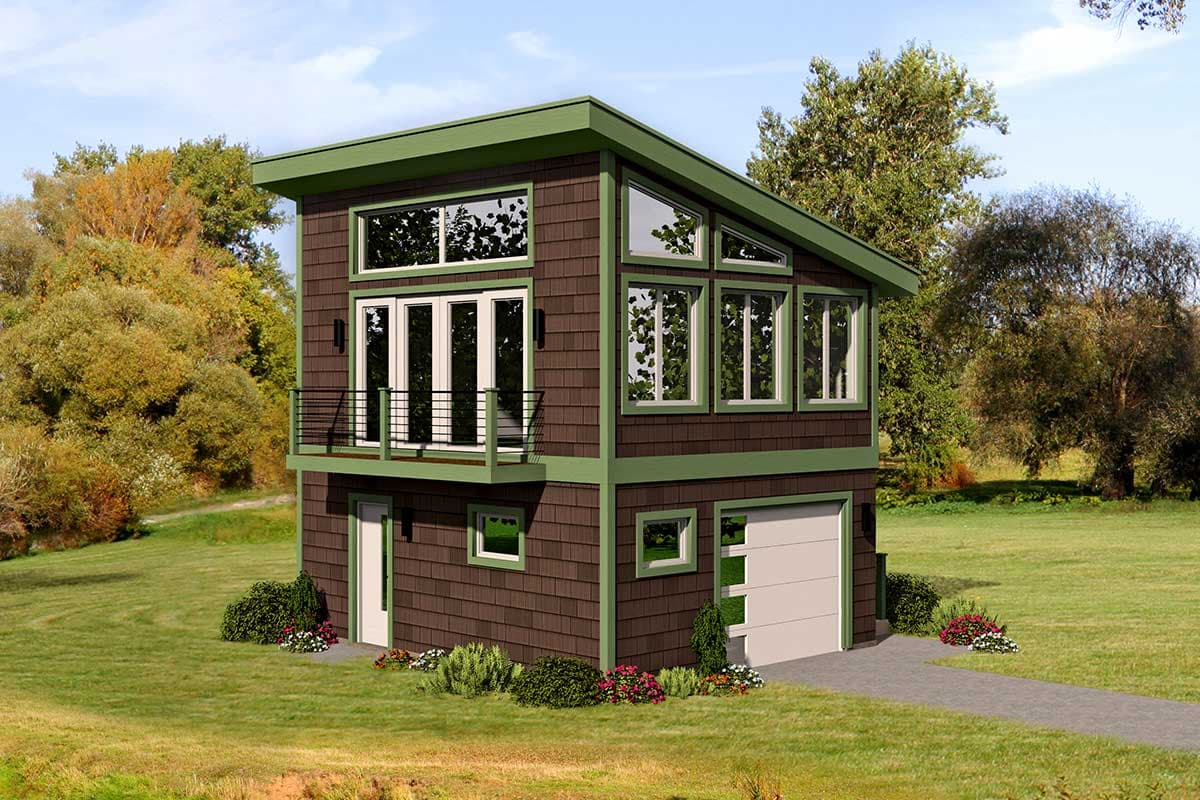

Enjoy the versatility of this modern garage plan featuring a 9' by 7' garage door on the side.
Stairs running along the back - outside the structure, preserving the inside for maximum storage - takes you to a vaulted loft (7'8" to 12' ceiling) with great natural light and a balcony overlooking the front.
Related Plans: Get alternate versions with plans 68557VR, 68769VR and 68780VR. Move the stairs to the outside with 68968VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

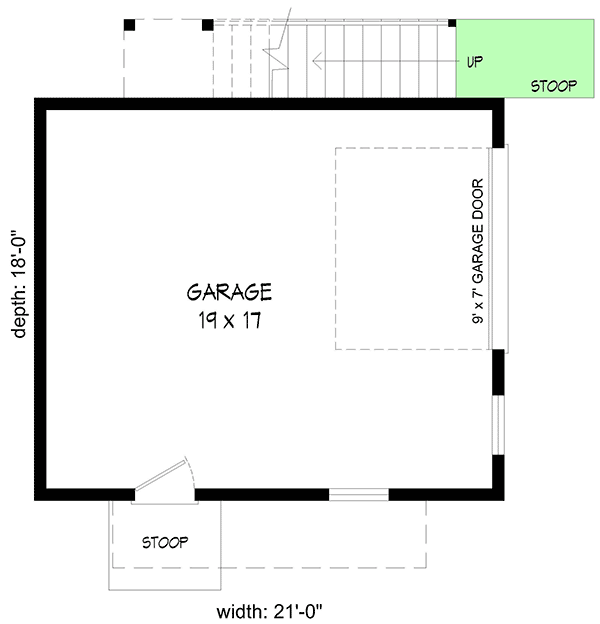

Modern Detached Garage Plan with Vaulted Loft with Balcony - 68751VR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

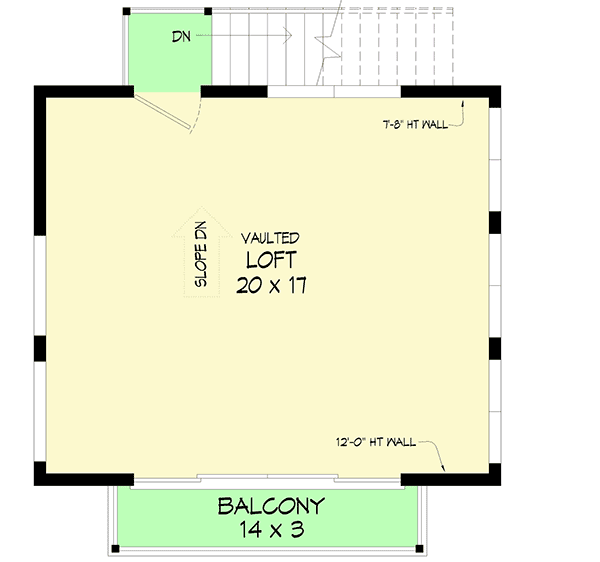

Modern Detached Garage Plan with Vaulted Loft with Balcony - 68751VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 378 sq. ft.
2nd Floor: 378 sq. ft.

Balcony / Veranda: 42 sq. ft.

Beds/Baths

Bedrooms:

Full bathrooms:

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 21' 0"
Depth: 18' 0"
Max ridge height: 22' 10"

Garage

Type: Detached
Area: 378 sq. ft.
Count: 1 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 12' 0"

Roof Details

Primary Pitch: 3 on 12

Framing Type: Stick

Architectural Style

Special features
