Plan 370020SEN
Contemporary Mediterranean Home Plan with 1-Bed Casita
Heated S.F.
3,990
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • The one-level floor plan of this contemporary Mediterranean home includes open living spaces in the center, which serves as the separator between the master suite and the other family bedrooms.
  • An oversized sliding door lines the rear wall creating an easy transition between the great room and adjacent covered lanai, while the gourmet kitchen is an entertainer's dream.
  • A cabinet door conceals the walk-in pantry in order to not interrupt the thoughtful design of the kitchen, which is anchored by a T-shape island with seating for casual meals.
  • Large service areas and storage rooms make this the perfect home for even the most active families, while the home office, theatre, and 1-bedroom casita are bonus spaces to complete the home design.
  • The master suite is filled with natural light and occupies the right side of the home. The owner will delight in the exquisite ensuite with a large walk-through shower and massive dressing room closet.
What's Included
  • COVER SHEET
  • GENERAL NOTES

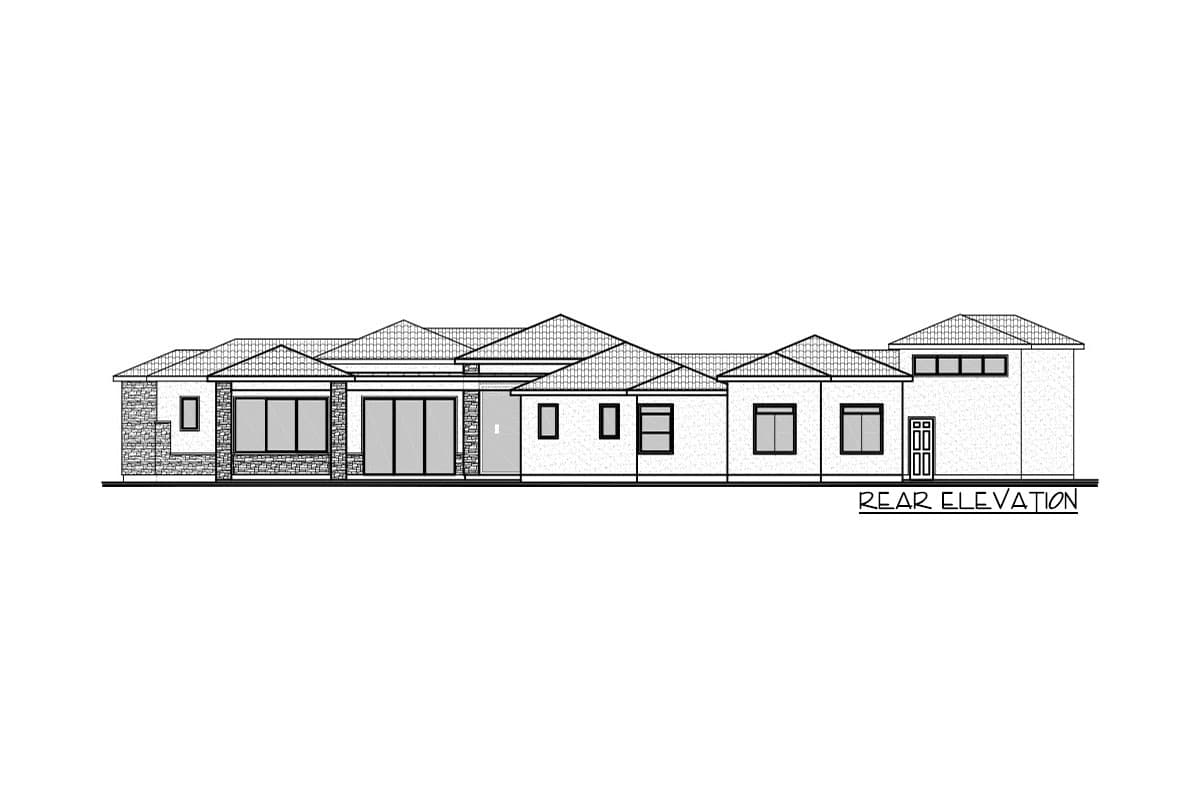

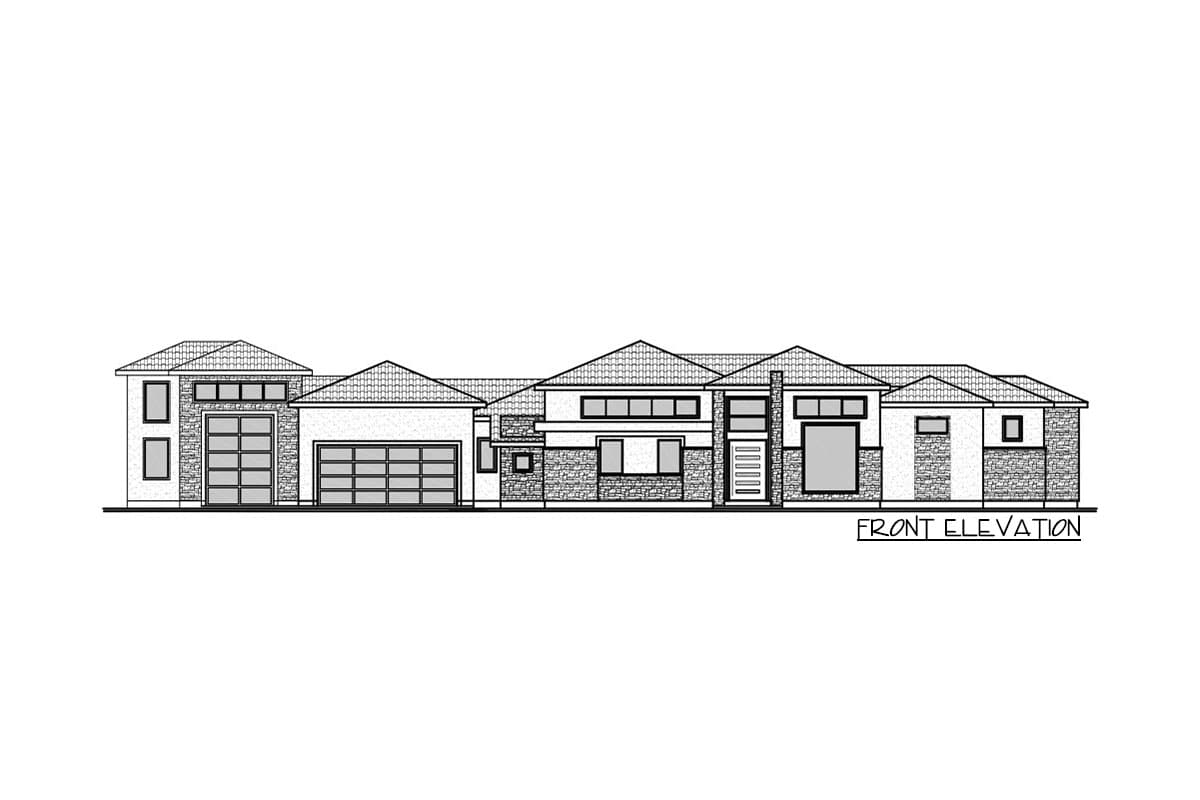

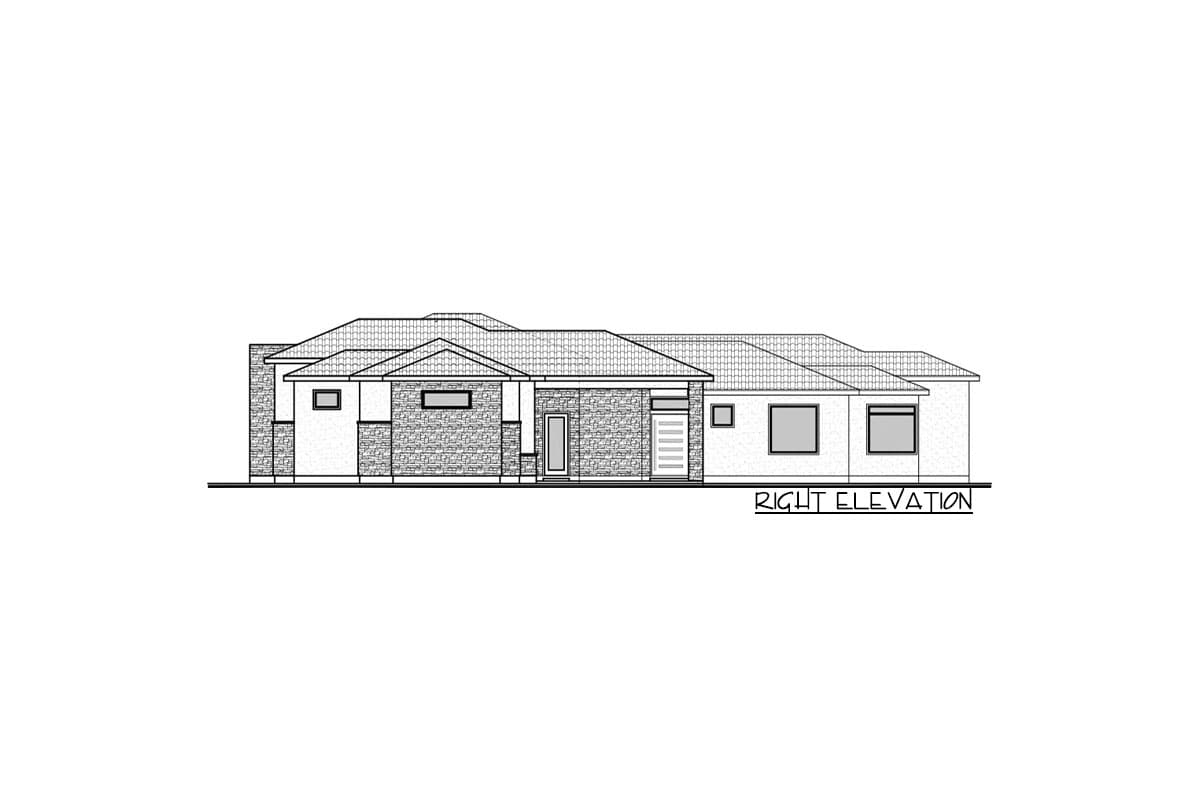

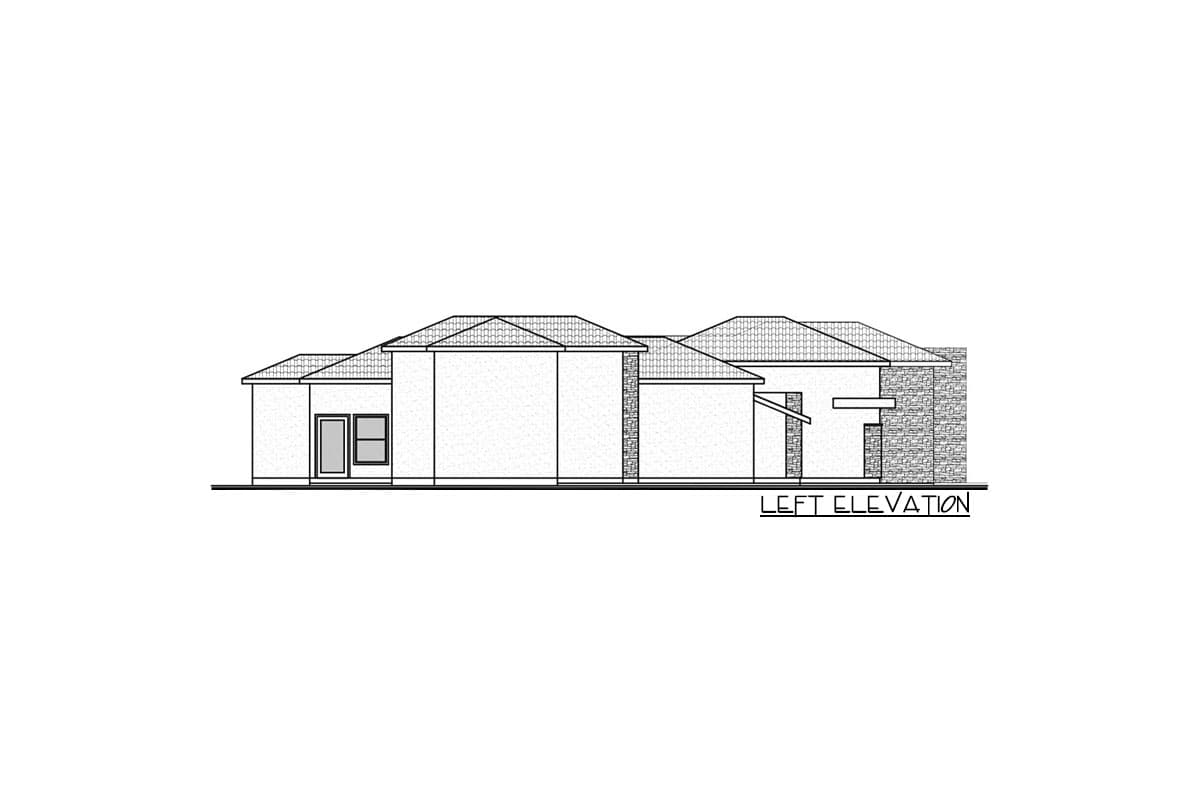

  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Mediterranean Home Plan with 1-Bed Casita

  • 3,990

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

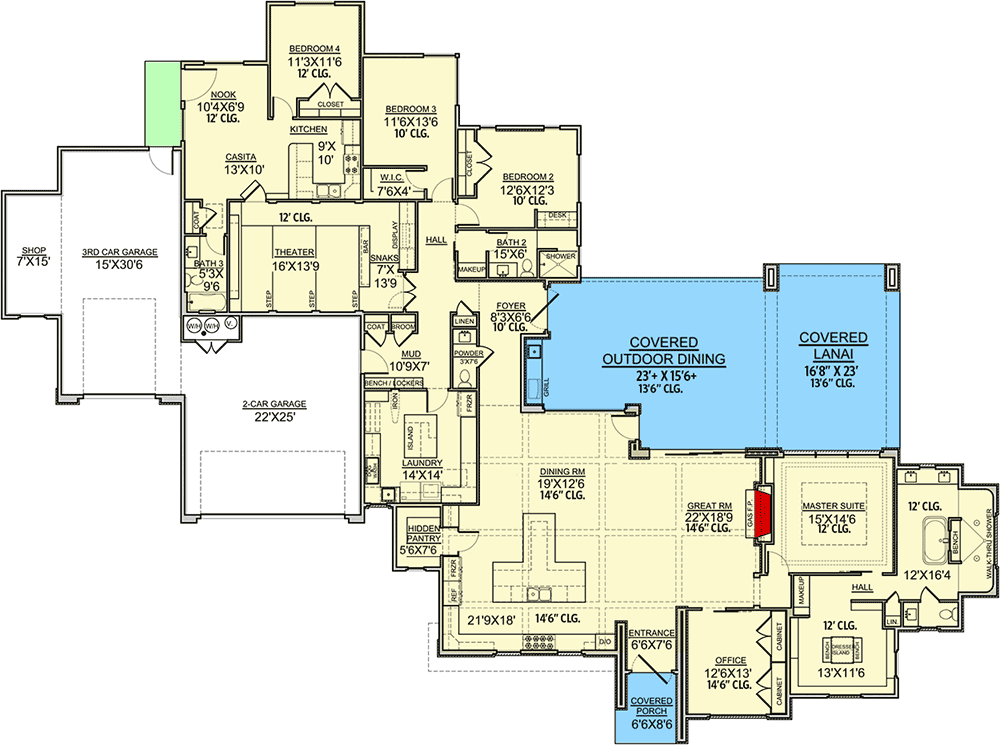

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,990 sq. ft.
  • 1st Floor: 3,990 sq. ft.

Dimensions

  • Width: 124' 5"
  • Depth: 92' 6"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1174 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Monolithic Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 6"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
