Plan 580012DFT

Exclusive

Contemporary Mid-Century Modern Home Plan with 11' Deep Rear Patio

Heated S.F.
2,258
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 580012DFT

Main Level
Main Level

Plan 580012DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

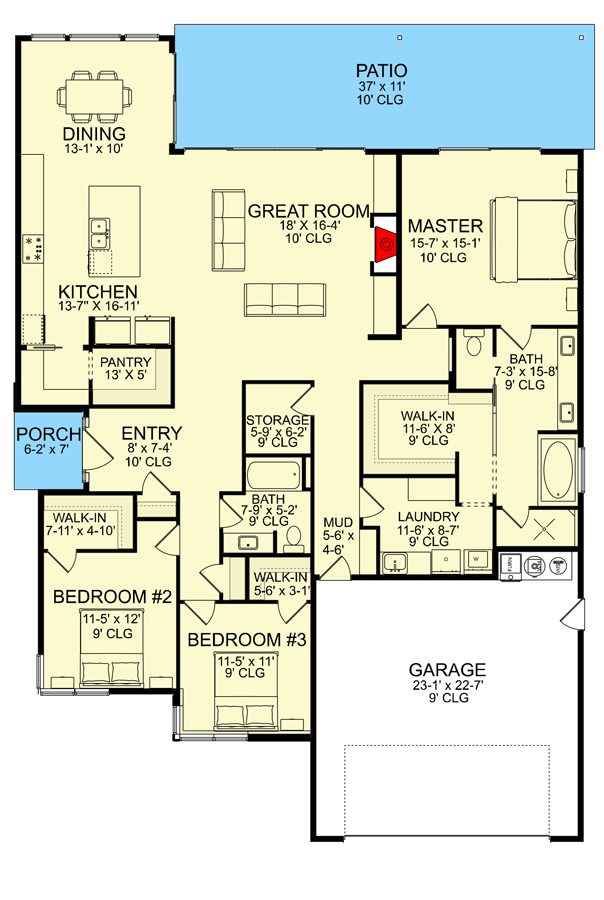

Plan 580012DFT: Contemporary Mid-Century Modern Home Plan with 11' Deep Rear Patio - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Ranch

Plan Details

  • At just over 2,258 square feet, this Contemporary Mid-Century Modern home plan presents a blend of stucco and horizontal siding, topped by a low-pitched roof.
  • The open great room, dining area, and kitchen offer rearward views and access to an 11'-deep rear patio. The kitchen features an oversized refrigerator and freezer, as well as pocket-door access to the pantry.
  • The master bedroom is set apart from the other bedrooms for the utmost privacy and offers patio access through sliding doors and access to the laundry room from the attached bathroom.
  • Bedrooms 2 and 3 are nearly identical in size and share a full bath.
  • The double garage leads into a mud hall with the laundry room conveniently located next door.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

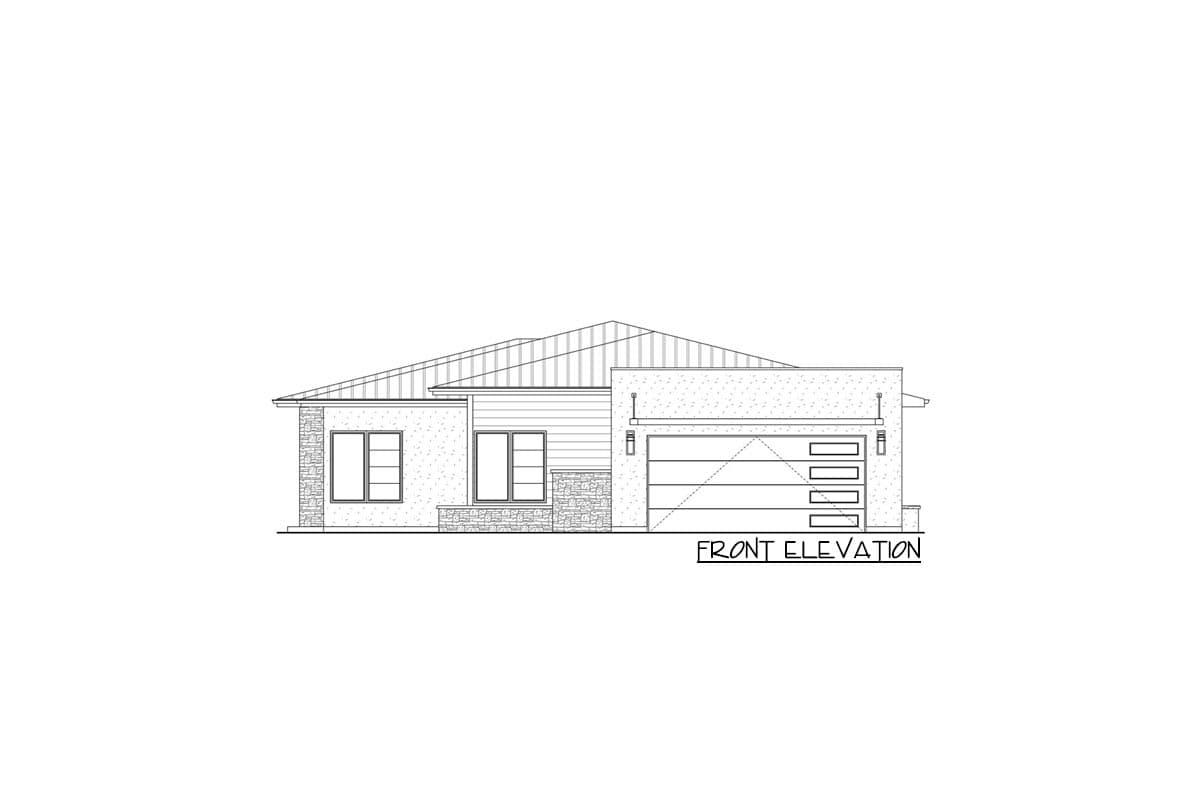

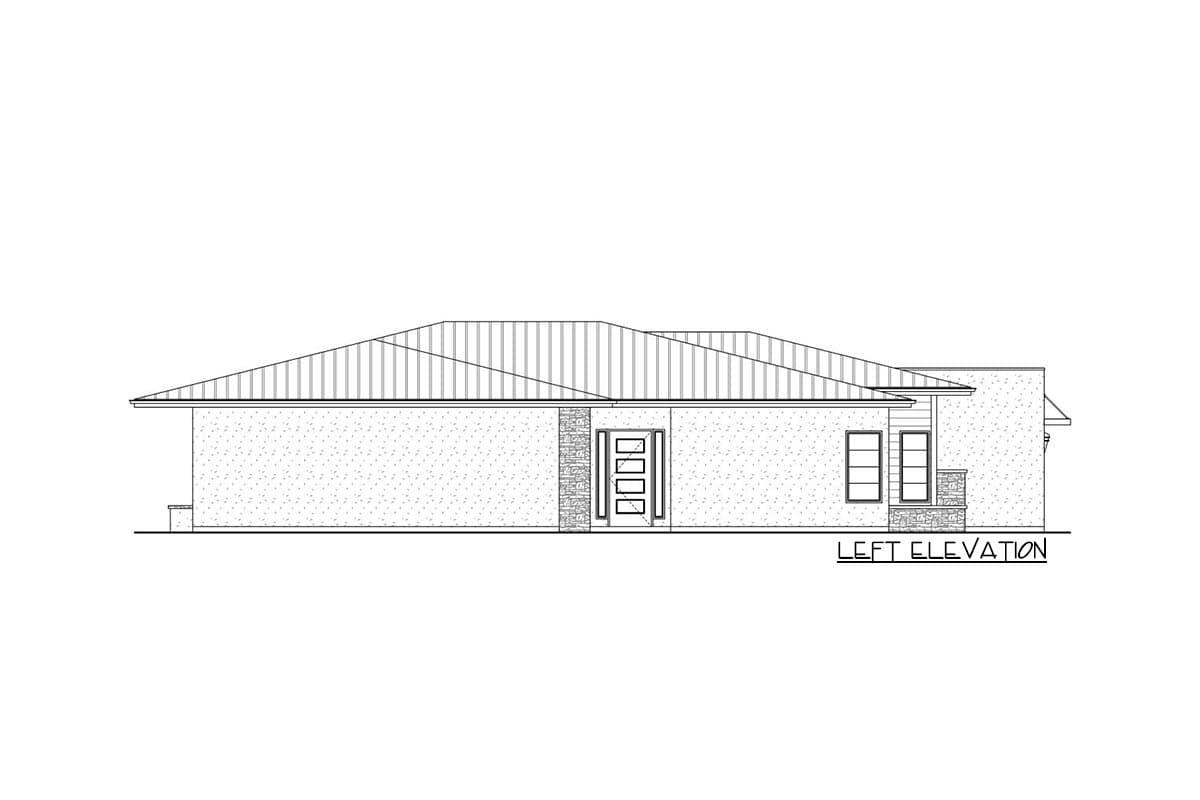

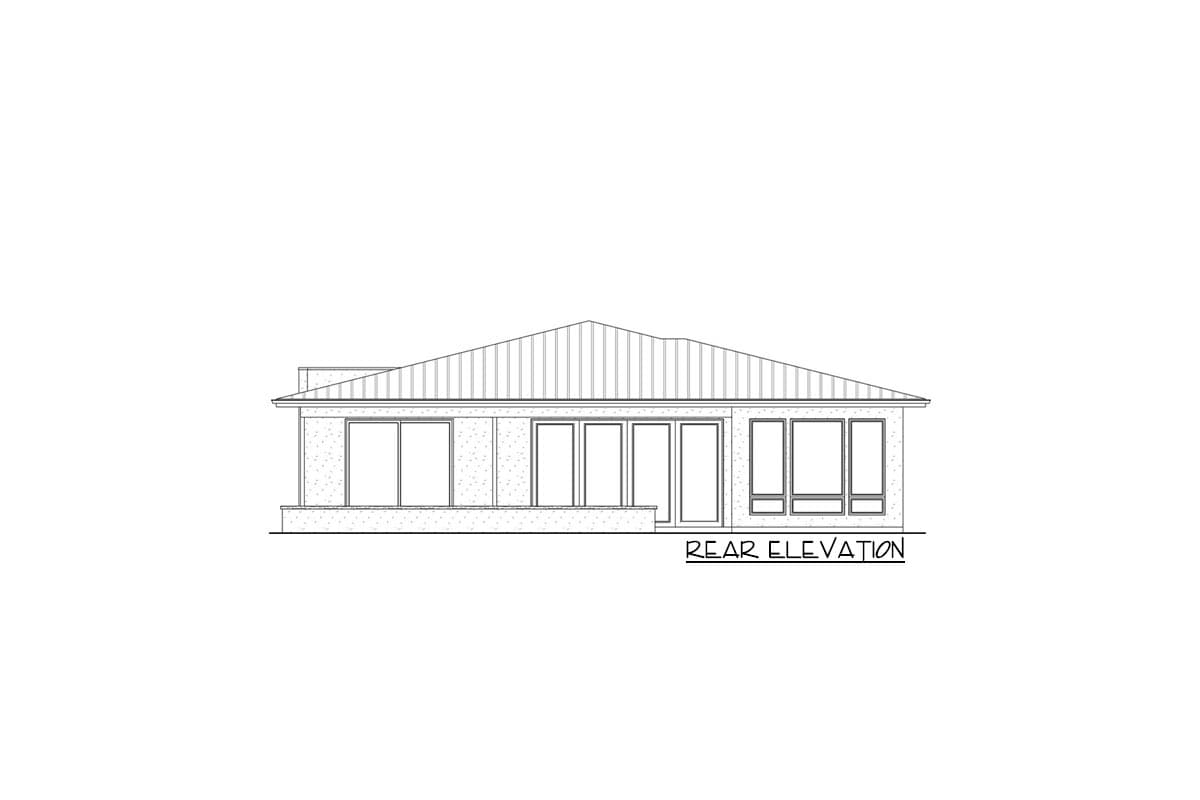

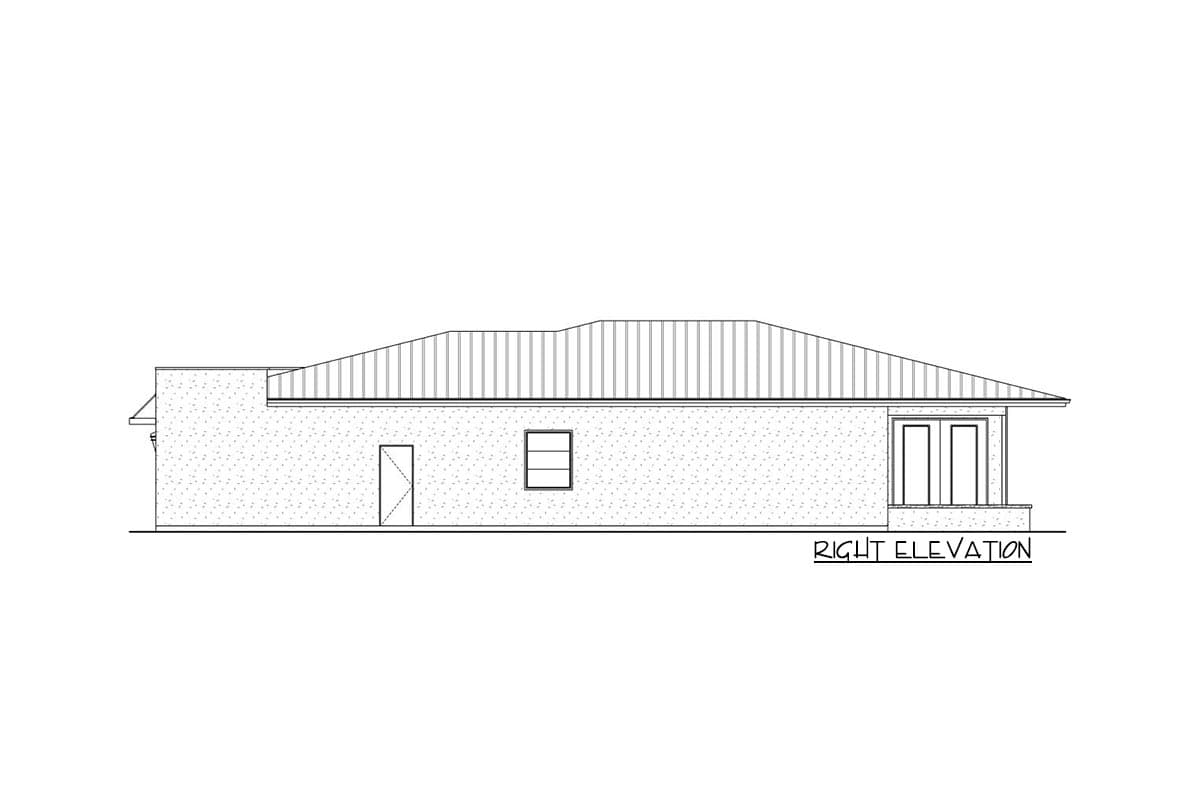

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,258 sq. ft.

1st Floor

2,258 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

360 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

71' 0"

Garage

Type

Attached

Area

565 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,258 sq. ft.

1st Floor

2,258 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

360 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

71' 0"

Garage

Type

Attached

Area

565 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
