Plan 666268RAF
Contemporary Modern Duplex Home Plan with 3 Bed Units Under 1800 Sq Ft
Heated S.F.
3,470
Units
2
Width
61'
Depth
35'
Cars
2
Plan Details
  • This contemporary modern duplex house plan gives you two units each with 3 bed, 2.5 bath and 1 car garage.
  • Unit A gives you 1,745 sq ft of living (780 sq ft on the main floor and 965 sq ft on the second floor).
  • Unit B gives you 1,725 sq ft of living (759 sq ft on the main floor and 966 sq ft on the second floor).
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,745 Sq. Ft.
780 Sq. Ft. 1st Floor
965 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
237 Sq. Ft.
30' w 35' d 24' h
Unit B
1,725 Sq. Ft.
759 Sq. Ft. 1st Floor
966 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
235 Sq. Ft.
30' w 35' d 24' h
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

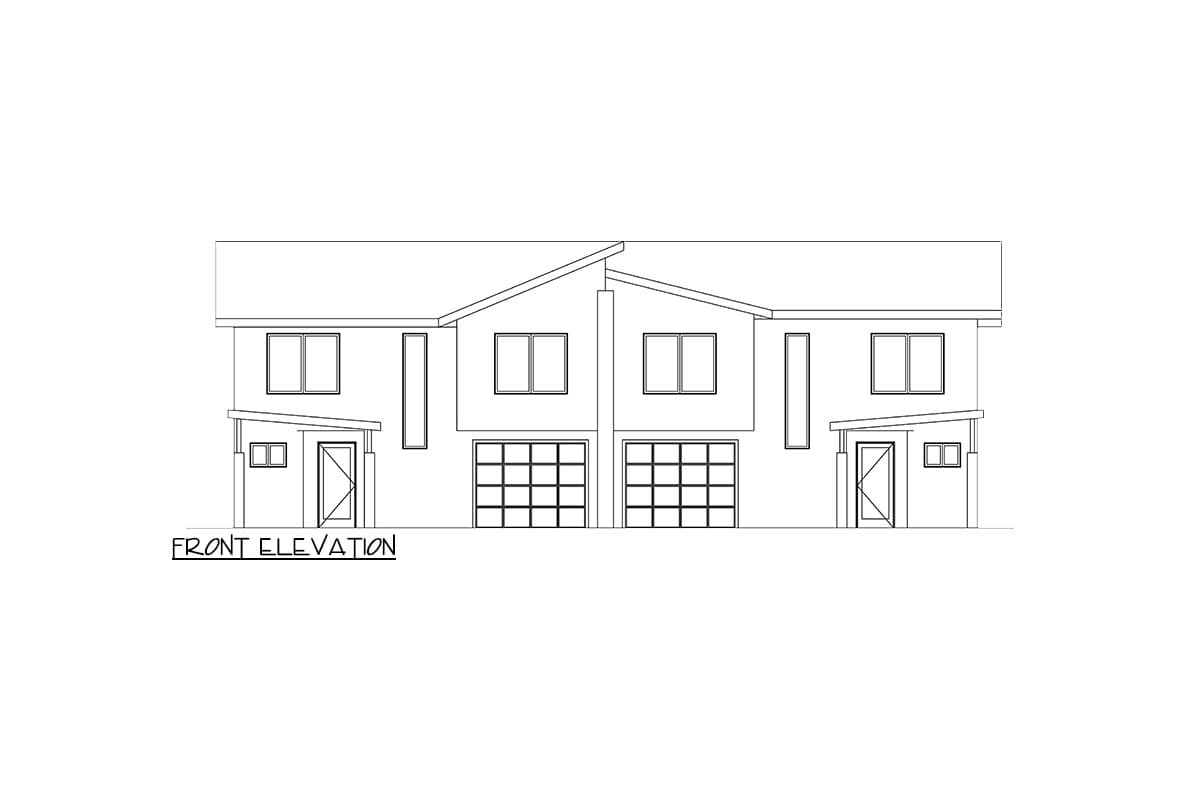

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Modern Duplex Home Plan with 3 Bed Units Under 1800 Sq Ft

  • 3,470

    Heated s.f.

  • 2

    Units

  • 61'

    Width

  • 35'

    Depth

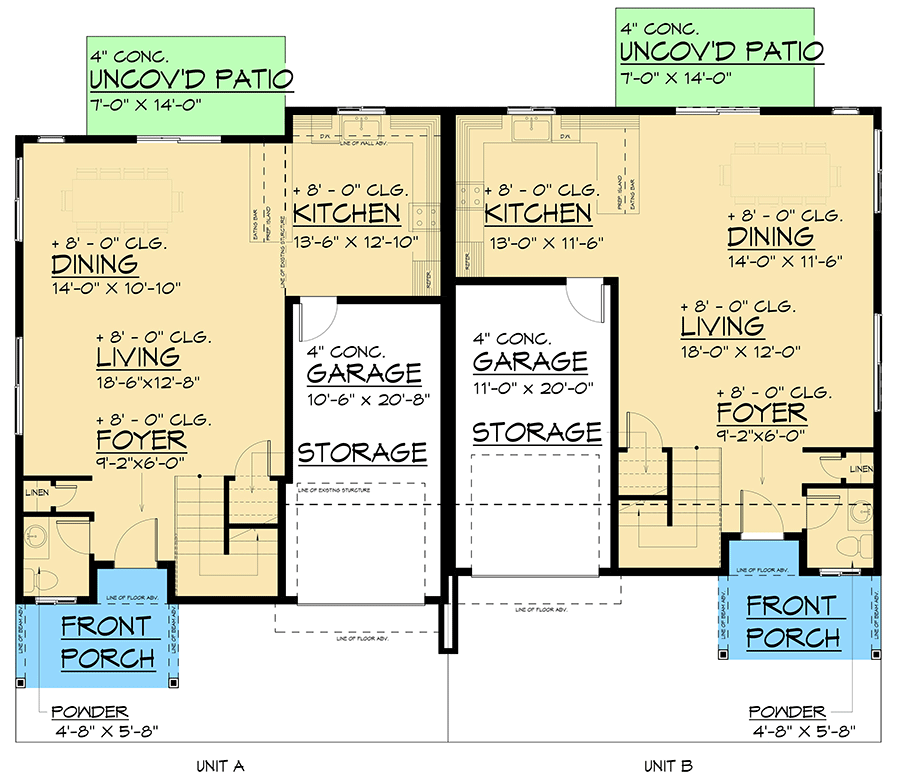

Floor Plan

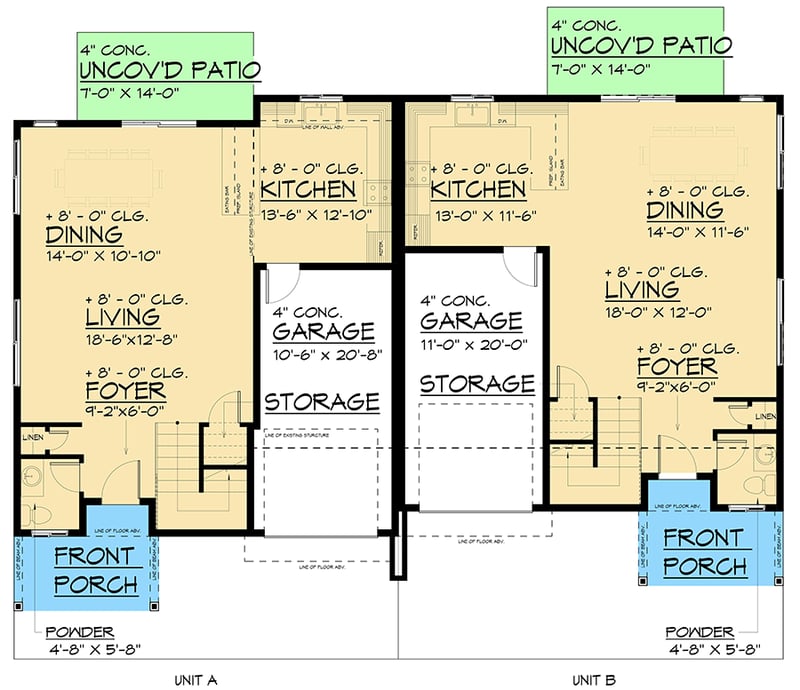

  • Main Level

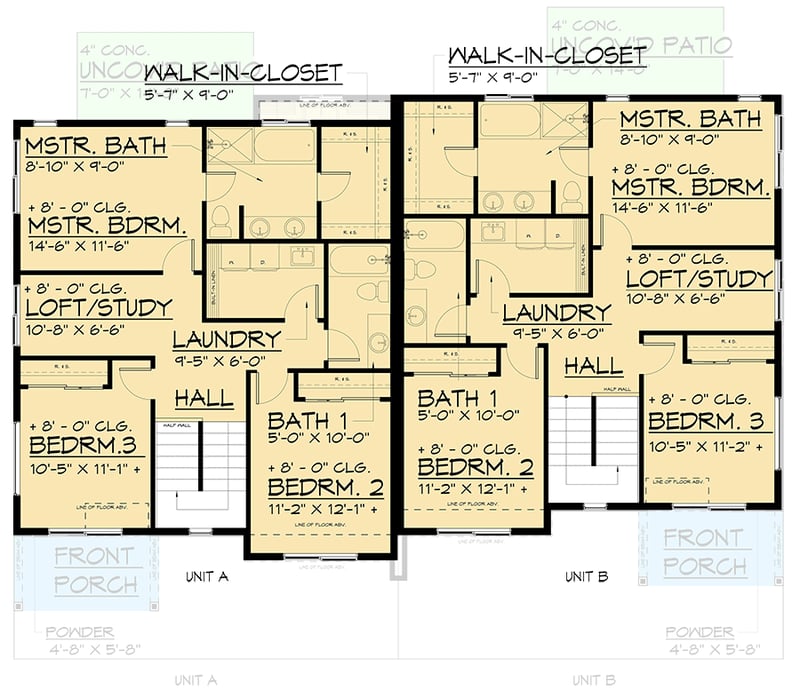

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,470 sq. ft.
  • 1st Floor: 1,539 sq. ft.
  • 2nd Floor: 1,931 sq. ft.

Dimensions

  • Width: 61' 0"
  • Depth: 35' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 472 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
