Plan 81715AB Contemporary New American Home Plan with Flex Room and Two Master Suites

2,357 4-5 4 2 4
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary New American Home Plan with Flex Room and Two Master Suites

Plan 81715AB

  • 2,357

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 4

    Cars

  • This Contemporary New American home plan delivers a ribbed metal roof that continues down the side of the garage for a stunning and seamless presentation.
  • A 20'8" by 8' covered patio invites you into a foyer with a coat closet and simple transition into the open living space. Oversized windows usher in natural light while providing views onto the back patio and beyond.
  • The gourmet kitchen hosts an island with a flush eating counter and a walk-in pantry with cold storage. Tall ceilings crown the great room and a flex room next door adds versatility to the design.
  • Additional storage space in the 4-car garage is an added bonus and a mudroom just inside stores outerwear and shoes in built-in lockers.
  • Four bedrooms are located upstairs, including two master suites, one of which features a 13'6" by 14' private balcony.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

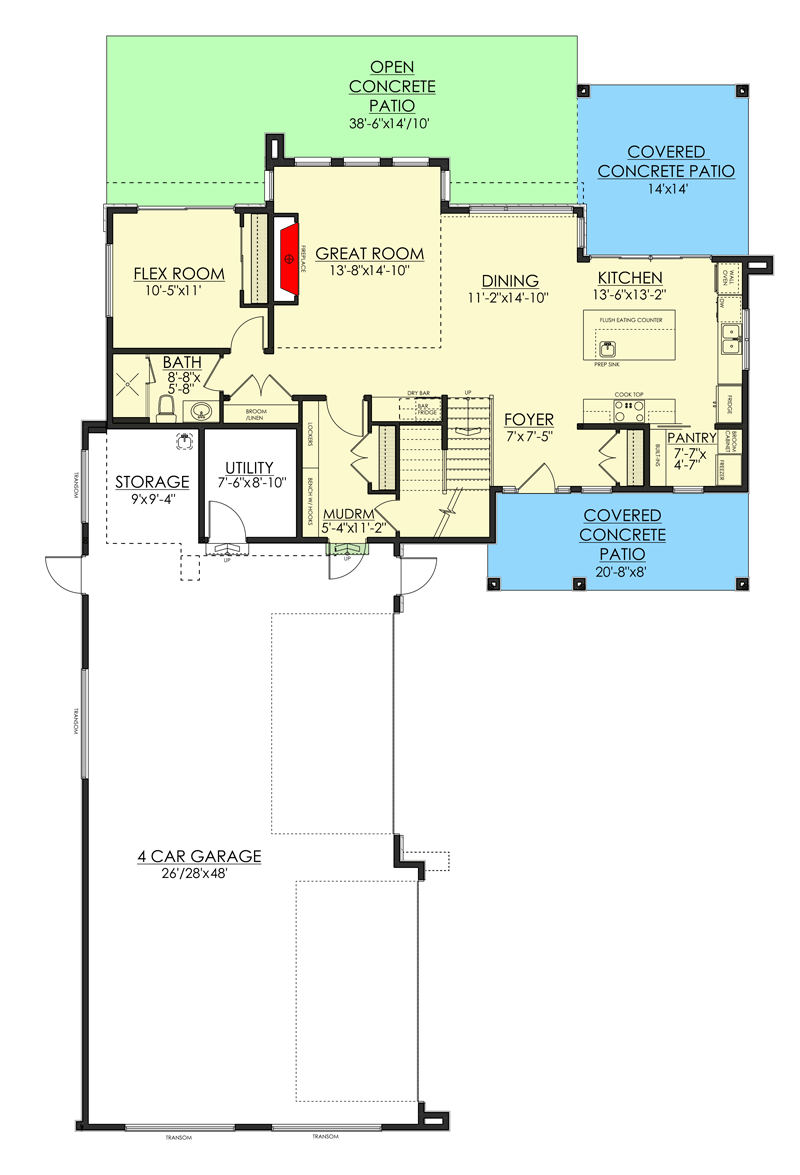

Contemporary New American Home Plan with Flex Room and Two Master Suites - 81715AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

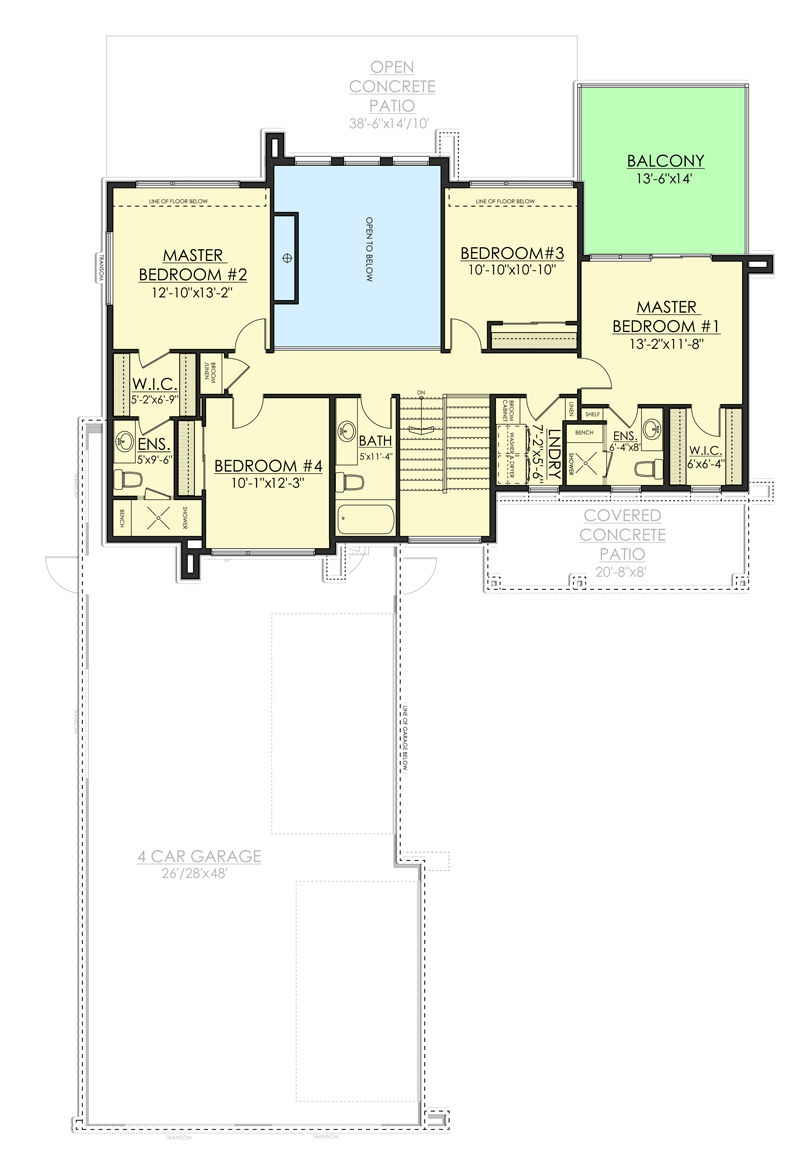

Contemporary New American Home Plan with Flex Room and Two Master Suites - 81715AB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,357 sq. ft.
  • 1st Floor: 1,219 sq. ft.
  • 2nd Floor: 1,138 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 6"
  • Depth: 79' 6"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 1" Second Floor / 10' 1"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary New American Home Plan with Flex Room and Two Master Suites

  • 2,357

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,357 sq. ft.
  • 1st Floor: 1,219 sq. ft.
  • 2nd Floor: 1,138 sq. ft.

Dimensions

  • Width: 54' 6"
  • Depth: 79' 6"
  • Max ridge height: 29' 3"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 1" Second Floor / 10' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
