Contemporary Northwest Duplex House Plan with 3 Bedrooms and Loft

Name: Plan 720205DA: Contemporary Northwest Duplex House Plan with 3 Bedrooms and Loft
Brand: Architectural Designs
SKU: 720205DA
Price: 4540.0 USD
Availability: InStock

Heated S.F.

3,184

Units

Width

Depth

Floor Plan

Plan Details

This sophisticated multi-family duplex features 1,592 square feet of living space per unit, including three bedrooms, two full baths, one half bath, and an attached 315-square-foot garage.
The striking exterior showcases a modern Northwest aesthetic with clean lines and a high-contrast palette that enhances the street-side curb appeal.
Upon entry, the main level provides a seamless flow through an open-concept layout that prioritizes natural light and efficient use of space.
Upstairs, the private primary suite offers a quiet retreat, while two secondary bedrooms are thoughtfully clustered nearby to maximize functionality for families or guests.
A versatile loft area provides an ideal spot for a home office, study nook, or casual media lounge tucked away from the main living quarters.
Convenient main-level laundry facilities ensure that daily chores remain organized and easily accessible within the home's primary floor plan.

Unit A & B

Heated Area

1,592Sq. Ft.

732 Sq. Ft. 1st

860 Sq. Ft. 2nd

Beds

3Beds

Baths

2Full Baths

1Half Bath

Cars

Standard

315 Sq. Ft.

Dimensions

25'width

49'depth

Unfinished Areas

315 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

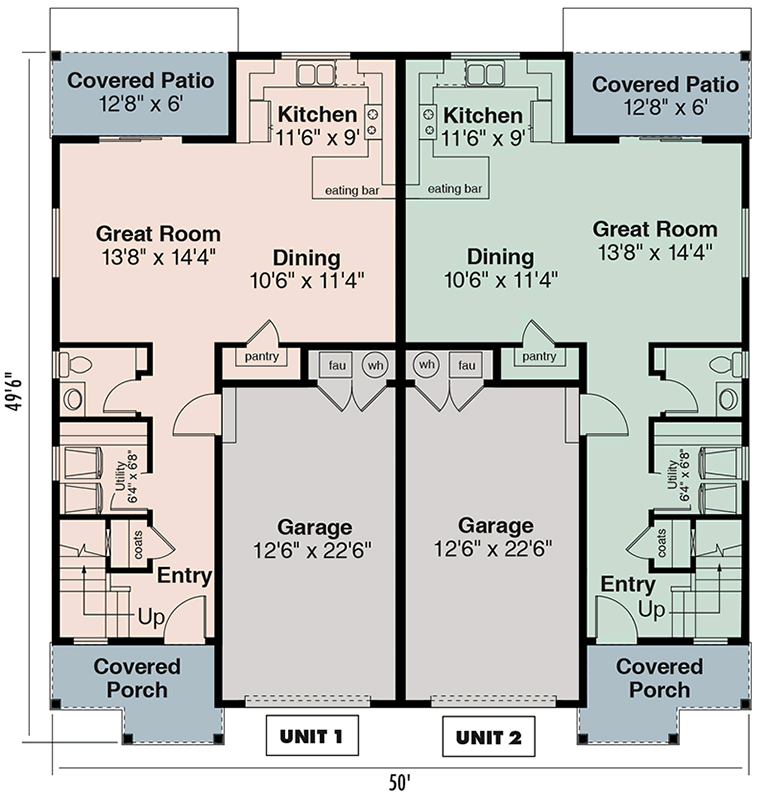

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

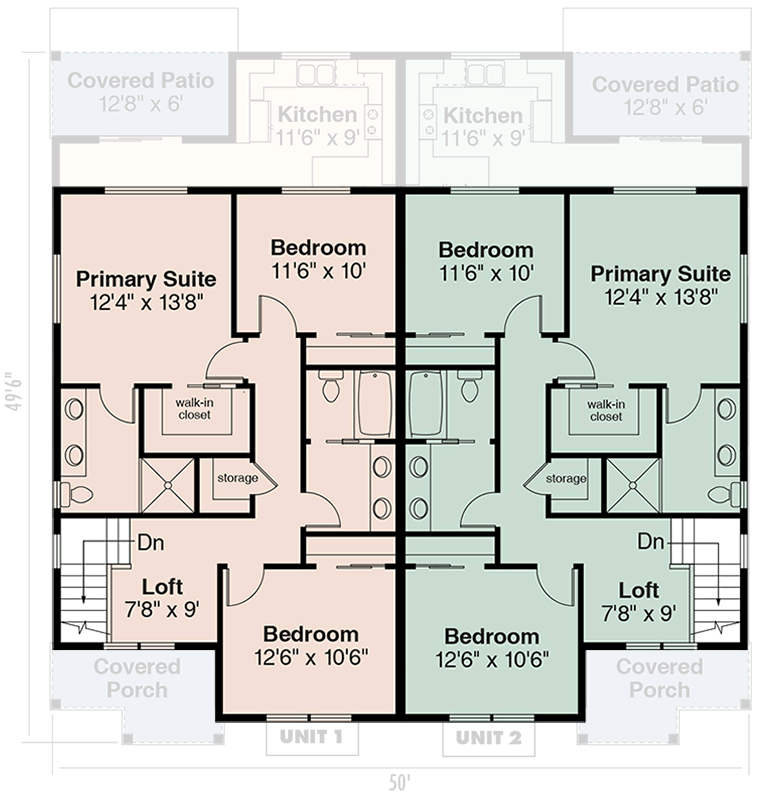

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
