Contemporary Northwest Home Plan with Rooftop Terrace and 2-Bed Apartment

Heated S.F.
3,567
Beds
5
Baths
3.5
Stories
2-3
Cars
2

Floor Plan

Plan 666169RAF

Ground Level
Ground Level
Main Level
Main Level
Second Level
Second Level
Rooftop Level
Rooftop Level

Plan 666169RAF

M-F 9am-5pm EST |

1-203-761-8500

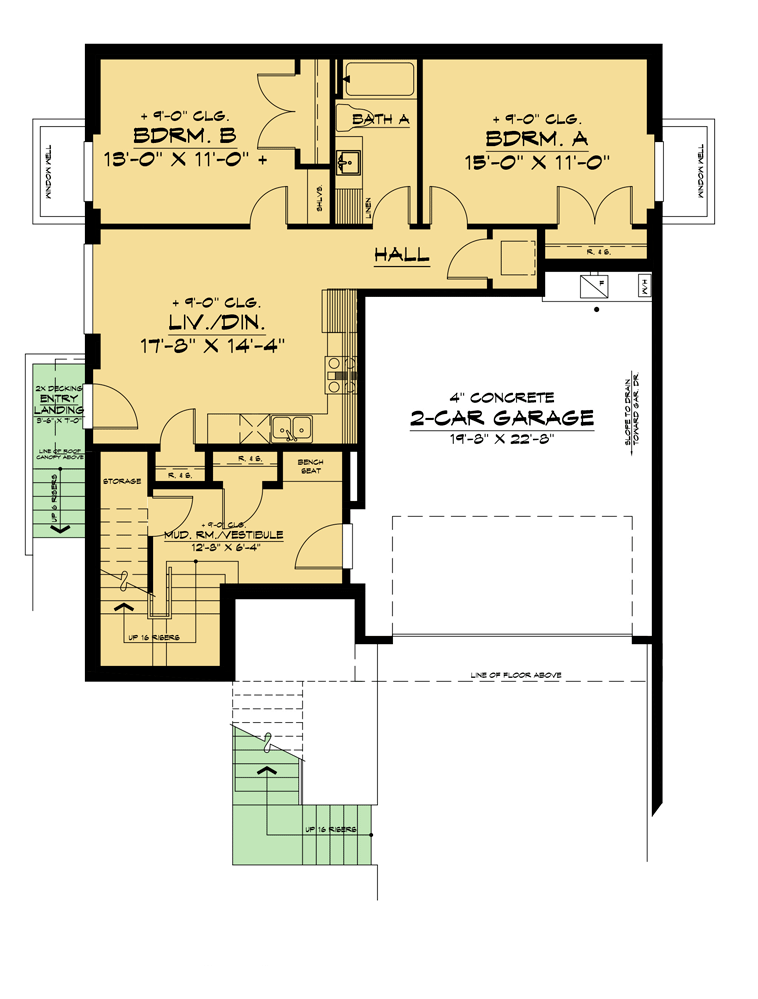

Ground Level

Plan 666169RAF: Contemporary Northwest Home Plan with Rooftop Terrace and 2-Bed Apartment - Floor Plan - Ground Level - Contemporary, Modern, Northwest

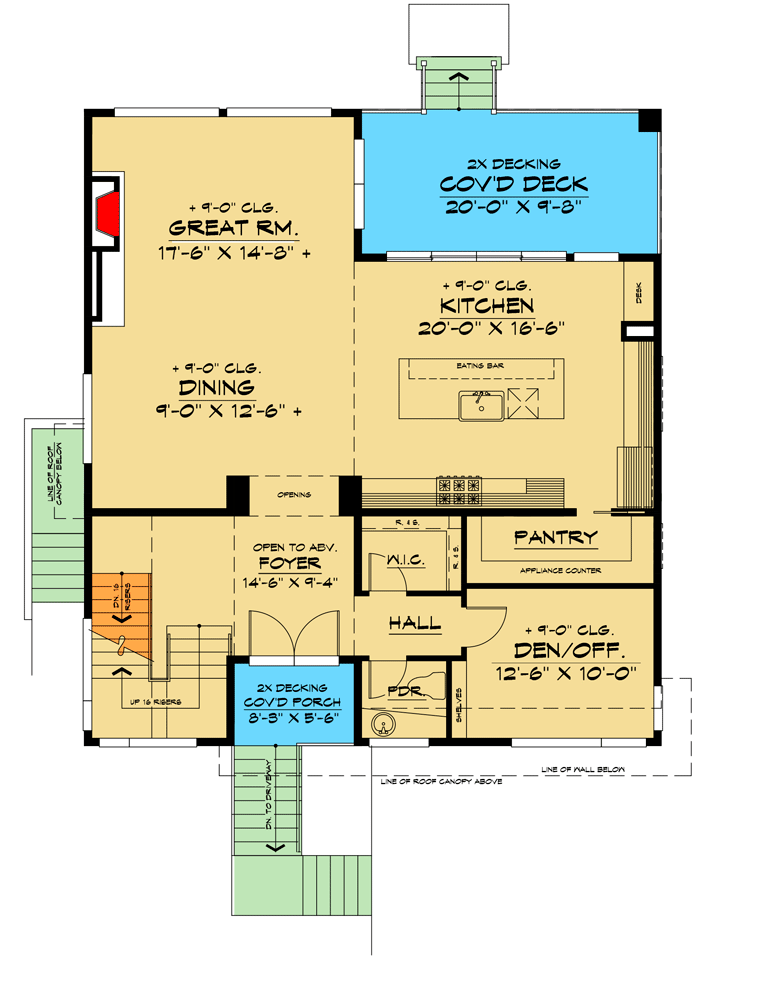

Main Level

Plan 666169RAF: Contemporary Northwest Home Plan with Rooftop Terrace and 2-Bed Apartment - Floor Plan - Main Level - Contemporary, Modern, Northwest

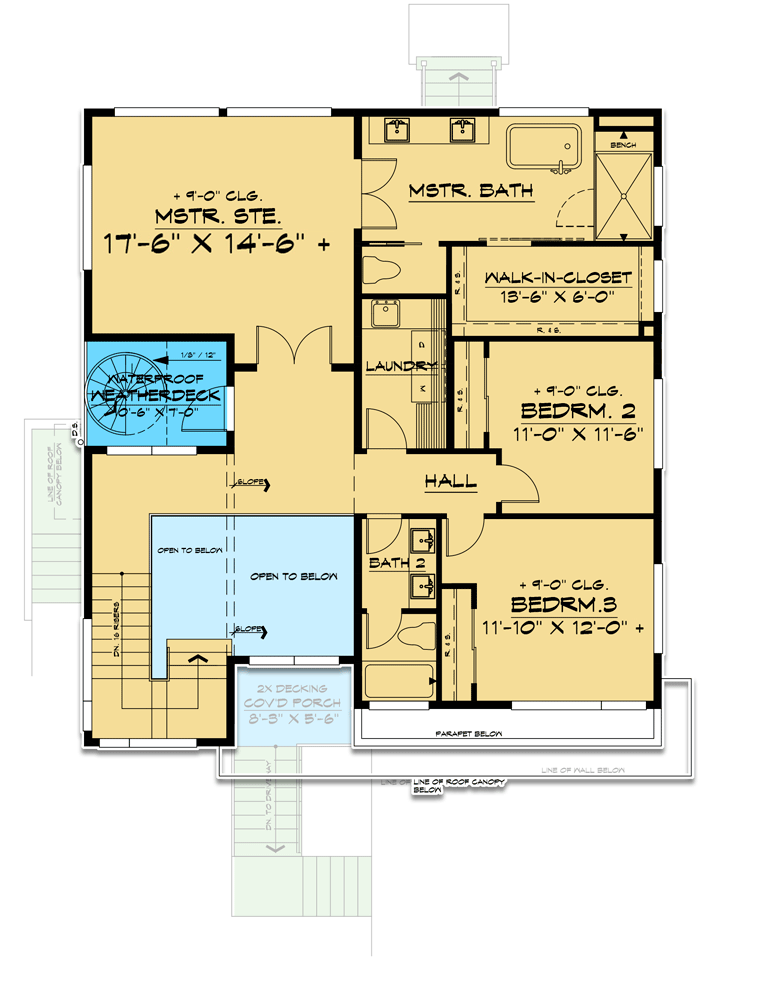

Second Level

Plan 666169RAF: Contemporary Northwest Home Plan with Rooftop Terrace and 2-Bed Apartment - Floor Plan - Second Level - Contemporary, Modern, Northwest

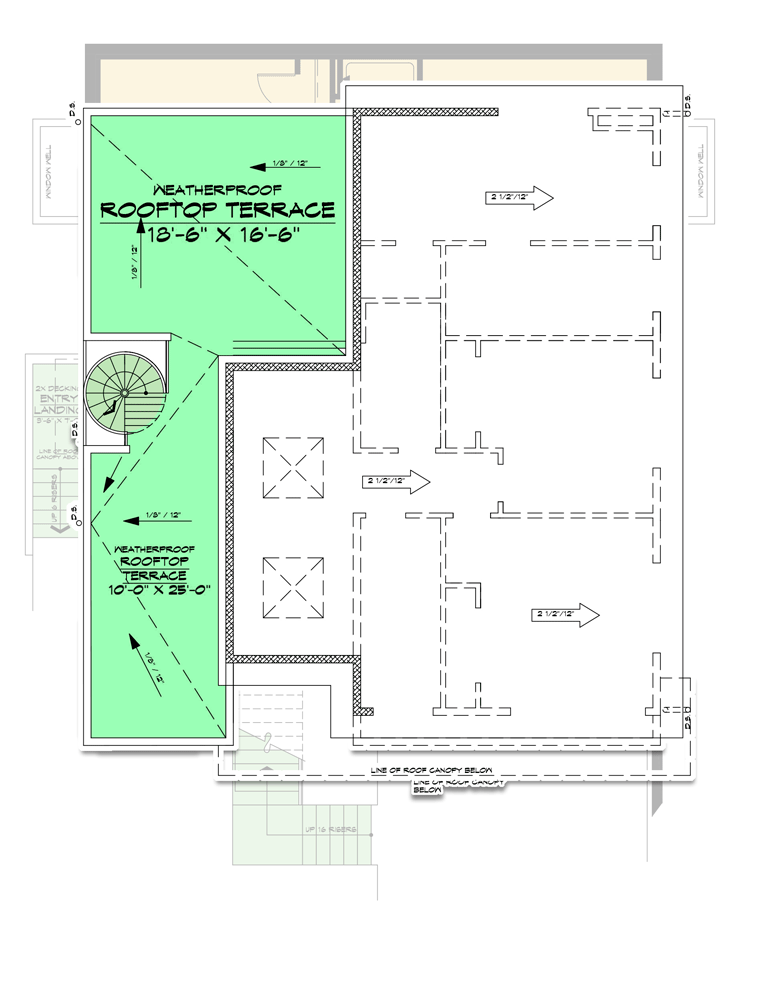

Rooftop Level

Plan 666169RAF: Contemporary Northwest Home Plan with Rooftop Terrace and 2-Bed Apartment - Floor Plan - Rooftop Level - Contemporary, Modern, Northwest

Plan Details

  • This Contemporary Northwest home plan features a flexible lower-level living space that can be used as an income property, in-law suite, or for children not quite ready to live on their own.
  • The main level delivers an open and free-flowing communal space that expands onto a covered deck, while a den just off the entryway offers a quiet, serene space to relax.
  • A built-in desk in the island kitchen is perfect for homework or recipe research, and a nearby pocket door reveals a large pantry with an appliance counter.
  • Three bedrooms and the laundry room occupy the second level, including the master suite with a 5-fixture bathroom and walk-in closet. A spiral staircase encourages you to enjoy the surrounding landscape from the spacious rooftop terrace.
  • The double garage is located on the lower level with mudroom access to the main level. An exterior door offers the 2-bedroom apartment privacy and all of the amenities for independent living are included in the space.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,567 sq. ft.

Lower Level

121 sq. ft.

1st Floor

1,399 sq. ft.

2nd Floor

1,260 sq. ft.

Porch, Front

44 sq. ft.

Deck

193 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 6"

Depth

42' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

481 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

2 1/2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Multiple Stairs

Walk-in Pantry

Plan Collections

Home Office

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,567 sq. ft.

Lower Level

121 sq. ft.

1st Floor

1,399 sq. ft.

2nd Floor

1,260 sq. ft.

Porch, Front

44 sq. ft.

Deck

193 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 6"

Depth

42' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

481 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

2 1/2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Multiple Stairs

Walk-in Pantry

Plan Collections

Home Office

Sloping Lot
