Plan 370005SEN
Contemporary Oasis House Plan with Roof Top Terrace
Heated S.F.
2,210
Beds
3-4
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • A courtyard welcomes guests into a grand foyer with a nearby coat closet. Down the hall, an open floor plan greets you, combining the great room, kitchen, and dining area.
  • The chef in the family will appreciate the large prep island, and the walk-in pantry lends plenty of storage space. The shared living space is oriented to take advantage of the covered patio and rearward views.
  • French doors off the great room grant access to an office, or fourth bedroom, which includes a half bath.
  • Two additional bedrooms share a hall bath, while the rear-facing master suite boasts a tray ceiling and 5-fixture bath with a large walk-in closet.
  • The modern flat roof allows for a sprawling, roof top terrace for maximum outdoor enjoyment.
What's Included
This house plan has the following pages:
  • Cover Sheet
  • General Notes

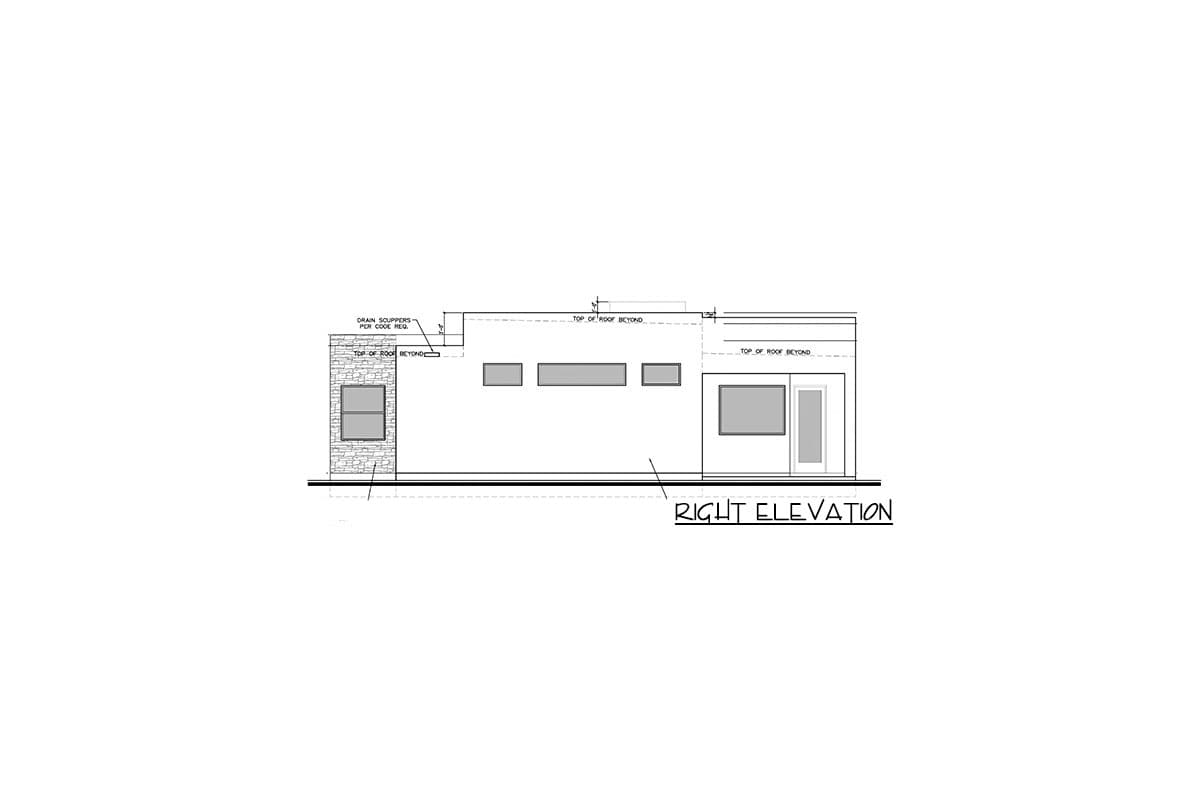

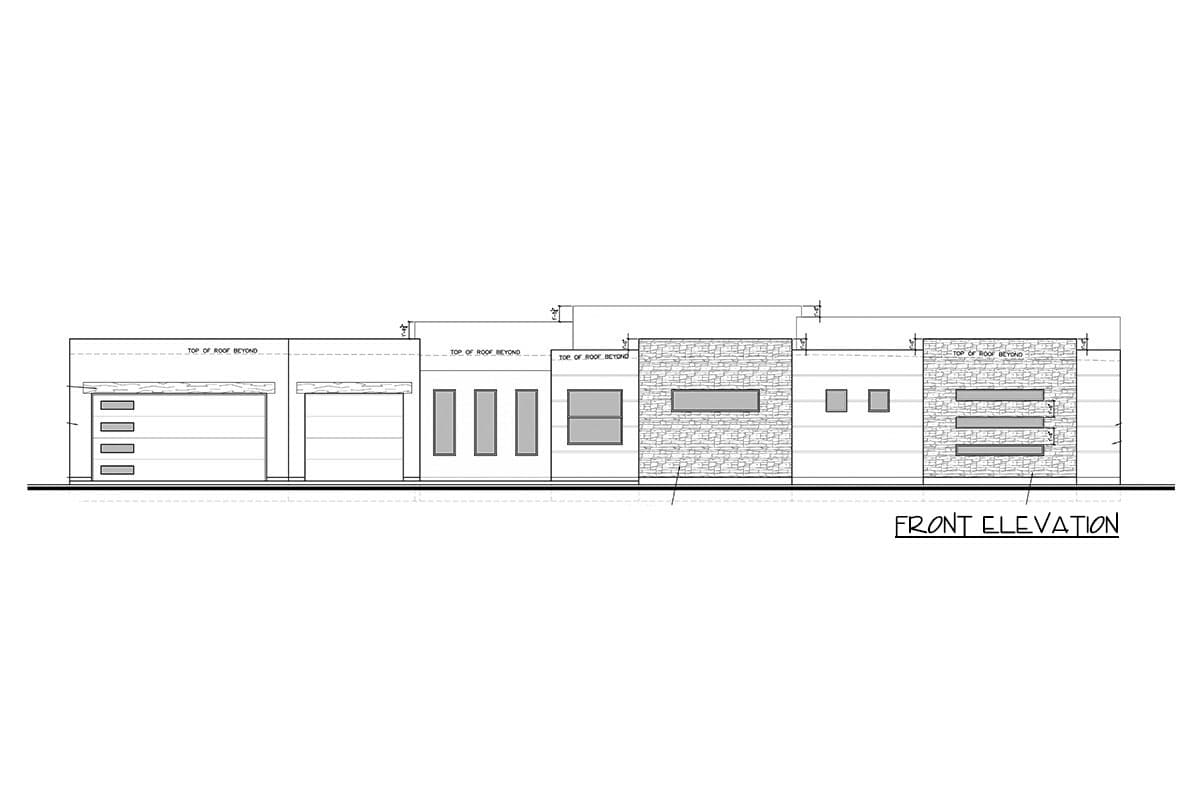

  • Front/Right Elevations

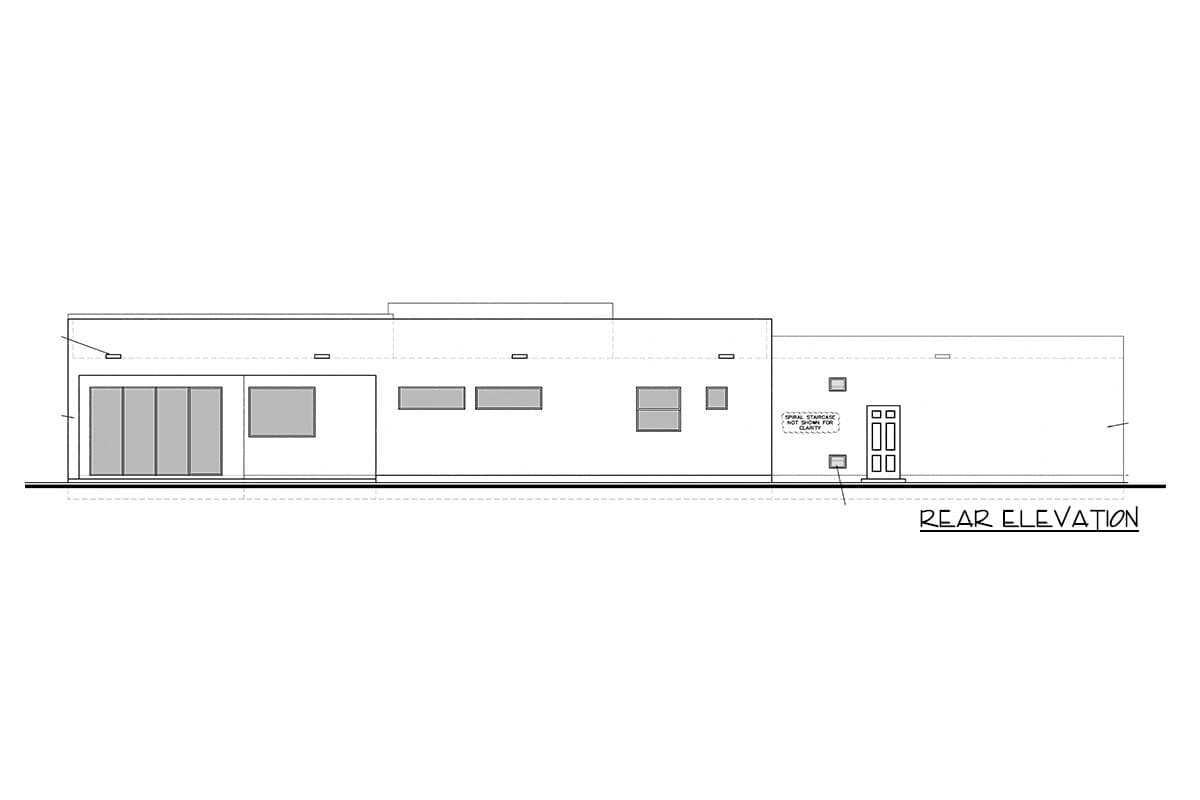

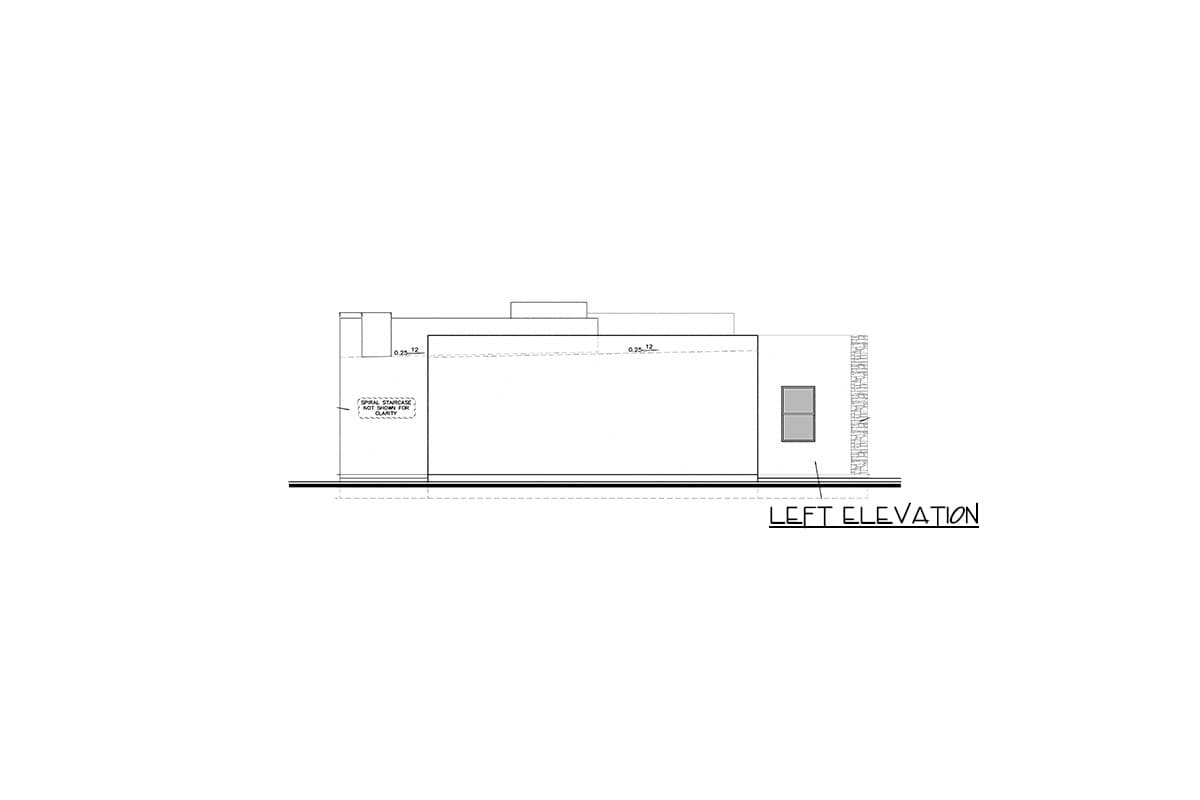

  • Rear/Left Elevations
  • Foundation Plans
  • Main Floor Framing Plan

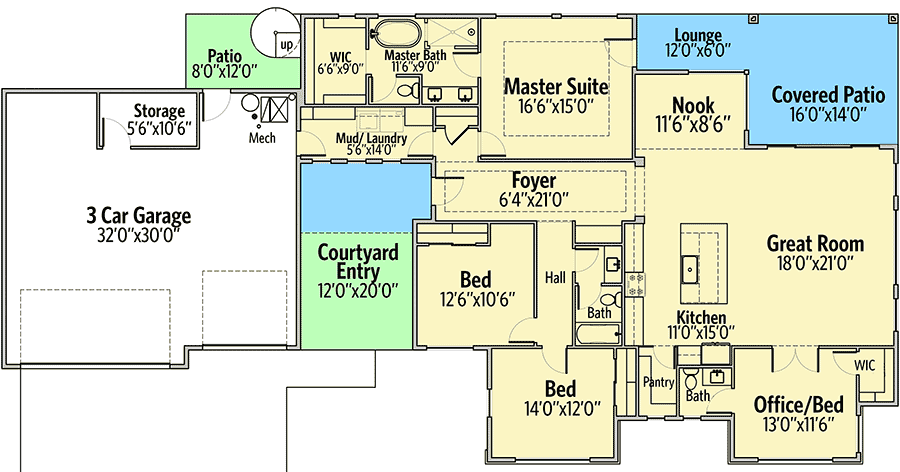

  •  Main Floor Plan
  • Roof Framing Plan

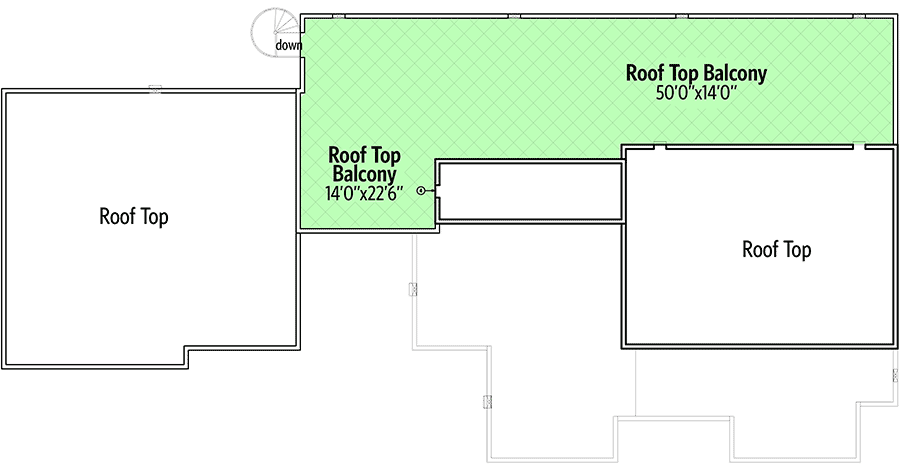

  • Roof Parapet / Terrace Plan
  • Building Section
  • Main Electrical Plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Oasis House Plan with Roof Top Terrace

  • 2,210

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,210 sq. ft.
  • 1st Floor: 2,210 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 48' 0"
  • Max ridge height: 15' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 932 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Monolithic Slab, Walkout, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 0.25 on 12
  • Framing Type: Truss
