Plan 42693DB Contemporary One-story Home Plan with Clustered Bedrooms

Contemporary One-story Home Plan with Clustered Bedrooms

Plan 42693DB

  • 1,946

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-story house plan has a contemporary stone and stucco exterior and a 3-car garage.
  • Step in off the covered entry and take in the family room with 11' ceilings and views to the back.
  • The dining room is open to the family room and kitchen and has access to the covered patio.
  • The kitchen has a large island and a large walk-in pantry. Loading groceries is a breeze with the 3-car garage steps away.
  • The master suite has a large walk-in closet. Two bedrooms share a bath nearby.
  • Related Plan: Get an alternate version with house plan 40914DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

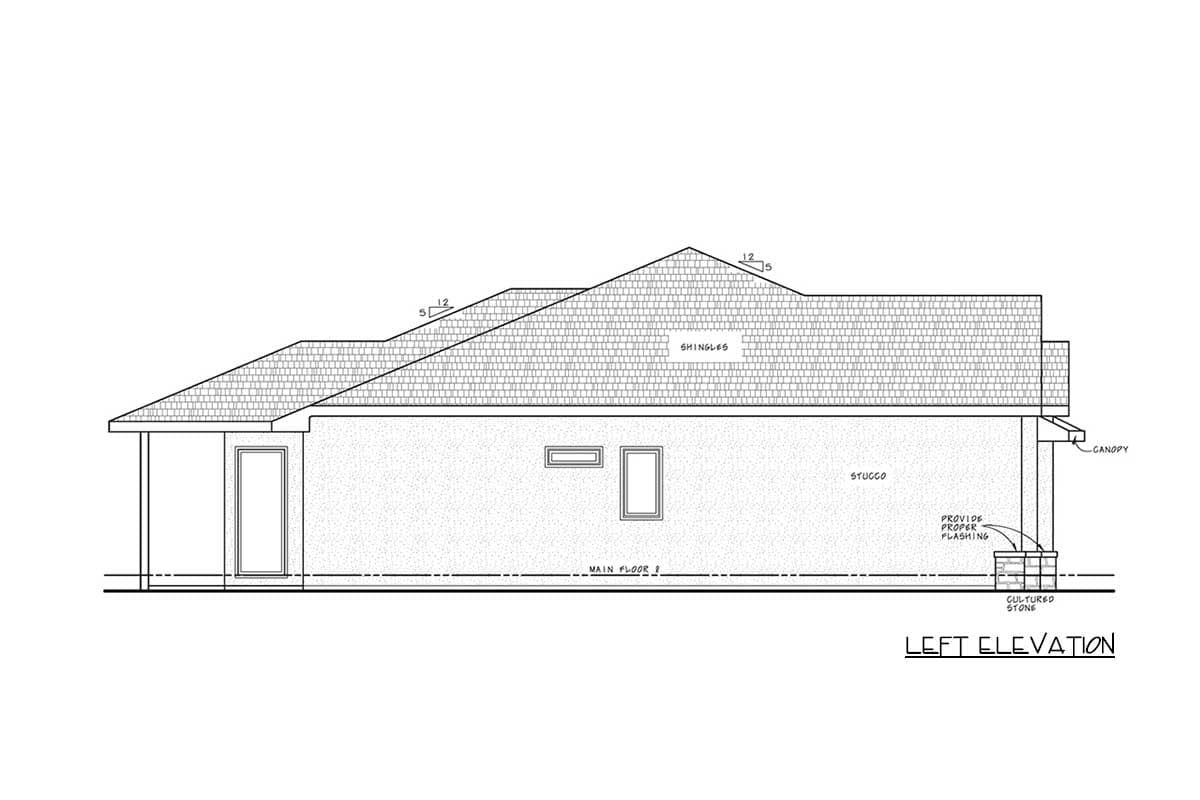

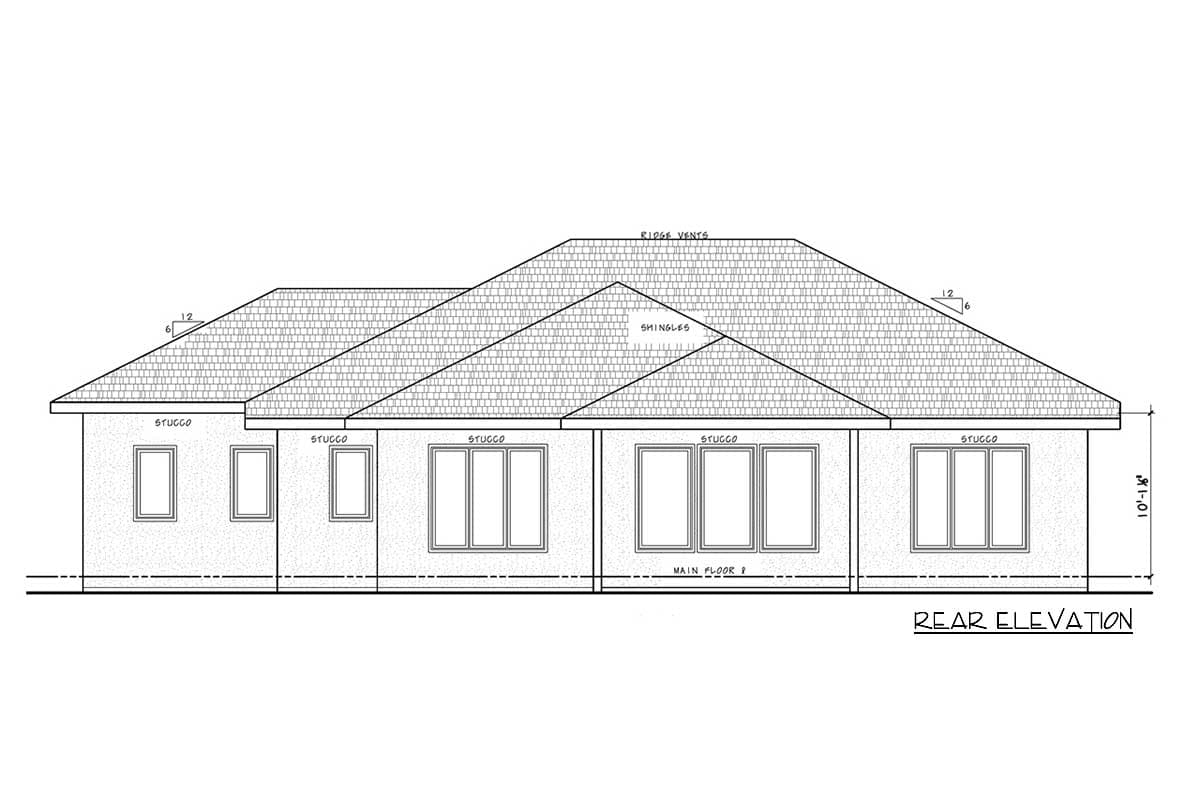

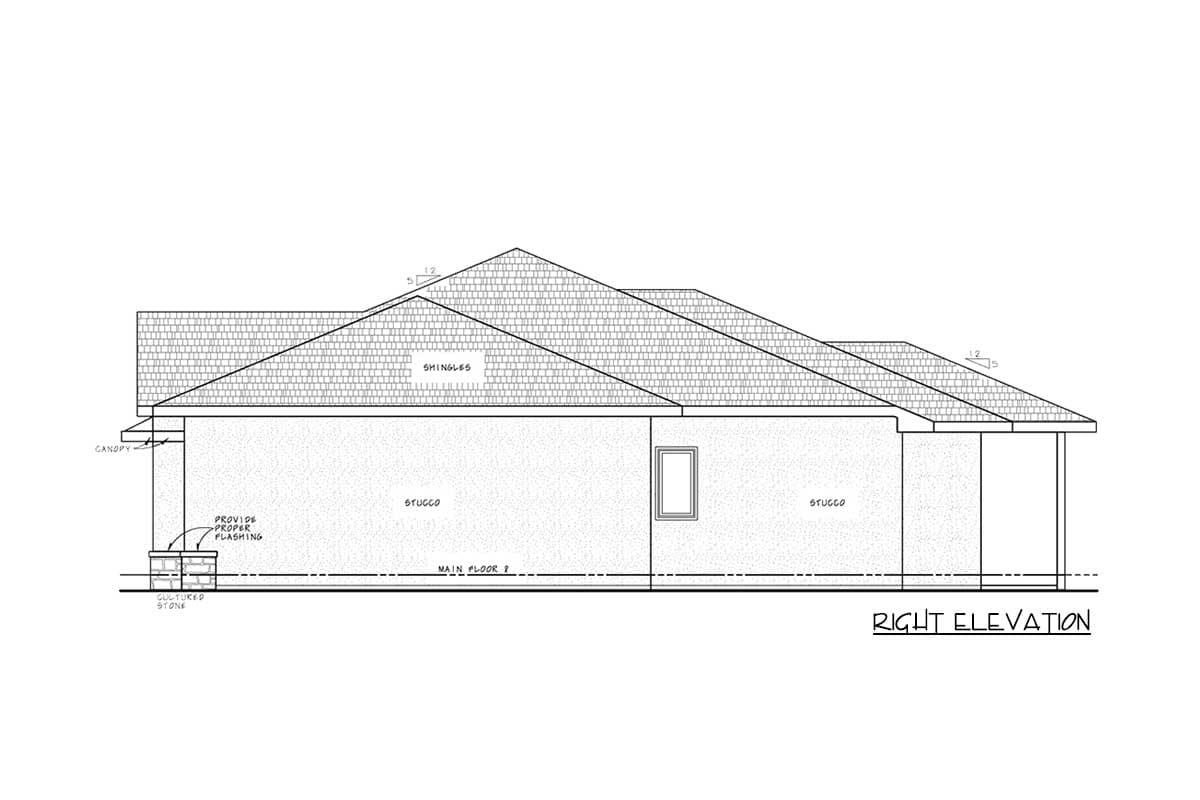

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

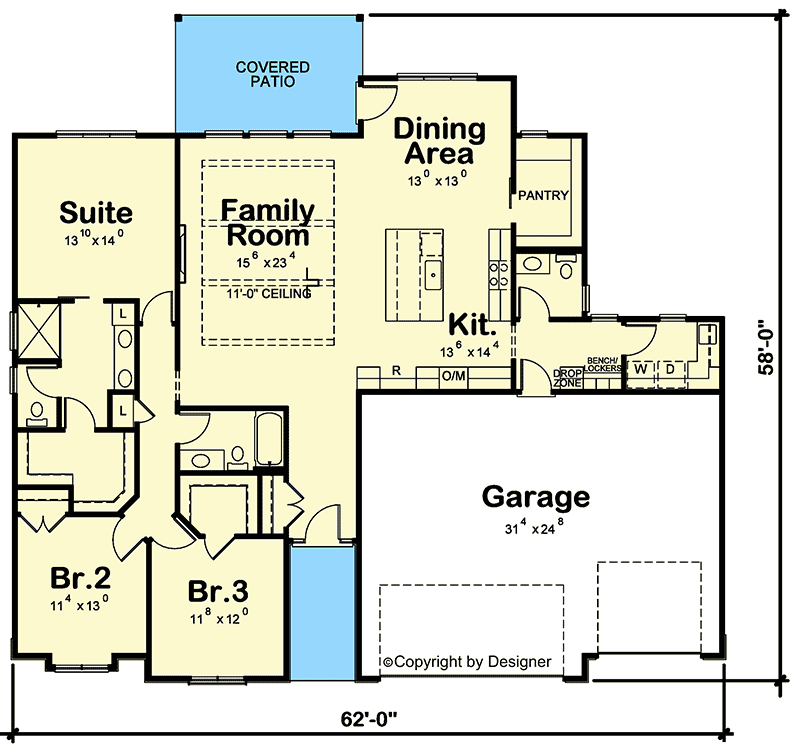

Contemporary One-story Home Plan with Clustered Bedrooms - 42693DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

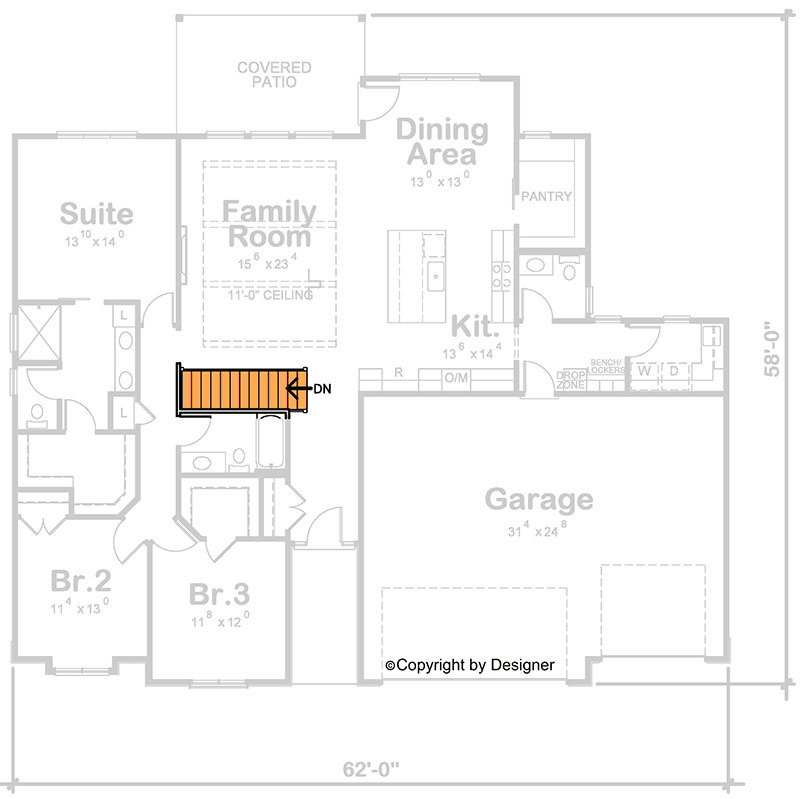

Contemporary One-story Home Plan with Clustered Bedrooms - 42693DB floor plan - 2nd Floor

Plan details

Contemporary One-story Home Plan with Clustered Bedrooms

  • 1,946

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $1,005
  • PDF - Unlimited Build $1,505
  • CAD + PDF - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • This one-story house plan has a contemporary stone and stucco exterior and a 3-car garage.
  • Step in off the covered entry and take in the family room with 11' ceilings and views to the back.
  • The dining room is open to the family room and kitchen and has access to the covered patio.
  • The kitchen has a large island and a large walk-in pantry. Loading groceries is a breeze with the 3-car garage steps away.
  • The master suite has a large walk-in closet. Two bedrooms share a bath nearby.
  • Related Plan: Get an alternate version with house plan 40914DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,946 sq. ft.
  • 1st Floor: 1,946 sq. ft.
  • Porch, Rear: 167 sq. ft.
  • Porch, Front: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 58' 0"

Garage

  • Type: Attached
  • Area: 784 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
