Plan 22617DR Contemporary Ranch Home Plan with Clapboard and Board and Batten Siding

Contemporary Ranch Home Plan with Clapboard and Board and Batten Siding

Plan 22617DR

  • 1,260

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This contemporary ranch home plan fits right into your mountain or woodsy lot. It has a standing seam metal roof and a contemporary look and feel to it with a combination of clapboard and board and batten siding.
  • Inside, versatile living and dining space with a fireplace in back is under a vaulted ceiling. The kitchen has a roomy island and is open to the dining and living rooms. Sliding doors take you to the outdoor space in back.
  • Unfinished basement space gives you room to expand.
  • Related Plan: Get an alternate version with house plan 22530DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

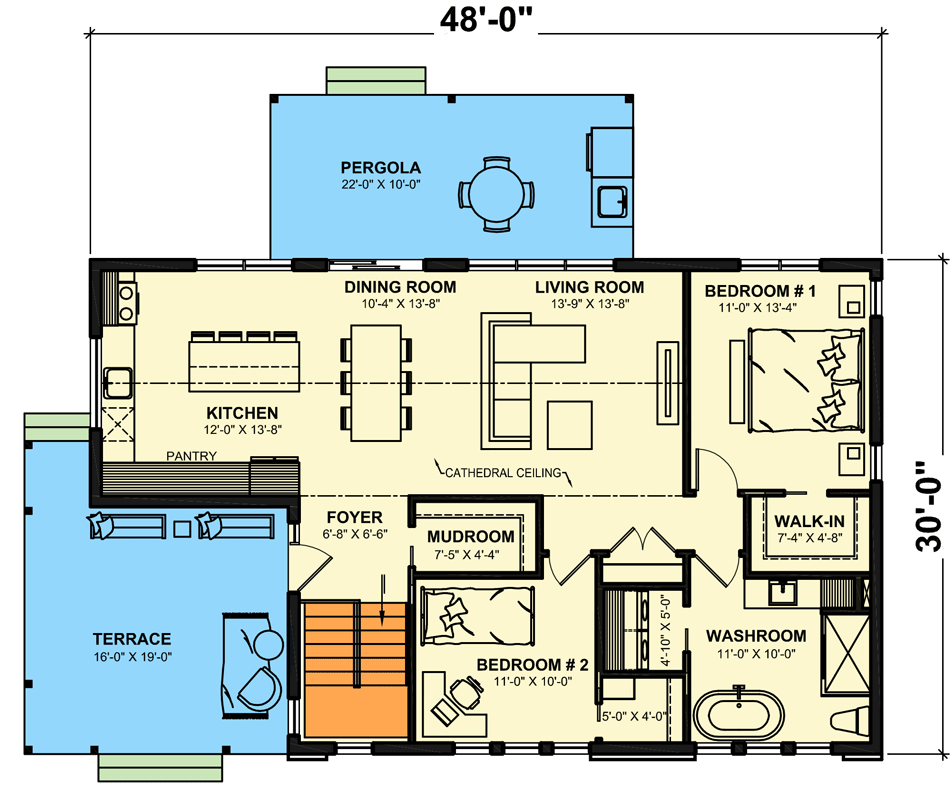

Contemporary Ranch Home Plan with Clapboard and Board and Batten Siding - 22617DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Ranch Home Plan with Clapboard and Board and Batten Siding - 22617DR floor plan - 2nd Floor

Plan details

Architectural Style

Contemporary Ranch Home Plan with Clapboard and Board and Batten Siding

  • 1,260

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD + PDF - Single-Build $1,655
  • View all purchase option online

About This Plan

  • This contemporary ranch home plan fits right into your mountain or woodsy lot. It has a standing seam metal roof and a contemporary look and feel to it with a combination of clapboard and board and batten siding.
  • Inside, versatile living and dining space with a fireplace in back is under a vaulted ceiling. The kitchen has a roomy island and is open to the dining and living rooms. Sliding doors take you to the outdoor space in back.
  • Unfinished basement space gives you room to expand.
  • Related Plan: Get an alternate version with house plan 22530DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,260 sq. ft.
  • Lower Level: 1,260 sq. ft.
  • 1st Floor: 1,260 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Monolithic Slab, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 30' 0"
  • Max ridge height: 27' 3"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
